Titan 1140ix Airless Sprayer Parts by Assembly & Diagram
Find genuine OEM replacement parts for your Titan 1140ix Airless Sprayer at AllTitanParts. Browse dedicated assembly diagrams to identify pump, drive, filter, siphon, cart, and valve components for your maintenance or repair.
Start with your equipment configuration, locate the component on the appropriate diagram, and match its reference to the listed Titan part number before ordering.
Choose the Right Part for Your Repair
An accurate parts list begins with the sprayer identification label and the components installed on your machine. Keep the model, serial number, and existing part references available while comparing diagrams.
1. Identify Your Machine
Confirm the model, serial number, and High Rider or Low Rider configuration.
2. Select the Assembly
Open the section containing the component you need to inspect or replace.
3. Read the Diagram
Match the numbered callout to its corresponding manufacturer part number.
4. Verify & Order
Review fitment, supplied contents, required quantity, and replacement-number notes.
Shop Titan 1140ix Parts by Assembly
Choose a section below to reach its diagram and replacement parts listings.

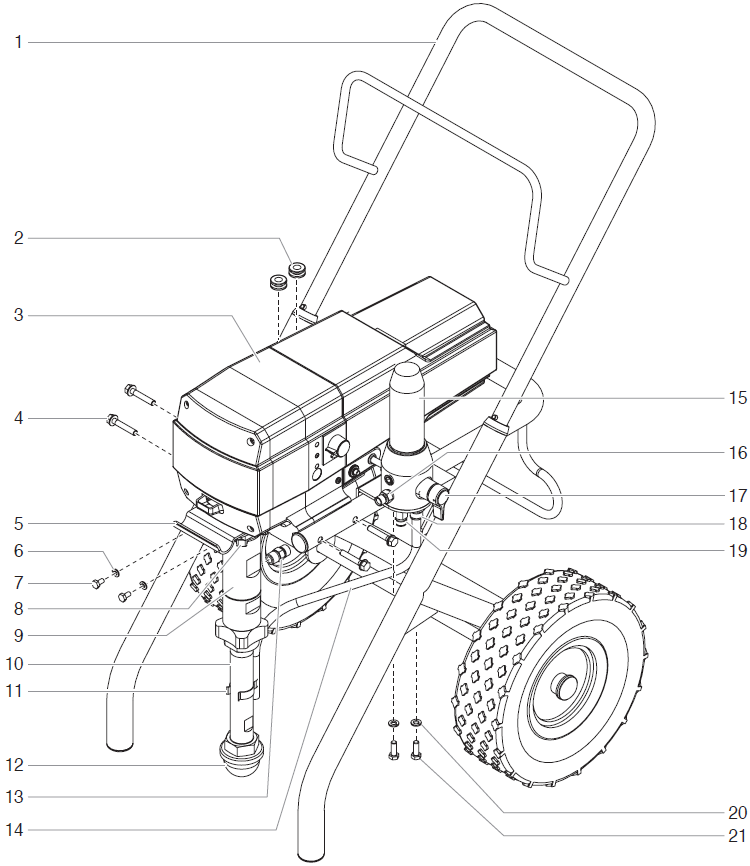

Main Assembly Parts
Locate listed machine components, including the fluid section, siphon tube, inlet screen, bypass tube, fittings, and fasteners.

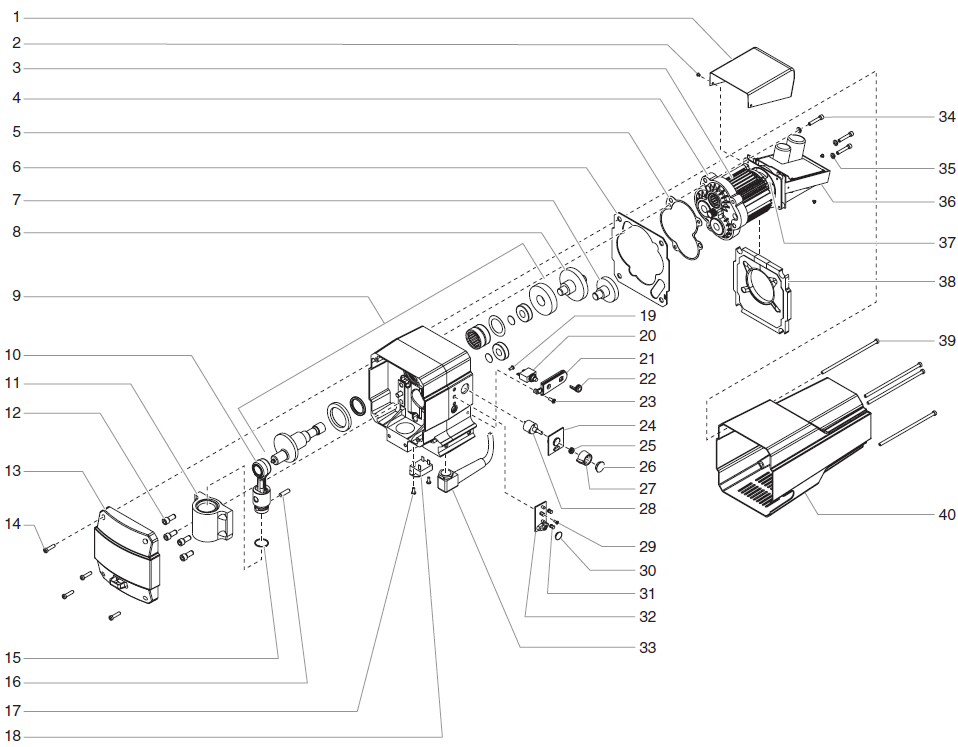

Drive Assembly Parts
Use the drive diagram to identify the components and hardware associated with your installed drive system.

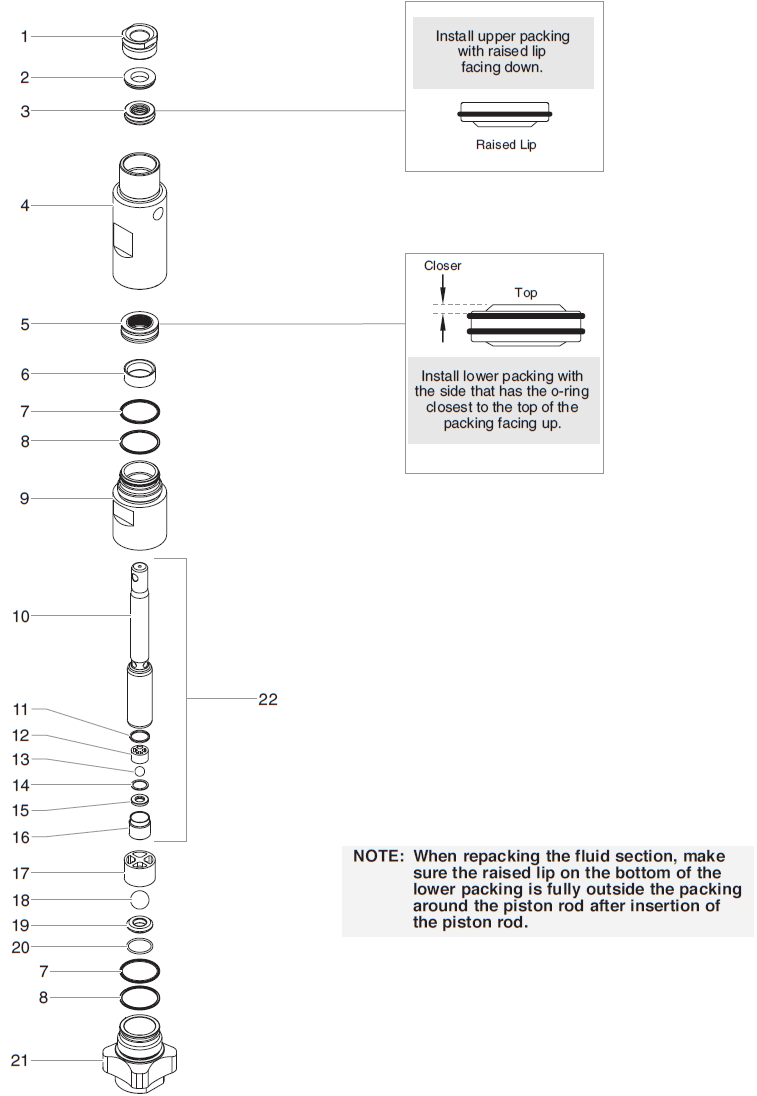

Fluid Section Parts — 800-300
Identify pump service parts and the listed Titan 800-273 repacking kit using the fluid section breakdown.
High Rider Cart Parts — 800-600
Compare the High Rider cart diagram with your machine before selecting cart replacement components.

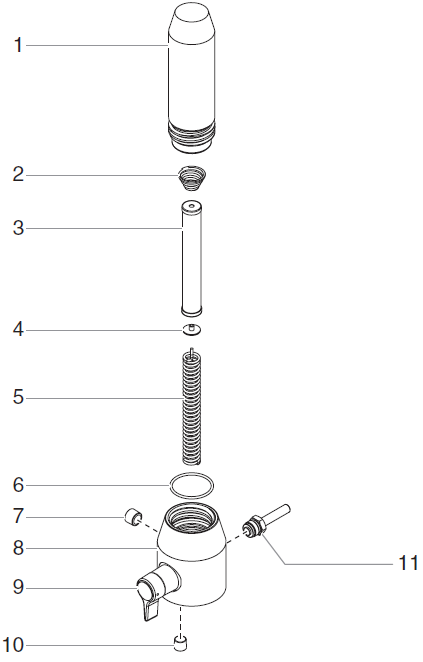

Filter Assembly Parts — 800-900
Find listed filter components such as the housing, 60 mesh manifold filter, screen adapter, and support spring.

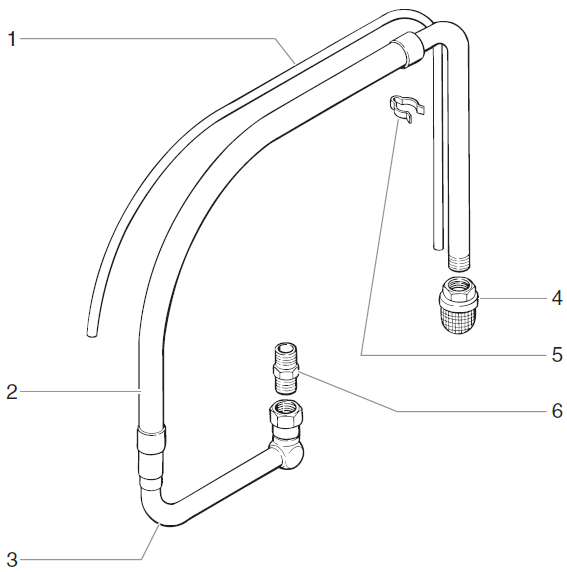

Low Rider Siphon Set Parts
Browse the listed siphon tube assembly, return hose, swivel, and related material intake components.

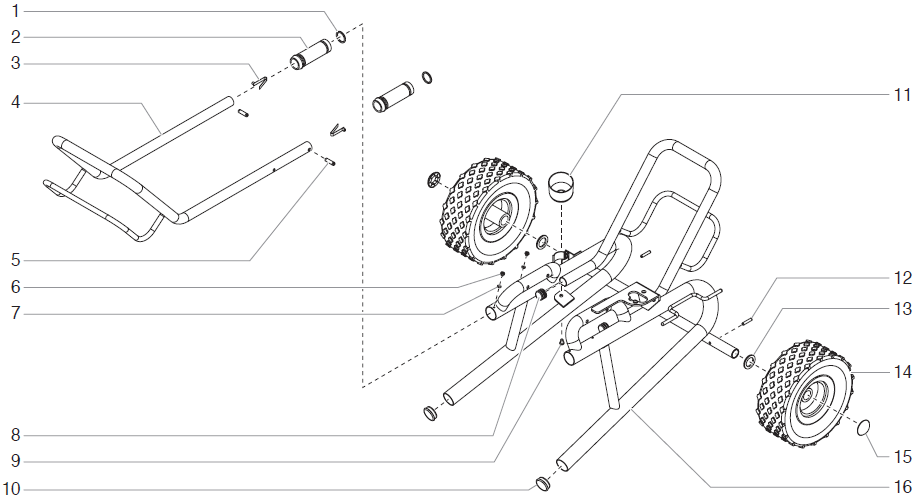

Low Rider Cart Parts — 800-590
Use this section to match components to the Low Rider cart fitted to your sprayer.

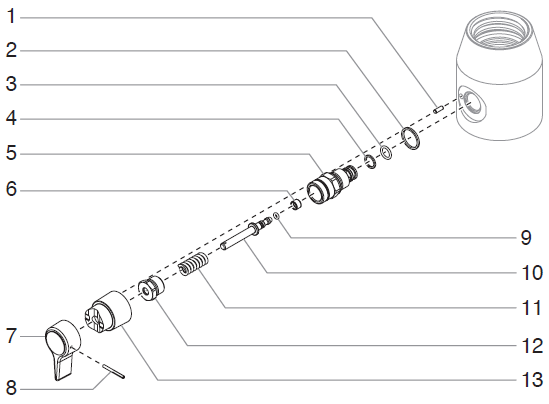

PRIME/SPRAY Valve Parts — 800-915
Open the valve assembly diagram to identify the correct service components for your installed valve.
Sprayer Accessories
Explore listed accessories and check their connections, ratings, and application before purchasing.
Titan 1140ix Parts Buying Guide
| Repair Area | What to Verify Before Ordering |
|---|---|
| Pump and fluid section | Match the installed pump to its diagram and confirm the contents of any repair kit or replacement assembly. |
| Drive components | Check the exact component reference and applicable specifications against your machine. |
| Filtration | Confirm housing fitment and the filter mesh specified for your equipment and coating. |
| Siphon and return system | Compare connections and component arrangement with the correct intake diagram. |
| Cart hardware | Select the diagram matching your High Rider or Low Rider configuration. |
| Individual parts and assemblies | Review supplied contents and quantities; a diagram does not define what is included in one purchase. |
Featured Component: Titan 800-300 Fluid Section
The Titan 800-300 Fluid Section appears on the 1140ix main assembly parts page. Its product listing describes a complete fluid section assembly for compatible sprayers.
Compare the assembly with your installed pump and inspect related mounting components before ordering. The dedicated fluid section diagram also helps identify separate service parts when inspection indicates that a component repair is appropriate.
Plan the Repair Before Selecting Parts
Record each required part number, diagram reference, and quantity. Inspect adjacent components during service so that damaged mating surfaces, worn hardware, or missing seals can be included in your repair plan.
Follow the equipment manual’s troubleshooting, pressure-relief, and power-disconnection procedures. A pressure change, leak, or priming problem can have several causes, so establish the fault before choosing replacements.
Order Your Titan 1140ix Parts with Confidence
Choose the assembly above and review the required part listing. For help matching a component, have your model, serial number, existing part number, and diagram reference ready when contacting AllTitanParts.
Parts Assistance: 713-931-0006Frequently Asked Questions
How do I find the correct Titan 1140ix replacement part?
Confirm your model, serial number, and machine configuration. Open the appropriate assembly diagram, match the component reference to its Titan part number, and review compatibility before ordering.
Which assemblies are listed for the Titan 1140ix?
The category lists main, drive, fluid section, filter, and PRIME/SPRAY valve assemblies, High Rider and Low Rider carts, a Low Rider siphon set, and accessories.
Is Titan 800-300 listed for the 1140ix?
Yes. Titan 800-300 appears on the 1140ix main assembly page, and the category includes its fluid section parts diagram. Confirm the installed pump and applicable diagram before purchasing.
Which cart diagram should I use?
Use the diagram matching your installed cart. The 1140ix category identifies the High Rider cart as 800-600 and the Low Rider cart as 800-590.
Does an assembly diagram show everything included with a purchase?
No. A diagram identifies component locations and references. Check the individual product listing for supplied contents, required quantities, and separately sold items.
