Titan 330 Airless Sprayer Parts – OEM Parts by Assembly & Diagram
Find Titan 330 Airless Sprayer Parts through dedicated motor, stand, gearbox, suction-set, pump-block, fluid-section and accessory categories. Start with the assembly you need to service, locate the component in its parts diagram and match the Titan OEM number before ordering.
Find Your Titan 330 Parts Faster
A repair is easier to prepare when you can see where each component belongs. AllTitanParts organizes Titan 330 replacement parts into separate assembly sections, giving you a clear starting point for identifying the item your machine requires.
Confirm the model identification on your sprayer, select the relevant assembly below and follow the diagram reference to its listing. Check the OEM number, application and package contents before adding the item to your cart.
Find the Correct Titan 330 Part in Four Steps
Confirm the Machine
Check that your sprayer is a Titan 330 and keep its serial information available.
Choose the Assembly
Select the section containing the component you need to identify.
Use the Diagram
Locate the component and match its diagram reference to the listed part number.
Verify & Order
Review compatibility, quantity and package contents before purchasing.
Choose Your Titan 330 Parts Diagram
Go directly to the relevant service section using the links below. Each category provides a starting point for identifying its listed replacement components.

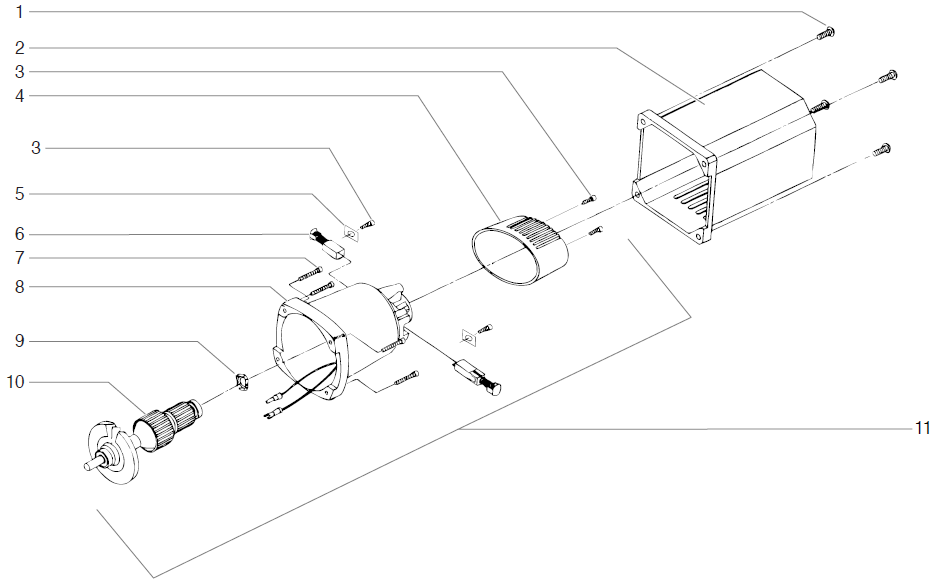

Motor Assembly
Find the listed motor service component and confirm its application against your machine’s motor information.
SHOP MOTOR PARTS →Stand Assembly
Browse the stand diagram to identify listed support components and associated hardware.
SHOP STAND PARTS →Gear Box Assembly
Locate the required component in the gearbox breakdown and check its diagram reference before ordering.
SHOP GEARBOX PARTS →Suction Set Assembly
Use the suction-set breakdown when identifying replacement components in the machine’s material-intake assembly.
SHOP SUCTION PARTS →Pump Block Assembly
Open the pump-block diagram and match the required component with its listed Titan OEM number.
SHOP PUMP-BLOCK PARTS →Fluid Section Assembly
Identify the fluid-section service component your repair requires through the dedicated assembly breakdown.
SHOP FLUID-SECTION PARTS →Sprayer Accessories
Browse the accessories listed for the Titan 330 and review each item’s application before purchasing.
SHOP ACCESSORIES →Titan 330 Parts Buying Guide
Use the assembly as your starting point, then verify the individual component and its application.
| Service Area | Starting Section | Verify Before Ordering |
|---|---|---|
| Motor service | Motor assembly | Component number and applicable motor configuration |
| Drive components | Gear box assembly | Diagram reference and OEM number |
| Material intake | Suction set assembly | Connections, component application and contents |
| Pump service | Pump block or fluid section | Correct assembly and individual part identification |
| Support and accessories | Stand or accessories section | Mounting details and documented compatibility |
Titan 700-040 Motor Brush
Titan 700-040 is a motor brush listed in the Titan 330 motor assembly. Confirm the applicable motor configuration and required quantity before purchasing. A motor operating problem should be diagnosed before concluding that brush replacement is required.
VIEW 700-040 MOTOR BRUSH →Confirm Fitment Before Starting Your Repair
Select parts by the applicable diagram and OEM number. Similar appearance alone does not establish compatibility. Check any documented replacement number against the original reference, and review whether the item is an individual component or an assembly.
Follow the Titan 330 service instructions for diagnosis, pressure relief, power disconnection and repair. Never use your hand to check for a pressurized leak. Electrical diagnosis and repairs should be performed by a qualified person.
Ready to Find Your Titan 330 Replacement Part?
Choose the assembly, locate the required component and review its product details. Confirm the OEM number, quantity and package contents before placing your order.
CHOOSE YOUR ASSEMBLY ↑Frequently Asked Questions
How do I find the correct Titan 330 replacement part?
Which parts sections are available for the Titan 330?
Which motor brush is listed for the Titan 330?
Does an assembly diagram show everything included in a purchase?
Are Titan 330 parts interchangeable with other Titan models?
What information should I provide for parts assistance?
Need Help Identifying a Titan 330 Part?
Have your model and part information ready, then contact AllTitanParts for assistance before ordering.
CALL 713-931-0006
