Shop Genuine OEM Titan Electric Airless Sprayers
Shop genuine OEM Titan electric airless sprayers, contractor-grade series and homeowner-friendly platforms that deliver reliable pressure, even atomization and the productivity airless spraying is known for. Titan electric airless sprayers push coatings at high pressure through a spray tip with no compressed air required, making them ideal for uniform coverage on walls, siding, fences, ceilings, trim, cabinets with the right setup, and many common jobsite substrates. Select the correct Titan electric airless sprayer by matching coating requirements, required output, maximum tip size, sprayer capacity and the applicable gun/hose configuration.
Choose the Correct Titan Electric Airless Sprayer
Choosing Titan electric airless technology is only the first step. Individual Titan sprayer models combine different motors, flow rates, maximum tip sizes and pressure ratings, which changes spray coverage and production capacity. Select by coating + required output + maximum tip size + sprayer capacity + gun/hose configuration + exact model number.
A higher flow rate does not automatically mean a sprayer is correct for your application, and two electric airless units are not interchangeable simply because they share the Titan brand. Your coating requirements, production speed and jobsite conditions determine the right platform, and the coating manufacturer's sprayer recommendation should also be checked.
Titan Electric Airless Sprayer Series Guide
Titan's current electric airless lineup spans multiple series engineered for different production levels and coating types. The chart below summarizes the primary platforms. Confirm the current orderable model number when selecting a sprayer, particularly where an updated packaged or suffixed number may be shown in parts channels.
| Titan Series | Platform Type | Flow Rate Range | Max Pressure | Technology / Application | Selection Consideration |
|---|---|---|---|---|---|

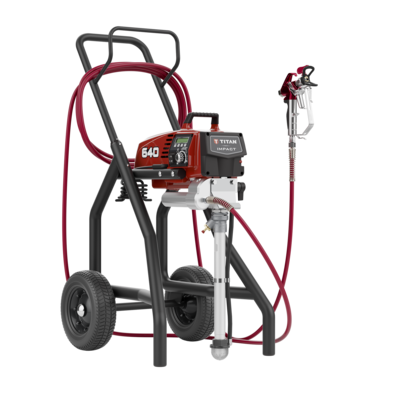

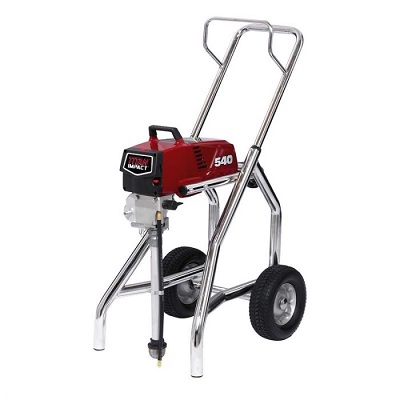

| Impact Series | Piston-driven electric airless | 0.47 to 1.20 GPM | Up to 3,300 PSI | Portable to heavy-duty multi-gun spraying | Match model to gallons per week and tip size |

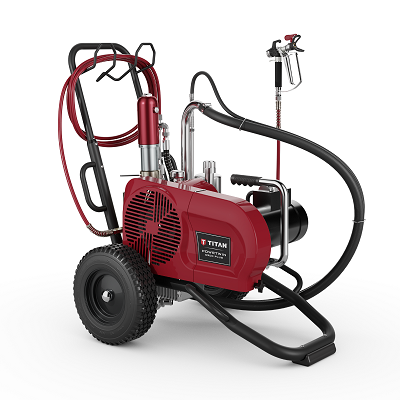

| PowrTwin Series (Electric) | Hydraulic-driven electric airless | 1.10 to 3.15 GPM | Up to 3,600 PSI | Large-scale production and heavy coatings | Convertible to gas power; multi-gun capable |

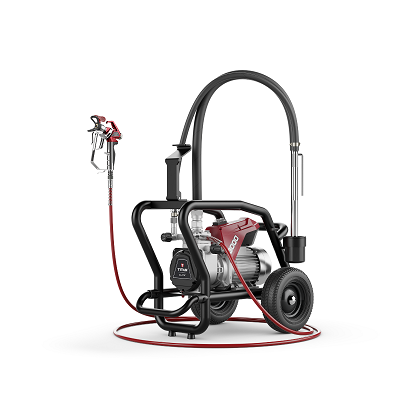

| Elite Series | Sealed hydraulic electric airless | Model dependent | Up to 3,300 PSI | Sustained professional use; PermaStroke Technology | No piston, packings, cylinder or clutch to replace |
| MultiFinish | Air-assisted airless | Up to 0.54 GPM | Up to 3,300 PSI | Fine finish for trim, doors, cabinets | Two systems in one; GM3600 gun compatibility |

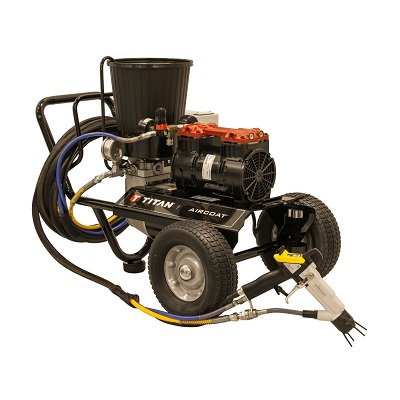

| AirCoat Air Assisted Airless | Air-assisted airless | 0.50 GPM | Up to 2,670 PSI | Fine finish with reduced overspray | Air-assisted atomization improves finish quality |

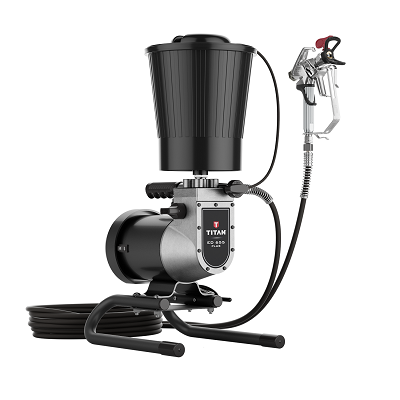

| Titan ED655 PLUS | Diaphragm electric airless | 0.35 GPM | Up to 2,800 PSI | Compact fine finishing; lacquer capable | Lightweight at 27 lbs; 20 to 50 gallons per week |

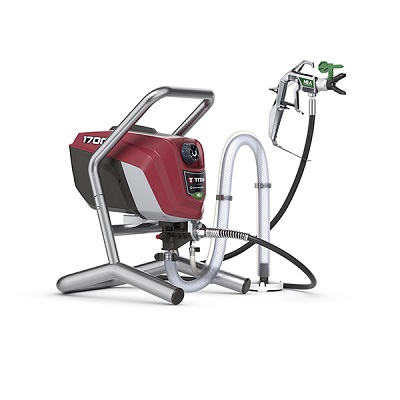

| ControlMax High Efficiency Airless | HEA electric airless | 0.33 to 0.40 GPM | 1,500 to 1,600 PSI | DIY to handyman; up to 55% less overspray | 300 to 500 gallons per year; HEA tip ecosystem |
How Titan Electric Airless Sprayers Work
Titan electric airless sprayers use a motor-driven pump to push coating at high pressure through a spray tip, atomizing the material without compressed air. This airless method delivers uniform coverage and high productivity on large surfaces. Titan's current electric lineup includes piston-driven, hydraulic-driven, diaphragm and HEA platforms, each optimized for different production levels and coating types.
Pushes material at high pressure through a spray tip for uniform coverage.
Ideal for large surfaces where speed and consistent finish matter.
Piston, hydraulic, diaphragm and HEA options for different workloads.
Latex, acrylics, primers, stains and many enamels, varies by model and tip.
Titan also states that HEA-equipped models like ControlMax provide up to 55% less overspray and softer spray for improved control. Actual performance in service still depends on coating viscosity, tip selection, operating pressure and user technique.
Understanding Electric Airless Pressure Ratings
Titan electric airless sprayers like PowrTwin and Impact series operate at high pressure for maximum atomization and production speed.
ControlMax High Efficiency Airless models operate at lower pressure with up to 55% less overspray and a more forgiving fan pattern.
Do not interpret the maximum pressure rating as evidence that a sprayer should always operate at that pressure. Titan optimizes each platform for specific coating types and production requirements. Every pressure-bearing component in the spray system must also remain within its own working-pressure rating; the complete system is limited by its lowest-rated component.
Titan Electric Airless vs Other Spraying Methods
| Buying Consideration | Titan Electric Airless | Conventional Air Spray |
|---|---|---|
| Atomization method | High-pressure hydraulic atomization | Compressed air atomization |
| Production speed | High; designed for large surfaces | Moderate; better for detail work |
| Overspray | Varies by platform; HEA models reduce up to 55% | Higher overspray typical |
| Finish quality | Excellent with correct tip and setup | Excellent for fine finish applications |
| Coating compatibility | Latex, acrylics, primers, stains, enamels | Broader solvent and specialty coating range |
| Selection | Coating + output + tip size + sprayer capacity | Coating + viscosity + air supply + gun setup |
Electric airless is not automatically the correct technology for every application. Choose according to the coating, desired finish, production requirements and equipment capability.
Titan Electric Airless Sprayer Compatibility
Titan electric airless sprayers work with industry-standard airless guns, hoses and spray tips. This describes the system interface; it should not be interpreted as a statement that every sprayer model is suitable for every coating or application.
Confirm the sprayer uses the appropriate Titan airless gun and that the gun is correctly configured.
Confirm the machine can support the selected tip size and required material output.
Confirm the coating manufacturer permits the selected sprayer and tip configuration.
When Should You Service a Titan Electric Airless Sprayer?
Electric airless sprayers are mechanical systems with wear components. Inspect the sprayer when pressure drops, the spray pattern loses definition, priming becomes difficult, or material consumption rises. Common service items include fluid section packings, inlet and outlet valves, filters, hoses and tips. Titan Elite series with PermaStroke Technology eliminates the need to replace the piston, packings, cylinder or clutch, while other platforms have specific wear parts that require periodic replacement. Actual service intervals vary with coating abrasiveness, operating pressure, cleaning, maintenance and usage conditions.
How to Order the Correct Titan Electric Airless Sprayer
- Identify the coating and check the coating manufacturer's recommended sprayer range.
- Determine the required flow rate and production speed.
- Determine the maximum tip size needed for your application.
- Check the sprayer's maximum supported tip size and available output.
- Confirm the spray gun, hose and tip configuration.
- Locate the corresponding Titan series and model in the lineup.
- Verify the current manufacturer ordering number for that model.
- Check documented supersession information when replacing an older model.
- Order only after the sprayer model, equipment capability and current part number are confirmed.
Physical similarity, the Titan brand name, or matching series names alone do not prove complete equipment or coating compatibility.
Compare Related Titan Spraying Equipment
Electric airless is one part of Titan's broader professional spraying system. Compare the technology required for your coating and application before selecting an individual sprayer.
The safest way to select a Titan electric airless sprayer is coating + required output + max tip size + sprayer capacity + gun/hose configuration + exact current model number. Choosing "Titan electric" alone is not enough: an Impact 440, PowrTwin 6900 and ControlMax 1700 have substantially different flow and pressure capabilities.
FAQ Section
Use these answers to narrow the correct Titan electric airless sprayer before ordering.
