GENUINE OEM TITAN • MODEL-SPECIFIC REPLACEMENT PARTS

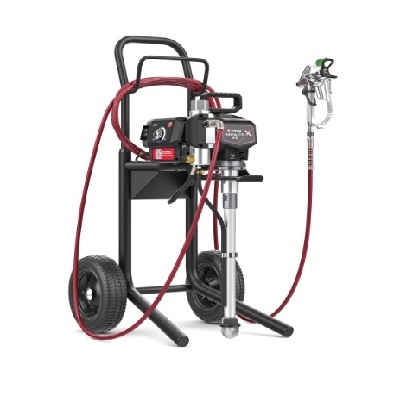

Buy Genuine Titan Impact X Airless Sprayer Parts
Maintain and repair Titan Impact X equipment with genuine OEM replacement parts for the Titan Impact X 120, Impact X 410, Impact X 440 and Impact X 540I. Browse by exact sprayer model and factory parts diagram to identify the correct component before ordering.
Genuine Titan OEM Parts Diagrams Repair Components Model-Specific Fitment
Find the Correct Impact X Replacement Part
The Titan Impact X family includes multiple airless spraying platforms with different specifications, assemblies and service requirements. A component should not be selected simply because it is described as an “Impact X part.”
For accurate ordering, identify your exact machine and follow Model → Assembly → Diagram Reference → Titan Part Number. This helps distinguish shared components from model-specific pump, drive, fluid, filtration, electrical and structural parts.
Choose Your Titan Impact X Sprayer
Select the exact machine to browse its available parts diagrams and OEM replacement components.
18V Battery Platform
Titan Impact X 120
Browse Impact X 120 machine components, spray equipment and model-specific replacement parts.
SHOP IMPACT X 120 →
Electric Airless
Titan Impact X 410
Find pump, fluid-section, drive, filter, cart, suction and accessory components.
SHOP IMPACT X 410 →
Electric Airless

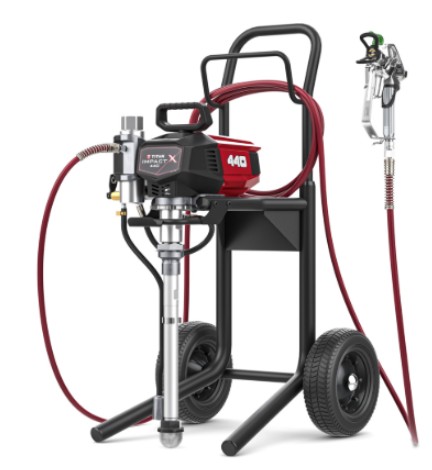

Titan Impact X 440
Browse main, suction, drive, fluid-section, filtration, cart and spray-system parts.
SHOP IMPACT X 440 →
Electric Airless

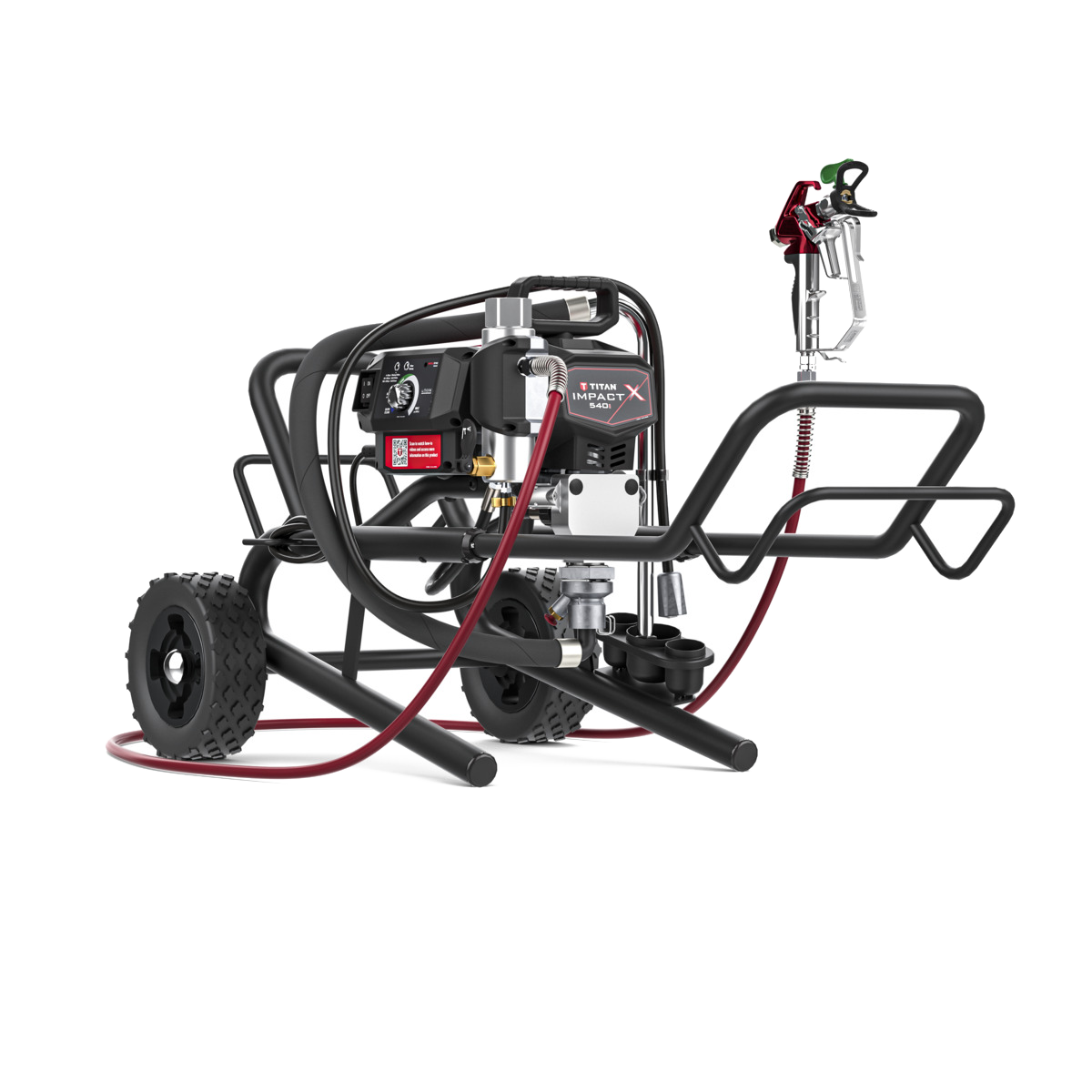

Titan Impact X 540I
Find mechanical, fluid, filtration, control and model-specific replacement components.
SHOP IMPACT X 540I →
Compare Titan Impact X Sprayer Models
These specifications help distinguish the Impact X platforms. They should not be used alone to determine whether an individual replacement part is interchangeable between models.
| Model |
Platform |
Max Pressure |
Max Tip |
Max Delivery |
Ordering Guidance |
| Impact X 120 |
18V battery |
1,600 PSI |
Model-specific configuration |
Low-pressure mobile platform |
Use Impact X 120 documentation |
| Impact X 410 |
Electric airless |
3,300 PSI |
0.021 in. |
0.47 GPM |
Verify model, assembly and PN |
| Impact X 440 |
Electric airless |
3,300 PSI |
0.023 in. |
0.54 GPM |
Verify model, assembly and PN |
| Impact X 540I |
Electric airless |
3,300 PSI |
0.024 in. |
0.60 GPM |
Verify mechanical/electronic fitment |
Important: Similar appearance does not establish compatibility. Verify the exact Impact X model, assembly, diagram reference and current Titan part number before purchasing.
Shop Titan Impact X Parts by Assembly
Available assemblies vary by model. Use the applicable factory diagram to identify the system being serviced before selecting an individual replacement component.
Fluid Section & Pump
Pistons, packings, valves and other model-specific fluid-section components.
Drive Assembly
Motor, drive and associated mechanical components where applicable.
Filters & Manifold
Filters, housings, caps, manifold components and associated hardware.
Suction Components
Inlet, suction-set and material-feed components according to model.
Electrical & Controls
Model-specific switches, sensors, controls and electrical components.
Cart & Frame
Wheels, handles, frames, brackets and mounting components.
Gun, Hose & Tips
Compatible spray guns, high-pressure hoses, guards, tips and related equipment.
Repair & Service Parts
Model-specific maintenance and repair components identified through Titan documentation.
How to Find the Correct Impact X Part
01
Identify Your Sprayer
Confirm whether the machine is an Impact X 120, 410, 440 or 540I.
02
Select the Assembly
Determine which pump, drive, filter, cart, suction or other assembly requires service.
03
Check the Diagram
Locate the component and its reference number on the correct exploded diagram.
04
Verify the Titan PN
Match the reference to the current Titan ordering number before purchasing.
Diagnose the Sprayer Before Replacing Parts
Difficulty priming, pressure loss, material leakage, irregular spray patterns or inconsistent output can have multiple causes. Inspect the appropriate spray tip, filters, material supply, suction components, inlet and outlet valves, packings and fluid section according to the troubleshooting procedure for your exact model.
Electrical and control-related faults should be diagnosed using Titan's model-specific service information before switches, sensors, boards or other electrical components are replaced.
Genuine OEM Titan Impact X Parts
Shop genuine Titan replacement components identified by manufacturer part number and model application. Using the correct part number is particularly important because similar-looking components should not automatically be considered interchangeable between different Impact X sprayers.
Where Titan has officially revised or superseded a component, use the documented current replacement for the applicable machine and assembly.
OEM PARTS • MODEL-SPECIFIC DIAGRAMS
Shop Titan Impact X Sprayer Parts
Choose your exact Impact X sprayer, open the appropriate assembly diagram and verify the required Titan part number before ordering.
SHOP IMPACT X PARTS →
Titan Impact X Parts FAQ
Common questions about identifying, comparing and ordering Titan Impact X replacement parts.
How do I find the correct part for my Titan Impact X sprayer?
Identify the exact model, select the appropriate assembly and use its exploded parts diagram to locate the component reference. Verify the current Titan part number before ordering.
Are Titan Impact X 410, 440 and 540I parts interchangeable?
Do not assume interchangeability. Some documented components may be shared, but the machines contain model-specific assemblies. Verify compatibility using the correct Titan diagram and part number.
Is the Titan Impact X 120 the same platform as the 410, 440 and 540I?
No. The Impact X 120 is an 18V battery-powered low-pressure airless platform, while the 410, 440 and 540I are larger electric airless sprayers. Use the dedicated parts information for the X 120.
Where can I find Titan Impact X parts diagrams?
Choose your exact Impact X model on AllTitanParts.com and browse the available assembly diagrams. Use the diagram reference and corresponding Titan part number to identify the required component.
What should I check if my Impact X sprayer loses pressure?
Check the spray tip, filters, material supply, suction components, valves, packings and fluid section as applicable to your model. Follow Titan's troubleshooting procedure before replacing components.
Can I search for Impact X parts using the Titan part number?
Yes. Once the correct Titan part number has been identified from the applicable diagram, searching by that number is one of the most precise ways to locate the replacement component.
What information should I provide if I need help confirming fitment?
Provide your exact Titan Impact X model, serial information where applicable, existing part number and the assembly or diagram reference for the component you need.
FITMENT ASSISTANCE
Not Sure Which Impact X Part You Need?
Have your exact sprayer model, serial information where applicable and existing part number available. This information helps establish the correct parts diagram and replacement component before ordering.
