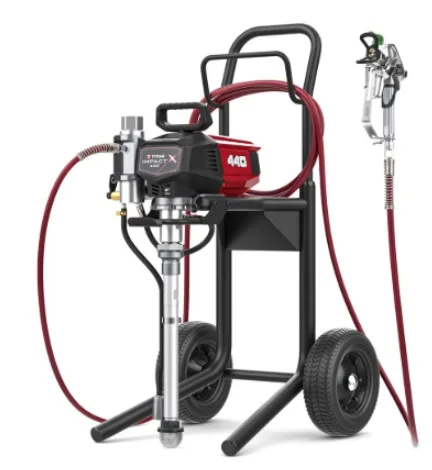

Titan 2430510 Impact X 440
Titan Impact X Professional Electric Airless Sprayer
Titan 2430510 Impact X 440 High Rider is a professional 120V electric airless sprayer delivering 0.54 GPM at up to 3300 PSI. Its 1.20 HP DuraLife HE brushless motor and 0.023-inch tip capacity support residential and commercial coating projects.
Designed for approximately 50–100 gallons per week, the Impact X 440 combines MaxFX quick-change fluid-section service, Logix Adaptive Pressure Control and fast-cleaning vertical filtration. Titan supplies the High Rider with an RX-80 gun, 517 HEA tip and 50-foot hose.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Titan 2430510 is the Impact X 440 High Rider professional electric airless sprayer. Titan specifies 0.54 GPM (2.04 LPM) maximum delivery, 3300 PSI (22.8 MPa) maximum pressure, a 0.023-inch maximum tip, 1.20 HP brushless motor, 120V/60Hz/11.8A electrical supply, approximately 54-lb weight and up to 300 feet of spray hose. |
| Function | Pressurizes and atomizes compatible architectural coatings for professional airless spraying. Logix Adaptive Pressure Control uses tip-sensing technology to optimize pump operation, while the MaxFX quick-change fluid section can be replaced rapidly on the jobsite. Electronic Pressure Control with Rapid Clean supports efficient pressure adjustment, flushing and cleanup. |
| Industrial Applications | Ideally suited to residential painting, property maintenance and small-to-medium commercial applications. Titan designs the Impact X 440 to consistently spray approximately 50–100 gallons per week, making it appropriate for professional repainting, new construction, remodeling, rental-property maintenance and similar architectural coating projects. |
| Accurate Compatible Titan Machines | Part 2430510 identifies a complete Impact X 440 High Rider sprayer rather than a replacement component requiring installation on another machine. The corresponding Impact X 440 Skid is Titan 2429069. Impact X 410 and Impact X 540I machines are separate members of the Impact X family with different output, tip-capacity and feature specifications. |
| Accurate Part Number | 2430510 — Titan Impact X 440 High Rider, 120V. Titan's current operation and service manuals consistently identify 2430510 as the approximately 54-lb High Rider configuration and 2429069 as the approximately 30-lb Skid configuration. |
| Compatible Parts & Assemblies | Titan supplies the Impact X 440 with an RX-80 airless spray gun, HEA 517 reversible tip (330-517), 1/4-inch x 50-foot airless hose (316-505), 4-ounce Piston Lube (314-481) and 60-mesh pump/manifold filter (2424933). Titan specifies a maximum hose length of 300 feet and a 5000-watt generator requirement with idle-down disabled when generator power is used. |
| Related Parts Commonly Serviced Together | Service areas include the MaxFX Fluid Section, Quad+ Packings, inlet and outlet valve components, Sureflo Pusher Valve, 60-mesh filter, RX-80 gun components, gun filter, HEA spray tip and guard, siphon assembly and airless hose. Titan also offers an Impact X Series Performance Kit specifically compatible with Impact X 410, 440 and 540I sprayers. |
| Common Problems Solved | Provides professional production capacity while addressing service and cleanup downtime. MaxFX enables fast fluid-section replacement, the vertical No-Spill filter housing drains coating efficiently, Sureflo helps release a stuck lower ball valve without hammering, Rapid Clean accelerates flushing, and the brushless motor eliminates routine motor-brush replacement. |
| Use with Coating Systems | Titan specifies the Impact X 440 for stains, lacquers, enamels, latex, standard primers, paints and other compatible low- to medium-viscosity architectural coatings. Its 0.54 GPM delivery and 0.023-inch maximum tip provide more material and tip capacity than the Impact X 410. Always follow the coating manufacturer's viscosity, filtration, tip and pressure requirements. |
| OEM & Brand Information | Genuine Titan Tool Impact X Series professional airless sprayer. Key Titan technologies include the DuraLife HE brushless motor, Logix Adaptive Pressure Control, MaxFX quick-change fluid section, Quad+ Packings, Sureflo Pusher Valve, Electronic Pressure Control with Rapid Clean and vertically mounted No-Spill filtration. IntelliSync connectivity is not included on the Impact X 440. |
| Commercial Benefits | The Impact X 440 combines 0.54 GPM production, 3300 PSI pressure and 0.023-inch tip capacity with a mobile 54-lb High Rider frame. Its 360-degree adjustable handle improves carrying and positioning, while the quick-change fluid section and simplified filtration help contractors spend less jobsite time servicing and cleaning the sprayer. |
Contractor Selection Insight
Choose the 2430510 Impact X 440 High Rider when the 0.47 GPM and 0.021-inch capacity of the Impact X 410 are limiting your production. The X 440 increases capacity to 0.54 GPM and a 0.023-inch maximum tip while retaining a compact professional platform. Select the High Rider when wheeled mobility and easier movement around active jobsites are preferable to the 2429069 Skid frame.
FAQ Section
Quick answers for contractors evaluating the Impact X 440 High Rider for professional architectural coating work.
