Shop Genuine OEM Titan Spray Tip Seals & Retainers
Shop genuine OEM Titan Seals used in manufacturer-documented airless spray-tip and guard assemblies. This category covers Titan spray tip seals, metal retainers, solvent-resistant seal-and-retainer kits and flat/adjustable-tip gasket kits—not fluid-section pump packings, repacking kits, piston seals, valve seals or unrelated equipment O-rings. Correct selection starts with the installed spray gun and continues through the tip guard, tip family and required seal, retainer or gasket to the exact Titan part number.
Titan Spray Tip Seal, Seat & Retainer Guide
Titan’s current accessories literature separates sealing hardware according to the guard system. The current catalog identifies 0297007, 651-042, 651-020, 661-021, 661-020 and 651-060 for No Build and High Pressure tip guards, while 711-612 and 711-606 gasket kits are specified for Flat and Adjustable Tip Guards.
| Titan PN | Current Titan Description | Component Type | Documented Guard Class | Package | Material / Identification | Legacy / Current Note |
|---|---|---|---|---|---|---|
| 0297007 | Metal Retainer | Tip-seal retainer | No Build / High Pressure | Individual component | Metal | Current accessories catalogs use 0297007; older catalogs list 651-040 as the metal retainer. |
| 651-020 | White Seal, Solvent Resistant | Tip seal | No Build / High Pressure | Individual component | White; Titan identifies it as solvent resistant | Listed in current Titan accessories documentation. |
| 651-042 | Black Seal, Latex | Tip seal | No Build / High Pressure | Individual component | Black; Titan identifies it for latex | Listed in current Titan accessories documentation. |
| 661-021 | White Seal, Solvent Resistant | Tip-seal service pack | No Build / High Pressure | 6-pack | White; solvent resistant | Do not infer a specific SC-6, TR1 or TR2 application solely from the package name; verify the installed guard system. |
| 661-020 | Seal and Retainer Kit, Solvent Resistant | Matched seal/retainer service kit | No Build / High Pressure | 5-pack | Titan specifies solvent-resistant sealing components | Current Titan catalog terminology is “Seal and Retainer Kit,” rather than the broader ecommerce description “Tip Seat and Seal Kit.” |
| 651-060 | Seal and Retainer Kit, Solvent Resistant | Seal/retainer service kit | No Build / High Pressure | 12-pack | Solvent resistant | Listed in current Titan accessories documentation. |
| 711-612 | Gasket Kit, 1/8 in. | Tip gasket kit | Flat / Adjustable | 12-pack | 1/8-in. gasket identification | Current catalogs use 711-612; earlier accessories literature used 711-612A. |
| 711-606 | Gasket Kit, 1/16 in. | Tip gasket kit | Flat / Adjustable | 12-pack | 1/16-in. gasket identification | Listed in current Titan accessories documentation. |
Which Titan Tip Seal or Retainer Do I Need?
The sprayer model is only the beginning of the identification process. Titan equipment can be fitted with different spray guns, guards and tip systems, so the sealing component should be selected from the installed gun and front-end hardware.
| Step | Verify | Why It Matters |
|---|---|---|
| 1 | Exact spray gun | The gun establishes the front-end connection and applicable parts documentation. |
| 2 | Installed tip guard | Titan specifies different sealing hardware for No Build/High Pressure versus Flat/Adjustable guards. |
| 3 | Tip family | Reversible and flat-tip configurations do not automatically use the same gasket or retaining hardware. |
| 4 | Seal / retainer / gasket | Identify the component type shown in the applicable Titan documentation. |
| 5 | Exact current Titan PN | Older manuals can show historical numbers that later catalogs identify differently. |
Titan 651-020 Tip Seal
Titan identifies 651-020 as a White Seal, Solvent Resistant. Current Titan accessories documentation places it in the sealing-hardware group used with Titan No Build and High Pressure Tip Guards.
| Part Number | 651-020 |
| Titan Description | White Seal, Solvent Resistant |
| Documented Guard Class | No Build Guard and High Pressure Tip Guard |
| Documented Gun Example | RX-80 documentation shows 651-020 in the tip-guard assembly together with 0297007 and the 7/8-inch tip guard. |
Select 651-020 from the applicable gun and guard parts documentation. Its white color and solvent-resistant designation should not be expanded into unsupported universal coating or sprayer compatibility claims.
Titan 651-042 Tip Seal Black
Titan’s current accessories literature describes 651-042 as Black Seal, Latex and places it with sealing components for No Build and High Pressure Tip Guards. That manufacturer description is the appropriate basis for selection.
| Attribute | 651-020 | 651-042 |
|---|---|---|
| Titan Description | White Seal, Solvent Resistant | Black Seal, Latex |
| Color | White | Black |
| Guard Class | No Build / High Pressure | No Build / High Pressure |
| Published Selection Distinction | Solvent-resistant designation | Latex designation |
Titan 651-040 vs 0297007 Tip Seal Retainer Numbers
This is an important cross-reference distinction. Older Titan accessories literature identifies 651-040 as the Metal Retainer. Current Titan accessories literature identifies 0297007 / 297007 as the Metal Retainer. Current RX-80 documentation likewise lists 0297007 separately from 651-020 in the tip assembly, confirming that the two numbers represent different component roles: 0297007 is the retainer and 651-020 is the seal.
| Earlier Number | Earlier Description | Current Catalog Number | Current Description |
|---|---|---|---|
| 651-040 | Metal Retainer | 0297007 / 297007 | Metal Retainer |
Do not describe 0297007 as the white tip seal itself. In current Titan documentation, 0297007 and 651-020 appear as separate retainer and seal components.
Titan 651-060 Seal/Retainer
Titan identifies 651-060 as a Seal and Retainer Kit, Solvent Resistant (12-pack). Current manufacturer accessories documentation places this service pack with components for the No Build and High Pressure Tip Guard classes.
Titan 661-020 Seal and Retainer Kit
Titan’s accessories catalog identifies 661-020 as a Seal and Retainer Kit, Solvent Resistant (5-pack). Some equipment documentation and ecommerce records use “tip seat and seal kit” terminology, but the current Titan accessories description is more precise for category-level purchasing.
| Part Number | 661-020 |
| Current Accessories Description | Seal and Retainer Kit, Solvent Resistant |
| Package | 5-pack |
| Guard Class | No Build and High Pressure Tip Guards |
Do not select 661-020 from a broad list of sprayer models alone. Verify the spray gun and installed tip-guard configuration in the applicable Titan parts documentation.
Titan 661-021 White Seal 6-Pack
Titan identifies 661-021 as White Seal, Solvent Resistant (6-pack). Current accessories documentation places it in the seal group for No Build and High Pressure Tip Guards.
The principal documented difference from 661-020 is purchasing configuration: 661-021 is a six-pack of white solvent-resistant seals, while 661-020 is a five-pack seal-and-retainer kit.
Titan 711-Series Tip Gaskets
Titan separates the 711-series gasket kits from the seals used with No Build and High Pressure guards. Current accessories literature specifies 711-612 and 711-606 for Titan Flat and Adjustable Tip Guard configurations.
| Titan PN | Description | Package | Documented Guard Class | Number History |
|---|---|---|---|---|
| 711-606 | Gasket Kit, 1/16 in. | 12-pack | Flat / Adjustable Tip Guard | 711-606 remains the number shown in current accessories literature. |

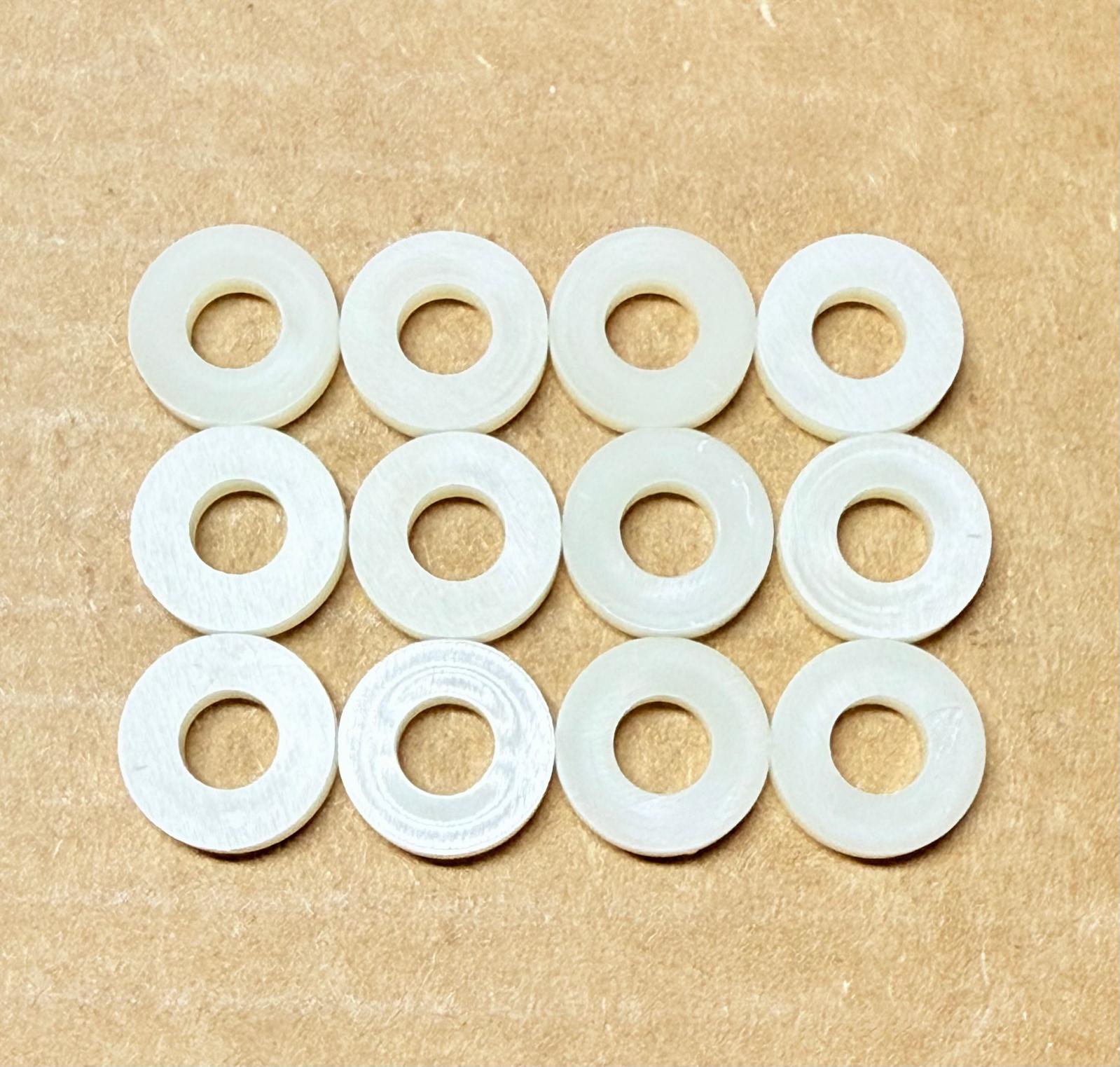

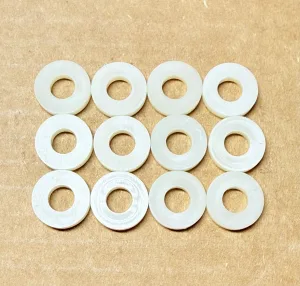

| 711-612A | Earlier 1/8-in. Gasket Kit number | 12-pack | Flat / Adjustable Tip Guard | Shown in older Titan accessories literature. |
| 711-612 | Gasket Kit, 1/8 in. | 12-pack | Flat / Adjustable Tip Guard | Current Titan accessories literature uses 711-612. |
The 1/16-in. and 1/8-in. identifiers distinguish the documented gasket configurations. Do not assume they are interchangeable; match the gasket to the applicable flat/adjustable-tip assembly.
Tip Seal vs Tip Seat vs Retainer vs Tip Guard
Similar ecommerce terminology can make these components appear interchangeable. They are not. Use the exact terminology and item number in the applicable Titan parts list.
| Component | Function in the Assembly | Where Used | Does Not Automatically Replace |
|---|---|---|---|
| Tip Seal | Provides the specified sealing element at the tip/guard interface. | Documented tip-guard assemblies. | Metal retainer, guard or spray tip. |
| Metal Retainer | Retains/positions the associated sealing component in documented assemblies. | No Build / High Pressure guard systems where specified. | The separate white or black seal. |
| Seal & Retainer Kit | Provides manufacturer-packaged sealing and retaining service components. | Applicable No Build / High Pressure guard systems. | A different guard or tip family. |
| Tip Gasket | Provides the specified gasket for applicable flat/adjustable-tip hardware. | Flat / Adjustable Tip Guards. | Reversible-tip seal hardware. |
| Tip Guard | Supports/surrounds the installed tip and corresponding sealing hardware. | Gun front-end assembly. | Seal, retainer or spray tip. |
| Spray Tip | Meters coating through its orifice and forms the specified spray pattern. | Matching tip/guard system. | Guard or sealing hardware. |
How Titan Tip Seal Compatibility Works
Titan parts documentation demonstrates why seal compatibility should be established at the gun and tip assembly rather than inferred from a machine name. For example, current RX-80 documentation separately lists the guard, 0297007 retainer and 651-020 seal as individual components in the gun’s front-end assembly.
Finding a seal in one equipment parts diagram proves its documented use in that assembly; it does not automatically establish universal compatibility with every gun or tip configuration fitted to that sprayer family.
What Causes Leakage Around a Titan Spray Tip?
Material appearing around the tip/guard interface warrants inspection, but it does not by itself prove that the tip seal is the only failed component. Relieve system pressure according to the applicable Titan operating instructions before inspecting or servicing the gun.
| Inspection Area | What to Verify |
|---|---|
| Seal | Correct part, condition and installation. |
| Retainer | Correct retainer for the documented seal/guard assembly. |
| Spray Tip | Correct tip family, seating surfaces, wear and damage. |
| Tip Guard | Correct guard type, clean seal cavity and serviceable condition. |
| Assembly | Components assembled in the orientation specified by the applicable Titan manual. |
An uneven fan, overspray or pressure problem can also involve tip wear, blockage, filtration, operating pressure, coating characteristics or other gun/sprayer conditions. Do not replace a seal solely from a spray-pattern symptom without inspecting the complete system.
When Should a Titan Tip Seal Be Replaced?
Use the service instructions for the installed Titan gun and tip system rather than applying a universal replacement interval to every seal.
| Condition | Recommended Check |
|---|---|
| Seal missing or visibly damaged | Identify and replace with the manufacturer-specified component. |
| Seal or retainer deformed | Inspect the complete sealing assembly and replace damaged components as specified. |
| Seal will not seat correctly | Verify seal, retainer, guard and tip are the correct matched configuration. |
| Material leaking at the sealing interface | Relieve pressure and inspect the seal, retainer, tip, guard and seating surfaces. |
Titan Tip Seals Are Not Pump Repacking Kits
“Titan Seals” is a broad search phrase, but these spray-tip components occupy a very different location and perform a different service function from fluid-section packing hardware.
| Component Family | Assembly Area | Examples |
|---|---|---|
| Spray Tip Sealing Hardware | Spray gun / tip-guard front end | 651-020, 651-042, 0297007, 661-020, 661-021, 651-060 |
| Flat-Tip Gaskets | Flat / adjustable-tip guard system | 711-606, 711-612 |
| Pump Packings / Repacking Kits | Sprayer fluid section | Machine-specific upper/lower packing and repacking components |
If the repair is inside the pump fluid section rather than at the spray-gun tip assembly, use the applicable Titan fluid-section parts list or repacking-kit documentation instead of selecting from this spray-tip seal category.
Titan Seal Replacement & Cross-Reference Guide
Historical Titan manuals and accessories catalogs can show earlier numbers while newer catalogs use revised ordering numbers. Cross-reference the number against the current manufacturer description before purchasing.
| Earlier PN | Earlier Description | Current Catalog PN | Current Description | Application Class |
|---|---|---|---|---|
| 651-040 | Metal Retainer | 0297007 / 297007 | Metal Retainer | No Build / High Pressure guard sealing hardware |
| 711-612A | Gasket Kit, 1/8 in., 12-pack | 711-612 | Gasket Kit, 1/8 in., 12-pack | Flat / Adjustable Tip Guard |
Shop Titan Tip Seals, Guards & Spray Tips
Move between the related component categories only after identifying the installed gun and tip system.
Contractor Selection Insight
Do not choose a Titan tip seal only from the sprayer model, seal color or a similar-looking part. First identify the installed spray gun, tip guard and tip family, then match the manufacturer-specified seal, retainer or gasket and exact Titan part number.
Shop, Compare, Buy or Order genuine OEM Titan spray tip seals, retainers and gaskets from AllTitanParts.com after verifying the spray gun, tip guard, tip family, required sealing hardware and exact Titan part number.
FAQ Section
Use these checks to identify the correct Titan spray-tip sealing hardware before ordering.
How do I choose the correct Titan tip seal for my spray gun?Identify the exact spray gun first, then verify its installed tip guard, tip family and manufacturer-specified seal, retainer or gasket. Titan documents different sealing hardware for No Build/High Pressure guards and Flat/Adjustable Tip Guards, so do not select a seal solely from the sprayer model.
|
What is the difference between Titan 651-020 and 651-042 tip seals?Titan identifies 651-020 as a white solvent-resistant seal and 651-042 as a black latex seal. Both are listed with sealing hardware for No Build and High Pressure Tip Guards. Titan’s catalog wording does not support treating 651-042 simply as a universal heavy-duty or higher-pressure upgrade; select the seal specified for the installed gun, guard and application.
|
What replaced Titan 651-040, and how does 0297007 relate to it?Older Titan accessories literature lists 651-040 as the Metal Retainer, while current Titan accessories literature lists 0297007 / 297007 as the Metal Retainer. Current RX-80 documentation shows 0297007 and 651-020 as separate components, with 0297007 serving as the retainer and 651-020 as the white seal. Verify the current parts list for the installed gun before ordering.
|
What is the difference between a Titan tip seal, tip seat, retainer and tip guard?A tip seal provides the specified sealing element at the tip/guard interface; a retainer positions or retains the associated sealing component where the assembly requires one; a tip guard supports and surrounds the installed tip assembly; and “tip seat” terminology appears in some equipment documentation for particular service kits. Use the exact terminology and part number in the applicable Titan gun or accessories documentation rather than assuming these components are interchangeable.
|
Does material leaking around the spray tip always mean the tip seal is bad?No. After relieving system pressure, inspect the correct seal or gasket, retainer, spray tip, tip guard, sealing surfaces and assembly. Leakage can justify inspection of the seal, but the symptom alone does not prove that the seal is the only failed component. Follow the applicable Titan gun manual when servicing the tip assembly.
|
