Titan Impact X 120 Airless Sprayer Parts
Shop genuine OEM Titan Impact X 120 Airless Sprayer Parts for the portable 18V HEA spraying system. Find factory-diagram components for the main sprayer, RX-80 spray gun and accessories, including pump, motor, hopper, control, valve, hose, filter, gun and carrying-system parts. Select the correct assembly, locate the diagram callout and verify the complete Titan OEM part number before purchasing.
Find the Correct Parts for Your Titan Impact X 120
The Titan Impact X 120 18V combines low-pressure airless spraying with a compact battery-powered platform intended for mobile spraying and smaller professional coating jobs. Titan designed the unit for backpack, side-carry and stationary operation, allowing the same sprayer to adapt to different working positions.
Unlike the larger cart and skid machines in the Impact X family, the Impact X 120 uses an integrated 1.25-gallon hopper and compact pump system. For accurate repair, identify parts from the dedicated Impact X 120 diagram rather than assuming components from the Impact X 410, 440 or 540I will interchange.
Titan Impact X 120 18V Specifications
| Specification | Impact X 120 18V | Service Relevance |
|---|---|---|
| Sprayer Type | Battery-Powered HEA / Low-Pressure Airless | Use Impact X 120-specific parts documentation |
| Maximum Pressure | 1,600 PSI / 11.1 MPa | Use pressure-rated OEM fluid components |
| Maximum Tip Size | 0.017 in. | Confirm tip selection for material and application |
| Hopper Capacity | 1.25 gal / 4.73 L | Hopper, lid, gasket and fluid-path parts are model-specific |
| Power Platform | 18V AMPShare™ Powered by Bosch | Confirm correct electrical and battery-related components |
| Operating Positions | Backpack, Side-Carry, Stationary | Straps and carrying hardware are serviceable components |
Choose Your Titan Impact X 120 Parts Section
The Impact X 120 parts catalog is organized into three primary sections. Choose the system being serviced, locate the numbered diagram callout and verify the complete Titan OEM part number.
Titan Impact X 120 Main Assembly Parts
The main assembly contains the core components that support material storage, pressure generation, flow control, electrical operation and the Impact X 120's portable carrying configurations.

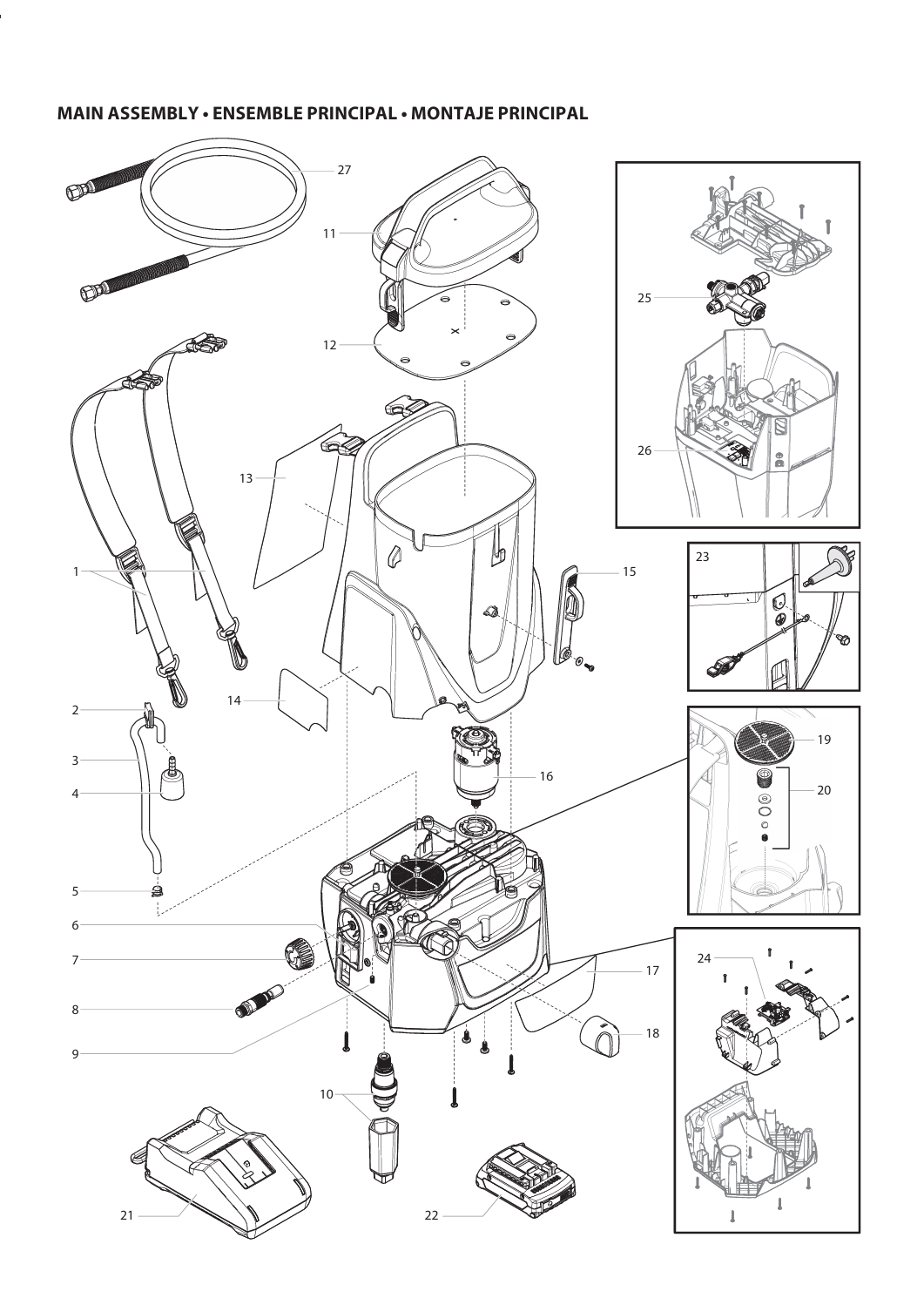

Current OEM diagram components include the Titan 2463167 Backpack Strap Kit, 2439914 Hopper Grommet, 2463213 Return Tube Kit, 2463171 Outlet Valve Kit, 2463222 Accumulator Kit, 2463216 Lid Kit, 2473265 Lid Gasket, 2449866 Control Board Assembly and 2463224 Motor Kit.
SHOP IMPACT X 120 MAIN ASSEMBLY →Impact X 120 Spray Gun Assembly Parts
Titan equips the Impact X 120 system with an RX-80 airless spray gun. The gun is serviceable, allowing worn trigger, valve and related components to be replaced without automatically replacing the complete spray gun.

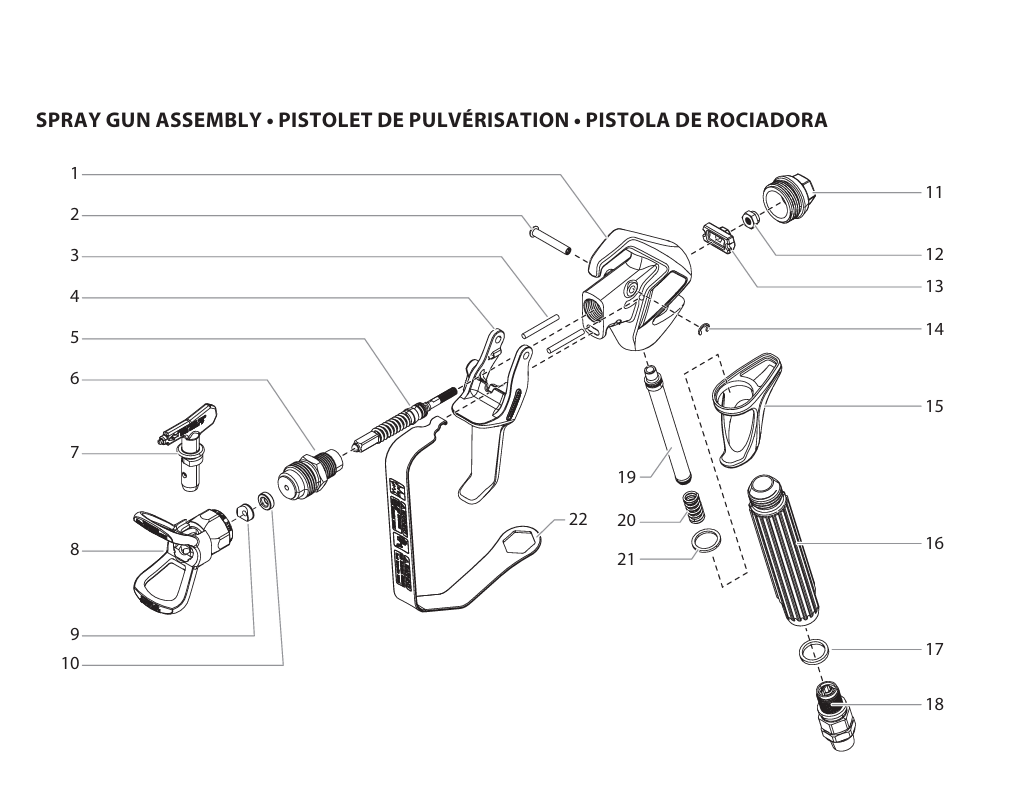

Cataloged components include the Titan 0538215 RX-80 Gun Repair Kit, 2405986 Trigger Pin, 0538305 Retractor Pin, 0297007 Tip Seal and 0538224 Trigger and Lock Assembly. Use the spray-gun exploded diagram to confirm the required component before ordering.
SHOP IMPACT X 120 SPRAY GUN PARTS →Backpack, Side-Carry or Stationary Operation
One of the defining characteristics of the Impact X 120 is its three-position operating design. The machine can be worn as a backpack, carried at the side or placed in a stationary position, giving painters flexibility when working around interiors, stairs, trim, doors, cabinets and other areas where moving a conventional cart sprayer may be less convenient.
Because the carrying system is part of the machine design, straps, hopper components, lid hardware and related mounting parts should be inspected along with the pump and electrical system when servicing a heavily used unit.
Which Impact X 120 Parts Section Should You Check?
| Repair Area | Start Here | Examples |
|---|---|---|
| Pump / Material Flow | Main Assembly | Pump components, inlet/outlet valve, accumulator, return tube |
| Motor / Controls | Main Assembly | Motor, control board, switch, speed-control components |
| Hopper / Carrying System | Main Assembly | Lid, gasket, hopper hardware, straps and mounting components |
| Gun Leakage / Trigger Service | Spray Gun Assembly | RX-80 repair kit, trigger, pins, lock and seals |
| Spray Setup / Consumables | Accessories | Tips, filters, fittings and related application components |
Match the Symptom to the Correct Impact X 120 System
| Symptom | Inspection Starting Point | Parts Section |
|---|---|---|
| Will Not Prime | Material level, inlet filter, inlet valve, outlet valve and fluid path | Main Assembly |
| Poor / Unstable Spray Pattern | Tip, gun filter, material viscosity, pressure setting and pump condition | Main / Gun / Accessories |
| Gun Leaks | Gun valve, seal, trigger mechanism and repair components | Spray Gun Assembly |
| Motor Does Not Operate | Battery condition, electrical contacts, switch, control and motor system | Main Assembly |
| Material Leakage | Hopper, lid gasket, tubing, pump, valves and fittings | Main Assembly |
Find the Correct Impact X 120 Part in Four Steps
Impact X 120 Parts Are Not the Same as Impact X 410, 440 or 540I Parts
The Impact X 120 is a compact battery-powered hopper sprayer with a substantially different machine architecture from Titan's larger Impact X electric sprayers. Do not assume that pumps, motors, controls, filters or other components from the Impact X 410, 440 or 540I fit the Impact X 120. Verify compatibility by the dedicated Impact X 120 factory diagram and OEM part number.
Buy Titan Impact X 120 Parts by OEM Part Number
The safest way to identify a replacement component is to start with the exact Impact X 120 assembly diagram rather than selecting a part by appearance. This is especially important for pump, motor, electronic, valve and spray-gun components.
Use the sequence Impact X 120 → factory parts section → diagram callout → Titan OEM part number. If the original number has been superseded, confirm the current OEM replacement before checkout.
Remove the Battery and Relieve Pressure Before Service
Airless spray equipment can retain hazardous fluid pressure even after spraying stops. Follow the Titan pressure-relief procedure before inspection or disassembly and remove the battery when instructed for service. Never loosen a pressurized hose, gun, valve, fitting or pump component. Follow the Titan manual for battery charging, handling, maintenance and storage requirements.
Need Parts for Another Titan Impact X Sprayer?
AllTitanParts also organizes OEM parts for other Impact X models. Select the exact machine before purchasing replacement components.
Buy Titan Impact X 120 Airless Sprayer Parts
Shop genuine Titan OEM main-assembly, RX-80 spray-gun and accessory parts. Confirm the Impact X 120 model, select the applicable factory diagram and verify the complete OEM part number before checkout.
SHOP IMPACT X 120 PARTS →Titan Impact X 120 Parts FAQ
Where can I buy genuine Titan Impact X 120 parts?
Is the Titan Impact X 120 battery powered?
What is the maximum pressure of the Impact X 120?
What is the maximum tip size for the Impact X 120?
What spray gun is used with the Impact X 120?
Can the Impact X 120 be used as a backpack sprayer?
Are Impact X 410, 440 or 540I parts interchangeable with the Impact X 120?
Can I replace individual parts in the Impact X 120 spray gun?
How do I identify the correct Impact X 120 replacement part?
Not Sure Which Impact X 120 Part You Need?
Have the machine model and serial information, factory-diagram section, diagram callout and any Titan OEM number visible on the original component available. These references provide the strongest basis for confirming the correct Impact X 120 replacement part.
