Titan Impact X Sprayer Parts – OEM Parts by Model & Diagram
Shop genuine OEM Titan Impact X sprayer parts for Impact X 120, 410, 440 and 540I airless sprayers. Choose your exact machine, open its model-specific parts breakdown, and identify pump, fluid-section, drive, motor, control, suction, filter, cart, stand and other service components by Titan OEM part number.
Find the Correct Titan Impact X Replacement Part
The Titan Impact X family includes multiple electric airless sprayers with different machine configurations and service requirements. For that reason, the safest way to buy replacement parts is to begin with the exact Impact X model rather than assuming that components with a similar appearance are interchangeable.
AllTitanParts.com organizes Impact X replacement components around model-specific factory parts information. Contractors, painters, maintenance departments and repair technicians can identify the machine first, locate the required assembly and then match the diagram reference to the correct Titan OEM part number before ordering.
Find Your Impact X Part in Four Steps
Use the model and factory breakdown to reduce ordering errors and move directly toward the correct service component.
Choose Your Titan Impact X Airless Sprayer
Select the exact Impact X machine you are servicing. Each model link leads to its dedicated category where applicable factory diagrams and OEM replacement components can be identified.

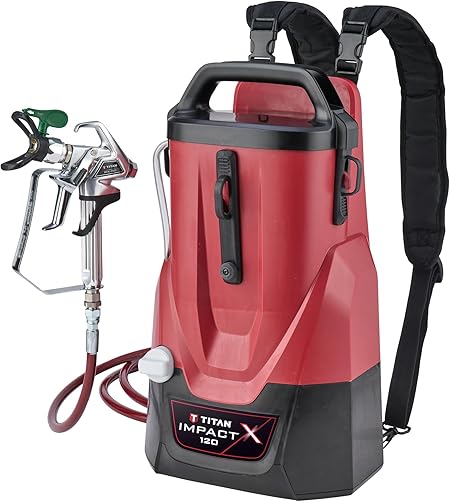

Browse model-specific OEM replacement and service components for the Titan Impact X 120.
Find Impact X 410 pump, fluid, drive, motor, suction and other documented service components.
Shop OEM Impact X 440 service components using the applicable model and assembly breakdown.
Browse OEM Impact X 540I replacement components through the appropriate machine parts breakdown.
Shop Titan Impact X Parts by Repair Area
Available assemblies vary by Impact X model. Use the repair area as a starting point, then confirm the final component through the applicable Titan factory parts breakdown.
Which Impact X Parts Section Should You Check?
| Repair Area | Start With | Components to Inspect | Verify |
|---|---|---|---|
| Pump / Pressure | Fluid Section | Packings, piston, valves, seals and related pump components | Model + diagram + OEM PN |
| Mechanical Operation | Drive Assembly | Applicable drive and mechanical components | Exact Impact X model |
| Electrical / Motor | Motor / Controls | Motor, switches, sensors, wiring and controls where applicable | Model + revision + OEM PN |
| Material Intake | Suction System | Suction tube, strainer, return components and fittings | Model + assembly |
| Frame / Mobility | Cart / Stand | Frame, handle, wheels, stand and mounting hardware | Machine configuration |
Know Where to Inspect Before Ordering
A symptom can have several causes. Diagnose the machine according to the service information for your exact Impact X model before assuming that a particular component requires replacement.
Impact X Parts Must Be Verified by Model and OEM Number
Do not assume that a component used on one Impact X sprayer automatically fits another Impact X model, or that a conventional Titan Impact component fits an Impact X machine because the names are similar. Verify the exact model, machine configuration, assembly, diagram reference and Titan OEM part number before ordering.
Titan Impact X and Titan Impact Are Separate Parts Families
The presence of a similar model number does not establish parts interchangeability between a Titan Impact X sprayer and an earlier or conventional Impact sprayer. When searching for replacement parts, use the exact product-family designation shown on the machine.
For example, an Impact X 440 should be serviced from the applicable Impact X 440 documentation rather than selecting a component solely because it is listed for an Impact 440. A component should be treated as shared only when Titan documentation or a verified OEM cross-reference establishes compatibility.
Genuine Titan Impact X OEM Replacement Parts
A worn service component does not automatically require replacement of the complete sprayer. Model-specific parts diagrams help identify serviceable components and assemblies so the repair can be approached at the correct system level.
Order Titan Impact X Parts with Greater Confidence
Choose your Impact X model, locate the applicable assembly and verify the Titan OEM part number before ordering. Whether you are repairing the fluid section, servicing the drive system, correcting a suction problem or replacing an electrical, cart or spray-system component, begin with the exact machine you own.
CHOOSE YOUR IMPACT X MODEL ↑Titan Impact X Sprayer Parts FAQ
01. Which Titan Impact X models are covered in this category?
02. How do I find the correct Impact X replacement part?
03. Are Impact X 410, 440 and 540I parts interchangeable?
04. Are Titan Impact and Impact X 440 parts the same?
05. What should I inspect if my Impact X will not prime?
06. Can I buy individual Impact X pump components?
07. Should I order an Impact X part based only on how it looks?
08. What information should I have for Impact X fitment assistance?
Not Sure Which Titan Impact X Part Fits?
Have your exact Impact X model, serial information where applicable, existing Titan OEM part number and assembly reference available. These details provide a stronger basis for identifying the correct replacement component before ordering.
