Genuine Titan OEM | Elite Airless Sprayer Replacement Parts
Shop Genuine Titan Elite Sprayer Parts Online
Find the right Titan Elite Sprayer Parts for your airless paint spraying equipment at AllTitanParts. Browse genuine Titan OEM replacement parts for the Titan Elite E15, Titan Elite E20, and Titan Elite 3000 High Pressure Airless Sprayer. Shop model-specific motor assemblies, gearboxes, fluid sections, pumps, valves, filter assemblies, frames, suction components, spray hoses, and accessories. Use the factory parts diagrams to identify exact replacement components before ordering.
Titan Elite Replacement Parts
Buy Titan Elite Airless Paint Sprayer Replacement Parts
The Titan Elite Sprayer Parts category is the main shopping directory for three Titan Elite airless sprayer model families. It provides a direct route to manufacturer-organized replacement parts diagrams, helping equipment owners, professional painters, maintenance technicians, and repair shops locate the components required for service and repair.
Airless paint sprayers depend on the coordinated operation of their drive systems, fluid pumps, pressure controls, filtration components, suction systems, and spray accessories. Over time, normal use, coating contamination, vibration, and component wear can create problems that require inspection or replacement.
Selecting the correct part is essential because the Elite E15, Elite E20, and Elite 3000 use different assembly configurations. A motor, gearbox, valve, filter, or pump component listed for one model should not be assumed compatible with another.
AllTitanParts organizes genuine Titan OEM components by model and assembly. This allows you to identify the correct service area, review the factory exploded diagram, match the manufacturer part number, and purchase the required replacement without relying on visual similarity alone.
Whether you are repairing a fluid leak, investigating pressure loss, replacing worn drive components, or carrying out preventive maintenance, start by selecting your exact Titan Elite model below.
Shop by Sprayer Model
Browse Titan Elite Sprayer Parts by Model
Choose the model printed on your sprayer's identification label. Each model directory contains the assembly categories associated with its factory parts documentation.
6 Assembly Categories

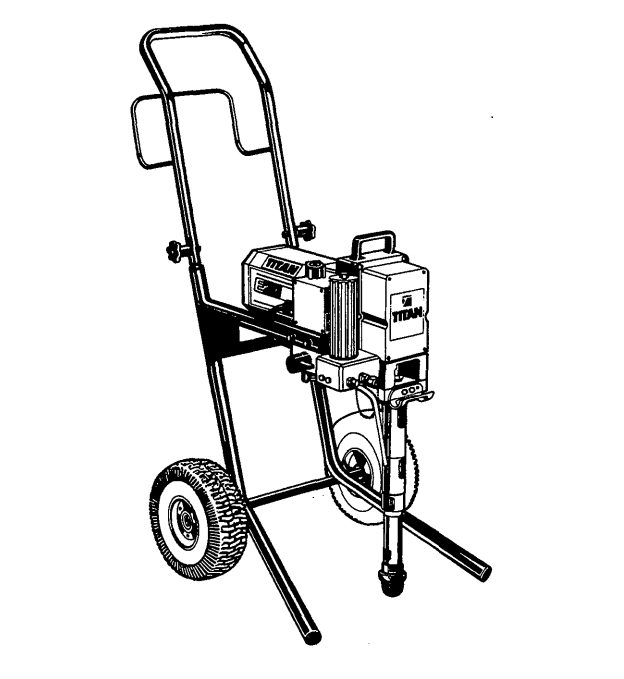

Titan Elite E15 Sprayer Parts
Find genuine replacement components for the Titan Elite E15, including its frame, UNITEC motor, gearbox, filter block, fluid section, and accessories.
Browse the appropriate assembly diagram to locate individual hardware, seals, filters, and other service parts.
Shop Elite E15 Parts6 Assembly Categories

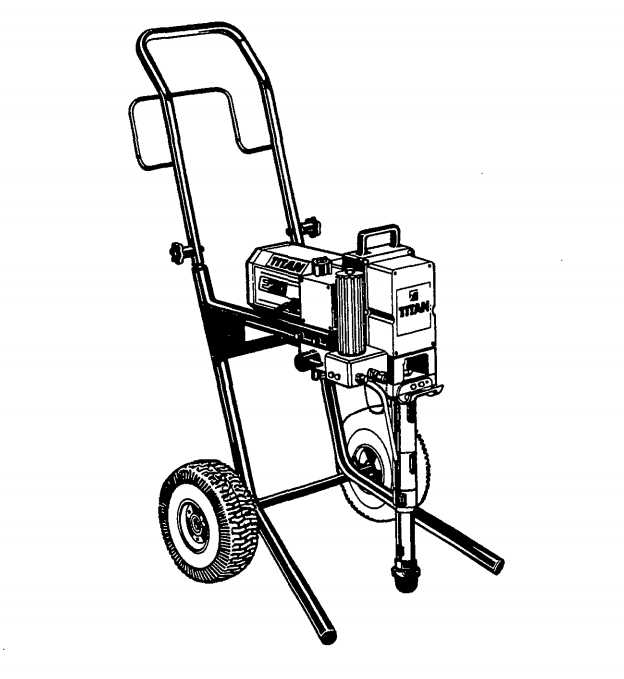

Titan Elite E20 Sprayer Parts
Shop Titan Elite E20 replacement components for the frame, UNITEC motor, gearbox, filter block, fluid section, and accessory systems.
Use the model-specific diagrams to distinguish E20 parts from similar components found on other Elite machines.
Shop Elite E20 Parts11 Assembly Categories

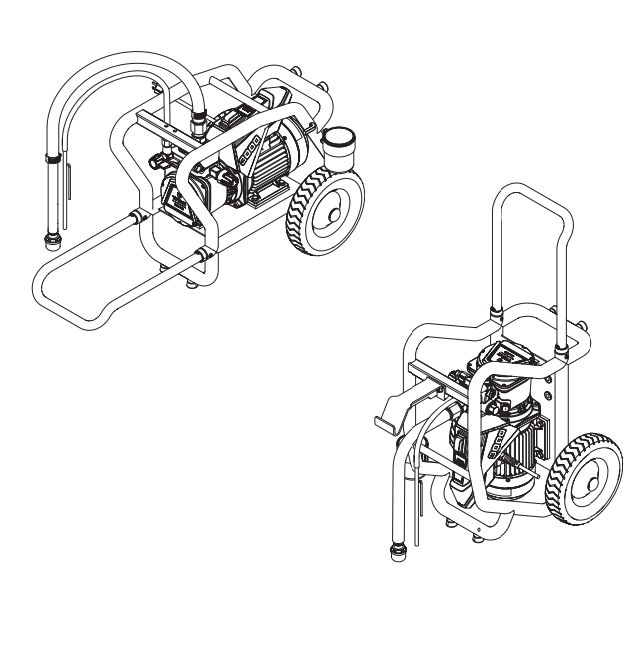

Titan Elite 3000 Sprayer Parts
Explore Titan Elite 3000 High Pressure Airless Sprayer replacement parts, including pump, motor/pump, outlet valve, pusher stem, suction, filtration, hopper, cart, and accessory assemblies.
Identify individual components using the corresponding factory diagram and part number.
Shop Elite 3000 PartsElite E15 Parts Directory
Titan Elite E15 Replacement Assemblies
The Titan Elite E15 directory contains six assembly categories. Each category identifies a different area of the sprayer for repair or maintenance.
- Frame: Structural hardware and components associated with the sprayer frame.
- UNITEC Motor Complete: Manufacturer-listed motor components and replacement assemblies.
- Gear Box: Drive components involved in transferring motor output through the mechanical system.
- Filter Block: Filter housing, sealing components, and related filtration hardware.
- Fluid Section: Pumping and fluid-handling components identified in the factory diagram.
- Accessories: Hoses, fittings, adapters, and other listed accessory products.
For example, a damaged frame plug should be identified in the frame diagram, while a worn fluid section component should be located in the fluid section assembly rather than the motor or gearbox category.
View All Titan Elite E15 PartsElite E20 Parts Directory
Titan Elite E20 Replacement Assemblies
The Titan Elite E20 also contains six assembly categories, allowing repairs to be organized by the affected system.
Elite E20 Frame
Identify specified frame hardware and structural assembly components.
UNITEC Motor Complete
Locate manufacturer-listed motor replacement components.
Elite E20 Gear Box
Browse gearbox parts associated with the mechanical drive system.
Elite E20 Filter Block
Find filter block components, seals, and associated hardware.
Elite E20 Fluid Section
Identify components associated with the fluid pumping assembly.
Elite E20 Accessories
Browse compatible accessory options, subject to individual product specifications.
Check the original equipment identification and manufacturer part number before purchasing. Similar assembly names do not establish interchangeability between Elite E15 and Elite E20 components.
Elite 3000 Parts Directory
Titan Elite 3000 High Pressure Airless Sprayer Parts
The Titan Elite 3000 category contains eleven assembly sections covering its structural, pumping, fluid-handling, and accessory systems.
| Assembly Category | Components and Service Area | Shop Parts |
|---|---|---|
| Main Assembly | Primary assembly components and hardware. | View Parts |
| Cart Assembly | Cart-related structural and mounting components. | Browse Elite 3000 Model |
| Motor/Pump Assembly | Motor and pump assembly components. | Browse Elite 3000 Model |
| Pump Assembly | Fluid pump components and repair parts. | View Parts |
| Outlet Valve Assembly | Outlet valve components involved in fluid delivery. | View Parts |
| Pusher Stem Assembly | Manufacturer-listed pusher stem service components. | View Parts |
| Flexible Suction Set | Flexible suction components and fluid intake connections. | View Parts |
| Rigid Suction Set | Rigid suction components and inlet filtration hardware. | View Parts |
| High Pressure Filter Assembly | Filter housing, mesh filters, seals, and related parts. | View Parts |
| Hopper Assembly | Hopper, filter disk, return pipe, and associated hardware. | View Parts |
| Accessories | Spray guns, hoses, filters, extensions, and maintenance supplies. | View Parts |
Use the model directory to access any assembly whose individual URL is not shown in this table.
Essential Repair Components
Common Titan Elite Sprayer Replacement Parts
Motors and Drive Components
Motor and drive assemblies provide mechanical power to the sprayer's pumping system. Identify replacement components using the correct Elite model's motor or motor/pump diagram.
Gearbox Replacement Parts
Gearbox components transmit mechanical movement in applicable sprayer designs. Unusual drive noise or damaged gearing requires proper inspection before replacement.
Pump and Fluid Section Parts
Fluid-handling assemblies are responsible for drawing in and delivering coating material. Select repair parts from the specific pump design rather than assuming every Elite model uses the same components.
Inlet and Outlet Valves
Valve components regulate the direction of fluid movement in compatible pumping systems. Wear or contamination may contribute to priming or pressure problems.
Filters and Filter Housings
Filter blocks, high-pressure filters, mesh elements, and seals help manage contaminants in the fluid system. Match filter dimensions and mesh grades to the equipment and coating.
Suction and Hopper Components
Suction hoses, inlet filters, return lines, and hopper components support material intake in the configurations for which they are specified.
Frames, Carts and Hardware
Frame and cart parts support the sprayer's physical structure. Replace damaged or missing hardware with components specified in the correct assembly diagram.
Spray Hoses and Accessories
Spray guns, high-pressure hoses, adapters, tip guards, and other accessories must be matched to the system's pressure and connection requirements.
Model Identification
Titan Elite E15 vs. E20 vs. Elite 3000 Parts
All three sprayers belong to the Titan Elite family, but their parts catalogs are organized differently. Use this comparison to select the correct directory.
| Model | Listed Assembly Categories | Best Starting Point |
|---|---|---|
| Elite E15 | 6 | Frame, UNITEC motor, gearbox, filter block, fluid section, accessories. |
| Elite E20 | 6 | Frame, UNITEC motor, gearbox, filter block, fluid section, accessories. |
| Elite 3000 | 11 | Main, cart, motor/pump, pump, valves, suction, filtration, hopper, accessories. |
Important: A similar category name does not mean the parts are interchangeable. Confirm the manufacturer's exact part number and model-specific diagram.
Repair and Troubleshooting
Common Titan Elite Sprayer Problems and Parts to Inspect
Use the following table as a starting point for diagnosis. A symptom may have several causes, so consult the correct Titan service manual before replacing components.
| Problem | Components to Inspect | Recommended Check |
|---|---|---|
| Sprayer will not prime | Suction set, inlet filter, pump valves | Check material supply, suction connections, restrictions, and the manual's priming procedure. |
| Low or inconsistent spray pressure | Filters, valves, fluid section, pressure controls | Inspect for blockages, leakage, worn components, and control-related faults. |
| Paint leakage | Seals, fittings, hoses, fluid section | After complete pressure relief, locate the leak and identify the exact affected component. |
| Uneven spray pattern | Spray tip, gun filter, manifold filter | Check for tip wear, restrictions, and incorrect coating preparation. |
| Motor runs but pumping is abnormal | Drive system and pump assembly | Inspect the model-specific drive and pumping components using the service manual. |
| Unusual mechanical noise | Motor, gearbox, drive hardware | Stop operation and inspect for damaged or loose components before further use. |
| Repeated filter blockage | Suction filter, manifold filter, gun filter | Review coating cleanliness, filter selection, and cleaning practices. |
| Damaged high-pressure hose | Spray hose and end fittings | Remove the hose from service and replace it with a correctly rated component. |
OEM Parts Buying Guide
How to Find the Correct Titan Elite Replacement Part
Confirm Your Elite Model
Identify whether your sprayer is an Elite E15, Elite E20, or Elite 3000.
Select the Assembly
Choose the frame, motor, gearbox, pump, filter, valve, suction, or accessory diagram relevant to the repair.
Match the OEM Part Number
Compare the diagram reference, manufacturer part number, and any documented replacement information.
Order the Replacement
Confirm compatibility, quantity, and current availability before purchasing at AllTitanParts.
Preventive Maintenance
Titan Elite Sprayer Maintenance and Inspection Tips
Clean After Spraying
Flush the fluid system using the procedure and cleaning materials approved for the equipment and coating.
Inspect Filters
Check inlet, manifold, and gun filters where fitted. Clean or replace elements as specified by Titan.
Check Hoses and Fittings
Inspect high-pressure hoses and connections before use. Replace damaged components rather than attempting temporary repairs.
Monitor Pump Performance
Investigate unusual priming behavior, pressure fluctuations, or leakage using the model-specific service procedure.
Inspect Drive Components
Check accessible motor and drive components for abnormal noise, vibration, or visible damage according to the maintenance manual.
Use Approved Service Products
Follow the correct lubrication, storage, and maintenance procedures for your specific Elite model.
Shop with Confidence
Why Buy Titan Elite Sprayer Parts from AllTitanParts?
AllTitanParts provides a model-based shopping experience designed to help customers identify genuine Titan OEM replacement components.
- Three Titan Elite model directories: Elite E15, Elite E20, and Elite 3000.
- Factory parts diagram navigation: Find replacement components within the correct assembly.
- Manufacturer part number identification: Reduce the risk of ordering visually similar but incompatible parts.
- Genuine Titan OEM catalog: Shop products identified as manufacturer-supplied replacement components.
- Parts identification assistance: Contact AllTitanParts with your model and serial information for help confirming fitment.
- Repair-focused shopping: Browse individual service parts rather than replacing complete equipment unnecessarily.
The correct part depends on your equipment configuration and the manufacturer's documentation. Always verify the product listing before purchase.
Titan Elite Airless Sprayer Repair Safety
Before inspecting, removing, or replacing any Titan Elite sprayer component, shut down the equipment, disconnect electrical power, and follow the complete pressure-relief procedure in the applicable Titan manual. Never loosen a pressurized hose, fitting, valve, or filter housing. High-pressure fluid injection injuries require immediate emergency medical attention. Do not operate equipment with damaged hoses, exposed electrical components, or suspected structural defects. Follow the manufacturer's instructions for disassembly, installation, and testing.
Genuine Titan Elite Sprayer Parts
Find and Order Titan Elite Replacement Parts Today
Shop Titan Elite E15, Elite E20, and Elite 3000 replacement parts at AllTitanParts. Select your model, locate the correct assembly diagram, and identify the exact manufacturer part number before ordering.
Shop Titan Elite Sprayer PartsFrequently Asked Questions
Titan Elite Sprayer Parts FAQ
What Titan Elite sprayer models are covered by this category?
The Titan Elite Sprayer Parts category contains three model directories: Titan Elite E15, Titan Elite E20, and Titan Elite 3000 High Pressure Airless Sprayer.
Where can I buy genuine Titan Elite Sprayer Parts?
You can shop genuine Titan Elite replacement parts at AllTitanParts by selecting your exact model and browsing its factory assembly diagrams.
What replacement parts are available for the Titan Elite E15?
The Elite E15 directory includes frame, UNITEC motor, gearbox, filter block, fluid section, and accessories categories.
What parts are listed for the Titan Elite E20?
The Elite E20 directory includes frame, UNITEC motor, gearbox, filter block, fluid section, and accessories categories.
What assemblies are available for the Titan Elite 3000?
The Elite 3000 directory includes main, cart, motor/pump, pump, outlet valve, pusher stem, flexible suction, rigid suction, high-pressure filter, hopper, and accessories categories.
Are Titan Elite E15 and Elite E20 parts interchangeable?
Do not assume interchangeability. Even when assemblies have similar names, the correct replacement depends on the manufacturer part number and the applicable model-specific diagram.
How do I find a Titan Elite part number?
Locate your sprayer model, open the relevant assembly diagram, and match the numbered diagram reference with the manufacturer's parts list.
Why is my Titan Elite sprayer losing pressure?
Possible causes include restricted filters, fluid leakage, worn valves, pump-related faults, or control problems. Follow the correct model's troubleshooting procedure to identify the cause.
What should I inspect if my Titan Elite sprayer will not prime?
Check the material supply, suction connections, inlet filter, and applicable pump valves. Follow the manufacturer-recommended priming and troubleshooting procedures.
Can I buy Titan Elite pump repair components separately?
The model directories include fluid section or pump assembly categories with individually listed service parts. Availability depends on the specific component and product listing.
Where can I find Titan Elite filter replacement parts?
Elite E15 and E20 have filter block categories. The Elite 3000 has a high-pressure filter assembly category. Select the correct model and verify the filter part number and mesh grade.
How do I know which Titan Elite hose to order?
Confirm the sprayer's maximum working pressure and the hose's pressure rating, length, diameter, connection type, and compatibility. Do not select a hose by length alone.
When should I replace Titan Elite sprayer filters?
Inspect and clean filters according to the equipment manual. Replace filter elements when damaged, excessively worn, or no longer serviceable.
Should I replace an entire assembly or an individual part?
The appropriate repair depends on the failure, available service parts, and Titan's repair instructions. Use the factory diagram to determine whether an individual component is serviceable.
How can I confirm Titan Elite replacement part compatibility?
Compare your model and serial information with the applicable parts diagram and manufacturer part number. Contact AllTitanParts if the identification is unclear.
How can I contact AllTitanParts for Titan Elite parts assistance?
Call 713-931-0006 with your sprayer model, serial information, assembly name, and existing part number for assistance identifying the correct replacement.
Titan OEM Parts Identification
Need Help Finding the Correct Titan Elite Sprayer Part?
Have your Titan Elite model, serial number, assembly reference, and original part number ready when requesting fitment assistance.
713-931-0006
