Genuine Titan OEM | Hopper and Material Supply Parts
Shop Titan Elite 3000 Hopper Assembly Parts
Restore reliable coating supply and efficient material handling with Titan Elite 3000 Hopper Assembly Parts from AllTitanParts. Shop genuine Titan OEM hopper assemblies, replacement black hoppers, disk filters, return pipes and mounting hardware. Whether you need Titan 341267 Hopper Assembly, Titan 340265 Black Hopper or Titan 0037607 Filter Disk, use the factory exploded diagram to identify the correct replacement for your Elite 3000 high-pressure airless paint sprayer.
Hopper Assembly Overview
Buy Genuine Titan Elite 3000 Hopper Assembly Replacement Parts
The Titan Elite 3000 Hopper Assembly provides a dedicated coating material reservoir for the sprayer's fluid intake system. Its components help hold coating material, support delivery to the pump and accommodate the return flow used during applicable priming and circulation operations.
The hopper provides the material supply container, while the disk filter helps prevent larger contaminants from entering the intake pathway. The return pipe directs returning coating material into the hopper, and the specified mounting hardware supports proper assembly installation.
Damaged hopper walls, restricted filter disks, loose mounting components and obstructed return pipes can interfere with normal material handling. These conditions may contribute to leakage, difficult priming, restricted coating intake and unnecessary equipment downtime.
This category includes 6 individually listed genuine Titan OEM products: Titan 341267 Hopper Assembly, Titan 9902306 Sheet Metal Screw, Titan 0003756 Disk Filter, Titan 0037607 Filter Disk, Titan 340265 Black Hopper and Titan 0340908 Return Pipe.
AllTitanParts helps you identify the correct replacement by Titan part number, diagram reference and product description so you can maintain the Elite 3000 hopper configuration without purchasing unrelated components.
OEM Parts Directory
Titan Elite 3000 Hopper Assembly Parts List
Compare the following genuine Titan replacement parts with the factory exploded diagram before ordering.
| Diagram Ref. | Titan Part Number | Part Description | Primary Function |
|---|---|---|---|
| 1 | 341267 | Hopper Assembly | Provides the specified hopper assembly for the Elite 3000 material supply configuration. |
| 3 | 9902306 | Sheet Metal Screw, 3.9 x 13 | Provides the designated fastening function within the hopper assembly. |
| 4 | 0003756 | Disk Filter | Helps prevent larger debris from entering the coating intake pathway. |
| 4 | 0037607 | Filter Disk, 0.8 mm Mesh Width | Provides the specified 0.8 mm filtration option for compatible hopper applications. |
| 5 | 340265 | Black Hopper | Provides the coating material reservoir for the Elite 3000 hopper configuration. |
| 6 | 0340908 | Return Pipe | Directs returning coating material into the hopper during applicable operating procedures. |
These are six individually listed products, not necessarily every physical component included in the complete hopper assembly. Two filter disk products share diagram reference 4. Confirm the correct filter specification and assembly contents before ordering.
Featured OEM Hopper Components
Shop Titan Elite 3000 Hoppers, Filter Disks and Return Pipes

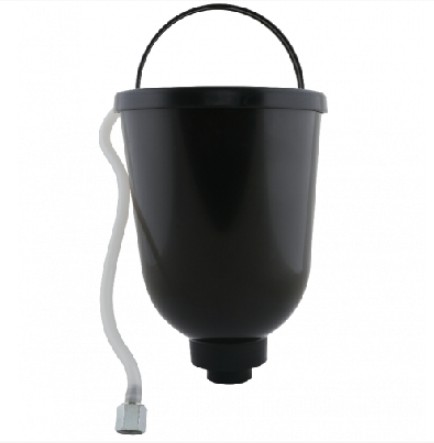

Titan 341267 Hopper Assembly
The Titan 341267 Hopper Assembly is a genuine OEM replacement assembly listed for the Titan Elite 3000 high-pressure airless sprayer.
The hopper assembly supports the storage and delivery of coating material to the pump. It is an important part of the sprayer's material supply configuration and helps maintain a consistent source of coating during operation.
A complete hopper assembly may be appropriate when multiple components are damaged or the manufacturer's repair procedure specifies assembly replacement.
Check the included components and equipment configuration before purchasing.

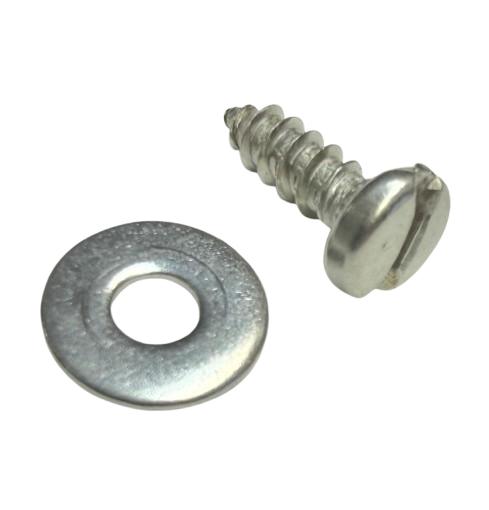

OEM Part Number: 341267 | Ref. 1Titan 9902306 Sheet Metal Screw
The Titan 9902306 Sheet Metal Screw is a genuine OEM fastening component listed for the Elite 3000 hopper assembly.
The catalog identifies this screw as a 3.9 x 13 fastener. It provides the specified attachment function at its designated diagram position.
Replace missing, damaged or stripped hardware with the correct specified fastener. Confirm the required quantity and installation procedure before reassembly.

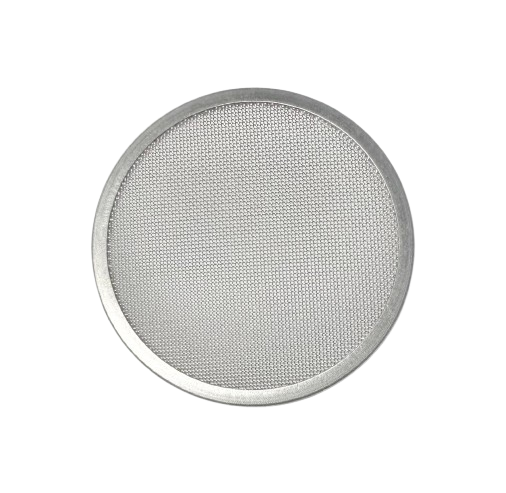

OEM Part Number: 9902306 | Ref. 3Titan 0003756 Disk Filter
The Titan 0003756 Disk Filter is an OEM filtration component listed for the Elite 3000 hopper assembly.
It helps limit the entry of larger coating particles, dried paint fragments and foreign material into the pump's intake pathway.
A clogged or damaged disk filter may restrict material flow and contribute to difficult priming. Inspect the filter for contamination, physical damage and excessive buildup during maintenance.
Verify the correct filter option using the factory diagram and applicable product specifications.

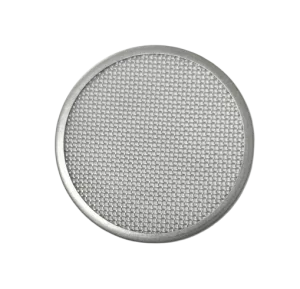

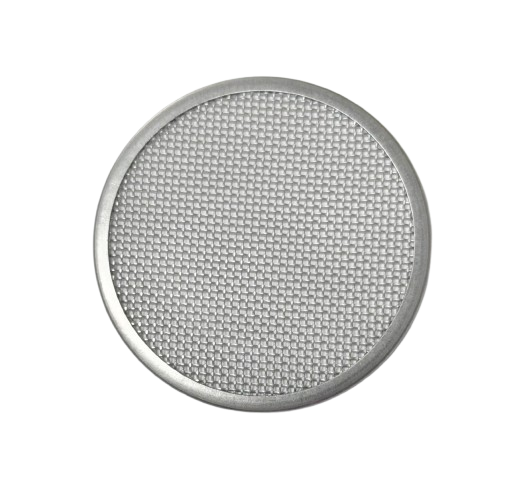

OEM Part Number: 0003756 | Ref. 4Titan 0037607 Filter Disk, 0.8 mm
The Titan 0037607 Filter Disk is a genuine OEM replacement filter listed with a 0.8 mm mesh width.
The filter provides a specified particle screening option for the hopper intake system. Its mesh specification is important when selecting filtration appropriate for the coating and equipment configuration.
Inspect the filter for blockage, deformation and damage. Do not assume Titan 0037607 and Titan 0003756 are identical without checking the manufacturer's parts information.
OEM Part Number: 0037607 | Ref. 4Titan 340265 Black Hopper
The Titan 340265 Black Hopper is a genuine OEM replacement reservoir used with the Titan Elite 3000 sprayer.
The hopper holds coating material and provides a supply source for the pumping system. Its physical condition and correct installation are important for reliable material handling.
Inspect the hopper for cracks, deformation, leakage and damaged connection points. Replace a compromised reservoir rather than attempting an unapproved repair.
Confirm whether additional hardware or fittings must be ordered separately.
OEM Part Number: 340265 | Ref. 5Titan 0340908 Return Pipe
The Titan 0340908 Return Pipe is an OEM component used with the black hopper on the Titan Elite 3000 airless sprayer.
It provides a designated pathway for returning coating material to the hopper during applicable priming, circulation and flushing operations.
Inspect the return pipe for blockage, cracking, deformation and damaged connections. An obstructed or incorrectly installed return pipe may interfere with normal fluid circulation.
OEM Part Number: 0340908 | Ref. 6Hopper System Operation
How the Titan Elite 3000 Hopper Assembly Works
Coating Storage
The hopper holds the coating material required for the sprayer's pumping operation.
Material Screening
The installed disk filter helps prevent larger contaminants from entering the material intake pathway.
Pump Supply
Coating material moves from the hopper through the designated intake connection toward the pumping system.
Return Circulation
The return pipe directs returning coating material into the hopper during applicable circulation procedures.
Troubleshooting and Repair
Common Titan Elite 3000 Hopper Assembly Problems
Hopper-related symptoms can result from several conditions. Inspect the reservoir, filter disks, return pipe and related pump intake components before selecting replacement parts.
| Observed Problem | Components to Inspect | Recommended Check |
|---|---|---|
| Sprayer will not prime | 0003756 and 0037607 Filter Disks | Inspect for clogged filtration, insufficient coating supply and restrictions in the intake pathway. |
| Reduced material intake | Filter disk and hopper outlet | Check for dried coating, debris and obstructed material flow. |
| Coating leaks from hopper | 340265 Black Hopper and connections | Inspect the reservoir for cracks, damaged connection points and incorrect installation. |
| Return flow is restricted | 0340908 Return Pipe | Inspect the pipe for blockage, dried coating and physical damage. |
| Hopper mounting is loose | 9902306 Sheet Metal Screw and mounting points | Check for missing or damaged hardware and worn attachment points. |
| Frequent filter blockage | 0003756 or 0037607 Filter Disk | Check coating cleanliness, filter condition and the required filtration specification. |
| Multiple hopper components damaged | 341267 Hopper Assembly | Evaluate complete assembly replacement and confirm its included components. |
OEM Part Number Identification
Titan Elite 3000 Hopper Replacement Part Numbers
The catalog identifies these hopper assembly products:
- Titan 341267: Hopper Assembly, diagram reference 1.
- Titan 9902306: Sheet Metal Screw, 3.9 x 13, diagram reference 3.
- Titan 0003756: Disk Filter, diagram reference 4.
- Titan 0037607: Filter Disk, 0.8 mm mesh width, diagram reference 4.
- Titan 340265: Black Hopper, diagram reference 5.
- Titan 0340908: Return Pipe, diagram reference 6.
Titan 0003756 and Titan 0037607 are separately listed filter disk products at the same diagram reference. The listing specifies a 0.8 mm mesh width for Titan 0037607.
Do not assume these filters are direct replacements for each other. Verify the required filter specification and the manufacturer's parts information before selecting either component.
OEM Buying Guide
How to Order the Correct Titan Elite 3000 Hopper Part
Confirm Your Sprayer
Verify the Titan Elite 3000 model, serial number and installed hopper configuration.
Locate the Component
Find the hopper, disk filter, return pipe or mounting screw in the factory exploded diagram.
Match the OEM Number
Check the exact part number, diagram reference, filter specification and product description.
Purchase the Replacement
Confirm fitment and quantities, then order the correct OEM component from AllTitanParts.
Preventive Maintenance
Maintain Your Titan Elite 3000 Hopper Assembly
Clean the Hopper Regularly
Remove coating residue using the cleaning procedure and materials recommended by Titan and the coating manufacturer.
Inspect Filter Disks
Check for dried coating, blockage and damaged filter surfaces. Clean or replace the filter as specified.
Monitor Hopper Condition
Inspect the reservoir for cracks, deformation and leakage around connection points.
Keep the Return Pipe Clear
Inspect the return pipe for restrictions and accumulated coating material during routine maintenance.
Check Mounting Hardware
Verify that specified fasteners are present and secure according to the manufacturer's assembly instructions.
Prevent Material Contamination
Keep coating containers clean and use the correct filtration arrangements to reduce debris entering the pump.
Related Titan Elite 3000 Assemblies
Shop More Titan Elite 3000 Airless Sprayer Parts
Elite 3000 Main Assembly
Browse main assembly components and related replacement parts.
Elite 3000 Pump Assembly
Explore pump service components and fluid delivery repair parts.
Elite 3000 Flexible Suction Set
Find flexible suction hoses, return hoses and intake filtration parts.
Elite 3000 Rigid Suction Set
Browse rigid suction assemblies and material intake replacement components.
Elite 3000 High Pressure Filter
Shop manifold filters, filter housings and high-pressure filtration components.
Elite 3000 Accessories
Explore additional Titan Elite 3000 accessories and service components.
Titan Elite 3000 Hopper Assembly Repair Safety
Before removing or servicing hopper assembly components, switch off the sprayer, disconnect electrical power and follow Titan's complete pressure-relief procedure. Never loosen fluid connections while the system is pressurized. High-pressure fluid injection injuries require immediate emergency medical attention. Follow the applicable Titan service manual for hopper removal, cleaning, filter replacement, reassembly and priming. Use only manufacturer-approved cleaning procedures and correctly specified replacement parts.
Genuine Titan Elite 3000 Hopper Parts
Order Titan Elite 3000 Hopper Assembly Parts Today
Shop genuine Titan OEM hopper assemblies, black hoppers, filter disks, return pipes and mounting hardware. Find Titan 341267, 340265, 0037607, 0003756, 0340908 and 9902306 using the factory exploded parts diagram.
Shop Elite 3000 Hopper Assembly PartsFrequently Asked Questions
Titan Elite 3000 Hopper Assembly FAQ
What is the Titan Elite 3000 Hopper Assembly?
It is the coating material supply assembly used with the Titan Elite 3000 airless sprayer. It includes components associated with coating storage, intake filtration and return circulation.
How many replacement products are listed in this category?
AllTitanParts lists six individual genuine Titan OEM products in the Elite 3000 Hopper Assembly Parts category.
What is the Titan Elite 3000 complete hopper assembly part number?
Titan 341267 is the Hopper Assembly listed at diagram reference 1.
What is the Titan Elite 3000 black hopper part number?
Titan 340265 is the Black Hopper listed at diagram reference 5 for the Elite 3000 sprayer.
What is the Titan Elite 3000 disk filter part number?
Titan 0003756 is a Disk Filter listed at diagram reference 4. Titan 0037607 is another separately listed Filter Disk with a specified 0.8 mm mesh width.
What is the mesh width of Titan 0037607 Filter Disk?
The Titan 0037607 Filter Disk is listed with a 0.8 mm mesh width. Verify that this specification matches your equipment and coating requirements.
Are Titan 0003756 and Titan 0037607 interchangeable?
Both products appear at diagram reference 4, but they have different part numbers. Do not assume interchangeability without confirming the manufacturer's filtration specifications and fitment information.
What is the Titan Elite 3000 return pipe part number?
Titan 0340908 is the Return Pipe listed at diagram reference 6. It is used with the black hopper on the Elite 3000 sprayer.
What is the Titan Elite 3000 hopper mounting screw part number?
Titan 9902306 is the Sheet Metal Screw listed at diagram reference 3. The catalog identifies its specification as 3.9 x 13.
Why is my Titan Elite 3000 not drawing paint from the hopper?
Possible causes include a clogged filter disk, insufficient material in the hopper, blocked intake passages, air leaks or pump inlet valve problems. Inspect the hopper and related pump components according to Titan's service instructions.
Can I replace only the black hopper instead of the complete assembly?
Titan 340265 Black Hopper is listed separately from Titan 341267 Hopper Assembly. Individual replacement may be appropriate when only the reservoir requires service. Confirm the necessary fittings and hardware before ordering.
How do I maintain the Titan Elite 3000 hopper filter?
Follow Titan's pressure-relief and cleaning procedures. Inspect the filter disk for coating residue, debris and damage. Clean or replace the filter as required by the manufacturer.
Where can I buy Titan Elite 3000 Hopper Assembly Parts?
Shop Titan Elite 3000 Hopper Assembly Parts at AllTitanParts. For help identifying the correct OEM component, call 713-931-0006.
Titan OEM Parts Assistance
Need Help Finding Elite 3000 Hopper Parts?
Have your Titan Elite 3000 model, serial number, diagram reference and existing part number ready when requesting replacement part assistance.
713-931-0006
