Shop Titan Elite 3000 Pump Assembly Parts
Find listed Titan Elite 3000 Pump Assembly Parts at AllTitanParts. Browse valve components, diaphragm replacements, seals, fittings and pump hardware. Match the required replacement to your equipment's assembly diagram before ordering.
Pump Assembly Overview
Identify the Correct Pump Service Component
The Elite 3000 uses a hydraulically driven diaphragm to move coating material from its supply container to the spray gun. Titan's PermaStroke system has different service requirements from a conventional paint piston pump.
Use the model-specific parts breakdown when selecting replacements. Confirm the exact component number and supplied contents rather than choosing a part solely by its name or appearance.
Selected Listed Components
Elite 3000 Pump Parts Reference
| Part Number | Listed Component |
|---|---|
| 0537903 | Valve Repair Kit |
| 2393138 | Service Set Diaphragm |
| 2369445 | Outlet Valve Assembly |

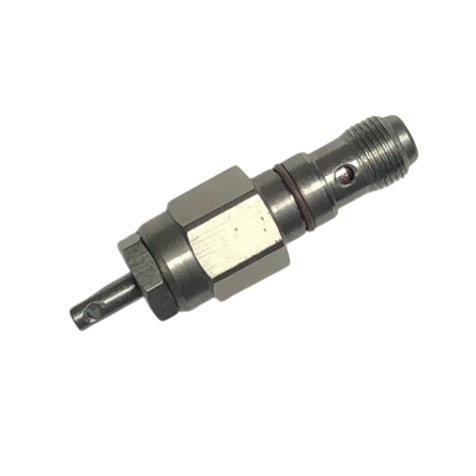

| 2369631 | Relief Valve Assembly |
| 2402347 | Inlet Valve Pusher Housing Assembly |

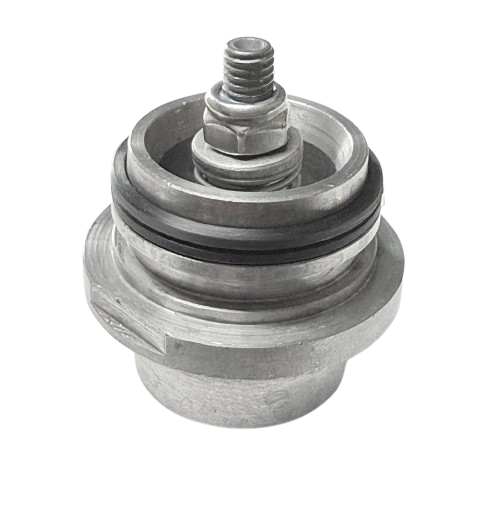

| 2393043 | Inlet Valve |
| 2369435 | Pump Head |

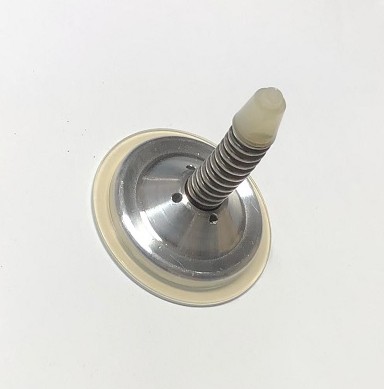

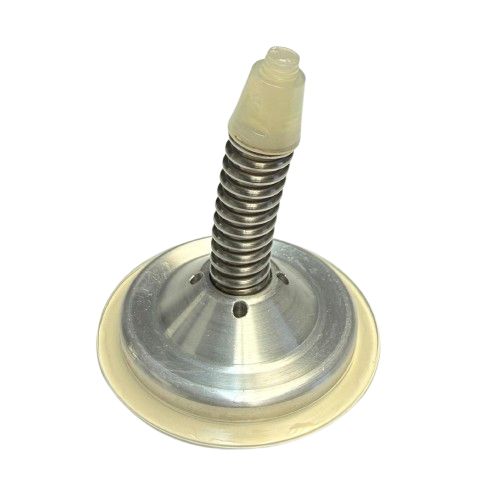

| 2369431 | Diaphragm Assembly |

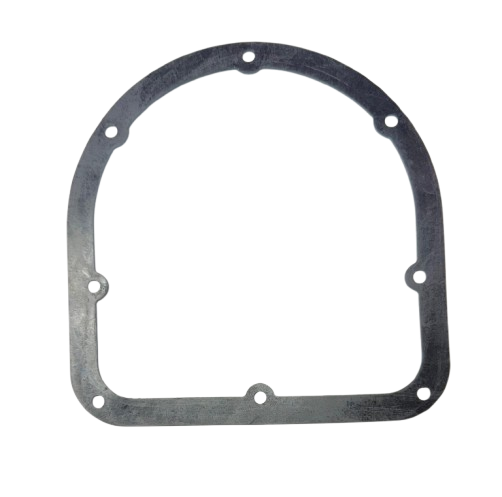

| 2369493 | Manifold Gasket |
This selection does not include every category listing. Review individual products for availability, compatibility and package contents.
Replacement Number Reference
Check Updated Assembly Numbers
The category identifies 2369445 as replacing outlet valve assembly 2342946, and 2402347 as replacing inlet valve pusher housing assembly 2334402. Match these references to your equipment documentation before purchase.
Parts Buying Guide
Prepare an Accurate Pump Parts Order
Identify the Equipment
Record the model, product number and available serial information.

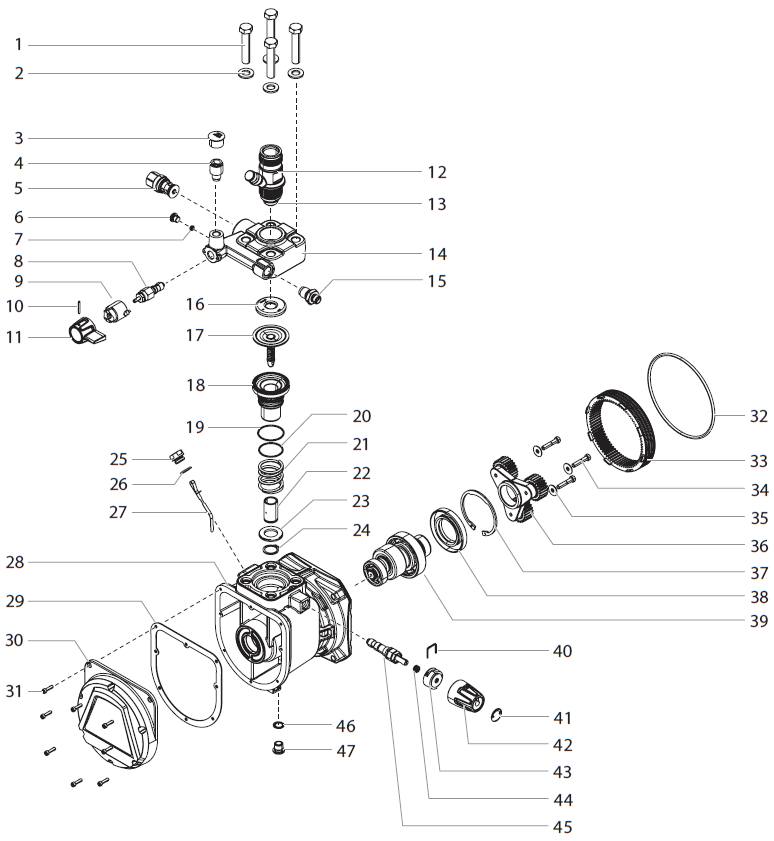

Locate the Diagram Item
Find the required component in the applicable pump illustration.
Review Kit Contents
Check whether the service set or assembly includes the parts your repair needs.
Verify and Order
Confirm fitment, quantities and documented replacement numbers before purchasing.
Service Preparation
Diagnose Before Replacing Pump Components
Follow the applicable manufacturer troubleshooting and service instructions to establish the required repair. Record the observed symptoms and previous service work when requesting assistance. Use the specified inspection and reassembly procedures for each component.
Browse Related Elite 3000 Parts
Order Your Elite 3000 Pump Replacements
Select the component or service set that matches your equipment and diagnosed repair.
Shop Pump Assembly PartsFrequently Asked Questions
Elite 3000 Pump Assembly Parts FAQ
Does this category supply a complete replacement pump?
Read the individual listing. The category identifies the service assembly and contains separate components and service sets.
Are a diaphragm assembly and a diaphragm service set the same package?
Compare the supplied contents and part numbers. Similar descriptions do not establish identical package contents.
What if my manual shows an older part number?
Confirm the documented replacement relationship and equipment compatibility before ordering.
What details help identify the correct pump part?
Provide your equipment identification, original part number and pump assembly diagram reference.
Need Help Matching a Pump Component?
Contact AllTitanParts with your equipment and component details before ordering.
713-931-0006
