Genuine Titan OEM | Suction System Repair Parts
Shop Titan Elite 3000 Flexible Suction Set Parts
Restore dependable coating intake and pump priming with Titan Elite 3000 Flexible Suction Set Parts from AllTitanParts. Shop genuine Titan OEM suction system assemblies, flexible suction hoses, return hoses and inlet suction filters. Use the factory exploded parts diagram to identify the correct replacement for your Titan Elite 3000 airless paint sprayer and keep coating material moving reliably from the container into the pump.
Flexible Suction Set Overview
Buy Genuine Titan Elite 3000 Flexible Suction System Parts
The Titan Elite 3000 Flexible Suction Set forms an important part of the sprayer's coating intake and circulation system. It provides a pathway for coating material to travel from the supply container into the pump while supporting the return of material during priming and pressure-relief operations.
The suction hose must maintain an unobstructed and properly sealed connection to the pump inlet. The suction filter helps prevent larger particles and debris from entering the pumping mechanism, while the return hose directs material back toward the supply container during applicable operating procedures.
Over time, flexible hoses can develop cracks, restrictions or damaged connections. Filters can become clogged with dried coating, and compromised suction fittings may allow air into the system. These conditions can contribute to difficult priming, cavitation, intermittent fluid delivery and reduced pumping efficiency.
This category features 4 individually listed Titan OEM replacement products: Titan 2393123 Suction System Set, Titan 2390605 Suction Hose Assembly, Titan 2390606 Return Hose Assembly and Titan 2323325 Suction Filter.
Whether you need a complete suction system replacement or an individual hose or filter, AllTitanParts helps you identify the correct component by manufacturer part number and factory diagram reference.
OEM Parts Directory
Titan Elite 3000 Flexible Suction Set Parts List
Use this parts directory alongside the factory exploded diagram to identify the correct replacement component before ordering.
| Diagram Ref. | Titan Part Number | Part Description | Primary Function |
|---|---|---|---|
| Not specified | 2393123 | Suction System Set | Provides a complete replacement suction system for drawing coating material into the pump. |
| 1 | 2390605 | Suction Hose Assembly | Transfers coating material from the supply container toward the pump inlet. |
| 2 | 2390606 | Return Hose Assembly | Carries coating material through the return circuit during applicable operating procedures. |
| 3 | 2323325 | Suction Filter | Strains larger debris from coating material before it enters the pump. |
The four entries represent the individually listed products in this category. A complete suction system may contain additional physical components. Confirm assembly contents and quantities on the applicable product listing.
Featured OEM Suction Components
Shop Titan Elite 3000 Suction Hoses, Return Hoses and Filters
Titan 2393123 Suction System Set

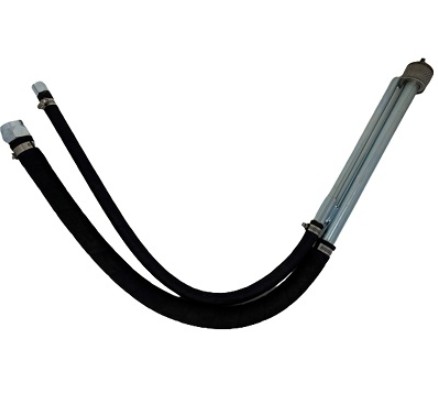

The Titan 2393123 Suction System Set is a genuine OEM replacement assembly for the Titan Elite 3000 airless sprayer's coating intake system.
The suction system draws coating material from the supply container toward the pump. Properly functioning intake components help maintain reliable priming and uninterrupted material delivery.
Consider inspecting or replacing the suction system when damaged hoses, defective connections, air ingestion or persistent intake restrictions are confirmed. Check the supplied assembly contents before installation.
OEM Part Number: 2393123Titan 2390605 Suction Hose Assembly

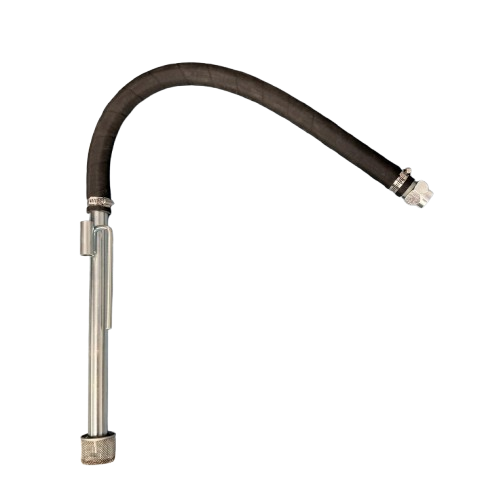

The Titan 2390605 Suction Hose Assembly provides the flexible intake connection used to transfer coating material from the supply container into the Elite 3000 pumping system.
A damaged suction hose may introduce air, restrict material movement or cause the pump to lose prime. Inspect the hose for cracks, deformation, blockage and connection damage.
Replace the assembly when inspection confirms damage that prevents dependable fluid intake. Verify the manufacturer part number before ordering.
OEM Part Number: 2390605 | Ref. 1Titan 2390606 Return Hose Assembly

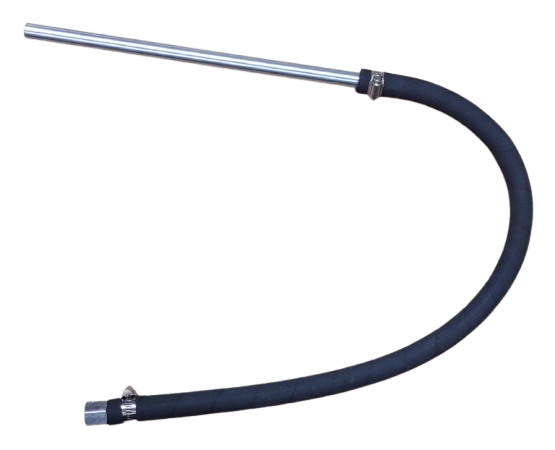

The Titan 2390606 Return Hose Assembly is an OEM component used in the Elite 3000 fluid return circuit.
During applicable priming and circulation operations, the return hose provides a pathway for coating material to flow back toward the supply container.
Inspect the return hose for cracks, restrictions, loose connections and material leakage. Replace damaged components and secure the hose according to Titan's service instructions.
OEM Part Number: 2390606 | Ref. 2Titan 2323325 Suction Filter

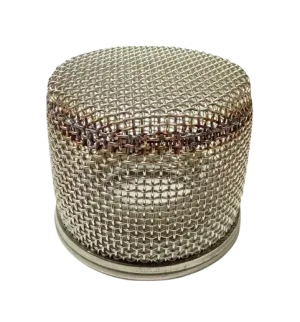

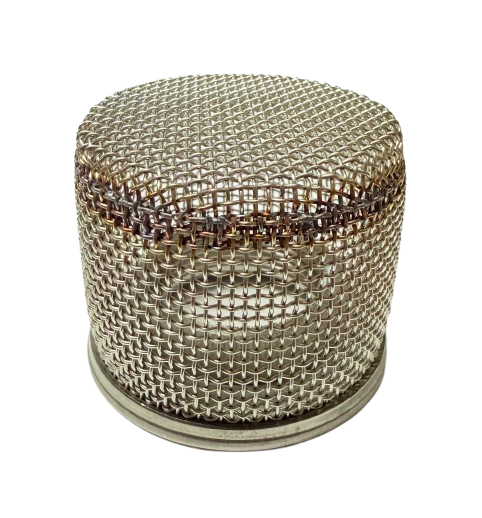

The Titan 2323325 Suction Filter is an OEM intake filtration component listed for the Elite 3000 suction system.
Its purpose is to capture larger particles and coating debris before material enters the pump. A restricted suction filter can reduce material intake and contribute to priming difficulties.
Inspect the filter for clogging, tears and physical damage. Clean it according to manufacturer guidance or replace it when it cannot be restored to serviceable condition.
OEM Part Number: 2323325 | Ref. 3Suction System Operation
How the Titan Elite 3000 Flexible Suction Set Works
Material Intake
The suction hose draws coating material from the supply container toward the pump inlet as the pumping system operates.
Debris Filtration
The suction filter captures larger particles that could restrict or damage downstream pump components.
Pump Supply
A properly sealed and unobstructed suction path supports continuous material supply to the pump during operation.
Material Return
The return hose carries coating material back through the return circuit during applicable priming and circulation procedures.
Troubleshooting and Repair
Common Titan Elite 3000 Flexible Suction Set Problems
Suction system problems can affect priming, material intake and pump operation. Inspect the complete intake path and related pump components before selecting replacement parts.
| Observed Problem | Components to Inspect | Recommended Check |
|---|---|---|
| Sprayer will not prime | 2390605 Suction Hose and 2323325 Filter | Check for blocked filtration, loose connections, air leaks and adequate material supply. |
| Pump loses prime during spraying | 2390605 Suction Hose and suction connections | Inspect for cracks, air ingestion, damaged seals and insufficient suction hose immersion. |
| Reduced material intake | 2323325 Suction Filter and 2390605 Hose | Check for dried coating, debris accumulation, collapsed hose sections and intake restrictions. |
| Return hose leaks | 2390606 Return Hose Assembly | Inspect the hose body and connections for cracks, wear and improper attachment. |
| Air bubbles or irregular fluid delivery | 2390605 Suction Hose and intake fittings | Inspect the suction path for air entry and verify the material supply. |
| Repeated filter blockage | 2323325 Suction Filter | Inspect coating cleanliness, filter condition and accumulated material residue. |
| Multiple suction components damaged | 2393123 Suction System Set | Determine whether complete assembly replacement is appropriate after checking individual component condition. |
OEM Part Number Identification
Titan Elite 3000 Flexible Suction Set Replacement Part Numbers
The following manufacturer part numbers identify the products listed in this category:
- Titan 2393123: Suction System Set.
- Titan 2390605: Suction Hose Assembly, diagram reference 1.
- Titan 2390606: Return Hose Assembly, diagram reference 2.
- Titan 2323325: Suction Filter, diagram reference 3.
The complete suction system set and the individual replacement components are separate catalog products. Confirm which components are included in Titan 2393123 before ordering additional individual parts.
The Elite 3000 also has a separately listed rigid suction set configuration. Do not assume that flexible and rigid suction components are interchangeable without checking the manufacturer's parts documentation.
OEM Buying Guide
How to Order the Correct Titan Elite 3000 Flexible Suction Part
Confirm Your Sprayer
Verify the Titan Elite 3000 model, serial number and flexible suction system configuration.
Locate the Component
Find the suction hose, return hose, suction filter or complete set in the factory exploded diagram.
Match the OEM Number
Compare the diagram reference and exact Titan part number with the replacement product listing.
Purchase the Replacement
Order the required OEM component and follow Titan's installation and maintenance instructions.
Preventive Maintenance
Maintain Your Titan Elite 3000 Flexible Suction System
Clean the Suction Filter
Inspect and clean the suction filter according to Titan's maintenance instructions. Replace filters with damaged or excessively restricted screens.
Inspect Flexible Hoses
Check the suction and return hoses for cracking, deformation, abrasion and material buildup that could affect fluid movement.
Check Hose Connections
Inspect hose fittings and sealing surfaces for damage. Properly secured connections help prevent air ingestion and material leakage.
Flush After Spraying
Use the manufacturer-recommended flushing procedure and compatible cleaning materials to reduce dried coating deposits.
Keep Material Containers Clean
Prevent excessive dirt, dried paint and foreign particles from entering the suction system during equipment operation.
Store Hoses Properly
Avoid sharp bends, crushing and unnecessary exposure to conditions that may damage flexible hose materials.
Related Titan Elite 3000 Assemblies
Shop More Titan Elite 3000 Airless Sprayer Parts
Elite 3000 Main Assembly
Browse main assembly components and related sprayer replacement parts.
Elite 3000 Pump Assembly
Find pump components, service parts and replacement assemblies.
Elite 3000 Outlet Valve Assembly
Explore outlet valve components used in the pumping system.
Elite 3000 Rigid Suction Set
Browse the separately listed rigid suction system and its replacement components.
Elite 3000 High Pressure Filter
Shop filtration assembly components for the downstream fluid system.
Elite 3000 Accessories
Find compatible spray accessories and additional service components.
Titan Elite 3000 Suction Set Repair Safety
Before servicing the flexible suction system, switch off the sprayer, disconnect electrical power and follow Titan's complete pressure-relief procedure. Never disconnect fluid lines while the system is pressurized. High-pressure fluid injection injuries require immediate emergency medical attention. Follow the applicable Titan service manual for hose removal, filter maintenance, component installation, priming and leak testing. Use only compatible replacement parts and approved service procedures.
Genuine Titan Elite 3000 Suction System Parts
Order Titan Elite 3000 Flexible Suction Set Parts Today
Shop genuine Titan OEM suction system assemblies, flexible suction hoses, return hoses and suction filters. Find Titan 2393123, 2390605, 2390606 and 2323325 using the factory exploded diagram.
Shop Elite 3000 Flexible Suction PartsFrequently Asked Questions
Titan Elite 3000 Flexible Suction Set FAQ
What is the Titan Elite 3000 Flexible Suction Set?
It is the flexible fluid intake and return system associated with the Titan Elite 3000 airless sprayer. Its components include the suction hose, return hose and suction filter.
How many replacement parts are listed in this category?
AllTitanParts lists four individual OEM products in the Titan Elite 3000 Flexible Suction Set Parts category.
What is the Titan Elite 3000 complete suction system part number?
Titan 2393123 is the Suction System Set listed for the Elite 3000 flexible suction configuration.
What is the Titan Elite 3000 suction hose part number?
Titan 2390605 is the Suction Hose Assembly listed at diagram reference 1.
What is the Titan Elite 3000 return hose part number?
Titan 2390606 is the Return Hose Assembly listed at diagram reference 2.
What is the Titan Elite 3000 suction filter part number?
Titan 2323325 is the Suction Filter listed at diagram reference 3.
Why will my Titan Elite 3000 not prime?
Possible causes include a clogged suction filter, cracked suction hose, loose intake connection, insufficient material supply or a defective pump inlet valve. Inspect the complete intake system before replacing components.
Can a damaged suction hose cause pressure loss?
Yes. A suction hose that allows air into the intake system or restricts coating flow can contribute to cavitation, loss of prime and irregular material delivery.
Can I replace only the suction filter?
Yes. Titan 2323325 is separately listed as a replacement suction filter. If the hose and other suction components remain serviceable, replacing the filter alone may be sufficient.
Are the flexible and rigid Elite 3000 suction sets interchangeable?
Do not assume interchangeability. The flexible and rigid suction configurations have separately listed components. Confirm the correct configuration and manufacturer part numbers before ordering.
Should I buy the complete suction system or individual components?
Choose based on the diagnosed damage. Individual hoses and filters may be appropriate for isolated repairs, while a complete suction system set may be preferable when several components require replacement. Verify included parts before ordering.
Where can I buy Titan Elite 3000 Flexible Suction Set Parts?
Shop Titan Elite 3000 Flexible Suction Set Parts at AllTitanParts. For assistance identifying the correct OEM component, call 713-931-0006.
Titan OEM Parts Assistance
Need Help Finding Elite 3000 Flexible Suction Parts?
Have your Titan Elite 3000 model, serial number, suction configuration, diagram reference and existing part number ready when requesting replacement part assistance.
