Titan 2390605 Suction Hose Assembly
OEM Titan Suction Hose & Spray Gun Tip Guard
Titan 2390605 Suction Hose Assembly is an OEM fluid intake hose with integrated filter for the Elite 3000 airless sprayer, providing the material draw path from container to pump. Titan 661-012 Tip Guard is a genuine 7/8-inch hand-tight reversible tip guard that protects the operator from high-pressure spray emission on compatible Titan spray guns and pumps.
Compatibility Table
The suction hose restores proper material draw on the Elite 3000, while the tip guard protects the operator from high-pressure spray emission and ensures safe, compliant spraying.
Titan Suction Hose & Spray Gun Accessory
Titan 2390605 Suction Hose Assembly & 661-012 Tip Guard

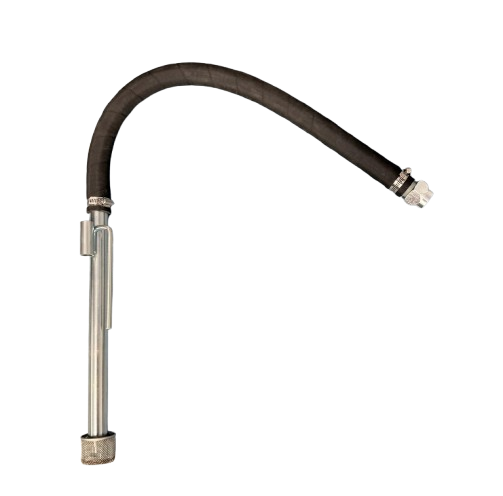

Titan 2390605 is an OEM suction hose assembly (including filter) for the Elite 3000 airless sprayer, providing the complete fluid intake path from the material container to the pump inlet. Titan 661-012 is a genuine 7/8-inch hand-tight reversible tip guard that protects the operator from high-pressure spray emission during airless spraying operations.
| Detail | Technical / Commercial Information |
|---|---|
| Suction Hose Overview | OEM Titan suction hose assembly (alternate 02390605) listed as "Suction hose assy. (incl. filter)" in the suction system parts list and compatible with the Elite 3000. |
| Suction Hose Function | Provides the fluid path from the material container to the pump inlet; the integrated filter prevents debris from entering the pump and damaging internal components. |
| Tip Guard Overview | Genuine Titan 7/8-inch hand-tight reversible tip guard (661-012), noted as being replaced by Titan 0289228A. Compatible with a broad range of Titan spray guns and pumps. |
| Tip Guard Function | Protects the operator from high-pressure spray emission; ensures safe, compliant spraying. Official Titan manuals state: "Do not spray without the tip guard in place." |
| Suction Hose Compatibility | Elite 3000 High Pressure Airless Sprayer. |
| Tip Guard Compatibility | Advantage GPX 85, 1100, 700, GPX 220, GPX 165, GPX 130; PowrLiner 800; LX-65, LX-75, LX-80 Platinum; SGX-20; G-10. |
| OEM Part Numbers | Suction Hose: 2390605 (alternate 02390605). Tip Guard: 661-012 (replaced by 0289228A). |
| Related Parts Commonly Serviced Together | For the suction hose: inlet screen, pump inlet components, siphon set hardware. For the tip guard: reversible spray tip, spray gun, tip seal. |
| Common Problems Solved | Suction Hose: damaged or clogged hose causing poor material draw or air ingress. Tip Guard: missing or damaged guard exposing the operator to high-pressure spray emission. |
| Target Users / Markets | Painting contractors, maintenance technicians, rental fleets, and repair shops running compatible Titan airless sprayers. |
| OEM & Brand Information | Genuine Titan OEM components designed for correct fit and reliable performance in compatible sprayer systems. |
| Commercial Benefits | The suction hose restores proper material intake, while the tip guard ensures safe operation and compliance with sprayer safety requirements. |
The 2390605 Suction Hose Assembly is a direct replacement for worn or damaged suction hoses on the Elite 3000 sprayer. Inspect the integrated filter for clogging and clean or replace as needed during installation. The 661-012 Tip Guard is a genuine 7/8-inch hand-tight reversible guard. Note that Titan has superseded this part with 0289228A. Never spray without the tip guard in place; always ensure the guard is securely attached before triggering the gun. Verify compatibility against your specific model's parts diagram before ordering.
