Titan Elite 3000 | Cart Replacement Components
Shop Titan Elite 3000 Cart Assembly Parts

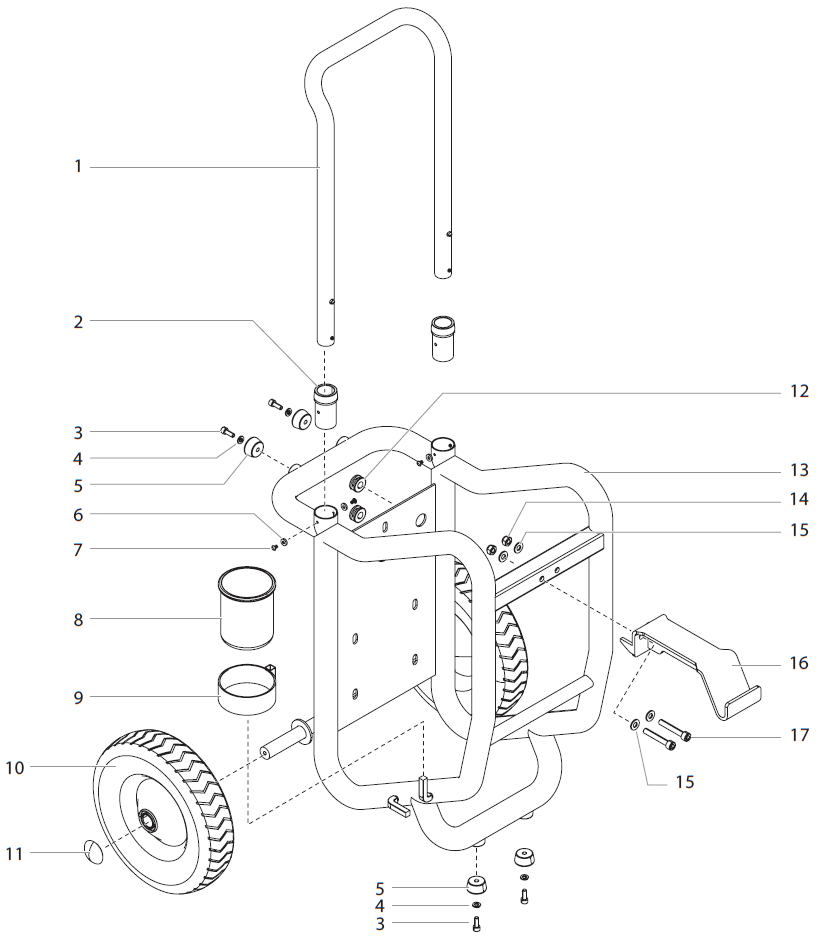

Find listed Titan Elite 3000 Cart Assembly Parts at AllTitanParts. Use the numbered diagram to identify the cart component required for your repair, then verify the exact part number and supplied contents before ordering.
Cart Configuration
Match Parts to Your Elite 3000 Cart
Titan's Elite 3000 features a multi-position cart that supports high rider direct immersion and low rider siphon configurations. Its cart arrangement is part of the equipment's handling and material-supply setup.
Record your equipment identification and check the installed cart before selecting replacements. Similar-looking hardware or wheels from another model should be checked for documented compatibility.
Listed Replacement Parts
Elite 3000 Cart Assembly Parts Directory
| Diagram Reference | Part Number | Listed Component |
|---|---|---|
| 1 | 2402496 | Handle Assembly |
| 2 | 2402511 | Sleeve |
| 4 | 2402525 | Washer |
| 5 | 2402512 | Foot |
| 7 | 9805256 | Taptite Screw |
| 10 | 2402494 | Wheel |

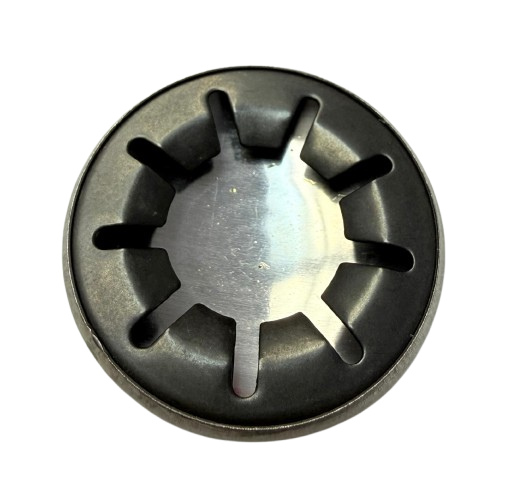

| 11 | 9994950 | End Cap |
| 15 | 9920102 | Washer |
| 16 | 2402491 | Pail Bracket |
Check individual listings for current availability, package contents and supplied quantities.
Component Selection
Check Related Hardware Before Ordering
Identify the parts needed for the complete repair, including any associated washers, caps or fasteners. Read assembly contents carefully so you can determine which items are included and which require a separate order.
Parts Buying Guide
Prepare Your Cart Assembly Parts Order
Identify the Equipment
Record the model, product number and available serial information.
Find the Diagram Item
Locate the required component in the applicable cart illustration.
Verify the Replacement
Compare the part number with the listing and documented fitment.
Review Quantities
Check the number supplied per package and order what your repair needs.
Browse Related Elite 3000 Parts
Order Your Elite 3000 Cart Replacements
Select the component that matches your equipment diagram and repair requirements.
Shop Cart Assembly PartsFrequently Asked Questions
Elite 3000 Cart Assembly Parts FAQ
Does this category include a complete replacement cart?
Review the individual product listing. This category identifies the cart service assembly and lists separate replacement components.
Can washers with similar names be interchanged?
Use the exact number specified for each diagram position. A shared description does not confirm matching dimensions.
Does a wheel listing include its related hardware?
Check the supplied contents before ordering. Add separately required hardware according to the assembly diagram.
What information helps identify the right cart part?
Provide your equipment identification, original part number and cart diagram reference.
Need Help Matching a Cart Component?
Contact AllTitanParts with your equipment and component details before ordering.
713-931-0006
