Genuine Titan OEM | High Pressure Fluid Filtration Parts
Shop Titan Elite 3000 High Pressure Filter Assembly Parts
Keep your airless sprayer's fluid filtration system operating efficiently with Titan Elite 3000 High Pressure Filter Assembly Parts from AllTitanParts. Shop genuine Titan OEM high-pressure filter assemblies, filter blocks, replacement housings, PTFE O-rings, sealing washers, manifold filters and pressure springs. Choose from 30, 60 and 100 mesh filter options where appropriate for your coating application. Use the factory exploded parts diagram to identify the correct replacement components for your Titan Elite 3000 airless sprayer.
High Pressure Filter Overview
Buy Genuine Titan Elite 3000 High Pressure Filter Parts
The Titan Elite 3000 High Pressure Filter Assembly is an important part of the sprayer's pressurized fluid delivery system. It helps capture unwanted particles from coating material before the material reaches downstream spraying components.
During operation, pressurized coating enters the filter assembly and passes through the installed manifold filter element. The filter captures particles according to its mesh rating, while the housing, filter block, sealing rings and related components maintain the specified fluid pathway.
A properly maintained filter assembly helps reduce contamination reaching spray hoses, guns and tips. Clogged filter elements, damaged seals, worn housings or improperly installed components can contribute to restricted fluid flow, leakage, inconsistent spray patterns and unnecessary equipment downtime.
This category features 11 individually listed Titan OEM products, including Titan 0097123 High-pressure Filter Assembly, Titan 0097301 Filter Block, Titan 2429835 Filter Housing, Titan 730-067 60 Mesh Manifold Filter, Titan 730-067-10 100 Mesh Manifold Filter and Titan 730-067-30 30 Mesh Manifold Filter.
Whether you need a complete filter assembly, replacement filter element or individual sealing component, AllTitanParts helps you identify the correct part using the manufacturer part number and exploded diagram reference.
OEM Parts Directory
Titan Elite 3000 High Pressure Filter Assembly Parts List

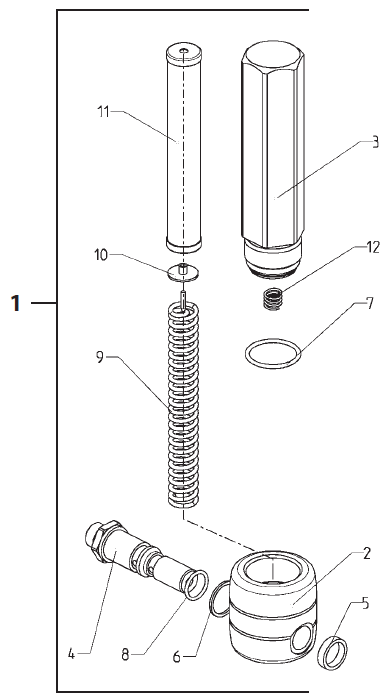

Use the following directory with the factory exploded diagram to identify the correct component before ordering. Multiple manifold filter options are listed under diagram reference 11.
| Diagram Ref. | Titan Part Number | Part Description | Primary Function |
|---|---|---|---|
| 1 | 0097123 | High-pressure Filter Assembly | Provides the packaged high-pressure filtration assembly for the specified fluid system. |
| 2 | 0097301 | Filter Block | Forms part of the filter assembly's fluid routing and structural connection. |
| 3 | 2429835 | Filter Housing, replaces 0097302 | Encloses and protects the manifold filter element. |
| 5 | 0097304 | Washer | Provides the specified washer or sealing function within the filter assembly. |
| 6 | 9970110 | Washer or Seal Ring | Supports the designated sealing or load distribution function. |
| 7 | 9974027 | PTFE O-Ring | Provides a specified fluid sealing interface within the assembly. |
| 8 | 9971401 | 16 x 2 PTFE O-Ring | Provides the specified PTFE sealing function at its designated position. |
| 11 | 730-067 | 60 Mesh Manifold Filter | Provides medium-grade fluid filtration for suitable coating applications. |
| 11 | 730-067-10 | 100 Mesh Manifold Filter, Fine | Provides finer particle filtration for compatible coating materials. |
| 11 | 730-067-30 | 30 Mesh Manifold Filter, replaces 0508451 | Provides coarser filtration for suitable heavier coating applications. |
| 12 | 9994245 | Pressure Spring | Applies the specified spring force within the filter assembly arrangement. |
These are the 11 individually listed products, not necessarily every physical component in the complete assembly. Diagram reference 11 includes alternative filter mesh options. Confirm the correct filter specification, assembly contents and required quantities before ordering.
Featured OEM Filter Components
Shop Titan Elite 3000 Filter Housings, Manifold Filters and Seals

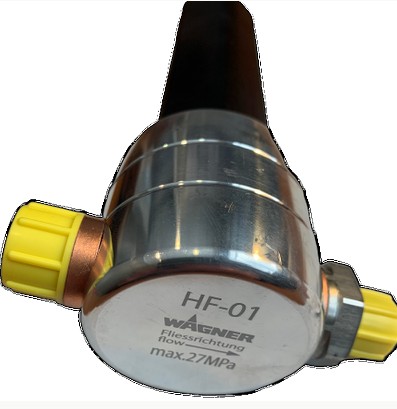

Titan 0097123 High-pressure Filter Assembly
The Titan 0097123 High-pressure Filter Assembly, also listed as Titan 97123, is an OEM assembly for the Elite 3000 fluid filtration system.
It supports filtration of pressurized coating material before delivery to downstream spraying components. Complete assembly replacement may be appropriate when several internal parts are damaged or the filter assembly is no longer serviceable.
Check the manufacturer's specifications and included components before purchasing.
OEM Part Number: 0097123 | Ref. 1Titan 0097301 Filter Block
The Titan 0097301 Filter Block is a structural fluid system component listed for the Elite 3000 high-pressure filter assembly.
It forms part of the filter assembly's fluid routing and component connection arrangement. Inspect the block for damaged threads, cracks or compromised sealing surfaces during filter service.
OEM Part Number: 0097301 | Ref. 2Titan 2429835 Filter Housing
The Titan 2429835 Filter Housing encloses and protects the manifold filter element within the high-pressure filter assembly.
This OEM component is listed as replacing Titan 0097302. Inspect the housing for damaged threads, cracks and worn sealing surfaces before reuse.
OEM Part Number: 2429835 | Replaces 0097302 | Ref. 3Titan 0097304 Washer

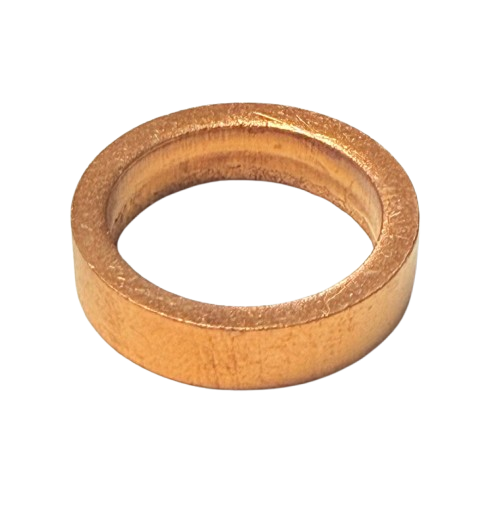

The Titan 0097304 Washer is an OEM component associated with the filter assembly's specified sealing arrangement.
Inspect the washer for wear, deformation or damage during filter maintenance. Use the correct replacement at its designated diagram position.
OEM Part Number: 0097304 | Ref. 5Titan 9970110 Washer or Seal Ring
The Titan 9970110 Washer or Seal Ring provides the designated sealing or load distribution function within the filter assembly.
Inspect the component for compression damage, distortion and deterioration. Confirm the correct installation position using the factory diagram.
OEM Part Number: 9970110 | Ref. 6Titan 9974027 PTFE O-Ring
The Titan 9974027 PTFE O-Ring is a specified OEM sealing component for the high-pressure filter assembly.
PTFE sealing components help maintain fluid containment at their designated interfaces. Inspect for cuts, deformation and wear before reassembly.
OEM Part Number: 9974027 | Ref. 7Titan 9971401 PTFE O-Ring
The Titan 9971401 O-Ring is a 16 x 2 PTFE sealing component listed for the Elite 3000 filter assembly.
Its dimensions and material specification are important to the intended sealing application. Do not substitute a visually similar O-ring without verifying the required specification.
OEM Part Number: 9971401 | Ref. 8Titan 730-067 60 Mesh Manifold Filter
The Titan 730-067 60 Mesh Manifold Filter is an OEM medium-grade filter element for compatible airless spraying applications.
It provides a balance between particle filtration and coating flow for suitable materials. Inspect and clean the filter according to Titan's instructions.
OEM Part Number: 730-067 | 60 Mesh | Ref. 11Titan 730-067-10 100 Mesh Manifold Filter

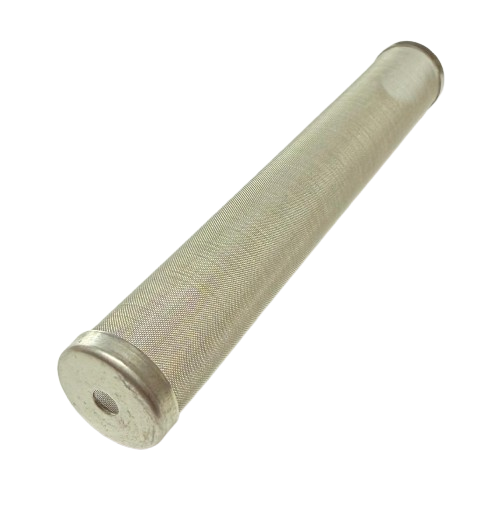

The Titan 730-067-10 100 Mesh Manifold Filter provides finer filtration for compatible coating materials.
A finer filter can capture smaller particles but may restrict flow more readily when used with heavy or highly filled coatings. Confirm the coating manufacturer's filtration recommendations before selecting this mesh.
OEM Part Number: 730-067-10 | 100 Mesh | Ref. 11Titan 730-067-30 30 Mesh Manifold Filter

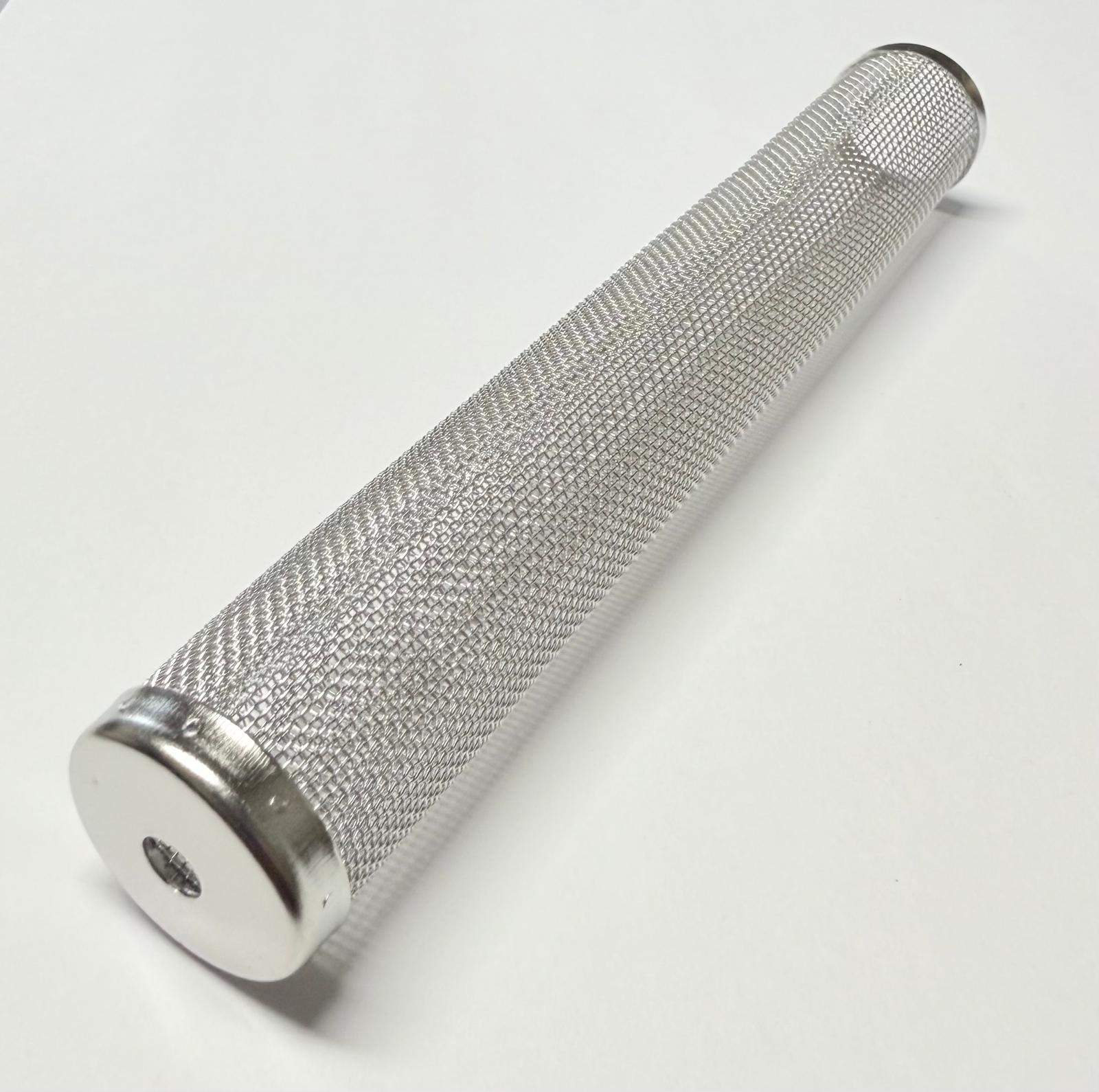

The Titan 730-067-30 Manifold Filter is an OEM 30 mesh coarse filtration option for compatible heavier coating applications.
This part is listed as replacing Titan 0508451. The coarser mesh allows larger particles to pass compared with 60 or 100 mesh elements, so verify downstream filtration and coating requirements before selecting it.
OEM Part Number: 730-067-30 | Replaces 0508451 | Ref. 11Titan 9994245 Pressure Spring
The Titan 9994245 Pressure Spring is an OEM spring component listed within the Elite 3000 high-pressure filter assembly.
It applies the specified force at its designated assembly position. Inspect the spring for deformation, breakage and corrosion during servicing, and follow the factory diagram for correct installation.
OEM Part Number: 9994245 | Ref. 12Filter Mesh Selection Guide
Choose the Correct Titan Elite 3000 Manifold Filter Mesh
The Elite 3000 category lists three manifold filter mesh options at diagram reference 11. Select the appropriate mesh based on coating specifications, spray tip requirements and Titan's operating instructions.
| Filter Option | Titan Part Number | Filtration Grade | Selection Consideration |
|---|---|---|---|
| 30 Mesh | 730-067-30 | Coarse | For suitable heavier coatings when the manufacturer permits coarser filtration. |
| 60 Mesh | 730-067 | Medium | General medium-grade filtration for compatible coating applications. |
| 100 Mesh | 730-067-10 | Fine | For suitable finer coatings where smaller particle capture is required. |
Higher mesh numbers indicate finer filtration. Mesh selection should follow the coating manufacturer's recommendations and the sprayer's approved operating requirements.
Fluid Filtration Operation
How the Titan Elite 3000 High Pressure Filter Assembly Works
Pressurized Fluid Entry
Coating material from the pump enters the high-pressure filter assembly through the specified fluid pathway.
Particle Filtration
The installed manifold filter captures particles according to its mesh rating and condition.
Fluid Containment
The housing, filter block and sealing components maintain the intended pressurized fluid pathway.
Filtered Fluid Delivery
Filtered coating material continues through the downstream system toward the spray hose, gun and tip.
Troubleshooting and Repair
Common Titan Elite 3000 High Pressure Filter Problems
Filter assembly symptoms can have several causes. Inspect the filter, seals and related fluid system components using Titan's approved service procedures before replacing parts.
| Observed Problem | Components to Inspect | Recommended Check |
|---|---|---|
| Reduced fluid flow | 730-067 filter options | Inspect the manifold filter for blockage and confirm the mesh is suitable for the coating. |
| Leakage around filter housing | 2429835 Housing, 9974027 and 9971401 O-rings | Inspect sealing surfaces, O-rings and housing condition after complete pressure relief. |
| Frequent spray tip blockage | Manifold filter and downstream filtration | Check for damaged filter screens, incorrect mesh selection and contaminated coating material. |
| Filter housing difficult to remove | 2429835 Housing and filter block | After pressure relief, inspect for dried coating and thread damage. Do not force damaged components. |
| Recurring seal leakage | 0097304, 9970110 and PTFE O-rings | Check seal condition, mating surfaces and correct assembly positions. |
| Damaged filter mounting block | 0097301 Filter Block | Inspect for cracks, damaged connections and compromised sealing surfaces. |
| Multiple filter components damaged | 0097123 High-pressure Filter Assembly | Determine whether complete assembly replacement is appropriate after inspecting individual components. |
OEM Part Number Cross-Reference
Titan Elite 3000 Filter Replacement Part Numbers
The catalog identifies the following replacement relationships:
- Titan 2429835 Filter Housing replaces Titan 0097302.
- Titan 730-067-30 30 Mesh Manifold Filter replaces Titan 0508451.
The category also lists three different manifold filter elements at diagram reference 11: Titan 730-067, Titan 730-067-10 and Titan 730-067-30. These are different mesh specifications rather than identical products.
Confirm the required filtration grade and the manufacturer's compatibility information before substituting one mesh option for another.
OEM Buying Guide
How to Order the Correct Titan Elite 3000 High Pressure Filter Part
Confirm Your Sprayer
Verify the Titan Elite 3000 model and applicable equipment serial number or configuration.
Locate the Component
Identify the filter housing, block, manifold filter, O-ring, washer or spring in the factory exploded diagram.
Match the OEM Number
Compare the exact part number, diagram reference, mesh specification and documented replacement information.
Purchase the Replacement
Verify fitment and quantities, then order the correct OEM filter assembly component from AllTitanParts.
Preventive Maintenance
Maintain Your Titan Elite 3000 High Pressure Filter Assembly
Clean the Manifold Filter
Inspect the filter element for coating buildup and debris. Clean it using the manufacturer-approved procedure and replace damaged screens.
Inspect PTFE O-Rings
Check sealing components for cuts, deformation and wear. Replace damaged seals with the correct OEM specifications.
Examine the Filter Housing
Inspect the housing and filter block for damaged threads, cracks, corrosion and worn sealing surfaces.
Use the Correct Mesh
Select 30, 60 or 100 mesh filtration according to coating requirements and approved equipment specifications.
Flush the Fluid System
Follow Titan's flushing instructions after spraying to reduce coating deposits in the filter assembly and fluid passages.
Check for Leaks
After authorized service and reassembly, follow the manufacturer's inspection and testing procedure to verify proper sealing.
Related Titan Elite 3000 Assemblies
Shop More Titan Elite 3000 Airless Sprayer Parts
Elite 3000 Main Assembly
Browse main assembly components and related sprayer replacement parts.
Elite 3000 Pump Assembly
Find pump components and service parts for the Elite 3000 pumping system.
Elite 3000 Outlet Valve Assembly
Shop outlet valve components used in the pump fluid delivery system.
Elite 3000 Flexible Suction Set
Explore flexible suction hoses, return hoses and intake filter components.
Elite 3000 Rigid Suction Set
Browse rigid suction system assemblies and material intake replacement parts.
Elite 3000 Accessories
Explore additional spraying accessories and service components.
Titan Elite 3000 High Pressure Filter Repair Safety
Before servicing the high-pressure filter assembly, switch off the sprayer, disconnect electrical power and follow Titan's complete pressure-relief procedure. Never loosen or remove a filter housing while the fluid system is pressurized. High-pressure fluid injection injuries require immediate emergency medical attention. Follow the applicable Titan service manual for filter removal, cleaning, seal replacement, reassembly and pressure testing. Use the correct OEM components and approved service procedures.
Genuine Titan Elite 3000 Filter Assembly Parts
Order Titan Elite 3000 High Pressure Filter Parts Today
Shop genuine Titan OEM high-pressure filter assemblies, filter housings, PTFE O-rings, washers, pressure springs and 30, 60 and 100 mesh manifold filters. Find the correct replacement using the factory exploded parts diagram.
Shop Elite 3000 Filter Assembly PartsFrequently Asked Questions
Titan Elite 3000 High Pressure Filter Assembly FAQ
What is the Titan Elite 3000 High Pressure Filter Assembly?
It is the fluid filtration assembly that helps remove particles from pressurized coating material before delivery to downstream spraying components.
How many replacement parts are listed in this category?
AllTitanParts lists 11 individual OEM products in the Elite 3000 High Pressure Filter Assembly Parts category.
What is the Titan Elite 3000 complete high-pressure filter assembly part number?
Titan 0097123, also listed as Titan 97123, is the High-pressure Filter Assembly shown at diagram reference 1.
What is the Titan Elite 3000 filter block part number?
Titan 0097301 is the Filter Block listed at diagram reference 2.
What part replaces Titan 0097302 Filter Housing?
Titan 2429835 is the listed OEM replacement for Titan 0097302 Filter Housing.
What is the Titan Elite 3000 60 mesh filter part number?
Titan 730-067 is the 60 Mesh Manifold Filter listed at diagram reference 11.
What is the Titan Elite 3000 100 mesh filter part number?
Titan 730-067-10 is the 100 Mesh Manifold Filter listed at diagram reference 11.
What part replaces Titan 0508451 Manifold Filter?
Titan 730-067-30 is the listed OEM replacement for Titan 0508451. It is a 30 mesh coarse manifold filter.
What is the difference between 30, 60 and 100 mesh filters?
A 30 mesh filter provides coarser filtration, a 60 mesh filter provides medium filtration, and a 100 mesh filter captures finer particles. Choose according to the coating and equipment manufacturer's recommendations.
What are the Titan Elite 3000 filter O-ring part numbers?
Titan 9974027 and Titan 9971401 are the PTFE O-rings listed at diagram references 7 and 8, respectively.
Why is my Titan Elite 3000 losing fluid flow through the filter?
Possible causes include a clogged manifold filter, unsuitable mesh selection, coating contamination or restrictions elsewhere in the fluid system. Inspect the filter after following the complete pressure-relief procedure.
Can I replace only the manifold filter instead of the complete assembly?
Yes. The category lists separate 30, 60 and 100 mesh manifold filter options. If the housing, block and sealing components remain serviceable, individual filter replacement may be appropriate.
What is the Titan Elite 3000 pressure spring part number?
Titan 9994245 is the Pressure Spring listed at diagram reference 12.
Where can I buy Titan Elite 3000 High Pressure Filter Assembly Parts?
Shop Titan Elite 3000 High Pressure Filter Assembly Parts at AllTitanParts. For help identifying the correct OEM component, call 713-931-0006.
Titan OEM Parts Assistance
Need Help Finding Elite 3000 Filter Assembly Parts?
Have your Titan Elite 3000 model, serial number, diagram reference, filter mesh specification and existing part number ready when requesting replacement part assistance.
