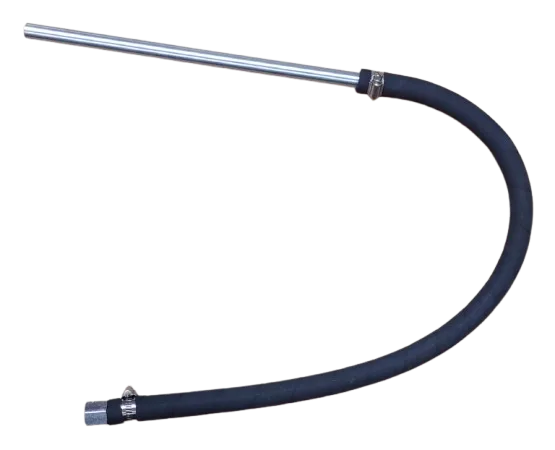

Titan part 2390606 is a return hose assembly designed to transport unused coating material from the spray gun or dump valve back to the pump or material container on the Titan Elite 3000 airless sprayer. This assembly includes the hose and pre‑attached fittings for a direct, leak‑free replacement. Replacing a cracked, kinked, or worn return hose restores proper recirculation flow, prevents pressure drops, and eliminates hazardous leaks during operation.
| Part Number | 2390606 |
|---|---|
| Part Description | Return Hose Assembly |
| Brand | Titan |
| Fits | Elite 3000 |
| Condition | New |
The Titan 2390606 Return Hose Assembly is an OEM replacement hose used to recirculate excess coating material from the spray gun or dump valve back to the pump inlet or material container on the Elite 3000 airless sprayer. It is constructed from solvent‑resistant material and comes with pre‑installed fittings for a quick, drop‑in installation.
Return hoses are exposed to continuous flexing, abrasion, and harsh chemicals. Over time, they can develop cracks, kinks, soft spots, or fitting leaks. A damaged return hose causes material spray, pressure loss, and potential safety hazards. Replacing with genuine Titan 2390606 restores leak‑free recirculation, maintains proper system pressure, and ensures a clean, safe work environment.
| Material recirculation | Returns unused coating to pump or container |
|---|---|
| Pressure maintenance | Helps stabilize system pressure |
| Leak prevention | Contains material within closed loop |
| Cracks or cuts | Visible damage to hose outer cover |
|---|---|
| Kinking | Hose stays bent, restricting flow |
| Fitting leaks | Material seeps from swivel or crimp |
| Bulging or soft spots | Internal reinforcement failure |
Titan part 2390606 is compatible with the following sprayer model. Always confirm fitment using the correct parts diagram for your exact machine and serial number.
| Model | Component |
|---|---|
| Elite 3000 | Return Hose Assembly |
When replacing the return hose assembly, consider inspecting or replacing these related components.
Inspect the high‑pressure supply hose for wear; replace if both hoses show similar age or damage.
Check for corrosion or thread damage; replace if the new hose does not seal properly.
Ensure the return port on the pump or dump valve is clean and free of obstructions.
