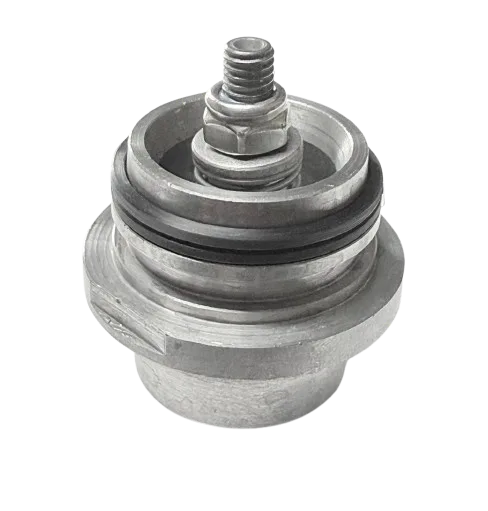

Titan 2393043 Inlet Valve
OEM Titan Inlet Valve Assembly
Titan 2393043 Inlet Valve is an OEM wear component that controls material flow into the pump, restoring proper priming and suction on compatible PowrLiner and Elite sprayers when performance drops due to abrasive coating wear.
Compatibility Table
The inlet valve is a recognized wear component due to the abrasive action of coatings. Failure is typically noticed as performance loss, poor suction, or no suction at all.
Titan Fluid Section Wear Part
Titan 2393043 Inlet Valve for PowrLiner and Elite Sprayers
Titan 2393043 is an OEM inlet valve assembly that serves as the primary wear component for material intake on compatible PowrLiner and Elite sprayers. It is designed to be replaced when abrasive coating materials cause performance loss, poor suction, or inconsistent spray delivery.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan inlet valve assembly (alternate 2393043, replaces 0344700) used in the fluid section of compatible PowrLiner and Elite sprayers. |
| Function | Acts as a one-way check valve at the pump inlet, allowing material to be drawn into the pump during the intake stroke and sealing to prevent backflow during the discharge stroke. |
| Wear Part Status | Recognized in official Titan service manuals as a typical wear component due to the abrasive action of coating materials. Failure is noticeable through performance loss, poor suction, or no suction. |
| Installation Note | Requires a 30 mm wrench. Tighten the trigger housing to approximately 90 Nm (with three light hammer blows on the wrench end). Secure with the clasp (2369455) and ensure the black seals are properly seated. |
| Industrial Applications | Professional airless sprayer repair, fluid section maintenance, pavement marking equipment service, and rental fleet refurbishment. |
| Compatible Titan Machines | PowrLiner 3500 / 3500S; Elite 3000; Elite 3500. |
| OEM Part Number | 2393043 Inlet Valve Assembly (alternate 2393043; replaces 0344700). |
| Compatible Parts & Assemblies | Used with the inlet valve clamp (2369455), inlet housing (2334383), and inlet valve seals. |
| Related Parts Commonly Serviced Together | Inlet valve clamp, inlet housing, wiper, O-ring, and outlet valve assembly should be inspected during a fluid section rebuild. |
| Common Problems Solved | Loss of pump performance, poor or absent suction, inconsistent spray delivery, and pressure fluctuations caused by a worn inlet valve. |
| Target Users / Markets | Painting contractors, pavement marking crews, maintenance technicians, rental fleets, and repair shops running compatible Titan sprayers. |
| OEM & Brand Information | Genuine Titan OEM component designed for correct fit and reliable performance in compatible sprayer fluid sections. |
| Commercial Benefits | Restores proper material intake and suction, eliminates pressure loss from a worn valve, and ensures consistent spray performance for professional finish quality. |
The 2393043 Inlet Valve is a direct replacement for worn inlet valves on compatible Titan sprayers. Before replacement, perform the pressure relief procedure. Use a 30 mm wrench to loosen the housing with light hammer blows, then screw out the housing with the inlet valve from the paint section. Remove the clasp with a screwdriver, then carefully turn out the inlet valve. Clean the valve seat thoroughly and inspect the seals for damage. Install the new inlet valve, secure it with the clasp, and ensure the black seals are properly seated in both the trigger housing and the paint section. Tighten the trigger housing to approximately 90 Nm. If performance issues persist after cleaning, the inlet valve should be replaced.
Frequently Asked Questions
Practical answers for confirming fitment and service value.
