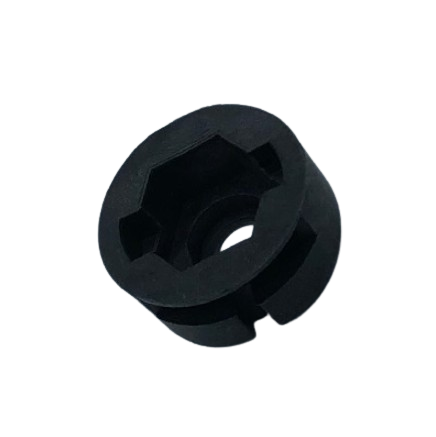

Elite / PowrLiner part 2369484 is a stop sleeve designed to limit travel and provide a positive stop in the drive or pump assembly on compatible Elite and PowrLiner sprayers. This precision component ensures proper alignment and prevents over-travel that could damage internal parts. Replacing a worn, cracked, or missing stop sleeve restores proper mechanical function and prevents costly internal damage.
| Part Number | 2369484 |
|---|---|
| Part Description | Stop Sleeve |
| Brand | Elite / PowrLiner |
| Fits | Elite 3500 72v, Elite 3000; PowrLiner 3000, 3500s (Suffixed Unit), 3500 72v (Honda GXE), 5500 |
| Condition | New |
The 2369484 Stop Sleeve is a precision-machined component used in the drive or pump assembly of compatible Elite and PowrLiner sprayer models. It functions as a mechanical limit, controlling the travel distance of moving parts and providing a positive stop at the end of the stroke.
Proper stroke limitation is critical for preventing over-travel that could cause internal components to collide, resulting in damage to pistons, rods, or the pump housing. The stop sleeve also helps maintain consistent alignment and timing of moving parts. Over time, stop sleeves can become worn at contact points, develop cracks from repeated impact, or become dislodged during operation. A damaged or missing stop sleeve can lead to improper travel, reduced pump efficiency, and potential internal damage. Replacing the stop sleeve restores proper mechanical limits and ensures reliable operation.
| Travel limitation | Controls the stroke length of moving components |
|---|---|
| Impact absorption | Provides a positive stop, absorbing end-of-stroke forces |
| Alignment | Helps maintain proper positioning of internal parts |
| Visible wear | Contact surfaces show grooves, flattening, or deformation |
|---|---|
| Cracks / damage | Sleeve is fractured or broken |
| Missing sleeve | Sleeve absent, allowing excessive travel |
| Abnormal noise | Metal-to-metal contact sounds during operation |
Part 2369484 is compatible with the following sprayer models. Always verify fitment using your equipment's parts diagram before ordering.
| Model | Component |
|---|---|
| Elite 3500 72v | Stop Sleeve |
| Elite 3000 | Stop Sleeve |
| PowrLiner 3000 | Stop Sleeve |
| PowrLiner 3500s (Suffixed Unit) | Stop Sleeve |
| PowrLiner 3500 72v (Honda GXE) | Stop Sleeve |
| PowrLiner 5500 | Stop Sleeve |
When replacing the stop sleeve, these associated components are often inspected or replaced at the same time.
Inspect for scoring or wear at contact points with the stop sleeve.
Check the bore or mounting area for damage that could affect sleeve fitment.
Replace seals and gaskets in the area while disassembled for access.
