Titan 340265 Black Hopper
OEM Titan Paint Hopper

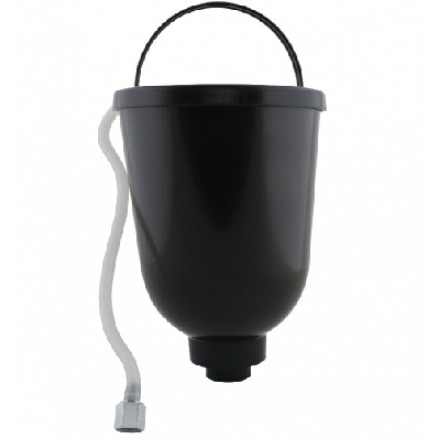

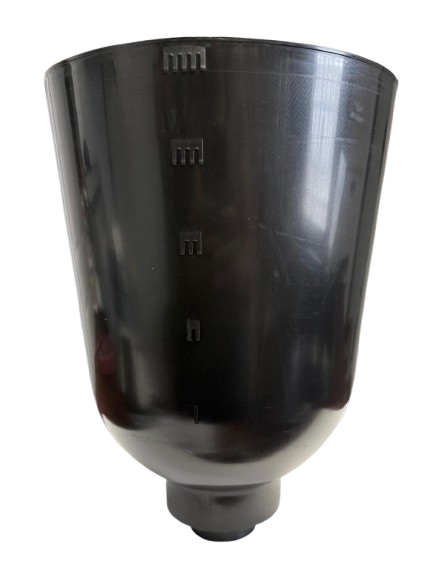

Titan 340265 Hopper Tank is an OEM 5-liter black hopper assembly that mounts directly to the sprayer's inlet valve, allowing direct spraying from the hopper without a separate suction set.
Compatibility Table
The hopper threads directly onto the inlet valve, and the filter screen snaps into the bottom to capture debris before it enters the pump.
Titan Paint Hopper Component
Titan 340265 Hopper Tank for AirCoat HE and ProFinish Sprayers
Titan 340265 is an OEM 5-liter black hopper assembly that mounts directly to the sprayer's inlet valve in place of the suction set. It is listed as "Hopper 5l, assy." in the AirCoat HE spare parts list and is used on compatible skid frame airless sprayers.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan 5-liter hopper tank (alternate 340 265), listed as "Hopper 5l, assy." in the AirCoat HE spare parts list and as "Récipient supérieur 5 l, complet" in French documentation. |
| Function | Holds coating material for direct draw into the pump; mounts to the inlet valve in place of the suction set, eliminating the need for a separate pail. |
| Installation Note | Thread the hopper clockwise onto the inlet valve until secure. Do not cross-thread. Place the filter screen into the bottom of the hopper and snap it in position. Put the cover on the hopper and route the return tube through the hole in the cover. |
| Industrial Applications | Small to medium batch spraying, touch-up work, color changes, and applications where a hopper is preferred over a pail and suction set. |
| Compatible Titan Machines | AirCoat HE; ProFinish AS1130; compatible skid frame airless sprayers. |
| OEM Part Number | 340265 (alternate 340 265). |
| Compatible Parts & Assemblies | Hopper cover (704-457), hopper (704-456), O-ring (704-121), retaining clip (704-127), hopper inlet assembly (704-414), fine filter screen (704-454), coarse filter screen (704-555). |
| Related Parts Commonly Serviced Together | Filter screen, hopper cover, O-rings, and retaining clip should be inspected when installing or servicing the hopper. |
| Common Problems Solved | Wasted material from large pails, difficult cleanup after small jobs, and inability to spray small batches efficiently without a hopper. |
| Target Users / Markets | Painting contractors, maintenance technicians, rental fleets, and repair shops running compatible Titan sprayers. |
| OEM & Brand Information | Genuine Titan OEM component designed for correct fit and reliable performance on compatible sprayer platforms. |
| Commercial Benefits | Eliminates waste on small jobs, speeds cleanup, and allows quick color changes without mixing large batches of material. |
The 340265 Hopper Tank is a direct replacement for worn or damaged 5-liter hoppers on compatible Titan sprayers. During installation, verify that the inlet valve threads are clean and that the hopper threads engage smoothly. Do not cross-thread. Install the filter screen before adding material and secure the cover with the return tube properly routed. Clean the hopper and filter screen regularly to prevent clogging and ensure consistent material flow. Inspect O-rings and the retaining clip for wear during service.
