Titan SprayTech Advantage EP & EPX Sprayer Parts
Shop genuine OEM Titan SprayTech Advantage EP & EPX Sprayer Parts for EPX2155, EPX2255, EPX2355, EPX2455 and EPX2555 piston pumps. Browse model-specific factory diagrams to identify fluid-section, motor, drive, gearbox, suction, filter, cart and related service components.
Find the Correct SprayTech Advantage EPX Replacement Parts
The SprayTech Advantage EPX family includes several electric piston-pump configurations, and replacement parts should be selected according to the exact sprayer model and applicable factory assembly. This category provides organized access to the EPX2155, EPX2255, EPX2355, EPX2455 and EPX2555 Advantage Series parts diagrams.
Instead of choosing a component by appearance, start with your model, select the appropriate assembly and match the diagram callout to the documented OEM part number. This is especially important when servicing fluid sections, motors, drive components, suction systems, filters and cart assemblies where visually similar components may have different applications.
Find Your SprayTech Advantage Part in Four Steps
Identify the Model
Confirm whether the sprayer is an EPX2155, EPX2255, EPX2355, EPX2455 or EPX2555 Advantage Series piston pump.
Choose the Assembly
Determine whether the repair involves the fluid section, motor, drive, gearbox, suction system, filter or cart.
Use the Exploded Diagram
Locate the component on the applicable model-specific parts diagram and note its numbered callout.
Verify the Part Number
Match the callout to the documented OEM part number before purchasing the replacement component.
SprayTech Advantage EPX Parts Diagrams
Select your exact Advantage Series model to view its factory parts diagrams and locate the correct OEM replacement components.

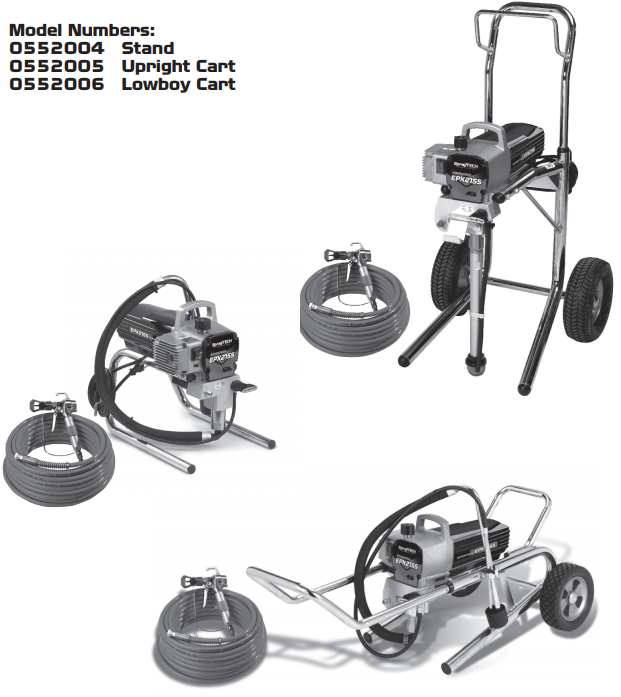

EPX2155 Advantage Series Piston Pump
Browse main, motor, suction-set, gearbox, stand, upright-cart, fluid-section and low-boy-cart parts for the EPX2155.

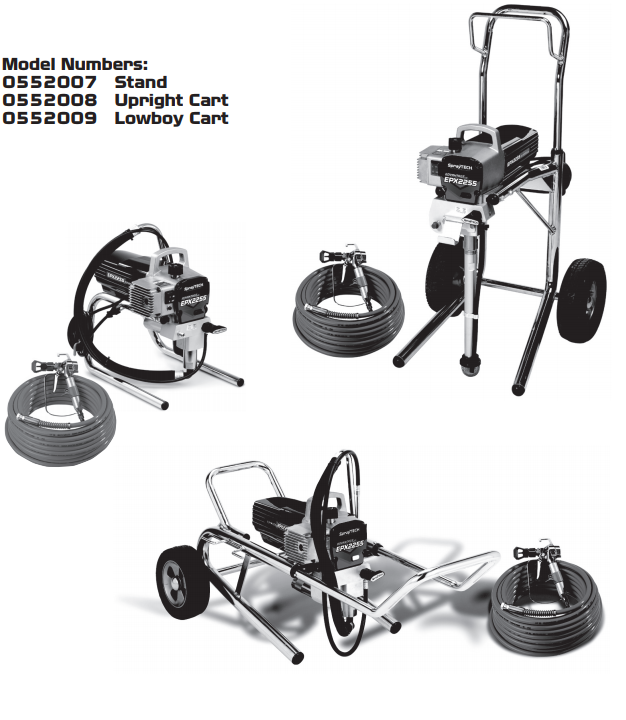

Shop EPX2155 PartsEPX2255 Advantage Series Piston Pump
Find EPX2255 main, motor, suction, gearbox, stand, upright-cart, fluid-section and low-boy-cart replacement parts.

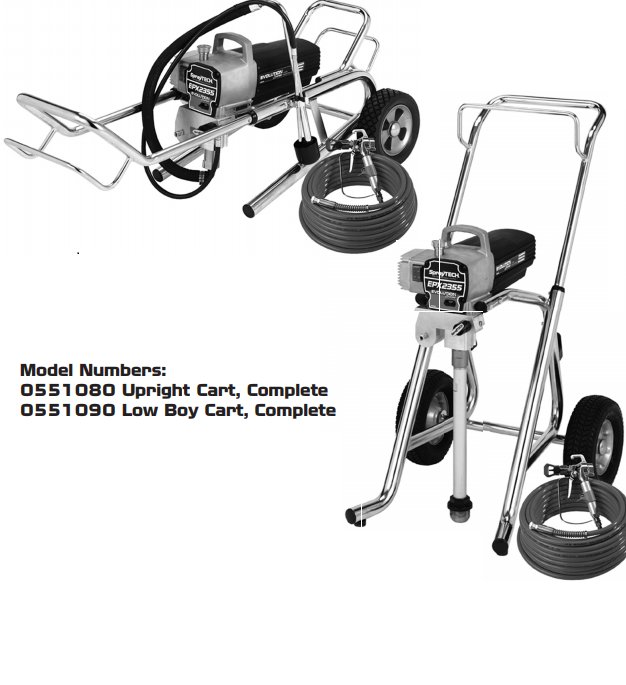

Shop EPX2255 PartsEPX2355 Advantage Series Piston Pump
Shop model-specific EPX2355 main, motor, suction, gearbox, upright-cart, fluid-section and low-boy-cart components from the applicable diagrams.

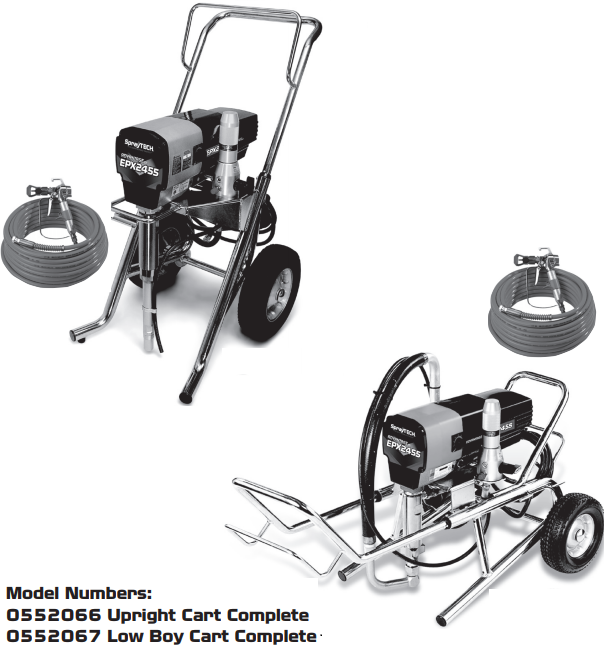

Shop EPX2355 PartsEPX2455 Advantage Series Piston Pump
Locate EPX2455 main, drive, fluid-section, filter, suction-set, upright-cart, low-boy-cart and accessory components.

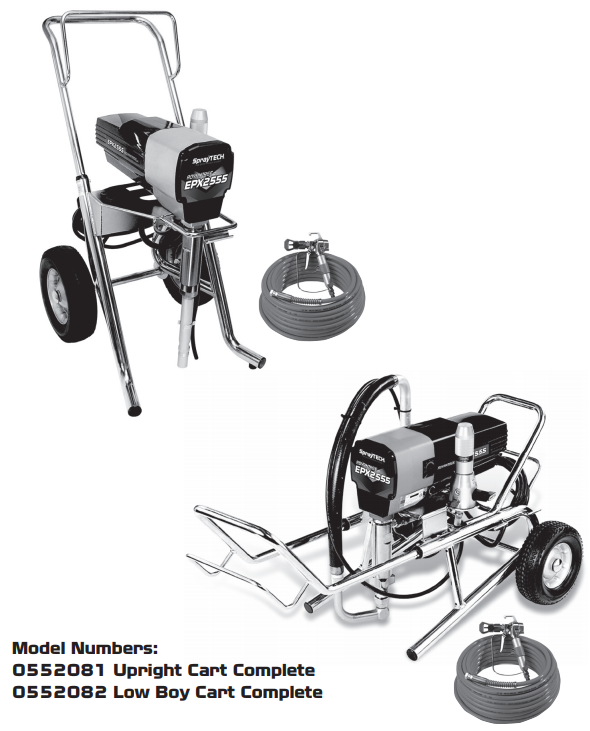

Shop EPX2455 PartsEPX2555 Advantage Series Piston Pump
Find EPX2555 main, drive, fluid-section, filter, suction-set, upright-cart, low-boy-cart and accessory replacement parts.
Shop EPX2555 PartsSprayTech Advantage EPX Parts Diagrams
Select your exact Advantage Series model to view its factory parts diagrams and locate the correct OEM replacement components.
EPX2155 Advantage Series Piston Pump
Browse main, motor, suction-set, gearbox, stand, upright-cart, fluid-section and low-boy-cart parts for the EPX2155.
Shop EPX2155 PartsEPX2255 Advantage Series Piston Pump
Find EPX2255 main, motor, suction, gearbox, stand, upright-cart, fluid-section and low-boy-cart replacement parts.
Shop EPX2255 PartsEPX2355 Advantage Series Piston Pump
Shop model-specific EPX2355 main, motor, suction, gearbox, upright-cart, fluid-section and low-boy-cart components from the applicable diagrams.
Shop EPX2355 PartsEPX2455 Advantage Series Piston Pump
Locate EPX2455 main, drive, fluid-section, filter, suction-set, upright-cart, low-boy-cart and accessory components.
Shop EPX2455 PartsEPX2555 Advantage Series Piston Pump
Find EPX2555 main, drive, fluid-section, filter, suction-set, upright-cart, low-boy-cart and accessory replacement parts.
Shop EPX2555 PartsMatch the Symptom to the Correct Assembly
| Service Area | Start With | Components to Inspect | Verify |
|---|---|---|---|
| Pump / Pressure | Fluid Section | Piston, packings, inlet/outlet valve components | Model + diagram + OEM PN |
| Material Intake | Suction Set | Siphon tube, inlet screen, return hose, seals | Model + configuration |
| Mechanical Drive | Drive / Gear Box | Gears and related drive components | Diagram callout + OEM PN |
| Electrical Drive | Motor Assembly | Motor and documented electrical components | Exact model + OEM PN |
| Fluid Filtration | Filter Assembly | Filter and related housing components | Model-specific diagram |
| Frame / Mobility | Cart Assembly | Frame, wheels, handle and mounting hardware | Upright or low-boy configuration |
Diagnose the Sprayer Before Ordering Replacement Parts
Similar symptoms can result from different service conditions. Inspect the complete system and consult the applicable Advantage EPX service information before deciding that a specific component requires replacement.
Inspect the material supply, inlet screen, siphon tube, suction connections, inlet-side fluid components and PRIME/SPRAY system.
Check the fluid section, packings, inlet and outlet valve components, material supply, filtration and spray system.
Inspect packings, seals, fittings, hoses and fluid-section connections to locate the source before ordering parts.
Inspect the inlet screen, suction system, filter, hose, gun and spray tip for restrictions or dried coating.
Inspect the motor, drive and gearbox assemblies as applicable. Stop operating the sprayer if mechanical damage is suspected.
Inspect the PRIME/SPRAY valve and associated fluid-control components if material is not routing correctly during priming or spraying.
EPX2155, EPX2255, EPX2355, EPX2455 and EPX2555 Parts Are Not Automatically Interchangeable
Advantage EPX models can share certain documented components, but category placement or similar appearance does not establish compatibility. Always identify the exact sprayer model and configuration, locate the component on its factory parts diagram and confirm the OEM part number. This is especially important when selecting fluid sections, motors, drive components, filters, suction assemblies and cart parts.
Protect Your SprayTech Advantage EPX Sprayer
Flush the sprayer correctly after use to reduce coating buildup in the pump, valves, filter, hose and spray system.
Monitor fluid-section wear components for leakage, pressure loss or other signs that service may be required.
Keep the inlet screen and suction components clean and inspect connections for damage or leakage.
Inspect high-pressure fluid components before use and replace damaged parts according to the applicable service instructions.
High-Pressure Airless Service Safety
Follow the applicable SprayTech Advantage operating and service instructions before maintenance. Shut the sprayer off, disconnect power when required and complete the specified pressure-relief procedure before servicing the pump, filter, hose, spray gun or other pressurized components. Never use your hand to locate or stop a high-pressure fluid leak.
Keep Your SprayTech Advantage EPX Sprayer Working
Select your exact Advantage Series model, open the applicable factory parts diagram and match the component callout to its OEM part number. Shop pump, fluid-section, motor, drive, gearbox, suction, filter and cart components for EPX2155 through EPX2555 sprayers.
Shop Advantage EP & EPX PartsSprayTech Advantage EP & EPX Sprayer Parts FAQ
Which Advantage EPX models are covered in this category?
This category covers the SprayTech Advantage Series EPX2155, EPX2255, EPX2355, EPX2455 and EPX2555 piston-pump families and their applicable assembly-level replacement parts.
Where do I find SprayTech Advantage pump repair parts?
Start with the fluid-section diagram for your exact EPX model. The fluid section contains the pump components associated with material movement, sealing and pressure generation.
Can I buy EPX2155 motor parts separately?
The EPX2155 parts structure includes a dedicated motor assembly. Use that diagram to identify documented motor and related electrical components before ordering.
What should I check if my Advantage EPX sprayer will not prime?
Inspect the material supply, inlet screen, siphon tube, suction connections, PRIME/SPRAY system and inlet-side fluid-section components. A restriction or air leak in the intake path can interfere with priming.
Where can I find EPX2455 and EPX2555 filter parts?
EPX2455 and EPX2555 have dedicated filter-assembly sections in the parts catalog. Select the exact model and use its filter diagram to identify the required component.
Are EPX2155 and EPX2555 parts interchangeable?
Do not assume interchangeability. Some Advantage models may share documented parts, but every replacement should be confirmed against the correct model diagram and OEM part number.
How do I know whether I need an upright-cart or low-boy-cart part?
Identify the physical configuration of your sprayer and select the corresponding model-specific cart diagram. Upright and low-boy assemblies should not be treated as the same configuration.
What information should I have before ordering an Advantage EPX replacement part?
Have the exact sprayer model, configuration, serial information when available, assembly name, diagram callout and existing OEM part number. These details help prevent incorrect parts selection.
Not Sure Which Advantage EPX Part You Need?
Have your EPX model, sprayer configuration, serial information, existing part number and diagram reference ready. These details make it easier to confirm the correct OEM replacement component before ordering.
Parts & Fitment Help: 713-931-0006```
