Titan EPX2155 Advantage Series Piston Pump Parts
Shop genuine OEM Titan EPX2155 Advantage Series Piston Pump Parts using model-specific exploded diagrams. Find main-assembly, motor, suction-set, gearbox, stand, upright-cart, fluid-section and low-boy-cart components for repair, maintenance and restoration of the EPX2155 sprayer.
Find the Correct Titan EPX2155 Replacement Parts
The EPX2155 is part of the SprayTech Advantage Series of electric piston pumps. Maintaining the sprayer correctly begins with identifying the exact assembly and OEM component required for the repair rather than selecting replacement parts only by appearance.
This page organizes EPX2155 replacement parts into individual factory assemblies, helping you move from the affected area of the sprayer to the applicable exploded diagram. Confirm the diagram callout and documented part number before purchasing, particularly for pump, motor, gearbox and configuration-specific components.
Find Your EPX2155 Part in Four Steps
Confirm EPX2155
Verify that your machine is the Advantage Series EPX2155 before selecting replacement components.
Choose the Assembly
Determine whether the repair involves the pump, motor, gearbox, suction system, stand or cart.
Use the Diagram
Locate the component on the applicable EPX2155 exploded parts diagram and note its callout.
Verify the OEM Number
Match the diagram reference to the listed OEM part number before placing your order.
Titan EPX2155 Parts Diagrams
Select the area of your EPX2155 that requires repair to narrow your parts search.

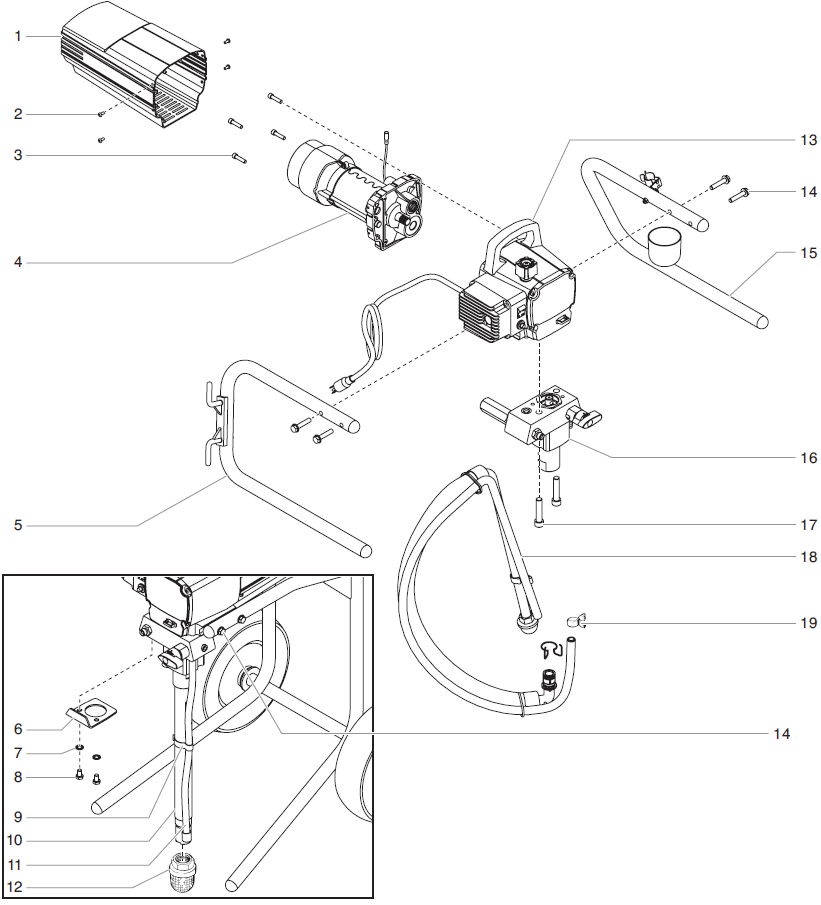

EPX2155 Main Assembly
Start with the main assembly when identifying major machine components, connections and parts shown on the primary EPX2155 breakdown.

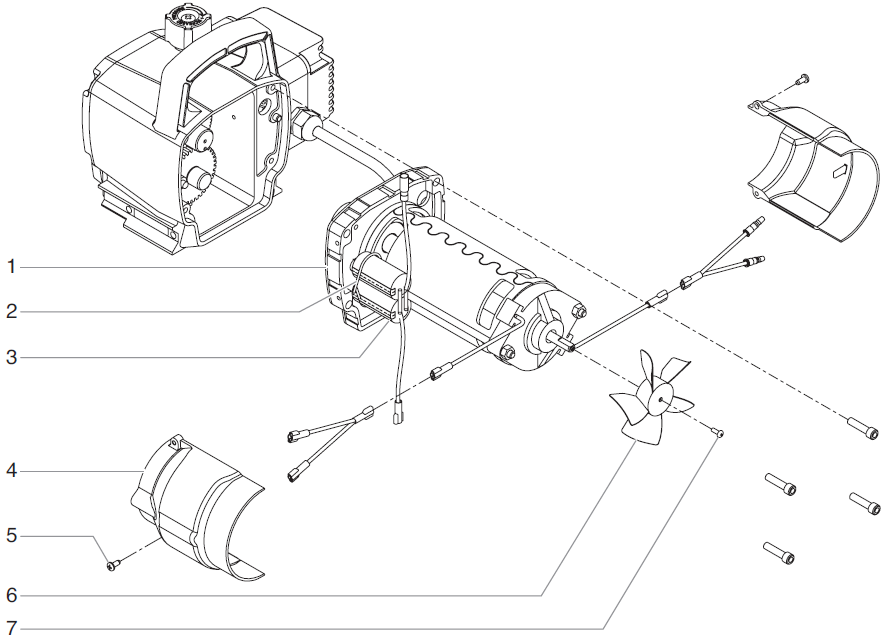

EPX2155 Motor Assembly
Locate documented motor and related electrical or drive components used to power the EPX2155 pumping system.

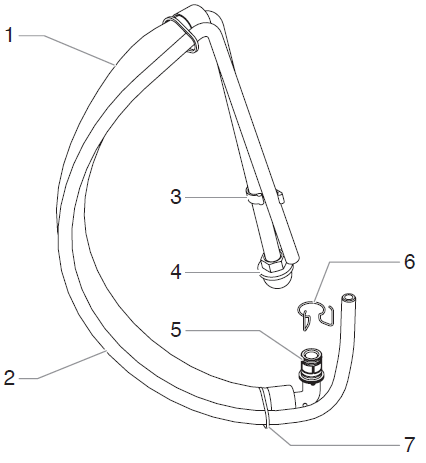

EPX2155 Suction Set Assembly
Find siphon, intake and related components that move coating from the material container into the pump.

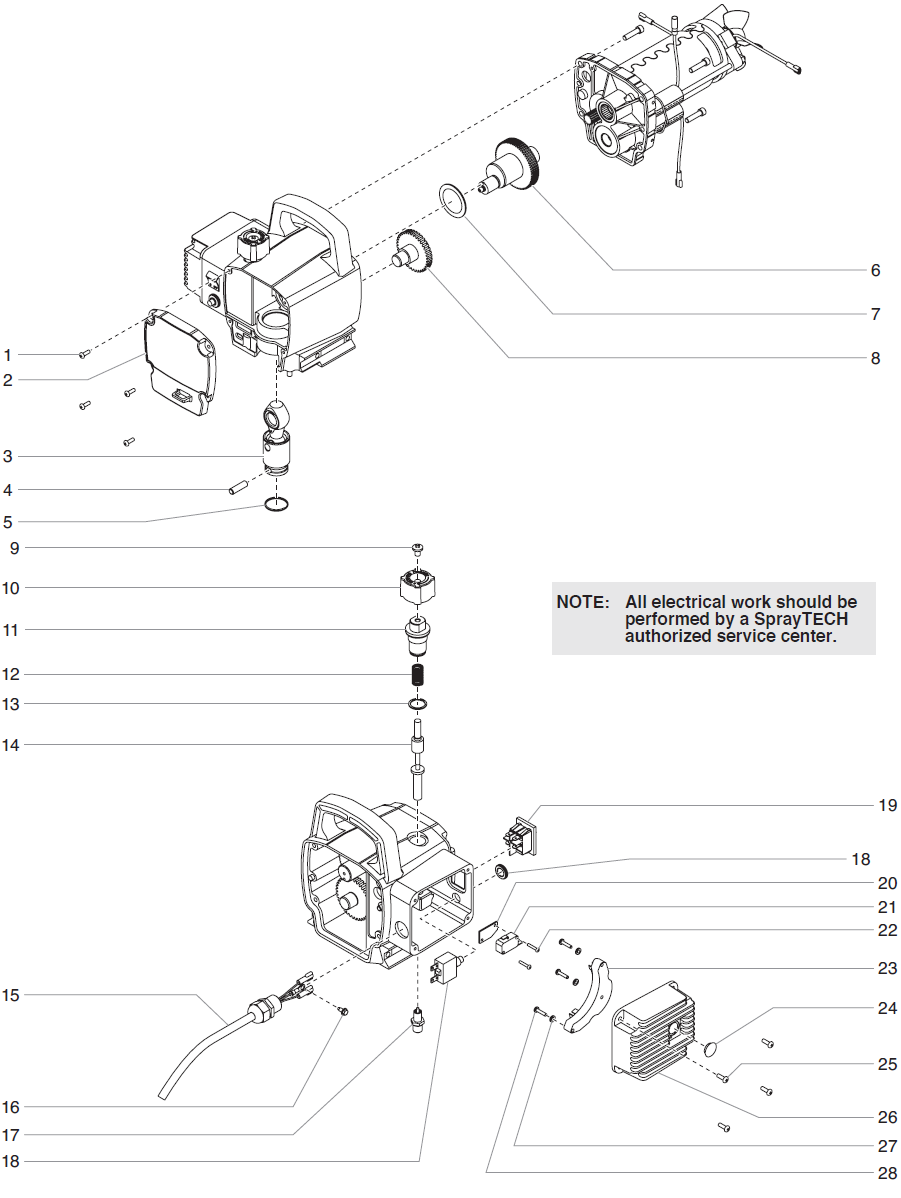

EPX2155 Gear Box Assembly
Browse gears and associated mechanical components that transfer motor power to the piston-pump drive system.

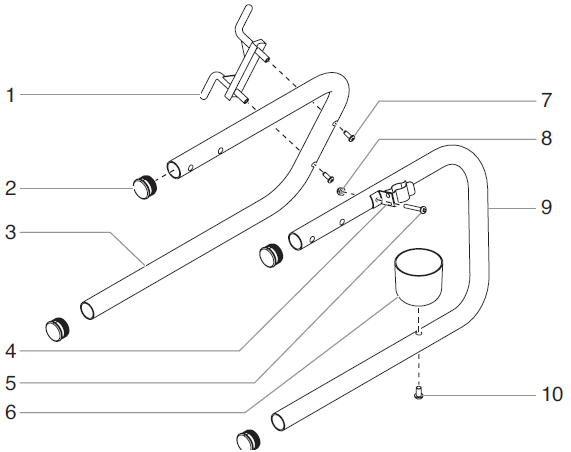

EPX2155 Stand Assembly
Locate documented stand, mounting and structural components for EPX2155 machines using the stand configuration.

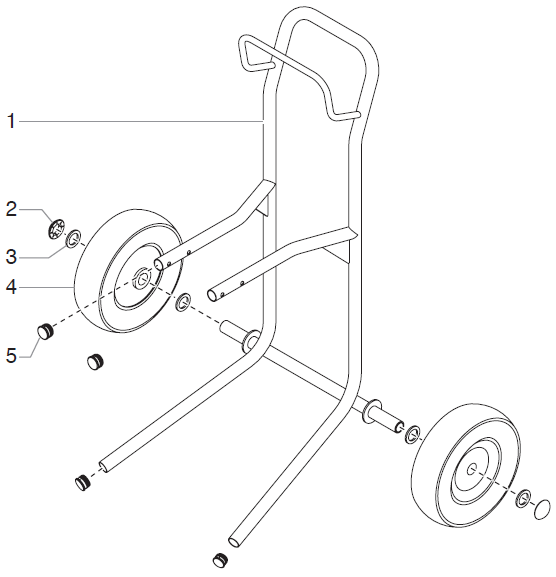

EPX2155 Upright Cart Assembly
Find frame, wheel, handle, mounting and associated components for the applicable upright-cart EPX2155 configuration.

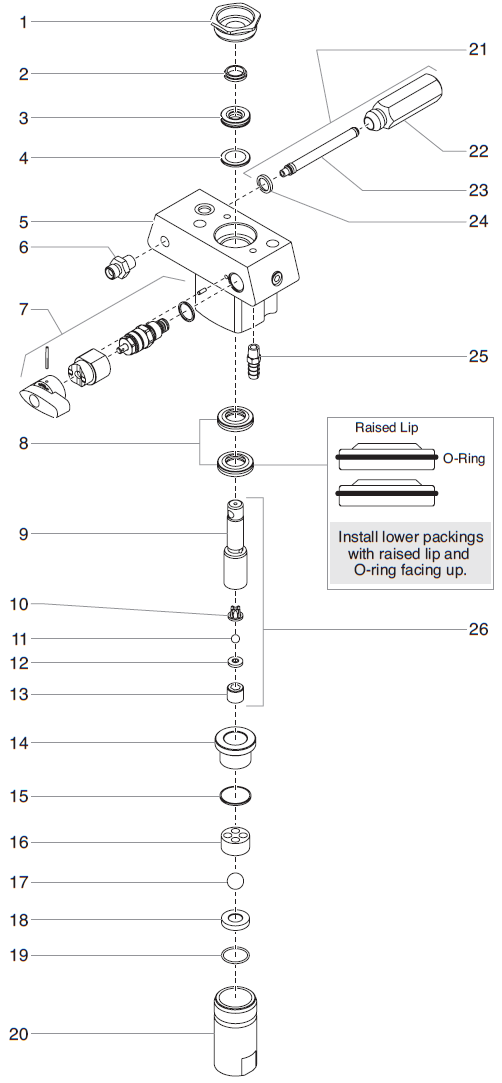

EPX2155 Fluid Section Assembly
Browse piston, packing, seal, inlet, outlet and related internal components used in the EPX2155 fluid section.

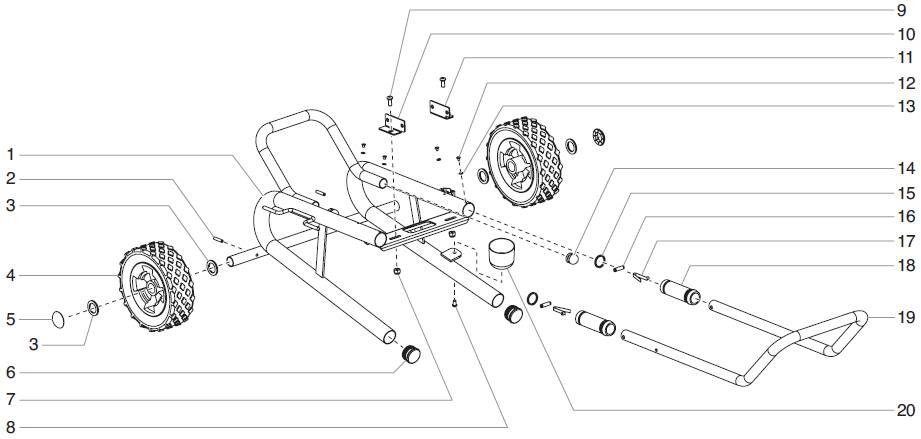

EPX2155 Low Boy Cart Assembly
Identify frame, mounting and mobility components specific to the applicable EPX2155 low-boy configuration.
Which EPX2155 Assembly Should You Inspect?
| Service Area | Start With | Components to Inspect | Verify Before Ordering |
|---|---|---|---|
| Pump / Pressure | Fluid Section | Piston, packings, seals and valve components | Diagram callout + OEM part number |
| Material Intake | Suction Set | Siphon and associated intake components | EPX2155 diagram + installed part |
| Mechanical Drive | Gear Box | Gears and associated drive components | Diagram position + OEM number |
| Electrical Drive | Motor Assembly | Motor and documented electrical components | Exact EPX2155 application |
| Frame / Mobility | Stand or Cart Assembly | Frame, wheels, handle and mounting hardware | Stand, upright or low-boy configuration |
Diagnose Your EPX2155 Before Replacing Parts
One operating symptom can have several possible causes. Inspect the relevant system and follow the applicable service procedures before determining which component requires replacement.
Inspect the material supply, suction path, connections and inlet-side fluid-section components for restrictions, leakage or contamination.
Check the fluid section, piston, packings, inlet and outlet valve components, coating supply and downstream spray system.
Inspect packings, seals, fittings and fluid-system connections to identify the source before selecting replacement parts.
Inspect the suction path and downstream fluid system for dried coating, contamination or other restrictions.
Inspect the motor and gearbox assemblies. Stop operation if mechanical damage is suspected until the cause has been identified.
Inspect the applicable frame, mounting hardware, wheels and handles before returning the sprayer to normal operation.
Do Not Select EPX2155 Parts by Appearance Alone
The Advantage EPX family includes multiple related sprayer models, and some components can look similar across EPX2155, EPX2255, EPX2355, EPX2455 and EPX2555 machines. Similar appearance does not establish interchangeability. Use the EPX2155 factory diagram and verify the documented OEM part number before ordering.
Browse Related SprayTech Advantage EPX Models
Working on another Advantage Series sprayer? Browse the complete EP and EPX category or move directly to another model-specific parts catalog.
Help Protect Your EPX2155 Piston Pump
Proper flushing helps prevent coating buildup in the pump, valves, hose and other fluid passages.
Inspect fluid-section wear components when leakage or declining pressure indicates that service may be required.
Inspect suction components and material passages for dried coating, debris, damaged seals or loose connections.
Check hoses, fittings, guards, electrical components and other safety-critical equipment before operation.
EPX2155 Service Safety
Airless spraying equipment operates with hazardous fluid pressure. Follow the applicable operating and service instructions, shut the sprayer down, disconnect electrical power where required and complete the specified pressure-relief procedure before servicing the pump, hose, spray gun or other pressurized components. Never use your hand to locate or stop a high-pressure fluid leak.
Shop Titan EPX2155 Repair & Replacement Parts
Use the EPX2155 parts diagrams to identify the component required for your repair. Browse motor, gearbox, suction, fluid-section, stand, upright-cart and low-boy-cart components and verify the OEM part number before ordering.
Shop EPX2155 PartsTitan EPX2155 Advantage Series Parts FAQ
Where can I find Titan EPX2155 replacement parts?
This page organizes EPX2155 replacement components by factory assembly, including the main assembly, motor, suction set, gearbox, stand, upright cart, fluid section and low-boy cart.
Where do I find EPX2155 pump repair parts?
Start with the EPX2155 Fluid Section Assembly for piston, packing, seal, inlet, outlet and other documented internal pump components.
Where can I find EPX2155 motor parts?
Use the EPX2155 Motor Assembly diagram to identify documented motor and associated electrical or drive components. Match the diagram reference to the correct OEM part number before ordering.
What should I check if my EPX2155 will not prime?
Inspect the material supply, suction system, connections and inlet-side fluid-section components. Restrictions, contamination or leakage in the intake path can interfere with priming.
Where do I find EPX2155 gearbox parts?
Select the EPX2155 Gear Box Assembly to identify documented gears and associated mechanical drive components from the exploded diagram.
Does the EPX2155 have different cart configurations?
The EPX2155 parts catalog includes dedicated upright-cart and low-boy-cart assembly sections as well as a stand assembly. Select the configuration that matches your machine.
Will EPX2255 or EPX2355 parts fit my EPX2155?
Do not assume compatibility based on appearance or the fact that the machines belong to the same Advantage Series. A part should be used only when the documented OEM part number and application confirm fitment.
What information should I have before ordering EPX2155 parts?
Have the EPX2155 model identification, machine configuration, serial information when available, assembly name, diagram callout and existing part number ready. These details improve parts-identification accuracy.
Need Help Identifying an EPX2155 Part?
Have your EPX2155 model information, machine configuration, serial information, existing part number and diagram reference available. These details help identify the correct replacement component before ordering.
