Titan EPX2555 Advantage Series Piston Pump Parts
Shop genuine OEM Titan EPX2555 Advantage Series Piston Pump Parts for maintenance, service and repair of the SprayTech Advantage EPX2555 airless sprayer. Browse model-specific exploded diagrams for the main assembly, drive system, fluid section, filtration system, cart and related machine components before selecting replacement parts.
Find the Correct Titan EPX2555 Replacement Parts
The Advantage EPX2555 is built from multiple serviceable systems and assemblies. Selecting parts from the correct exploded diagram helps distinguish components that may look similar but serve different functions or use different OEM part numbers.
Start by identifying the EPX2555 assembly you need to repair. Open the corresponding parts diagram, locate the component by its numbered callout and match that callout to the parts list. Confirm the documented OEM part number before ordering.
Find Your EPX2555 Part in Four Steps
Confirm EPX2555
Verify that the sprayer is an Advantage EPX2555 before selecting model-specific replacement parts.
Choose the Assembly
Determine whether the required part belongs to the main assembly, drive, fluid section, filter, cart or another documented system.
Match the Callout
Locate the component on the exploded diagram and match its numbered reference to the corresponding parts-list entry.
Verify the OEM Number
Confirm the documented Titan/SprayTech part number before placing your order.
Understanding the EPX2555 Piston Pump System
The EPX2555 combines mechanical, electrical, fluid-handling and structural assemblies into one airless spraying system. Correct diagnosis starts by identifying which system contains the component requiring inspection or replacement.
Contains documented machine components, mounting hardware and related parts shown in the main EPX2555 exploded view.
Transfers mechanical power through the sprayer to operate the pumping system.
Contains the pumping components responsible for drawing, moving and pressurizing coating material.
Helps manage contaminants in the fluid path before material continues toward downstream spray components.
Provides the intake route used to supply coating material to the sprayer's pumping system.
Supports the sprayer and includes documented frame, wheel, mounting and mobility-related components.
Titan EPX2555 Parts Diagrams & Assemblies
Choose the EPX2555 assembly that matches the area of the sprayer being serviced. Use the assembly diagram and corresponding parts list to identify the required OEM replacement component.

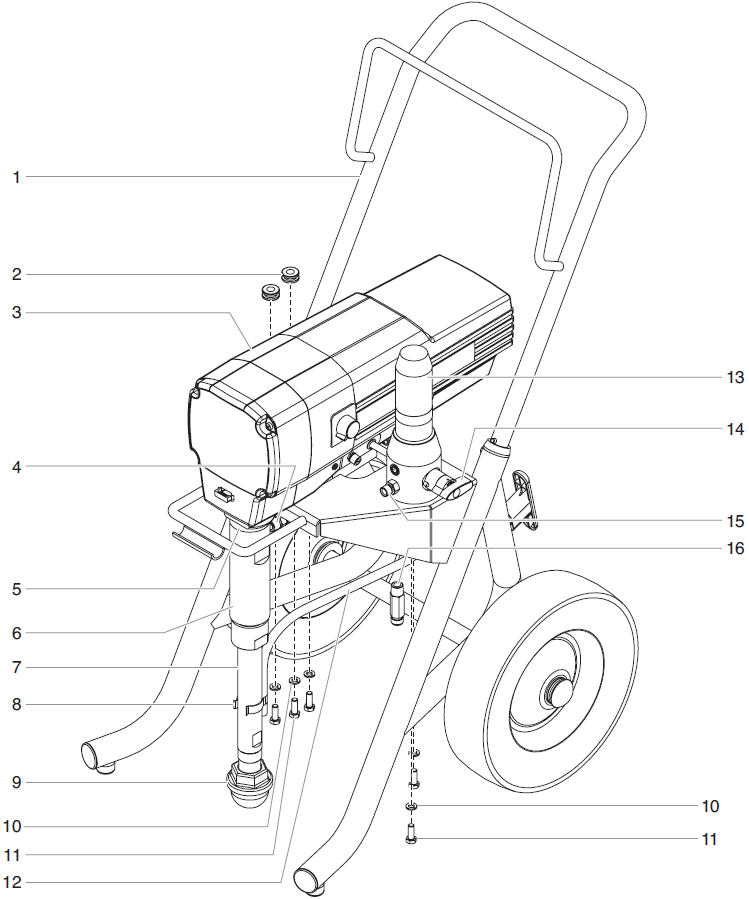

Main Assembly Parts
Identify documented machine components, mounting hardware and related main-assembly replacement parts.

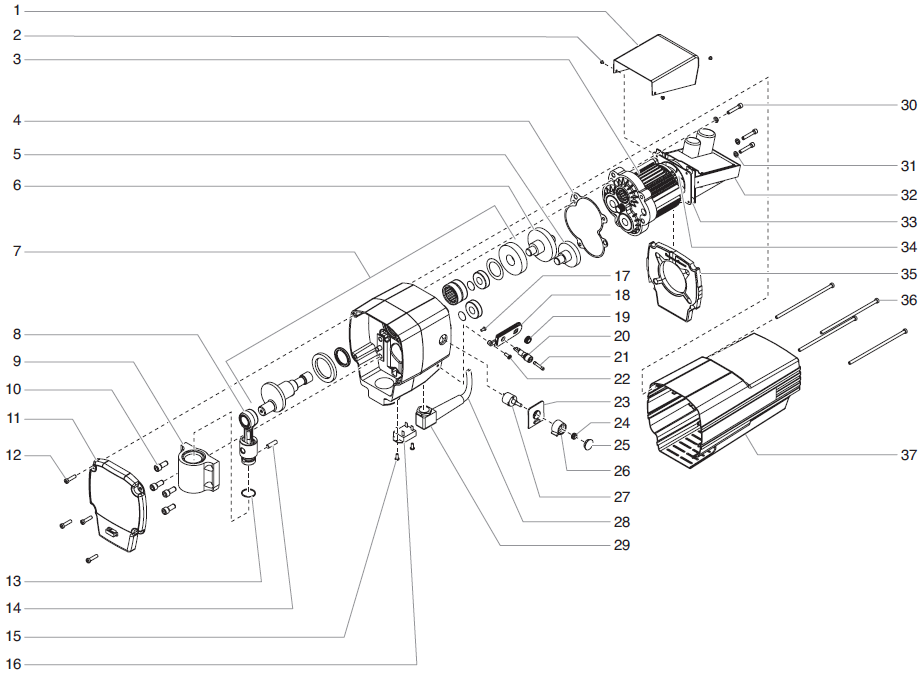

Drive Assembly Parts
Find documented drive and power-transfer components used in the EPX2555 sprayer.
Fluid Section Parts
Browse documented pump, valve, packing, seal and related fluid-handling components.

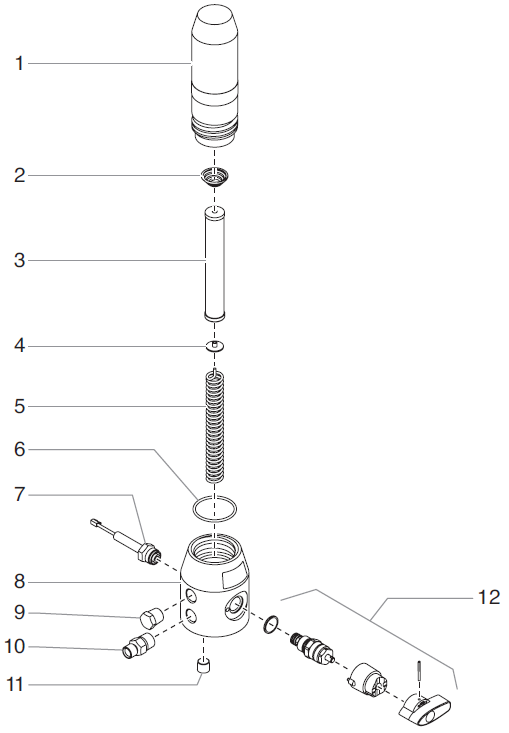

Filter Assembly Parts
Locate documented filter, housing, sealing, fitting and related filtration components.

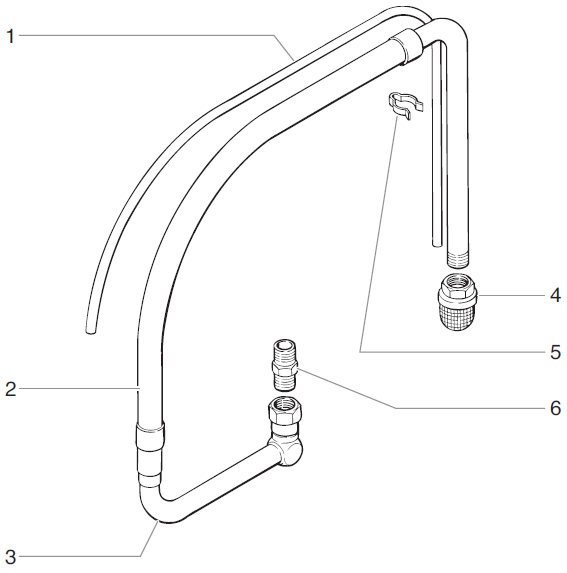

Suction System Parts
Identify documented suction, intake, strainer, fitting and related material-feed components.

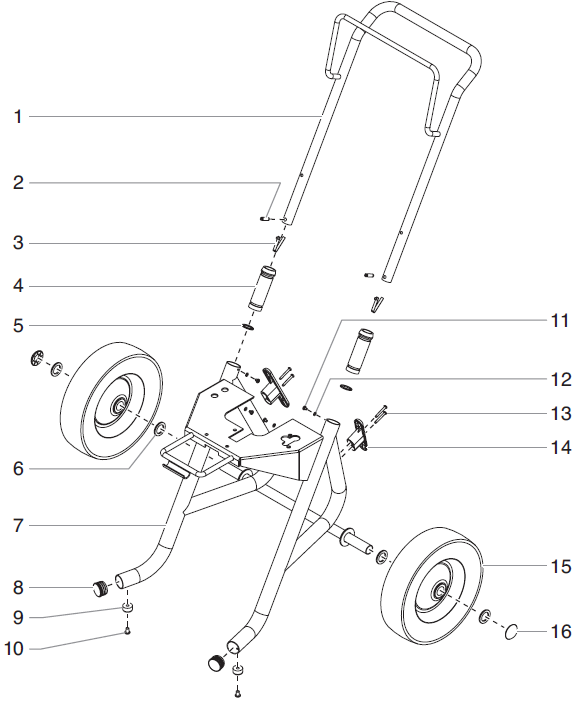

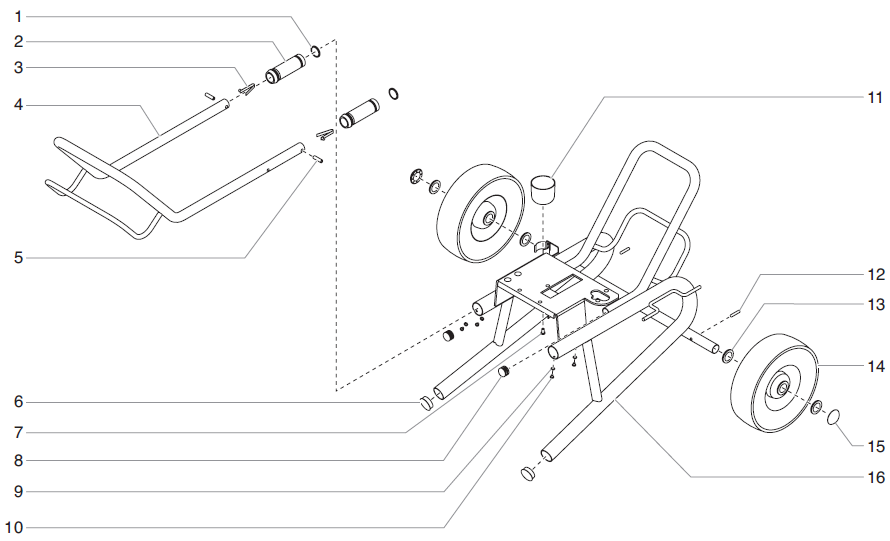

Cart Assembly Parts
Locate documented cart, wheel, frame, bracket, mounting and related structural components.
Common EPX2555 Service Areas to Inspect
A symptom does not always identify a single failed component. Use the appropriate service information and inspect the related system before ordering replacement parts.
| Condition | Inspect First | Also Check | Related Assembly |
|---|---|---|---|
| Sprayer Will Not Prime | Material supply and intake path | Fluid section | Suction / Fluid Section |
| Reduced Material Output | Fluid path and filter | Fluid section and intake | Filter / Fluid Section |
| Fluid Leakage | Exact leak location | Seals, fittings and adjacent components | Fluid System |
| Abnormal Mechanical Operation | Drive system | Related moving components | Drive Assembly |
| Sprayer Difficult to Move | Wheels and cart | Axle and mounting hardware | Cart Assembly |
Maintaining Your Titan Advantage EPX2555
Routine cleaning, inspection and maintenance help identify service needs before they develop into larger repair issues. Follow the applicable Titan/SprayTech operating and service instructions for the machine and the coating material being sprayed.
Flush and clean the sprayer using procedures appropriate for the coating material and equipment.
Check documented filtration components for contamination or damage during routine service.
Inspect fluid connections and serviceable sealing areas when visible leakage is detected.
Check wheels, mounting hardware and structural components for visible damage or looseness.
SprayTech Advantage EPX Parts Diagrams
Select your exact Advantage EPX model to browse its dedicated parts diagrams. Always verify the model before ordering pump, drive, filter, suction, cart or other replacement components.
Browse the main Titan/SprayTech Advantage category for additional model-specific EP and EPX parts diagrams.
View All Advantage EP & EPX PartsVerify EPX2555 Parts Before Ordering
Do not assume that a component from the EPX2155, EPX2255, EPX2355, EPX2455 or another Advantage sprayer fits the EPX2555. Similar-looking pumps, filters, fittings, drive components, cart parts and hardware may use different OEM part numbers or applications. Confirm the exact model, assembly diagram, numbered callout and documented OEM part number before purchasing.
Before Ordering Titan EPX2555 Parts
Verify that the sprayer is an Advantage EPX2555 before selecting parts.
Determine which EPX2555 system or assembly contains the required component.
Locate the component on the exploded view and match its numbered reference to the parts list.
Confirm the documented Titan/SprayTech part number before ordering.
EPX2555 Service Safety
Shut the sprayer down, disconnect electrical power and perform the applicable pressure-relief procedure before inspection, maintenance or repair. Airless equipment can retain hazardous high-pressure fluid after operation stops. Never loosen a pressurized fluid component or place hands near a suspected high-pressure leak. Follow the applicable Titan/SprayTech operating and service instructions during disassembly, parts replacement and reassembly.
Shop Titan EPX2555 Advantage Piston Pump Parts
Browse the EPX2555 assembly diagrams to locate the component you need, match its numbered callout to the corresponding parts list and verify the OEM part number before ordering.
Shop EPX2555 PartsTitan EPX2555 Advantage Series Piston Pump FAQ
Where can I find Titan EPX2555 replacement parts?
Use this EPX2555 Advantage Series Piston Pump page to browse the model-specific assembly diagrams and identify documented OEM replacement components from their numbered callouts.
How do I identify the correct EPX2555 part?
Confirm the EPX2555 model, choose the correct assembly diagram, locate the component by its numbered callout and match that reference to the documented OEM part number.
Where can I find an EPX2555 parts diagram?
The EPX2555 parts section organizes components by machine assembly so you can use the relevant exploded view to identify the required replacement part.
What should I inspect if my EPX2555 will not prime?
Inspect the coating supply and suction path first, then check the associated pump inlet and fluid-section components using the applicable service information.
What should I inspect if the EPX2555 has reduced output?
Inspect the material supply, intake path, filtration system and fluid section. Reduced output can have several causes, so diagnosis should cover the complete fluid path.
Can I use EPX2455 parts on an EPX2555?
Do not assume interchangeability. Verify the exact OEM part number and documented model application before using a component associated with another Advantage EPX sprayer.
Should I order EPX2555 parts by appearance?
No. Similar-looking components may have different applications. Use the correct exploded diagram, callout and documented OEM part number to identify the replacement.
Why are EPX2555 exploded diagrams useful?
Exploded diagrams show component locations and numbered references that correspond with the parts list, making it easier to identify the correct OEM replacement part before ordering.
Need Help Finding a Titan EPX2555 Part?
Have your EPX2555 model information, serial information when available, existing component number and exploded-diagram reference ready. These details can help identify the correct OEM pump, drive, filter, fluid, suction, cart or hardware component before ordering.
Parts & Fitment Help: 713-931-0006
