Shop Titan EPX2555 Advantage Series Drive Assembly Parts
Repair your sprayer's mechanical drive and electrical systems with Titan EPX2555 Advantage Series Drive Assembly Parts from AllTitanParts. Find genuine Titan OEM motor assemblies, gearboxes, sliders, slider housings, fuses, grounding hardware, motor cord strain reliefs and surge protectors. Identify the correct replacement using the factory exploded parts diagram and restore dependable operation to your Titan EPX2555 Advantage Series airless sprayer.
Drive Assembly Overview
Buy Genuine Titan EPX2555 Advantage Series Drive Parts
The Titan EPX2555 Advantage Series Drive Assembly contains components involved in converting electric motor power into the reciprocating mechanical movement needed by the piston pump. The motor supplies rotational power, the gearbox transmits and modifies that motion, and the slider mechanism helps drive the pumping cycle.
The assembly category also includes selected electrical and supporting components such as a 15-amp fuse, grounding screw, motor cord strain relief, potentiometer cap, lock washer and surge protector. These parts serve different functions from the motor and gearbox, but are important to the sprayer's overall operation.
When diagnosing a motor that will not run, unusual mechanical noise, slider wear or electrical protection issues, identify the actual cause before ordering replacement parts. AllTitanParts provides OEM part numbers and diagram references to help you select the correct components.
OEM Parts Directory
Titan EPX2555 Advantage Series Drive Assembly Parts List
The following OEM products are listed in this category. Titan 800-929 appears at two diagram positions and is shown twice below to preserve the published references.
| Diagram Ref. | Titan Part Number | Description | Function |
|---|---|---|---|
| 3 | 0551784 | Motor Assembly | Provides mechanical power to the drive system. |
| 7 | 0507220 | Packaged Gearbox Assembly | Transfers motor power through the drive mechanism. |
| 8 | 0507218 | Slider Assembly | Participates in reciprocating pump drive motion. |
| 9 | 0507769 | Slider Housing | Supports and locates the specified slider mechanism. |
| 17 | 9800340 | Ground Screw | Secures the specified electrical grounding connection. |
| 21 | 800-929 | 15A Fuse, replaces 0551627 | Provides specified electrical overcurrent protection. |
| 25 | 700-175 | Potentiometer Cap, replaces 507748 | Covers the designated pressure-control potentiometer. |
| 26 | 800-929 | 15A Fuse, replaces 0551627 | Second published diagram reference for the same fuse part number. |
| 29 | 9850644 | Motor Cord Strain Relief | Supports the designated motor cord entry or retention point. |
| 31 | 9821503 | Lock Washer | Supports the specified fastening connection. |
| Not specified | 0551972 | Surge Protector | Provides designated electrical surge protection. |
The listing contains 10 unique part numbers across 11 product positions. Verify the required quantity and diagram position before purchasing.
Featured OEM Components
Shop Titan EPX2555 Motors, Gearboxes, Sliders and Electrical Parts
Titan 0551784 Motor Assembly
The Titan 0551784 Motor Assembly is the primary electrical drive motor listed for the EPX2555 Advantage Series Drive Assembly.
If the motor will not run or exhibits abnormal operation, inspect the electrical supply, protection components and mechanical drive system before determining that motor replacement is necessary.
OEM Part Number: 0551784 | Ref. 3Titan 0507220 Gearbox Assembly
The Titan 0507220 Packaged Gearbox Assembly transfers motor power into the mechanical drive arrangement used to operate the piston pump.
Unusual mechanical noise, drive binding or visible gearbox damage may require inspection by a qualified service technician.
OEM Part Number: 0507220 | Ref. 7Titan 0507218 Slider Assembly
The Titan 0507218 Slider Assembly is a mechanical drive component involved in transmitting reciprocating motion to the pumping mechanism.
Inspect it when a confirmed mechanical drive fault, excessive wear or abnormal movement is found during service.
OEM Part Number: 0507218 | Ref. 8Titan 0507769 Slider Housing
The Titan 0507769 Slider Housing provides the specified support and location for the slider mechanism.
Inspect the housing for cracks, wear or damaged mounting surfaces during mechanical drive repairs.
OEM Part Number: 0507769 | Ref. 9Titan 800-929 15A Fuse
The Titan 800-929 Fuse is a 15-amp replacement fuse identified as replacing Titan 0551627.
The category displays this fuse at diagram references 21 and 26. If a fuse opens repeatedly, investigate the underlying electrical fault rather than repeatedly replacing it.
OEM Part Number: 800-929 | Replaces 0551627Titan 700-175 Potentiometer Cap
The Titan 700-175 Potentiometer Cap is listed as replacing Titan 507748.
It fits over the designated pressure-control potentiometer. Confirm the condition of the underlying control components if the pressure adjustment mechanism is not functioning correctly.
OEM Part Number: 700-175 | Ref. 25Titan 9850644 Motor Cord Strain Relief
The Titan 9850644 Motor Cord Strain Relief helps protect the specified cord entry and retention point from excessive mechanical strain.
Inspect it if the cord is loose, the protective fitting is damaged or the cable entry requires service.
OEM Part Number: 9850644 | Ref. 29Titan 0551972 Surge Protector
The Titan 0551972 Surge Protector is an electrical protection component listed for the drive assembly.
Its condition should be evaluated as part of the applicable electrical diagnostic procedure when surge-related damage is suspected.
OEM Part Number: 0551972Titan 9800340 Ground Screw
The Titan 9800340 Ground Screw is OEM grounding hardware for the specified electrical connection.
Grounding hardware must be installed correctly according to the service manual. Do not operate equipment with a missing or compromised grounding connection.
OEM Part Number: 9800340 | Ref. 17Titan 9821503 Lock Washer
The Titan 9821503 Lock Washer is a fastening component used at the specified drive assembly location.
Use the correct OEM washer and follow the manufacturer fastening requirements during repair or reassembly.
OEM Part Number: 9821503 | Ref. 31Drive System Operation
How the Titan EPX2555 Advantage Series Drive Assembly Works
Motor Power
The electric motor supplies rotational mechanical energy.
Gear Transmission
The gearbox transfers motor output through the drive mechanism.
Slider Movement
The slider mechanism participates in producing reciprocating pump movement.
Pump Operation
The drive system operates the fluid section, which pressurizes coating material for spraying.
Troubleshooting and Repair
Common EPX2555 Advantage Series Drive Assembly Problems
Electrical and mechanical faults can produce overlapping symptoms. Diagnose the complete system using Titan's service procedures before replacing components.
| Observed Problem | Components to Inspect | Recommended Check |
|---|---|---|
| Motor will not start | 0551784 Motor, 800-929 Fuse, electrical supply | Check power supply and follow the electrical diagnostic procedure. |
| Repeated fuse failure | 800-929 Fuse and electrical drive circuit | Investigate overload, wiring faults or other electrical problems. |
| Abnormal mechanical noise | 0507220 Gearbox and 0507218 Slider | Inspect for confirmed wear, binding or damage. |
| Mechanical drive binding | 0507218 Slider and 0507769 Housing | Inspect the mechanism and associated fluid section for resistance. |
| Damaged motor cord entry | 9850644 Strain Relief | Inspect cable insulation, cord retention and electrical safety. |
| Pressure adjustment problem | 700-175 Cap and pressure control system | Determine whether the fault is mechanical or electrical before replacing components. |
OEM Replacement Reference
Titan EPX2555 Advantage Series Part Number Cross-References
The category identifies these replacement relationships:
- Titan 800-929 is the listed 15A fuse replacing 0551627.
- Titan 700-175 is the potentiometer cap replacing 507748.
Always confirm the current OEM ordering number, electrical rating and equipment configuration before purchase. A shared part number does not make complete drive assemblies interchangeable.
OEM Buying Guide
How to Order the Correct EPX2555 Advantage Series Drive Part
Confirm Your Model
Verify the EPX2555 Advantage Series identification and serial number.
Locate the Diagram Reference

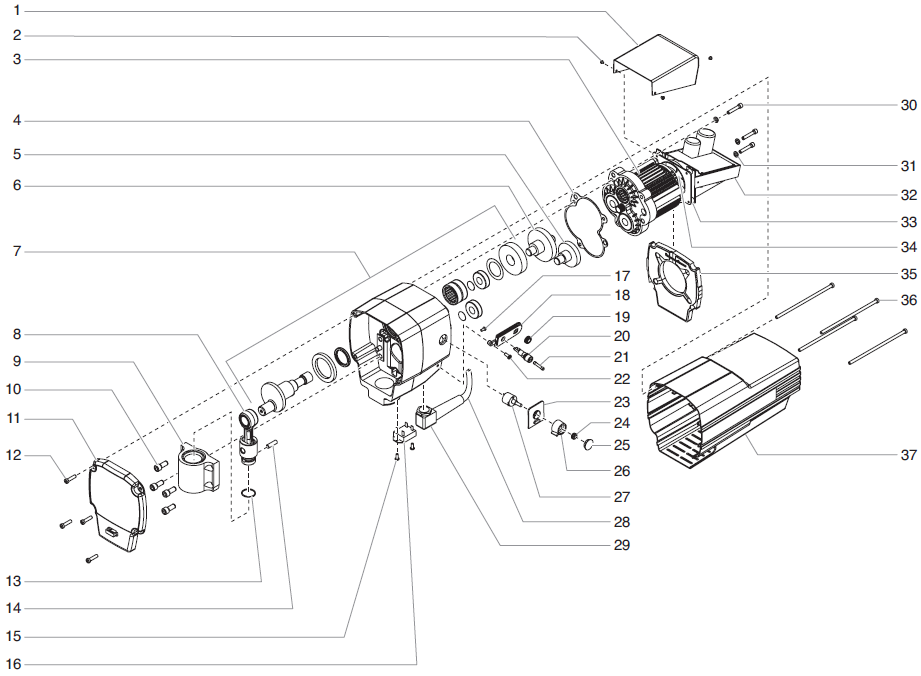

Find the required component on the drive assembly exploded illustration.
