Shop Titan EPX2555 Low Boy Cart Assembly Parts
Restore dependable mobility and maintain your airless sprayer's cart hardware with Titan EPX2555 Low Boy Cart Assembly Parts (P/N 0507199) from AllTitanParts. Shop genuine Titan OEM wheels, wheel spacers, snap buttons and hub caps. Whether you are repairing a damaged wheel, replacing missing retaining hardware or servicing a worn cart component, use the factory exploded diagram to find the correct replacement for your Titan EPX2555 low boy sprayer.
Low Boy Cart Assembly Overview
Buy Genuine Titan EPX2555 Low Boy Cart Replacement Parts
The Titan EPX2555 Low Boy Cart Assembly (P/N 0507199) is the wheeled support structure for the low boy configuration of the Titan EPX2555 piston pump. Its lower-profile design helps support the sprayer during transport, positioning and storage.
Although the cart is separate from the pump's fluid delivery and pressure control systems, its condition affects how safely and conveniently the equipment can be moved around a jobsite. Damaged wheels may interfere with rolling movement, missing wheel spacers can affect wheel positioning, and loose retaining components may compromise the intended cart assembly arrangement.
AllTitanParts lists four individual replacement parts for this assembly: Titan 9841504 Snap Button, 0294534 Wheel Spacer, 0278373 Wheel and 9890104 Hub Cap.
Each component is identified by its OEM part number and diagram position, helping contractors and service technicians order the correct replacement without relying on visual guesswork.
OEM Parts Directory
Titan EPX2555 Low Boy Cart Assembly Parts List

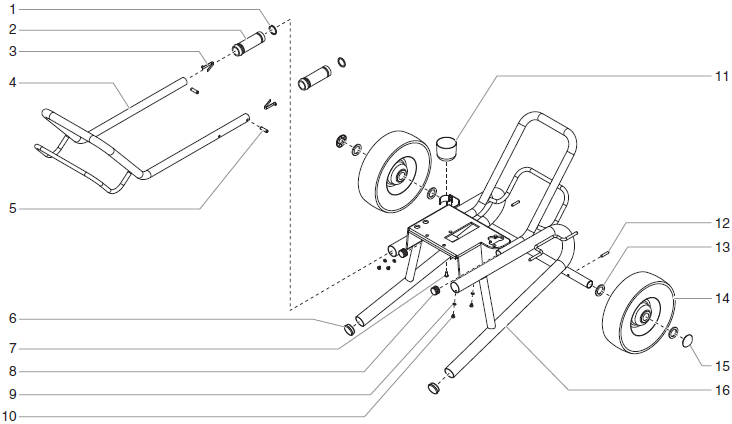

Use the following OEM parts directory together with the EPX2555 Low Boy Cart Assembly exploded diagram to identify the correct replacement.
| Diagram Ref. | Titan Part Number | Part Description | Primary Function |
|---|---|---|---|
| 3 | 9841504 | Snap Button | Provides a spring-loaded retaining or positioning function. |
| 13 | 0294534 | Wheel Spacer | Maintains specified wheel spacing and positioning. |
| 14 | 0278373 | Wheel | Supports rolling movement of the low boy cart. |
| 15 | 9890104 | Hub Cap, replaces Titan 704-355 | Provides the specified wheel hub retention or covering function. |
The four items above are the individually listed products on this category page. Assembly P/N 0507199 identifies the cart assembly and should not be confused with an individual wheel or hardware part number.
Featured OEM Cart Components
Shop Titan EPX2555 Wheels, Spacers, Snap Buttons and Hub Caps
DIAGRAM REFERENCE 14
Titan 0278373 Wheel
The Titan 0278373 Wheel is the OEM replacement wheel listed for the EPX2555 Low Boy Cart Assembly.
Its purpose is to support rolling movement when transporting or repositioning the sprayer. Inspect the wheel when you notice cracking, deformation, excessive wear, wobbling or difficulty rolling the cart.
When replacing a wheel, inspect the associated spacers and hub hardware to identify any additional damaged components.
OEM Part Number: 0278373DIAGRAM REFERENCE 13
Titan 0294534 Wheel Spacer
The Titan 0294534 Wheel Spacer is an OEM hardware component used to maintain the designated wheel positioning within the low boy cart assembly.
A missing, worn or incorrectly positioned spacer may contribute to abnormal wheel alignment, rubbing or excessive side-to-side movement.
Match the spacer to its diagram reference and inspect the complete wheel assembly before installation.
OEM Part Number: 0294534DIAGRAM REFERENCE 15
Titan 9890104 Hub Cap
The Titan 9890104 Hub Cap is the listed OEM replacement for Titan 704-355.
This component is used at the designated wheel hub location. Inspect it when the cap is damaged, loose or missing.
Check the condition of the associated wheel hardware and follow the specified installation procedure rather than assuming the cap alone will correct every wheel-retention problem.
OEM Part Number: 9890104 | Replaces 704-355DIAGRAM REFERENCE 3
Titan 9841504 Snap Button
The Titan 9841504 Snap Button is a spring-loaded retaining component used in the specified cart assembly position.
Inspect the snap button if the associated cart component does not engage or remain in its intended position.
Replace a damaged or nonfunctional snap button with the correct OEM part and verify proper engagement before using the sprayer.
OEM Part Number: 9841504Cart Design and Function
Why the Titan EPX2555 Low Boy Cart Matters
Lower-Profile Support
The low boy configuration positions the sprayer on a lower cart structure, supporting equipment stability when properly assembled and placed on a suitable surface.
Jobsite Mobility
The wheeled cart helps operators move the sprayer between work areas without carrying the complete machine.
Wheel Positioning
OEM spacers and hub components help maintain the intended wheel hardware arrangement.
Serviceable Components
Individually listed OEM parts allow targeted repairs when a wheel, spacer, snap button or hub cap needs replacement.
Troubleshooting and Repair
Common Titan EPX2555 Low Boy Cart Problems
A cart that is difficult to move, visibly damaged or missing retaining hardware should be inspected before further use. The following guide identifies components to check.
| Observed Problem | Parts to Inspect | Recommended Check |
|---|---|---|
| Wheel is cracked or damaged | 0278373 Wheel | Inspect the wheel and surrounding hardware for wear or impact damage. |
| Wheel wobbles or shifts sideways | 0294534 Wheel Spacer and wheel hardware | Check spacer condition, wheel alignment and the complete retention arrangement. |
| Hub cap is loose or missing | 9890104 Hub Cap | Inspect the cap and confirm the wheel assembly is correctly secured. |
| Cart component will not lock | 9841504 Snap Button | Check spring-loaded engagement and the mating component for damage. |
| Cart is difficult to roll | Wheel, spacer and associated hardware | Inspect for binding, damaged wheel surfaces, obstructions or incorrect assembly. |
| Cart feels unstable | Complete cart structure and mounting points | Inspect the frame, equipment mounting, wheels and supporting surface before operation. |
OEM Part Number Reference
Titan EPX2555 Low Boy Cart Part Numbers and Replacements
The complete low boy cart assembly is identified as P/N 0507199. Its individually listed replacement components have separate OEM numbers.
The category specifically identifies Titan 9890104 Hub Cap as replacing Titan 704-355.
The other listed OEM parts are 9841504 Snap Button, 0294534 Wheel Spacer and 0278373 Wheel. Confirm the exact part number and diagram position before purchase. The listed parts do not constitute a complete cart assembly kit.
OEM Buying Guide
How to Choose the Correct Titan EPX2555 Low Boy Cart Part
Confirm the Cart Configuration
Verify that your Titan EPX2555 uses the low boy cart assembly identified as P/N 0507199.
Review the Exploded Diagram
Locate the wheel, spacer, hub cap or snap button using the numbered parts illustration.
Match the OEM Number
Check the exact Titan part number and any documented replacement reference.
Order the Replacement
Purchase the correct component and follow the applicable Titan installation instructions.
Preventive Maintenance
Maintain Your Titan EPX2555 Low Boy Cart Assembly
Inspect Wheels Regularly
Check the wheels for cracks, deformation, excessive wear and smooth rolling movement.
Check Wheel Spacers
Inspect spacers for damage, excessive wear or incorrect positioning when servicing the wheel assembly.
Examine Hub Caps
Check that hub caps and associated retention hardware remain correctly installed and undamaged.
Test Snap Button Engagement
Confirm the snap button operates correctly and the related cart component remains securely positioned.
Related Titan EPX2555 Assemblies
Shop More Titan EPX2555 Piston Pump Parts
EPX2555 Upright Cart Assembly
Browse replacement hardware for the EPX2555 upright cart configuration.
EPX2555 Low Boy Suction Set
Find suction-system components for the EPX2555 low boy sprayer.
EPX2555 Main Assembly
Shop main assembly fittings, hoses and related sprayer components.
EPX2555 Fluid Section Assembly
Explore fluid section repair and replacement components.
EPX2555 Drive Assembly
Browse motor, gearbox and drive system replacement parts.
All EPX2555 Piston Pump Parts
Explore every EPX2555 assembly category and its OEM parts diagram.
Titan EPX2555 Low Boy Cart Repair Safety
Before servicing the cart, switch off the sprayer, disconnect electrical power and follow Titan's pressure-relief procedure. Position the equipment on a stable surface and support it securely before removing wheels, spacers or retaining hardware. Never operate or transport the sprayer with damaged wheel retention components, loose equipment mounts or an unstable cart. Follow the applicable Titan service manual for repair and installation requirements.
Genuine Titan EPX2555 Low Boy Cart Parts
Order Titan EPX2555 Low Boy Cart Parts Today
Shop genuine Titan OEM wheels, wheel spacers, hub caps and snap buttons for the EPX2555 Low Boy Cart Assembly. Identify the correct part using the factory exploded diagram and order from AllTitanParts.
Shop EPX2555 Low Boy Cart PartsFrequently Asked Questions
Titan EPX2555 Low Boy Cart Assembly FAQ
What is the Titan EPX2555 Low Boy Cart Assembly?
It is the lower-profile wheeled cart structure used to support and transport the Titan EPX2555 piston pump in its low boy configuration.
What is the Titan EPX2555 Low Boy Cart Assembly part number?
The assembly is identified as Titan P/N 0507199.
How many replacement parts are listed for the EPX2555 Low Boy Cart?
The AllTitanParts category lists four individual OEM parts: a snap button, wheel spacer, wheel and hub cap.
What is the Titan EPX2555 Low Boy Cart Wheel part number?
Titan 0278373 is the wheel listed at diagram reference 14.
What is the Titan EPX2555 Wheel Spacer part number?
Titan 0294534 is the wheel spacer listed at diagram reference 13.
What part replaces Titan 704-355 Hub Cap?
Titan 9890104 Hub Cap is listed as replacing Titan 704-355.
What is the Titan EPX2555 Snap Button part number?
Titan 9841504 is the snap button listed at diagram reference 3.
Why is my EPX2555 Low Boy Cart wheel wobbling?
Possible causes include a damaged wheel, worn or missing spacer, or problems with the associated retention hardware. Inspect the complete wheel assembly.
Can I replace an individual wheel on my Titan EPX2555?
Yes. Titan 0278373 is individually listed as a replacement wheel for the low boy cart assembly.
Are the EPX2555 Low Boy and Upright Cart Assemblies interchangeable?
They are different cart configurations. The low boy assembly is P/N 0507199, while the upright assembly is P/N 0507198. Some individual parts may be shared, but each replacement must be verified against its OEM diagram.
How do I identify the correct EPX2555 cart replacement part?
Confirm the low boy configuration, locate the damaged component in the exploded diagram and match the corresponding OEM part number before ordering.
Where can I buy Titan EPX2555 Low Boy Cart Assembly parts?
Shop Titan EPX2555 Low Boy Cart Assembly Parts at AllTitanParts. For assistance identifying the correct component, call 713-931-0006.
Titan OEM Parts Assistance
Need Help Finding EPX2555 Low Boy Cart Parts?
Have your Titan EPX2555 model, serial number, assembly P/N 0507199 and diagram reference ready when requesting replacement part assistance.
