Drive Assembly Overview
Buy Genuine Titan EPX2555 Drive Assembly Replacement Parts
The Titan EPX2555 Drive Assembly contains important mechanical and electrical components that support the operation of the EPX2555 airless piston pump. The electric motor provides rotational power, the gearbox transfers that power through the drive mechanism, and the slider assembly helps produce the reciprocating movement required by the fluid section.
The assembly category also includes electrical protection components, a power cord, pressure control hardware, grounding components and fastening hardware. These parts help maintain safe electrical connections, support equipment control and secure designated components.
AllTitanParts lists major replacement components including Titan 0551784 Motor Assembly, 0507220 Gearbox Assembly, 0507218 Slider Assembly, 0507769 Slider Housing, 800-934A Fuse Holder Service Kit, 800-929 Fuse and 704-553 Power Cord Assembly. Match each OEM number to the correct exploded-view callout before ordering.
OEM Parts Directory
Titan EPX2555 Drive Assembly Parts List
The following 14 diagram entries are listed for the EPX2555 Drive Assembly. Some part numbers appear at more than one diagram position. Use the reference number and exact OEM part number when selecting replacement components.
| Diagram Ref. | Titan OEM Part Number | Part Description | Repair Function |
|---|---|---|---|
| 3 | 0551784 | Motor Assembly | Provides mechanical power to the drive system. |
| 7 | 0507220 | Gearbox Assembly, Packaged | Transfers motor power through the gear drive. |
| 8 | 0507220 | Gearbox Assembly, Packaged | Additional diagram reference for the same listed gearbox part. |
| 9 | 0507218 | Slider Assembly | Transfers reciprocating drive movement toward the pump. |
| 10 | 0507769 | Slider Housing | Supports and guides the slider mechanism. |
| 17, 18 | 9800340 | Ground Screw | Provides designated electrical grounding hardware. |
| 21 | 800-934A | Fuse Holder Service Kit | Supports mounting and connection of the electrical fuse. |
| 22 | 800-929 | 15A Fuse | Provides specified electrical overcurrent protection. |
| 26 | 700-175 | Potentiometer Cap | Covers the designated pressure control potentiometer. |
| 27 | 700-159 | Pressure Control Knob | Provides the user pressure adjustment interface. |
| 29 | 704-553 | Power Cord Assembly | Supplies electrical power to the equipment. |
| 31 | 9821503 | Lock Washer | Supports retention of designated fastening hardware. |
| 40 | 0551972 | Surge Protector | Provides electrical surge protection within the specified circuit. |
The source category displays 14 product entries. Ground screw 9800340 and gearbox 0507220 each appear at two diagram references. Verify all component positions against the current exploded diagram.
Featured OEM Drive Components
Shop Titan EPX2555 Motors, Gearboxes, Sliders and Electrical Parts
Titan 0551784 Motor Assembly
The Titan 0551784 Motor Assembly supplies the rotational power required by the EPX2555 drive mechanism. It operates in conjunction with the gearbox and slider system to support the pump's reciprocating action.
Inspect the motor and associated electrical components when diagnosing a confirmed drive power failure, abnormal motor operation or mechanical drive problems.
OEM Part Number: 0551784Titan 0507220 Gearbox Assembly

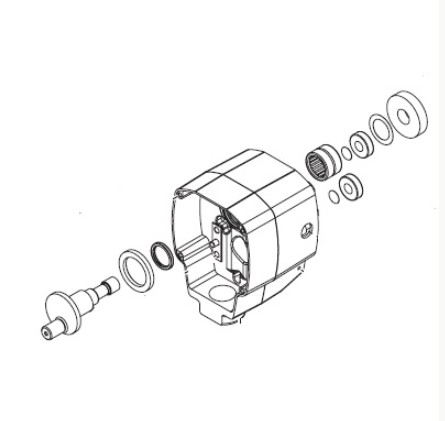

The Titan 0507220 Gearbox Assembly is a packaged drive component that transfers motor rotation through the sprayer's mechanical drive system.
Inspect the gearbox when a qualified technician identifies internal gear damage, abnormal grinding, mechanical binding or excessive drive wear.
OEM Part Number: 0507220Titan 0507218 Slider Assembly

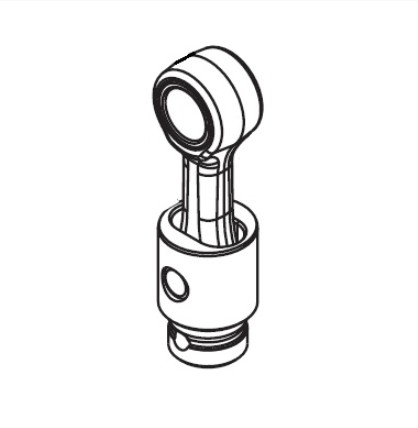

The Titan 0507218 Slider Assembly transfers mechanical drive movement toward the fluid section. Its movement and alignment are important for proper operation of the pumping mechanism.
Inspect the slider for excessive wear, damage or binding when servicing the mechanical drive system.
OEM Part Number: 0507218Titan 0507769 Slider Housing

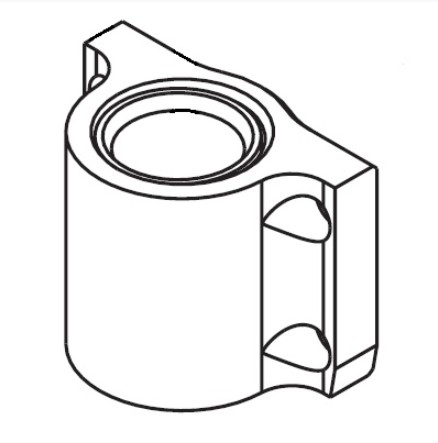

The Titan 0507769 Slider Housing provides structural support and guidance for the slider assembly.
A worn or damaged housing may affect drive alignment and should be inspected during a major mechanical drive repair.
OEM Part Number: 0507769Titan 800-934A Fuse Holder Service Kit

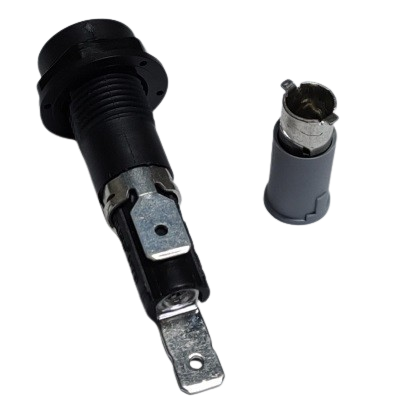

The Titan 800-934A Fuse Holder Service Kit supports the fuse connection within the designated electrical circuit.
The catalog identifies this kit as replacing Titan 0551628. Confirm the replacement and inspect the circuit for the cause of any electrical failure.
OEM Part Number: 800-934A | Replaces 0551628Titan 800-929 15A Fuse
The Titan 800-929 Fuse provides the specified 15-amp electrical protection for the applicable sprayer circuit.
This fuse replaces Titan 0551627. Never install a fuse with an incorrect rating or bypass the protective device.
OEM Part Number: 800-929 | Replaces 0551627Titan 704-553 Power Cord Assembly
The Titan 704-553 Power Cord Assembly provides the specified electrical power connection for compatible equipment.
The catalog lists this assembly as replacing Titan 552101. Replace damaged power cords using approved parts and qualified electrical service procedures.
OEM Part Number: 704-553 | Replaces 552101Titan 700-159 Pressure Control Knob
The Titan 700-159 Pressure Control Knob provides the external pressure adjustment interface for the sprayer.
The catalog identifies it as replacing Titan 507740. Check the knob and connected control mechanism if adjustment is difficult or the knob is damaged.
OEM Part Number: 700-159 | Replaces 507740Drive Assembly Functions
How the Titan EPX2555 Drive Assembly Operates
Electric Motor Power
The motor supplies the rotation needed to operate the mechanical drive system.
Gearbox Transmission
The gearbox transfers motor power through the drive mechanism.
Reciprocating Movement
The slider mechanism transfers drive movement toward the fluid section.
Electrical Protection
Fuses, grounding hardware, surge protection and the power cord support the electrical system.
Troubleshooting and Repair
Common Titan EPX2555 Drive Assembly Problems
Drive problems may involve the motor, gearbox, slider, electrical supply or pressure control system. Diagnose the cause before purchasing replacement parts.
| Observed Problem | Components to Inspect | Recommended Check |
|---|---|---|
| Motor will not start | 0551784, 800-929, 800-934A and power supply | Check the power source and have the electrical circuit inspected according to Titan's service procedure. |
| Unusual gearbox noise | 0507220 Gearbox Assembly | Stop operation and inspect the gearbox for mechanical wear or damage. |
| Drive mechanism binds | 0507218 and 0507769 | Inspect slider movement, housing alignment and connected drive components. |
| Fuse repeatedly blows | 800-929, 800-934A, 0551784 and wiring | Do not repeatedly replace the fuse without identifying the electrical fault. |
| Pressure knob is damaged | 700-159 and 700-175 | Inspect the external control parts and verify the correct replacement. |
| Intermittent electrical operation | 704-553, 0551972 and electrical connections | Have the power cord, surge protection and connections checked by qualified personnel. |
OEM Replacement Reference
Titan EPX2555 Drive Assembly Replacement Part Numbers
The AllTitanParts catalog identifies several replacement relationships for this drive assembly:
- Titan 800-934A Fuse Holder Service Kit replaces 0551628.
- Titan 800-929 15A Fuse replaces 0551627.
- Titan 700-175 Potentiometer Cap replaces 507748.
- Titan 700-159 Pressure Control Knob replaces 507740.
- Titan 704-553 Power Cord Assembly replaces 552101.
Use these replacement references only for the specified components. Confirm the current OEM part number, equipment model and applicable diagram before ordering.
OEM Buying Guide
How to Choose the Correct Titan EPX2555 Drive Assembly Part
Verify the Model
Confirm that your sprayer is a Titan EPX2555 and check its serial information.
Locate the Component

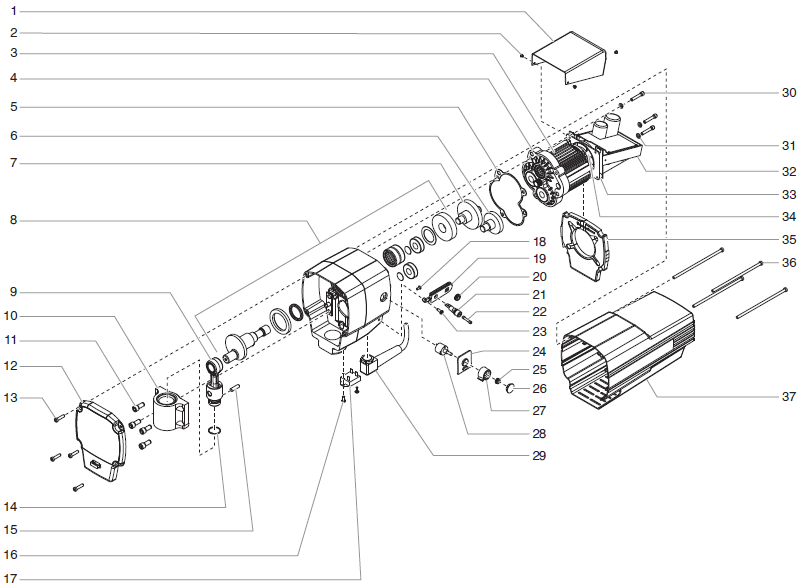

Use the drive assembly exploded diagram to identify the component reference.
Match the OEM Number
Compare the diagram reference, part description and current replacement number.
Order the Replacement
Select the correct OEM part and follow the manufacturer installation procedure.
Preventive Maintenance
Maintain Your Titan EPX2555 Drive Assembly
Inspect the Motor
Keep ventilation areas clear and investigate abnormal motor noise, overheating or intermittent operation.
Check the Gearbox
Monitor the gearbox for unusual noise or vibration and follow Titan's lubrication and service requirements.
Maintain Electrical Protection
Use the specified fuse rating and inspect the fuse holder, ground connections and power cord during authorized service.
Inspect Slider Components
Check the slider and housing for excessive wear, misalignment or mechanical binding when servicing the drive.
Related Titan EPX2555 Assemblies
Shop More Titan EPX2555 Piston Pump Parts
EPX2555 Main Assembly
Find fluid hoses, bypass valves, fittings and main assembly components.
EPX2555 Fluid Section Assembly
Browse replacement components associated with the fluid pumping section.
EPX2555 Filter Assembly
Shop filter assembly components for the EPX2555 fluid system.
EPX2555 Suction Set
Find suction components for applicable low boy configurations.
Titan EPX2555 Drive Assembly Service Safety
Before inspecting or repairing the drive assembly, turn off the sprayer, disconnect electrical power and follow Titan's complete pressure-relief procedure. Never service live electrical components, bypass protective devices or replace a fuse with an incorrect rating. Internal motor, wiring and drive repairs should be performed by qualified personnel following the applicable Titan service instructions. High-pressure fluid injection injuries require immediate emergency medical attention.
Genuine Titan EPX2555 Drive Assembly Parts
Order Titan EPX2555 Drive Assembly Parts Today
Shop genuine Titan motors, gearbox assemblies, sliders, fuse kits, pressure control knobs, power cords and electrical replacement components for your EPX2555 Piston Pump.
Shop EPX2555 Drive Assembly PartsFrequently Asked Questions
Titan EPX2555 Drive Assembly FAQ
What is the Titan EPX2555 Drive Assembly?
It is the assembly grouping for major mechanical and electrical components that provide power and drive movement to the EPX2555 pumping system.
How many parts are listed for the EPX2555 Drive Assembly?
The AllTitanParts category currently displays 14 diagram entries, including some repeated OEM part numbers at different positions.
What is the Titan EPX2555 Motor Assembly part number?
Titan 0551784 is the Motor Assembly listed for the EPX2555 Drive Assembly.
Which gearbox assembly is listed for the EPX2555?
Titan 0507220 is the packaged Gearbox Assembly listed at diagram references 7 and 8.
What is the Titan EPX2555 Slider Assembly part number?
Titan 0507218 is the Slider Assembly listed for the EPX2555 drive mechanism.
What is the Titan EPX2555 Slider Housing part number?
Titan 0507769 is the Slider Housing identified in the drive assembly category.
What fuse is listed for the Titan EPX2555?
Titan 800-929 is the listed 15A Fuse, replacing original Titan part 0551627.
What part replaces Titan 0551628 Fuse Holder?
Titan 800-934A Fuse Holder Service Kit is listed as replacing Titan 0551628.
What is the Titan EPX2555 Power Cord Assembly part number?
Titan 704-553 is the Power Cord Assembly listed for the drive assembly. The catalog identifies it as replacing Titan 552101.
Why is my Titan EPX2555 motor not starting?
Possible causes include power supply problems, fuse failure, damaged wiring, pressure control faults or motor problems. Have the system diagnosed before replacing components.
Can I replace the EPX2555 gearbox separately?
Yes. Titan 0507220 is listed as an individual packaged Gearbox Assembly. Confirm compatibility with the applicable sprayer configuration before ordering.
Where can I buy Titan EPX2555 Drive Assembly parts?
Shop Titan EPX2555 Drive Assembly Parts at AllTitanParts. For help identifying the correct replacement, call 713-931-0006.
