Titan EPX2355 Advantage Series Piston Pump Parts
Find genuine OEM Titan EPX2355 Advantage Series Piston Pump Parts for maintenance, repair and restoration of the SprayTech Advantage EPX2355 airless sprayer. Browse model-specific assembly diagrams to identify motor, drive, suction, fluid-section, frame, cart and related replacement components before ordering.
Find the Correct Titan EPX2355 Replacement Parts
The Titan/SprayTech Advantage EPX2355 is an electric piston-pump airless sprayer built from multiple serviceable assemblies. Identifying the correct assembly first helps narrow the parts search and reduces the risk of ordering a visually similar component intended for another Advantage model.
Start with the assembly containing the component being serviced. Locate the numbered callout on the appropriate EPX2355 exploded diagram, match that reference to the parts list and verify the documented OEM part number before purchase. Model and part-number verification are especially important when servicing older Advantage-series equipment.
Find Your EPX2355 Part in Four Steps
Confirm EPX2355
Verify the exact Advantage EPX2355 model before selecting model-specific replacement components.
Choose the Assembly
Determine whether the required component belongs to the motor, gear box, suction system, fluid section, main assembly or support structure.
Match the Diagram Callout
Locate the component on the exploded diagram and match its numbered reference to the corresponding parts-list entry.
Verify the OEM Number
Confirm the documented OEM part number and EPX2355 application before purchasing the replacement.
Shop Titan EPX2355 Parts by Assembly
Choose the section of the EPX2355 being serviced. Assembly-specific diagrams help narrow your search to the components used within that part of the machine.

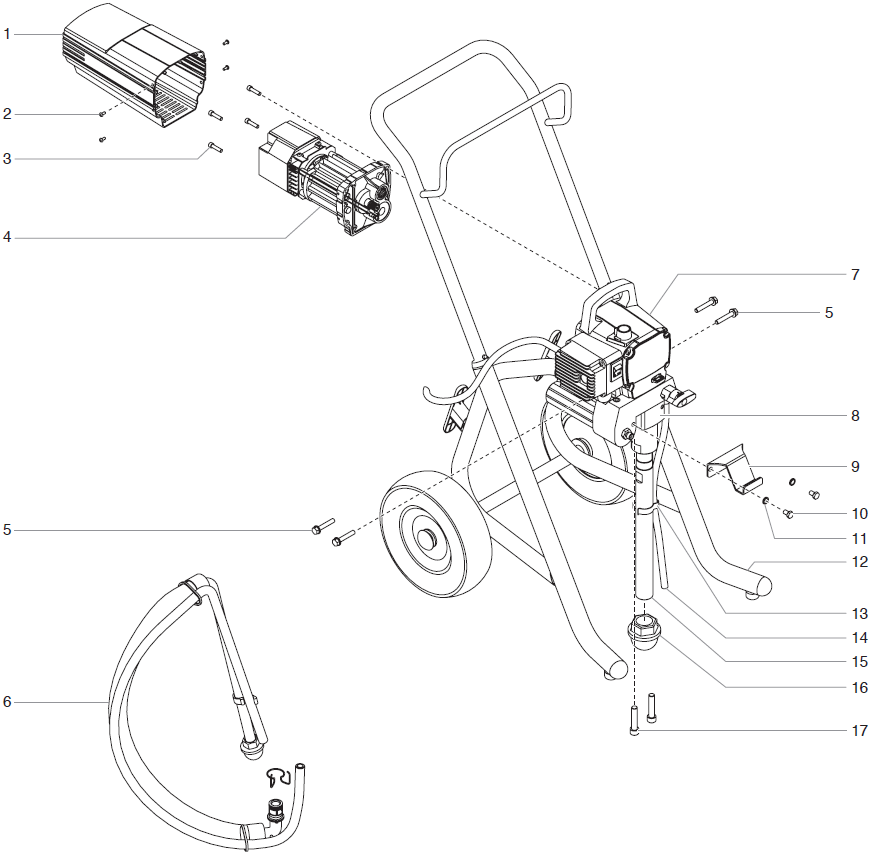

Main Assembly
Use the main assembly to locate components associated with the overall machine and the relationship between its major systems.

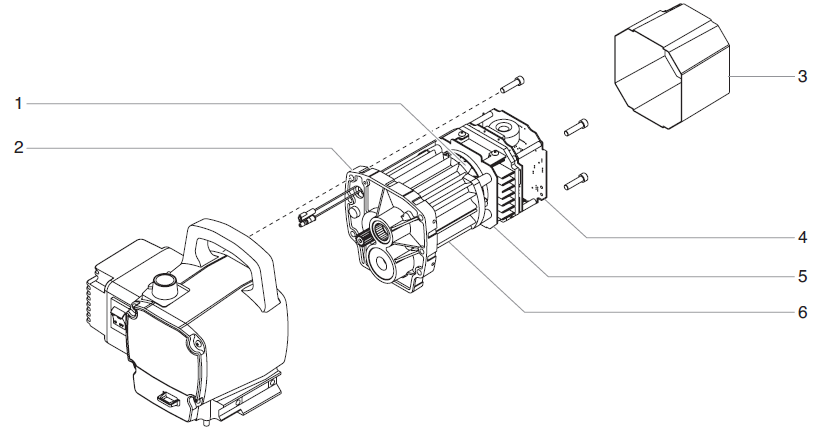

Motor Assembly
Browse documented motor and electric-drive components associated with EPX2355 pump operation.

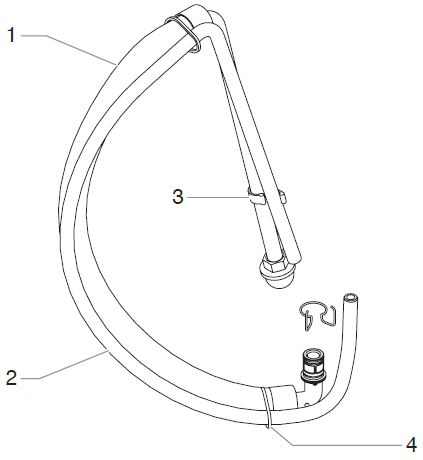

Suction Set Assembly
Find suction-side components used to move coating material from its container toward the pump inlet.

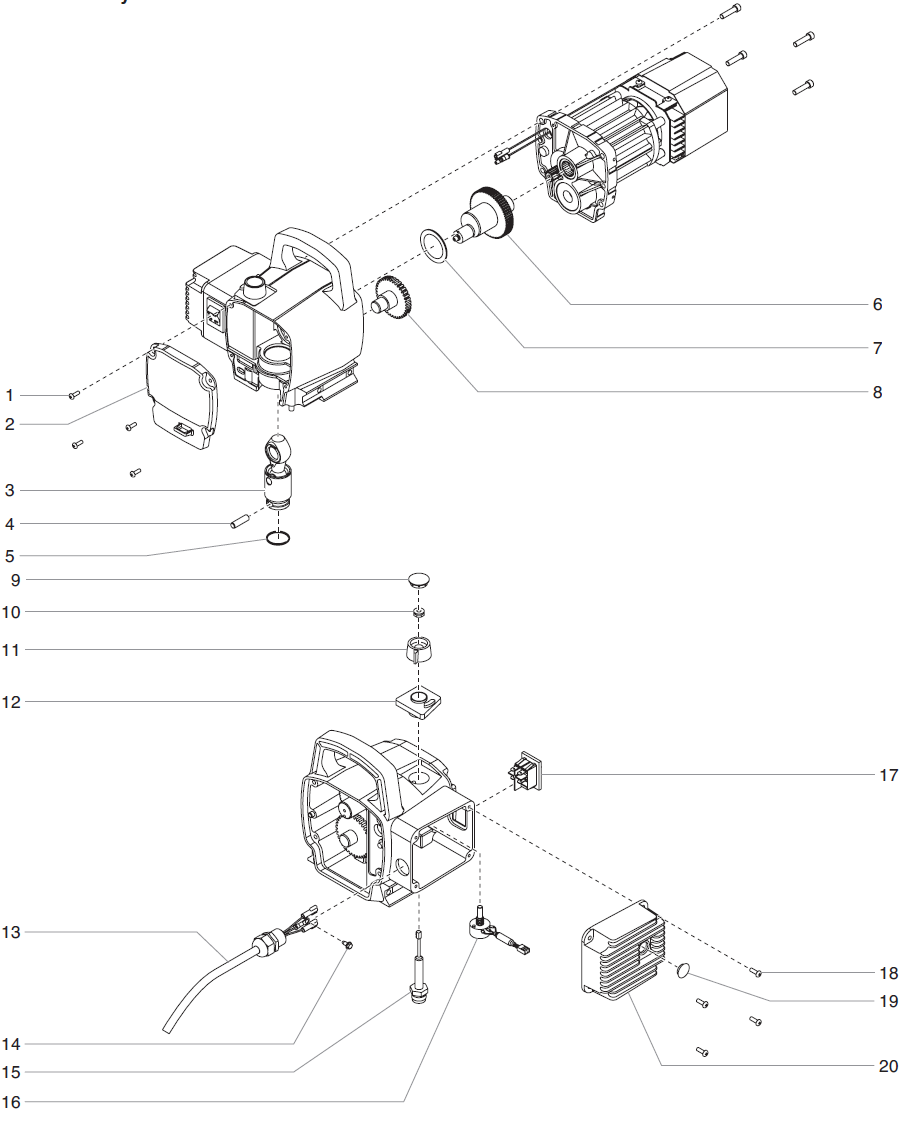

Gear Box Assembly
Browse drive and gear-box components that transfer mechanical movement from the motor toward the pumping section.

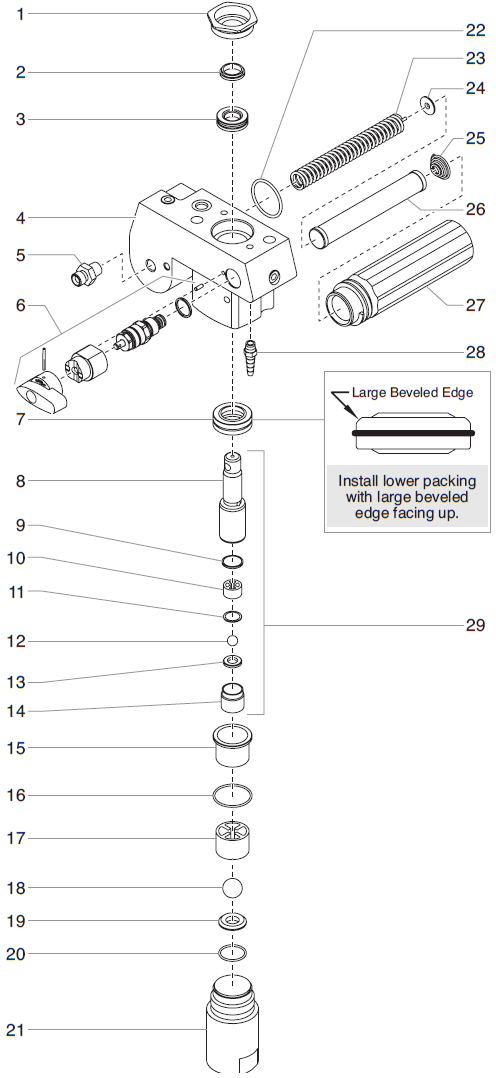

Fluid Section Assembly
Locate documented piston-pump, valve, sealing and related fluid-section components used in material delivery and pressure generation.

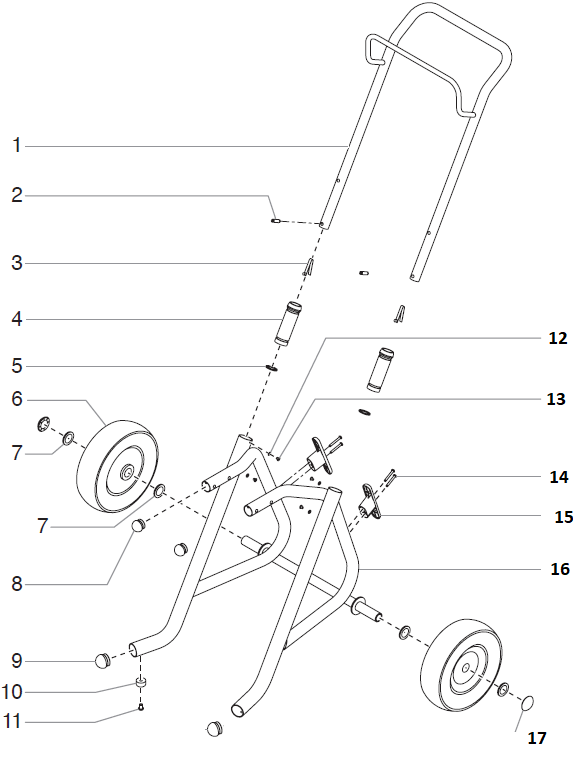

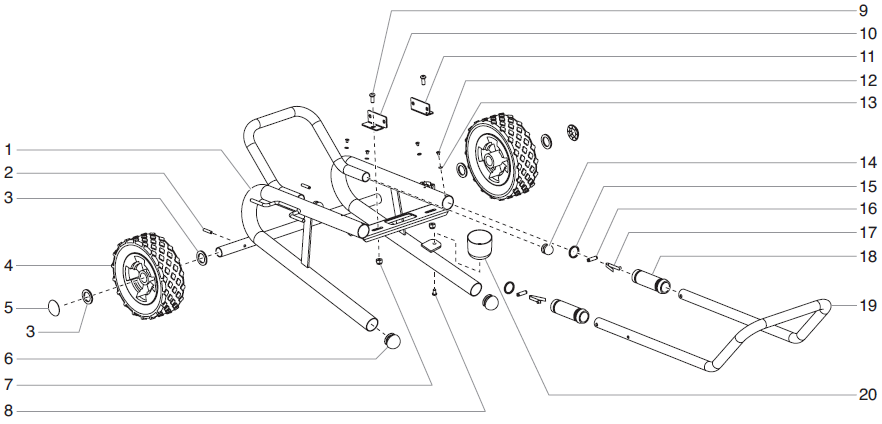

Frame & Cart Assembly
Use the appropriate configuration diagram for frame, cart, wheel, bracket, support and machine-mounting components.
Choose the Correct EPX2355 Parts Diagram
| System | Primary Function | Inspect When | Parts Area |
|---|---|---|---|
| Motor | Provides drive input | Drive operation is abnormal | Motor Assembly |
| Gear Box | Transfers mechanical motion | Pump drive is noisy or irregular | Gear Box Assembly |
| Suction System | Feeds coating into the pump | Priming or intake is poor | Suction Set Assembly |
| Fluid Section | Pumps and pressurizes material | Pressure, output or priming is affected | Fluid Section Assembly |
| Main Assembly | Integrates major systems | Component location is uncertain | Main Assembly |
| Support Structure | Supports and positions the sprayer | Frame, wheel or mounting damage occurs | Applicable Frame / Cart Assembly |
EPX2355 Symptoms & Parts Areas to Inspect
Troubleshoot the system before replacing individual parts. Priming, pressure, output and drive symptoms can involve more than one assembly.
| Symptom | Inspect First | Also Check | Relevant Assembly |
|---|---|---|---|
| Will Not Prime | Material supply and suction path | Fluid-section inlet area | Suction Set / Fluid Section |
| Low Pressure | Tip, filters and material path | Fluid section | Fluid Section |
| Reduced Output | Suction system and restrictions | Pump condition | Suction Set / Fluid Section |
| Fluid Leakage | Exact leak location | Sealing and mating components | Fluid Section |
| Irregular Pump Movement | Drive connection | Gear box and fluid section | Gear Box / Fluid Section |
| Abnormal Drive Noise | Gear-box area | Motor and drive connections | Gear Box / Motor |
SprayTech Advantage EPX Parts Diagrams
Select your SprayTech Advantage EPX sprayer model to browse its model-specific parts diagrams and replacement components. Confirm the exact EPX model before ordering because similar Advantage sprayers may use different parts.
EPX2155 Parts
Browse EPX2155 piston pump assemblies, exploded diagrams and OEM replacement parts.
View EPX2155 Parts →EPX2255 Parts
Find EPX2255 pump, motor, drive, suction, fluid-section and cart assembly parts.
View EPX2255 Parts →EPX2355 Parts
Browse EPX2355 piston pump assemblies, exploded diagrams and genuine OEM replacement parts.
View EPX2355 Parts →EPX2455 Parts
Browse EPX2455 model-specific parts diagrams and OEM replacement components.
View EPX2455 Parts →EPX2555 Parts
Find EPX2555 exploded parts diagrams and model-specific OEM replacement parts.
View EPX2555 Parts →Browse the complete Advantage EP and EPX sprayer parts category for additional model-specific diagrams and replacement parts.
View All Advantage EP & EPX PartsVerify EPX2355 Parts Before Ordering
Do not assume that components from the EPX2155, EPX2255, EPX2455, EPX2555 or another Titan/SprayTech Advantage sprayer are interchangeable with the EPX2355. Similar appearance or function does not establish compatibility. Confirm the EPX2355 model, use the appropriate assembly diagram and verify the documented OEM part number before purchase.
Before Ordering Titan EPX2355 Replacement Parts
Verify the exact Advantage model before selecting model-specific components.
Determine which machine system contains the component before searching the exploded parts diagram.
Locate the component on the exploded view and match its numbered reference to the corresponding parts list.
Confirm the documented OEM part number and EPX2355 application before ordering.
EPX2355 Maintenance Areas Worth Checking
Follow the appropriate flushing procedure after use to reduce dried coating and contamination in the fluid system.
Check accessible suction components and the material intake path when priming or flow begins to change.
Identify the source of visible leakage promptly and inspect related sealing and mating components.
Investigate unusual mechanical noise, irregular cycling or changes in pump movement before extended operation.
EPX2355 Service Safety
Shut the sprayer down, disconnect electrical power and follow the applicable pressure-relief procedure before inspecting or servicing pressurized components. Airless spray systems can retain hazardous high-pressure fluid after operation stops. Never attempt to stop a high-pressure leak with your hand. Follow the applicable Titan/SprayTech operating and service instructions during troubleshooting, disassembly and component replacement.
Shop Titan EPX2355 Advantage Series Piston Pump Parts
Browse EPX2355 parts by assembly, use the exploded diagrams to identify the required component and verify the documented OEM part number before ordering.
Shop EPX2355 PartsTitan EPX2355 Advantage Series Piston Pump FAQ
Where can I find Titan EPX2355 replacement parts?
Use this EPX2355 Advantage Series Piston Pump page to browse the appropriate machine assembly, then use its exploded diagram and parts list to identify the required OEM replacement component.
How do I identify the correct EPX2355 part?
Confirm the EPX2355 model, select the assembly containing the component, locate its numbered diagram callout and match that reference to the documented OEM part number.
What should I check if my EPX2355 will not prime?
Begin with the material supply, suction strainer, suction path and intake connections. If those areas are clear and properly sealed, continue diagnosis at the fluid-section inlet.
What should I inspect if the EPX2355 has low pressure?
Check the spray tip, filters and material path for restrictions, then inspect the suction system and fluid section as appropriate.
Which EPX2355 diagram should I use for a drive problem?
Depending on the symptom, inspect the motor assembly, gear-box assembly and their related mechanical connections before ordering replacement parts.
Can a suction problem look like a fluid-section problem?
Yes. Intake restrictions or air entering the suction side can interfere with priming and material delivery. Check the suction system before assuming an internal pump component has failed.
Are EPX2255 and EPX2355 parts interchangeable?
Do not assume interchangeability. A part should be used across different Advantage models only when the documented OEM part number and application confirm compatibility.
Why should I use an EPX2355 exploded parts diagram?
The diagram shows component locations and numbered callouts that can be matched to the parts list, helping identify the correct OEM replacement before purchase.
Need Help Finding a Titan EPX2355 Part?
Have your EPX2355 model information, machine configuration, serial information when available, existing component number and diagram reference ready. These details can help identify the correct OEM replacement component before ordering.
Parts & Fitment Help: 713-931-0006
