Titan EPX2355 Advantage Suction Set Assembly Parts
Shop genuine OEM Titan EPX2355 Advantage Suction Set Assembly Parts for maintenance and repair of the SprayTech Advantage EPX2355 airless sprayer. Use the model-specific exploded diagram to identify suction-side components, connections, fittings and related material-intake parts before ordering replacements.
Find the Correct EPX2355 Suction Set Replacement Parts
The suction set forms the material-intake path between the coating supply and the EPX2355 pump inlet. A properly functioning intake system is important for reliable priming and consistent material delivery to the fluid section. Restrictions, damaged connections or air entering the suction path can interfere with normal sprayer operation.

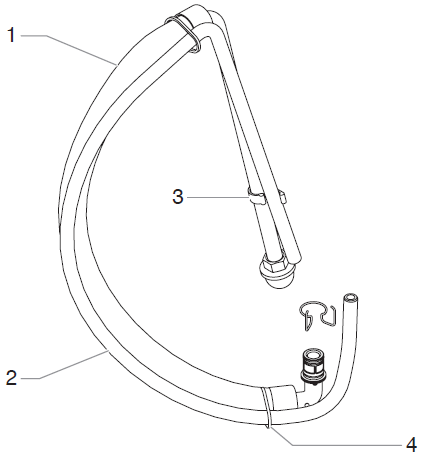

Use the EPX2355 suction set assembly exploded diagram to identify the component being serviced. Match its numbered callout to the corresponding parts-list entry and verify the documented OEM part number before ordering. If diagnosis points beyond the suction system, continue to the EPX2355 fluid section or main assembly diagram as appropriate.
Find Your EPX2355 Suction Set Part in Four Steps
Confirm EPX2355
Verify that the sprayer is an Advantage EPX2355 before choosing model-specific suction components.
Locate the Component
Find the required material-intake component on the suction set exploded view.
Match the Callout
Match the numbered diagram reference to its corresponding parts-list entry.
Verify the OEM Number
Confirm the documented part number and EPX2355 application before ordering.
EPX2355 Suction Set Components & Inspection Areas
The suction system should provide an unrestricted and properly sealed path from the coating supply to the pump inlet. Use the EPX2355 diagram to determine the exact parts used in your assembly.
Inspect documented intake components for blockage, physical damage or conditions that could restrict coating flow toward the pump.
Check the material-entry area for accumulated debris or coating that could reduce flow into the suction system.
Inspect connections for looseness, damage or conditions that may allow air to enter the material-intake path.
Identify fittings from their diagram references and inspect adjoining connections when leakage or loss of prime is present.
Check documented sealing locations when air intrusion or fluid leakage is suspected around the intake system.
Inspect the transition between the suction set and pump inlet when the machine has difficulty drawing coating or maintaining prime.
How the EPX2355 Suction System Supports Material Flow
Coating is drawn from the material container into the suction system.
The intake path should remain clear enough to support material delivery.
Material travels through the suction-side components toward the pump.
The suction system delivers coating to the fluid-section inlet.
The pump then moves and pressurizes material through the sprayer system.
EPX2355 Suction System Symptoms & Inspection Areas
Suction-side problems can resemble internal pump problems. Inspect the material supply and intake path before assuming a fluid-section component requires replacement.
| Symptom | Inspect First | Also Check | Related Assembly |
|---|---|---|---|
| Sprayer Will Not Prime | Material supply and suction path | Connections and pump inlet | Suction Set / Fluid Section |
| Prime Is Difficult to Maintain | Suction connections | Sealing points and intake path | Suction Set |
| Reduced Material Flow | Intake and strainer area | Suction path and fluid section | Suction Set / Fluid Section |
| Air Entering Material Path | Connections and fittings | Sealing locations | Suction Set |
| Visible Intake-Side Leak | Exact leak location | Fitting and adjoining component | Suction Set / Main Assembly |
| Low or Unstable Pressure | Material intake and suction path | Fluid section and downstream restrictions | Suction Set / Fluid Section |
Suction Set or Fluid Section?
Priming and material-delivery problems can involve either side of the pump inlet. Use the symptom and component location to determine which EPX2355 diagram should be checked first.
| Condition | Start With | Why |
|---|---|---|
| Blocked or damaged intake component | Suction Set | Problem is before the pump inlet |
| Loose suction connection | Suction Set | Connection may affect material intake or allow air entry |
| Material does not reach pump reliably | Suction Set | Verify the intake path before internal pump diagnosis |
| Intake path is clear but priming remains poor | Fluid Section | Further pump-side diagnosis may be required |
| Leak is internal to pumping section | Fluid Section | Use the dedicated pump assembly diagram |
Browse Related Titan EPX2355 Parts & Assemblies
Move directly to the appropriate EPX2355 assembly when troubleshooting extends beyond the suction system.
SprayTech Advantage EPX Parts Diagrams
Select the exact SprayTech Advantage EPX model to browse its model-specific parts diagrams. Similar Advantage models may use different suction, fluid-section and drive components.
Browse the complete Advantage EP and EPX parts category for additional model-specific diagrams and replacement components.
View All Advantage EP & EPX PartsVerify EPX2355 Suction Set Parts Before Ordering
Do not assume that suction components from the EPX2155, EPX2255, EPX2455, EPX2555 or another Advantage sprayer fit the EPX2355. Similar appearance, thread style or function does not establish interchangeability. Confirm the exact EPX2355 model, diagram callout and documented OEM part number before purchasing a replacement.
Before Ordering EPX2355 Suction Set Parts
Verify the exact Advantage model before selecting suction-side components.
Check the material supply, intake path and connections before deciding which component requires replacement.
Locate the component on the exploded diagram and match its numbered reference to the parts list.
Confirm the documented OEM part number and EPX2355 application before ordering.
Maintain the EPX2355 Material Intake System
Prevent accumulated coating and debris from restricting material entry into the suction system.
Check accessible suction connections for looseness, leakage or physical damage.
Investigate conditions that may allow air into the intake path when priming becomes difficult or unstable.
Follow the applicable cleaning and flushing procedure for the coating material and sprayer after operation.
EPX2355 Suction Set Service Safety
Shut the sprayer down, disconnect electrical power and follow the applicable pressure-relief procedure before inspection, cleaning or service. Airless spray equipment can retain hazardous high-pressure fluid after operation stops. Never attempt to locate or stop a high-pressure leak with your hand. Follow the applicable Titan/SprayTech operating and service instructions when removing or replacing suction-system components.
Shop Titan EPX2355 Advantage Suction Set Assembly Parts
Use the EPX2355 suction set exploded diagram to locate the required material-intake component, match its callout to the parts list and verify the OEM part number before ordering.
Shop EPX2355 Suction Set PartsTitan EPX2355 Advantage Suction Set Assembly FAQ
Where can I find Titan EPX2355 suction set parts?
Use this EPX2355 Advantage Suction Set Assembly page to identify model-specific intake components from the exploded diagram and corresponding parts list.
How do I identify the correct EPX2355 suction part?
Locate the component on the suction set exploded view, match its numbered callout to the parts list and verify the documented OEM part number before ordering.
What should I check if my EPX2355 will not prime?
Start with the coating supply, intake area, suction path, connections and pump-inlet connection. If the intake system checks correctly, continue diagnosis with the fluid section.
Can an air leak in the suction system cause priming problems?
Air entering through an intake-side connection or sealing point can interfere with material draw and priming. Inspect the suction path and connections when prime is difficult to establish or maintain.
Can a clogged intake cause reduced EPX2355 output?
A restriction in the material-intake path can reduce material delivery to the pump. Inspect the intake and suction system before moving to internal pump diagnosis.
When should I check the EPX2355 fluid section instead?
If the material supply and suction path are clear and properly connected but priming, output or pressure problems continue, further diagnosis of the fluid section may be required.
Are EPX2255 and EPX2355 suction set parts interchangeable?
Do not assume interchangeability. Confirm compatibility using the documented OEM part number and model application before using a component from another Advantage sprayer.
Why should I use the EPX2355 suction set exploded diagram?
The exploded diagram shows component locations and numbered callouts that can be matched to the parts list, helping identify the correct OEM replacement before purchase.
Need Help Finding an EPX2355 Suction Set Part?
Have your EPX2355 model information, serial information when available, existing component number and exploded-diagram reference ready. These details can help identify the correct OEM suction-system replacement part before ordering.
Parts & Fitment Help: 713-931-0006
