Titan EPX2355 Advantage Low Boy Cart Assembly Parts
Shop genuine OEM Titan EPX2355 Advantage Low Boy Cart Assembly Parts for service and repair of the low-boy configuration of the SprayTech Advantage EPX2355 airless sprayer. Use the model-specific exploded parts diagram to identify documented cart, frame, wheel, axle, mounting and related hardware before ordering replacements.
Find the Correct EPX2355 Low Boy Cart Replacement Parts
The low-boy cart provides the supporting structure and mobility platform for the applicable EPX2355 sprayer configuration. Cart service may involve the frame, wheels, axle area, mounting points, fasteners and other structural hardware shown in the dedicated EPX2355 parts diagram.

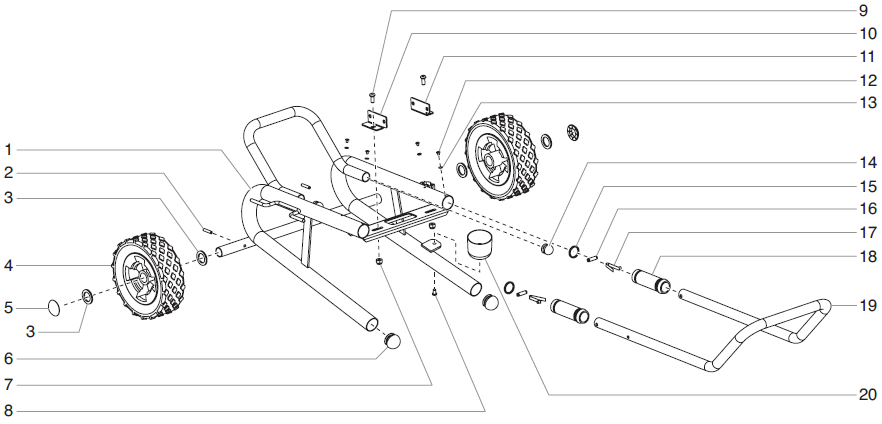

Use the EPX2355 Low Boy Cart Assembly exploded view to locate the component being serviced. Match its numbered callout to the corresponding parts-list entry and verify the documented OEM part number before ordering. Do not substitute parts from the upright-cart configuration unless the applicable parts documentation confirms compatibility.
Find Your EPX2355 Low Boy Cart Part in Four Steps
Confirm EPX2355
Verify that the sprayer is an Advantage EPX2355 before selecting model-specific cart components.
Confirm Low Boy
Make sure the machine uses the low-boy cart configuration rather than the EPX2355 upright cart.
Match the Callout
Locate the required component on the exploded view and match its numbered reference to the parts list.
Verify the OEM Number
Confirm the documented OEM part number and EPX2355 low-boy application before purchase.
EPX2355 Low Boy Cart Components & Inspection Areas
Use the model-specific exploded diagram as the primary reference for exact component identification. When servicing the cart, inspect adjoining structural and mounting components for damage, looseness or wear.
Inspect the supporting frame for visible damage, distortion or conditions that may affect sprayer stability.
Check documented wheel components for wear, damage or conditions that interfere with smooth movement.
Inspect the axle and adjoining wheel-mounting components whenever wheel alignment, retention or movement becomes abnormal.
Check the documented locations where the machine attaches to the cart when excessive movement or looseness is present.
Verify applicable bolts, nuts, washers, clips and other retaining hardware using their diagram callouts.
Inspect documented brackets, supports and related cart hardware when repairing structural or mounting issues.
EPX2355 Low Boy Cart Symptoms & Inspection Areas
Inspect the complete cart structure when mobility or stability problems develop. A loose or damaged component can affect adjoining hardware and mounting points.
| Symptom | Inspect First | Also Check | Service Area |
|---|---|---|---|
| Cart Feels Unstable | Frame and mounting points | Wheels and fasteners | Cart / Main Assembly |
| Wheel Does Not Roll Smoothly | Wheel and axle area | Retaining hardware | Wheel / Axle |
| Wheel Feels Loose | Wheel retention | Axle and related hardware | Wheel / Axle |
| Sprayer Moves on Cart | Machine mounting points | Frame and fasteners | Cart / Main Assembly |
| Cart Sits Unevenly | Wheels and frame | Axle and mounting hardware | Frame / Wheel System |
| Visible Structural Damage | Affected frame area | Adjacent mounting points | Low Boy Cart Frame |
EPX2355 Low Boy Cart vs. Upright Cart Parts
The EPX2355 parts catalog separates cart-related components by configuration. Identify which cart is installed on your sprayer before selecting replacement frame, wheel, mounting or support components.
Low Boy Cart Assembly
Use this diagram when your machine matches the EPX2355 low-boy configuration. Verify every required component by diagram callout and documented OEM part number.
Upright Cart Assembly
If your EPX2355 uses the upright configuration, use its dedicated assembly diagram instead of assuming low-boy components will fit.
View EPX2355 Upright Cart Parts →Browse Related Titan EPX2355 Parts & Assemblies
Move directly to the EPX2355 assembly diagram that corresponds with the system or structural area you need to service.
SprayTech Advantage EPX Parts Diagrams
Select your exact SprayTech Advantage EPX model to browse its dedicated parts diagrams. Verify the sprayer model and cart configuration before ordering frame, wheel, pump, drive or structural components.
Browse the complete Titan/SprayTech Advantage parts category for additional model-specific diagrams and genuine replacement parts.
View All Advantage EP & EPX PartsVerify EPX2355 Low Boy Cart Parts Before Ordering
Do not assume that cart components from the EPX2155, EPX2255, EPX2455, EPX2555 or another Advantage sprayer fit the EPX2355. Also do not assume that EPX2355 upright-cart and low-boy-cart components are interchangeable. Confirm the exact model, cart configuration, diagram callout and documented OEM part number before purchasing a replacement.
Before Ordering EPX2355 Low Boy Cart Assembly Parts
Verify the exact Advantage sprayer model before selecting cart components.
Make sure your machine uses the low-boy cart rather than the upright configuration.
Locate the required component on the exploded view and match its reference number to the parts list.
Confirm the documented OEM part number and EPX2355 low-boy application before ordering.
Maintain the EPX2355 Low Boy Cart Assembly
Check wheel condition and documented retaining hardware for visible wear, looseness or damage.
Inspect the axle and adjoining wheel hardware when movement or alignment becomes abnormal.
Look for visible structural damage or deformation that could affect sprayer stability.
Inspect accessible machine-to-cart mounting points and fasteners when looseness develops.
EPX2355 Low Boy Cart Service Safety
Shut the sprayer down, disconnect electrical power and follow the applicable pressure-relief procedure before service. Stabilize and support the machine before removing wheels, axle hardware, mounting fasteners or structural cart components. Do not operate or transport the sprayer with visibly damaged, loose or improperly installed supporting parts. Follow the applicable Titan/SprayTech service instructions during disassembly and reassembly.
Shop Titan EPX2355 Advantage Low Boy Cart Assembly Parts
Use the EPX2355 Low Boy Cart Assembly exploded diagram to identify the required cart component, match its callout to the parts list and verify the OEM part number before ordering.
Shop EPX2355 Low Boy Cart PartsTitan EPX2355 Advantage Low Boy Cart Assembly FAQ
Where can I find Titan EPX2355 low boy cart parts?
Use this EPX2355 Advantage Low Boy Cart Assembly page to identify model-specific cart components from the exploded diagram and corresponding parts list.
How do I identify the correct EPX2355 low boy cart part?
Locate the component on the low-boy exploded view, match its numbered callout to the parts list and verify the documented OEM part number before ordering.
Are EPX2355 low boy and upright cart parts the same?
Do not assume they are interchangeable. Use the dedicated diagram for your actual EPX2355 cart configuration and verify each replacement by OEM part number.
What should I check if an EPX2355 low boy wheel is loose?
Inspect the wheel, axle area and documented retaining hardware. Check adjoining components for wear or damage before selecting replacements.
What should I inspect if the EPX2355 cart feels unstable?
Inspect the low-boy frame, wheels, machine mounting points and accessible fasteners for looseness, damage or abnormal movement.
Where can I find other EPX2355 assembly parts?
Use the dedicated EPX2355 main, motor, suction set, gear box, fluid section and upright cart assembly pages to locate components outside the low-boy cart.
Are EPX2255 and EPX2355 low boy cart parts interchangeable?
Do not assume interchangeability between models. Confirm the exact OEM part number, cart configuration and documented model application before ordering.
Why should I use the EPX2355 low boy cart exploded diagram?
The diagram provides component locations and numbered callouts that can be matched to the parts list, helping identify the correct OEM replacement part.
Need Help Finding an EPX2355 Low Boy Cart Part?
Have your EPX2355 model information, cart configuration, serial information when available, existing component number and exploded-diagram reference ready. These details can help identify the correct OEM cart, wheel, frame, axle or mounting component before ordering.
Parts & Fitment Help: 713-931-0006
