Titan EPX2355 Advantage Main Assembly Parts
Shop genuine OEM Titan EPX2355 Advantage Main Assembly Parts for maintenance and repair of the SprayTech Advantage EPX2355 airless sprayer. Use the model-specific main assembly exploded diagram to locate controls, fittings, fasteners, mounting components and other documented machine parts before ordering replacements.
Find the Correct EPX2355 Main Assembly Replacement Parts
The main assembly diagram provides a central reference for identifying components installed around the EPX2355 machine structure and for understanding how major sprayer systems connect. It is a useful starting point when the location of a required component is known but the correct service assembly is not immediately obvious.

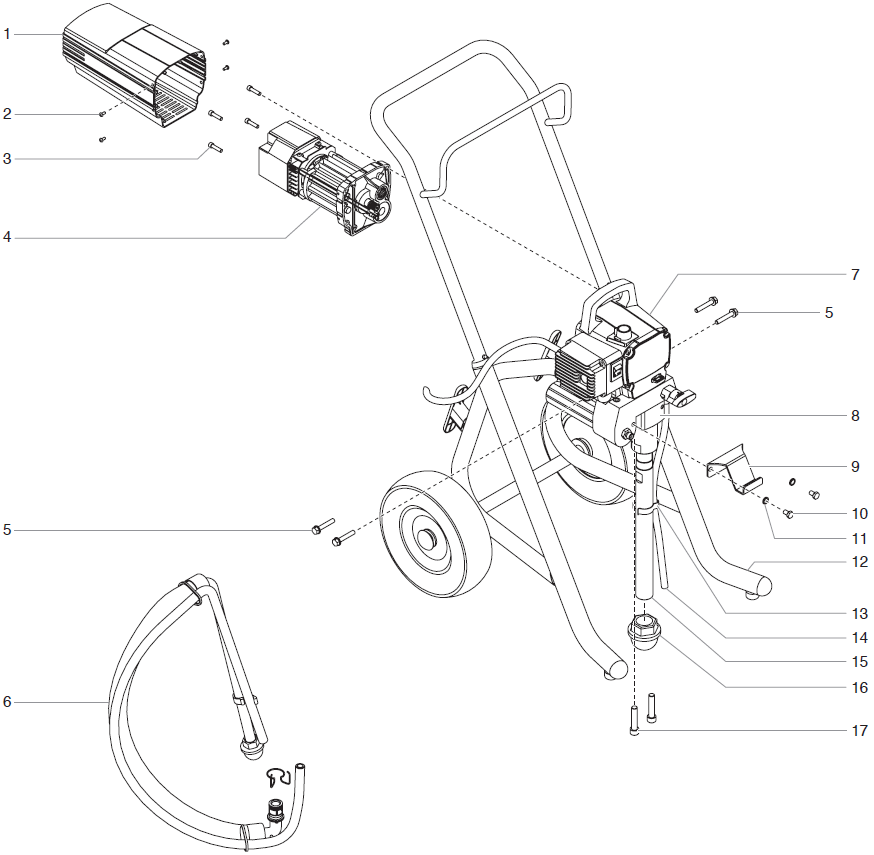

Locate the component on the EPX2355 main assembly exploded view and match its numbered callout to the corresponding parts-list entry. Verify the OEM part number before ordering. If the required component belongs to a separately illustrated motor, gear box, suction set, fluid section or cart assembly, continue to that dedicated diagram for more detailed identification.
Find Your EPX2355 Main Assembly Part in Four Steps
Confirm EPX2355
Verify the exact Advantage EPX2355 model before selecting replacement components from the diagram.
Locate the Component
Find the required component on the EPX2355 main assembly exploded view.
Match the Callout
Match the numbered diagram reference to the corresponding parts-list entry.
Verify the OEM Number
Confirm the documented OEM part number and EPX2355 application before purchase.
EPX2355 Main Assembly Components to Inspect
Use the exploded view as the primary reference. The exact components included in the main assembly should be identified by their diagram callouts and documented OEM part numbers.
Inspect documented components mounted directly to the main machine structure for damage, looseness or missing hardware.
Use the diagram to identify applicable control-related parts and their mounting locations before replacement.
Inspect documented fittings and connections when tracing leaks or servicing the machine's fluid path.
Check applicable brackets and supports for looseness, deformation or physical damage.
Match screws, bolts, nuts, washers and retainers to their documented diagram references before ordering replacements.
Inspect applicable connections and adjoining components when leakage, looseness or physical damage is present.
If the problem extends into the drive system, use the main diagram to establish location and continue to the motor or gear-box assembly.
If the affected component is part of the pumping system, continue to the dedicated EPX2355 fluid-section diagram for detailed identification.
EPX2355 Main Assembly Symptoms & Inspection Areas
| Condition | Inspect First | Also Check | Next Diagram if Needed |
|---|---|---|---|
| Visible Fluid Leak | Exact leak location and connection | Fittings, hoses and mating parts | Fluid Section / Suction Set |
| Loose Component | Mounting hardware | Bracket and mating structure | Applicable Component Assembly |
| Damaged Fitting | Fitting and connection point | Adjoining hose or tube | Fluid Section / Main Assembly |
| Drive Problem | Drive-related connection | Motor and gear-box area | Motor / Gear Box |
| Priming Problem | Material supply and intake path | Pump inlet and fluid path | Suction Set / Fluid Section |
| Part Location Unclear | Main assembly exploded view | Adjacent assembly references | Assembly containing the part |
Main Assembly or Another EPX2355 Parts Diagram?
The main assembly is a useful starting point, but many EPX2355 components are covered more precisely by dedicated subassembly diagrams.
| If You Need | Start With | Why |
|---|---|---|
| General machine-mounted component | Main Assembly | Shows the overall machine relationship |
| Motor or electrical drive component | Motor Assembly | Provides more detailed motor identification |
| Drive or transmission component | Gear Box Assembly | Focuses on mechanical drive components |
| Material intake component | Suction Set Assembly | Focuses on the suction-side material path |
| Pumping or sealing component | Fluid Section Assembly | Provides detailed pump-component identification |
| Frame, wheel or support component | Applicable Cart / Stand Assembly | Matches the physical machine configuration |
Browse Related Titan EPX2355 Parts & Assemblies
Continue to the appropriate EPX2355 section when the component you need belongs to a dedicated machine assembly.
SprayTech Advantage EPX Parts Diagrams
Select the exact Advantage EPX model before ordering. Similar EPX sprayers may use different components even when the parts have a similar appearance or function.
Verify EPX2355 Main Assembly Parts Before Ordering
Do not assume that main-assembly components from the EPX2155, EPX2255, EPX2455, EPX2555 or another Advantage sprayer fit the EPX2355. Similar appearance does not establish interchangeability. Confirm the exact model, diagram callout and documented OEM part number before purchasing a replacement.
Before Ordering EPX2355 Main Assembly Parts
Verify the exact Advantage model before selecting replacement components.
Make sure the component is actually listed in the main assembly rather than a dedicated subassembly.
Match the component's numbered diagram reference to the corresponding parts-list entry.
Confirm the documented OEM part number and application before ordering.
EPX2355 Main Assembly Service Safety
Shut the sprayer down, disconnect electrical power and follow the applicable pressure-relief procedure before servicing the machine. Airless equipment can retain hazardous high-pressure fluid after operation stops. Never use your hand to locate or stop a high-pressure leak. Follow the applicable Titan/SprayTech operating and service instructions during inspection, disassembly and reassembly.
Shop Titan EPX2355 Advantage Main Assembly Parts
Use the EPX2355 main assembly exploded diagram to identify the required component, match its callout to the parts list and verify the OEM part number before ordering.
Shop EPX2355 Main Assembly PartsTitan EPX2355 Advantage Main Assembly FAQ
Where can I find Titan EPX2355 main assembly parts?
Use this EPX2355 Advantage Main Assembly page to identify documented components from the model-specific exploded diagram and parts list.
How do I identify the correct EPX2355 main assembly part?
Locate the component on the EPX2355 main assembly diagram, match its numbered callout to the parts list and verify the documented OEM part number before ordering.
Should I use the main assembly diagram for motor parts?
Use the main assembly to establish component location when necessary, but use the dedicated EPX2355 motor assembly diagram for detailed identification of motor-related components.
Where should I look for EPX2355 pump parts?
Components internal to the pumping section should generally be identified from the dedicated EPX2355 fluid-section assembly diagram.
Which diagram should I use for EPX2355 suction parts?
Use the EPX2355 suction set assembly diagram for components associated with material intake and the suction-side fluid path.
What should I check when a main assembly fitting leaks?
Identify the exact leak location and inspect the fitting, mating connection and adjoining hose or tube before selecting replacement parts.
Are EPX2255 and EPX2355 main assembly parts interchangeable?
Do not assume interchangeability. Use a component across models only when the documented OEM part number and application specifically confirm compatibility.
Why should I use the EPX2355 exploded diagram before ordering?
The exploded diagram shows component locations and numbered references that can be matched to the parts list, reducing the chance of selecting the wrong replacement component.
Need Help Finding an EPX2355 Main Assembly Part?
Have your EPX2355 model information, serial information when available, existing component number and exploded-diagram reference ready. These details can help identify the correct OEM replacement component before ordering.
Parts & Fitment Help: 713-931-0006
