Titan EPX2155 Advantage Fluid Section Assembly Parts
Shop genuine OEM Titan EPX2155 Advantage Fluid Section Assembly Parts for the pumping section of the SprayTech Advantage EPX2155 airless sprayer. Use the model-specific exploded diagram to identify piston, packing, valve, seal, cylinder and related fluid-section components for maintenance, troubleshooting and repair.
Find the Correct EPX2155 Fluid Section Replacement Parts
The fluid section is the pumping portion of the EPX2155 that draws coating from the suction system, moves material through the pump and supplies pressurized fluid to the downstream spray system. Wear in this assembly can affect priming, pressure development, material delivery and overall spraying performance.

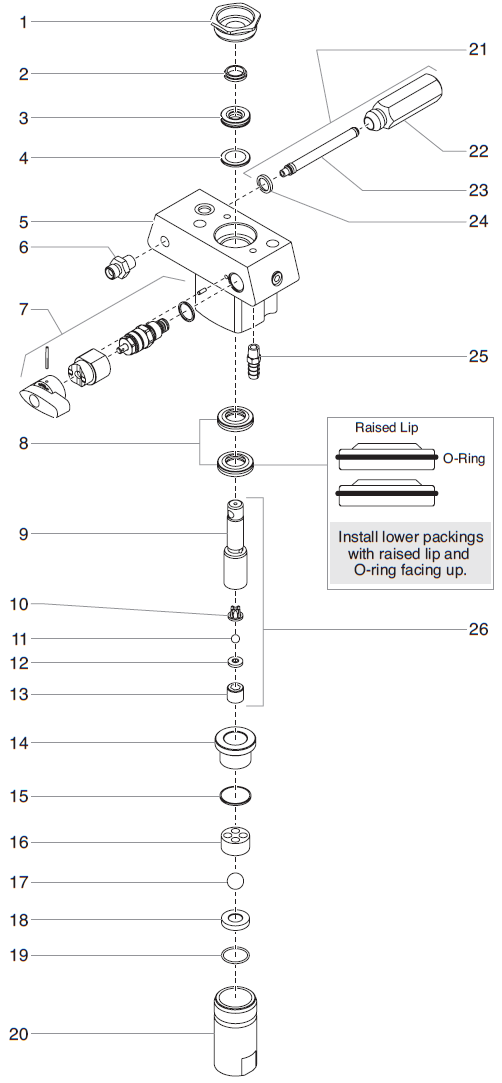

Use the EPX2155 fluid section exploded diagram to identify the component being serviced. Match the diagram callout to the documented OEM part number before ordering. Because several fluid-section symptoms can also originate in the suction system or other sprayer components, diagnose the complete material path before replacing parts.
Find Your EPX2155 Fluid Section Part in Four Steps
Confirm EPX2155
Verify that the machine being serviced is a SprayTech Advantage EPX2155 before selecting pump components.
Locate the Fluid Part
Find the piston, packing, valve, seal or other required component on the EPX2155 fluid-section diagram.
Match the Callout
Match the numbered diagram callout to the corresponding component listed in the EPX2155 parts breakdown.
Verify the OEM Number
Confirm the documented part number and EPX2155 application before purchasing the replacement component.
EPX2155 Fluid Section Components to Inspect
Use the exploded parts breakdown to confirm the exact components installed in your pump. When servicing the fluid section, inspect related wear and sealing components rather than focusing only on the first visibly damaged part.
Inspect documented piston and rod components for wear, scoring or damage that can affect sealing and pump performance.
Packing wear can contribute to material leakage, pressure loss and reduced pumping efficiency. Verify the correct packing components from the EPX2155 diagram.
Inspect the documented inlet-valve parts when the pump has difficulty drawing material or establishing prime.
Check applicable outlet-valve components when pressure development or material delivery becomes inconsistent.
Inspect documented cylinder and body surfaces for wear or damage that could interfere with the sealing and movement of internal components.
Inspect sealing components whenever leakage, air entry or loss of prime indicates that a fluid connection may no longer be sealing correctly.
Check documented valve balls and mating components for contamination, wear or damage when valve operation is suspected.
Use the factory diagram to identify the correct retainers, washers, fittings and hardware associated with the fluid-section assembly.
EPX2155 Pump Symptoms & Inspection Areas
| Symptom | Inspect | Also Check | Before Ordering |
|---|---|---|---|
| Sprayer Will Not Prime | Inlet valve and fluid-section components | Suction tube, screen and connections | Determine whether the problem is intake or pump related |
| Low or Unstable Pressure | Packings, piston and valves | Tip, filters, hose and suction system | Verify the actual pressure-loss source |
| Material Leakage | Packings, seals and fluid connections | Cylinder and mating surfaces | Identify the precise leak location |
| Pump Does Not Hold Pressure | Inlet / outlet valve components | Packings and downstream system | Inspect valves for contamination or wear |
| Irregular Pump Cycling | Piston, packings and valve operation | Gear box and suction system | Separate mechanical and fluid causes |
| Reduced Material Output | Fluid section and valves | Suction screen, filters and spray tip | Check for restrictions before replacing pump parts |
Diagnose the EPX2155 Pump Before Replacing Fluid Parts
A fluid-section repair should begin with the symptom and the material-flow path. Several common sprayer problems can be caused by components outside the pump, so verify the source before ordering replacement parts.
Inspect the material supply and suction system first, then inspect the fluid-section inlet valve and related components if the intake path is clear.
Inspect pump packings and valves while also checking filters, hose, gun and spray tip for restrictions or excessive wear.
Locate the exact leakage point and inspect the corresponding packing, seal, fitting or mating surface before selecting parts.
Inspect inlet and outlet valve components for contamination, wear or conditions that prevent proper sealing.
Check the fluid section and suction system, but also inspect the mechanical drive if pump movement itself appears abnormal.
Inspect mating surfaces and connected components rather than replacing only the worn packing. Damage elsewhere can contribute to repeated failure.
Check Related EPX2155 Systems During Pump Diagnosis
| System | Function | Why Inspect It |
|---|---|---|
| Suction Set | Supplies coating to the pump | Restrictions or air leaks can resemble pump problems |
| Fluid Section | Pumps and pressurizes material | Wear can affect prime, output and pressure |
| Gear Box | Transfers mechanical drive | Drive faults can affect pump cycling |
| Motor Assembly | Provides drive power | Motor problems can prevent proper pump operation |
| Downstream Spray System | Carries pressurized material to the spray tip | Filters, hose, gun or tip restrictions can affect performance |
Related Titan EPX2155 Parts & Assemblies
Use the appropriate EPX2155 assembly page when diagnosis indicates that the required component is outside the fluid section.
Verify EPX2155 Fluid Section Parts Before Ordering
Do not assume that a piston, packing, valve, cylinder, seal or other pump component from an EPX2255, EPX2355, EPX2455, EPX2555 or another SprayTech model is interchangeable with the EPX2155. Similar appearance is not a reliable fitment check. Use the EPX2155 fluid-section diagram and verify the documented OEM part number before purchase.
Before Ordering EPX2155 Fluid Section Parts
Verify the exact sprayer model before selecting fluid-section components.
Determine whether the problem involves priming, pressure, leakage, output or pump cycling before disassembly.
Locate the exact component and match its reference number to the parts list.
Confirm the documented OEM part number instead of selecting a component only by appearance.
Help Protect the EPX2155 Fluid Section
Prevent unnecessary debris from entering the pump by maintaining the applicable suction screen and material supply.
Follow the appropriate cleaning procedure after use to reduce dried coating and contamination in the fluid system.
Investigate fluid leakage promptly instead of continuing operation with visibly worn or damaged sealing components.
During pump service, inspect mating surfaces, valves and related components that can contribute to repeated packing or seal wear.
EPX2155 Fluid Section Service Safety
Airless spray equipment develops hazardous fluid pressure. Shut the sprayer down, disconnect power and follow the applicable pressure-relief procedure before servicing the fluid section, suction system, hose, gun or other pressurized components. Never loosen a pressurized fitting or attempt to stop a high-pressure fluid leak with your hand. Follow the applicable Titan/SprayTech service instructions during disassembly and repair.
Shop Titan EPX2155 Fluid Section Assembly Parts
Use the EPX2155 fluid-section diagram to identify the pump component required for your repair. Match the diagram callout to the documented OEM part number and verify fitment before ordering.
Shop EPX2155 Fluid Section PartsTitan EPX2155 Fluid Section Assembly Parts FAQ
Where can I find Titan EPX2155 fluid section parts?
Use this EPX2155 Fluid Section Assembly Parts page to identify documented piston, packing, valve, seal, cylinder and related pump components shown in the model-specific exploded diagram.
How do I identify the correct EPX2155 fluid section part?
Confirm the EPX2155 model, locate the component on the fluid-section diagram, note its callout and match that reference to the documented OEM part number.
What should I check if my EPX2155 will not prime?
Inspect the coating supply, suction tube, intake screen and suction connections first. If the intake path is clear and sealed, inspect the fluid-section inlet-valve components and related pump parts.
Can worn EPX2155 packings cause pressure loss?
Worn or damaged packing components can contribute to leakage and reduced pumping performance. Inspect the packings together with the piston, cylinder and related sealing surfaces.
What should I inspect if the EPX2155 does not hold pressure?
Inspect the documented inlet and outlet valve components, packings and related sealing surfaces. Also check the downstream spray system before concluding that the fluid section is the only cause.
Can EPX2255 fluid section parts fit an EPX2155?
Do not assume compatibility between Advantage models. Use another model's component only when the documented OEM part number and application confirm that it fits the EPX2155.
Is low spray pressure always caused by the EPX2155 fluid section?
No. Low pressure can also result from suction restrictions, filters, hose, gun, spray tip or other system problems. Diagnose the complete material path before replacing pump components.
What information helps identify an EPX2155 fluid section replacement part?
Have the EPX2155 model identification, serial information when available, existing component number and fluid-section diagram callout ready when confirming the correct replacement part.
Need Help Finding an EPX2155 Fluid Section Part?
Have your EPX2155 model information, serial information when available, existing component number and fluid-section diagram reference ready. These details help identify the correct OEM replacement component before ordering.
Parts & Fitment Help: 713-931-0006
