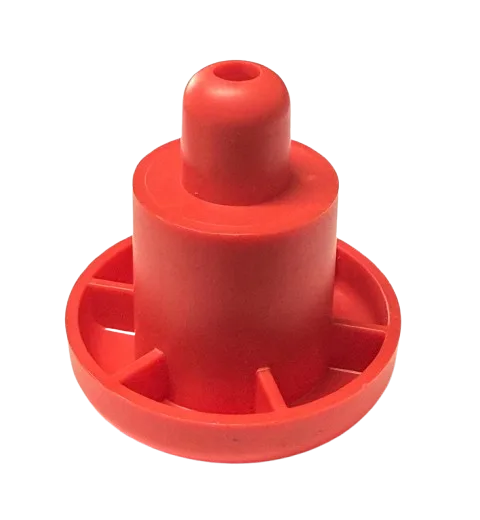

Titan 0551509 Lower Seal Packing Tool (Replaces Titan 762-202)
Service compatible Titan pump fluid sections with the Titan 0551509 Lower Seal Packing Tool (Replaces Titan 762-202). This specialized installation tool helps position designated lower seals and packings during pump rebuilding and repacking procedures. Using the specified tool supports proper seal placement and helps reduce the risk of damaging new packing components during installation. Part 0551509 supersedes 762-202 and should be selected according to the applicable Titan service manual. Confirm the sprayer model, pump configuration, and lower packing procedure before ordering.
Previous Part Number: Titan 762-202.
Function: Assists with lower packing installation.
Use: Designated Titan fluid-section repair procedures.
Service Note: This is an installation tool, not a replacement packing or seal. Check your Titan service documentation for the required tool and separate repair components.
Install Lower Pump Packings with Titan 0551509 Lower Seal Packing Tool
Make lower packing replacement more precise with the Titan 0551509 Lower Seal Packing Tool (Replaces Titan 762-202). Also identified in Titan service documentation as a lower seal insertion tool, this specialized service component is used when installing the lower packing assemblies in compatible airless sprayer fluid sections. Its purpose is to assist with correct placement during pump rebuilding, helping technicians avoid damaging new seals through unsuitable installation methods. Titan specifically identifies part 0551509 in the Advantage 400 and Advantage 500 fluid-section diagrams. The tool also appears in AllTitanParts listings for selected 340, 440ix, 550XC, 660XC, 1100XC, EPX2255, RentSpray 600, and Epic 660HPX fluid sections. Use the correct packing tool together with the specified repacking kit and manufacturer repair procedure to support reliable pump maintenance.
Compatible Titan Sprayers for 0551509 Lower Seal Packing Tool
Titan Advantage 400 Airless Sprayer
The Advantage 400 fluid-section manual identifies 0551509 as the lower seal insertion tool. Its assembly illustration also shows the lower packing installation orientation, with the raised lip and O-ring facing upward.
Titan Advantage 500 Airless Sprayer
The Advantage 500 manufacturer's fluid-section parts list explicitly identifies 0551509 Lower Seal Insertion Tool for the designated pump packing procedure.
Titan 640IX
The 640IX owner's manual lists 762-202 Packing Tool in the fluid-section parts documentation. Titan 0551509 is listed as the replacement for that earlier tool number.
Titan 340, 440ix, and 550XC
AllTitanParts includes 0551509 in the fluid-section parts catalogs for the Titan 340, 440ix, and 550XC. Check the machine's exact fluid-section version before beginning the repacking procedure.
Titan 660XC and 1100XC
The tool appears in AllTitanParts fluid-section catalogs for 660XC and 1100XC. These applications should be checked against the relevant repair instructions and packing arrangement.
Titan EPX2255, RentSpray 600, and Epic 660HPX
Additional AllTitanParts listings include EPX2255 Advantage Series, RentSpray 600, and Epic 660HPX fluid-section categories. Confirm the specific tool requirement for each model.
Fitment Note: The tool is selected by the pump's packing arrangement. A catalog-listed machine may have multiple fluid-section revisions, so always compare the service manual with the installed pump.
What Does the Titan 0551509 Lower Seal Packing Tool Do?
An airless sprayer fluid section contains upper and lower packing assemblies that help seal the moving piston and maintain proper pump operation. These packings must be installed in the correct sequence and orientation to perform their intended function.
The Titan 0551509 Lower Seal Packing Tool is intended to assist with the installation of designated lower packing components. It is a service aid used during pump maintenance rather than a part that remains inside the fluid section during normal spraying.
Correct installation is particularly important because packing lips and sealing surfaces can be damaged by forcing components into place or using unsuitable tools. The manufacturer-specified insertion tool supports controlled positioning during the repair process.
Titan's Advantage 400 and Advantage 500 diagrams specifically show the lower packing's raised lip and O-ring facing upward. The upper packing orientation differs, so technicians should not apply the same orientation to both packing locations.
Why Use the Correct Lower Seal Insertion Tool?
Proper packing placement: Helps install designated lower packings in the intended position.
Reduced installation damage: Helps avoid damage associated with using improvised or unsuitable installation tools.
Consistent service procedure: Supports the installation method specified in the Titan fluid-section documentation.
Older part-number replacement: Provides the current listed replacement for the former Titan 762-202 packing tool.
Repacking kit support: Complements separately purchased lower packing assemblies and compatible pump repacking kits.
Maintenance Value: Correct tool selection helps technicians carry out the specified repair without substituting unrelated equipment or damaging replacement components.
Using Titan 0551509 During Lower Packing Replacement
Safety Warning: Airless sprayers can retain dangerous fluid pressure. Turn off the equipment, disconnect power, and perform the complete manufacturer-specified pressure-relief procedure before disassembling the fluid section.
Step 1: Identify the pump. Confirm the exact sprayer model and fluid-section assembly before selecting the tool.
Step 2: Review the service manual. Verify that Titan 0551509 or the superseded 762-202 tool is specified for the lower packing installation.
Step 3: Obtain the correct repacking kit. Ensure the replacement packings, O-rings, and related components match the installed fluid section.
Step 4: Disassemble the fluid section. Follow the manufacturer's prescribed removal sequence and protect the piston and sealing surfaces.
Step 5: Inspect the components. Examine the pump manifold, piston, and packing seats for scoring, wear, or contamination.
Step 6: Check packing orientation. For the Advantage 400 and Advantage 500 arrangements, the lower packing's raised lip and O-ring face upward, as shown in the manufacturer diagram.
Step 7: Use Titan 0551509. Apply the lower seal insertion tool as directed by the specific Titan service procedure. Do not force components or improvise a different installation method.
Step 8: Verify seating. Confirm that the packing is positioned correctly and has not become twisted, cut, or otherwise damaged during installation.
Step 9: Reassemble the pump. Install the remaining components according to the manufacturer's assembly order and tightening instructions.
Step 10: Test after service. Follow the prescribed priming and operating procedure. Inspect for leaks and confirm that the repaired fluid section operates correctly before returning the sprayer to service.
Related Titan Fluid Section Repacking Parts and Tools
These separately numbered parts appear in relevant Titan fluid-section catalogs and may be needed for model-specific pump repairs.
The Titan 0551509 product is an installation tool. Repacking kits, piston components, and service lubricants are separate items unless the product listing states otherwise.
Buy Titan 0551509 Lower Seal Packing Tool
Find Titan 0551509 Lower Seal Packing Tool, the listed replacement for Titan 762-202, at AllTitanParts. Select the correct tool for your fluid-section repacking procedure and shop the associated service components.
Shop Titan 0551509 Packing ToolFrequently Asked Questions
Answers about Titan 0551509 Lower Seal Packing Tool compatibility, part-number replacement, and pump repacking applications.
What is Titan 0551509 Lower Seal Packing Tool?
It is a specialized service tool used to assist with installation of designated lower packing assemblies in compatible Titan pump fluid sections.
Does Titan 0551509 replace Titan 762-202?
Yes. Titan 0551509 is listed as the replacement for the earlier Titan 762-202 packing tool.
Does Titan 0551509 fit Advantage 400?
Yes. The Advantage 400 manufacturer fluid-section diagram identifies 0551509 as the lower seal insertion tool.
Does Titan 0551509 fit Advantage 500?
Yes. Titan's Advantage 500 manual explicitly lists part 0551509 as the lower seal insertion tool.
Can Titan 0551509 replace the packing tool in a 640IX?
The Titan 640IX manual identifies the earlier 762-202 packing tool. Titan 0551509 is listed as its replacement. Confirm the installed fluid-section configuration before use.
Is Titan 0551509 included in a repacking kit?
Do not assume it is included. Titan identifies the packing tool separately from repacking kit 0552951 in the Advantage fluid-section documentation.
What is the correct lower packing orientation?
For the Advantage 400 and Advantage 500 fluid sections, Titan's diagrams show the lower packing raised lip and O-ring facing upward. Other pumps should follow their own service diagrams.
Is Titan 0551509 a replacement pump seal?
No. It is an installation tool. The actual lower packings and seals must be purchased as the specified replacement components or repacking kit.
Can I use Titan 0551509 on every Titan sprayer?
No. The tool is intended for compatible lower packing designs. Check the fluid-section service manual for the exact sprayer model and revision.
Where can I buy Titan 0551509 Lower Seal Packing Tool?
Find Titan 0551509 Lower Seal Packing Tool in the AllTitanParts fluid-section parts catalog.
