Titan EPX2155 Advantage Main Assembly Parts
Shop genuine OEM Titan EPX2155 Advantage Main Assembly Parts using the model-specific exploded parts diagram. Identify the main machine, mounting, control, fluid-system and related components required to service your SprayTech Advantage EPX2155 piston pump.
Find the Correct EPX2155 Main Assembly Replacement Part
The main assembly is the starting point for many EPX2155 repairs because it shows how major machine components and supporting hardware are arranged on the sprayer. Use the exploded diagram to identify the component that requires inspection or replacement before moving to a more specialized subassembly when necessary.
For accurate parts selection, locate the component on the EPX2155 main assembly diagram, note its reference number and match that reference to the listed OEM part number. Do not rely on appearance alone, particularly when a component resembles parts used on other Advantage EPX models.
Find Your EPX2155 Main Assembly Part
Confirm EPX2155
Verify that the machine being serviced is a SprayTech Advantage EPX2155 piston pump.
Locate the Component

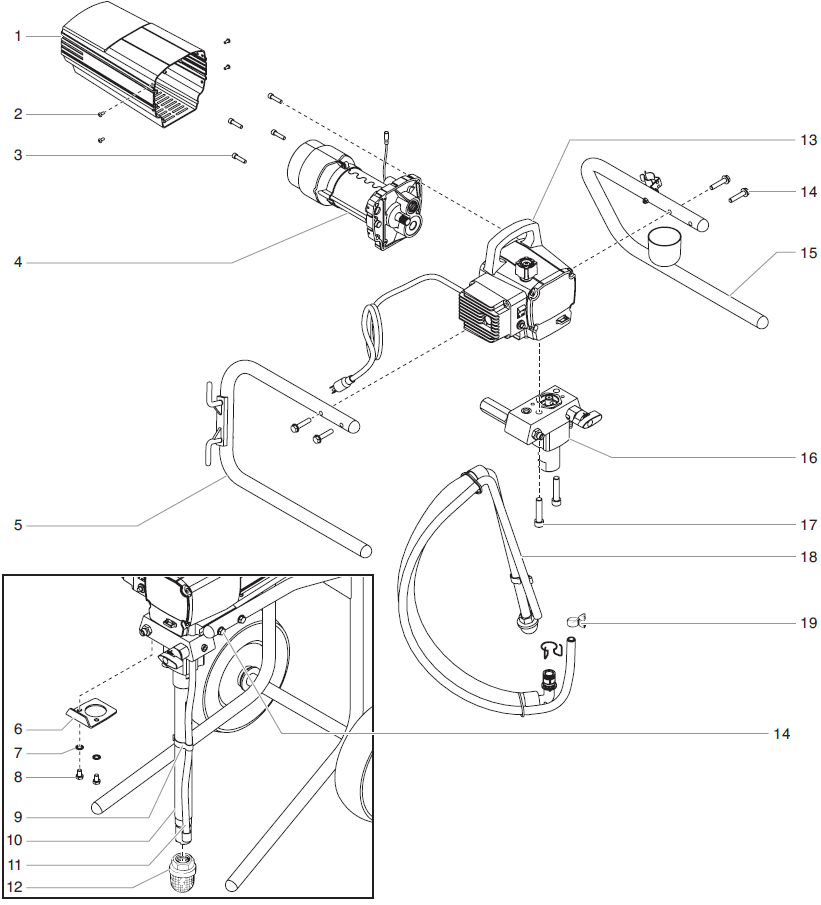

Find the required component in the EPX2155 main assembly exploded diagram.
Check the Callout
Match the numbered diagram callout to the corresponding parts-list entry.
Verify the Part Number
Confirm the OEM part number and application before ordering the replacement.
What You Can Find in the EPX2155 Main Assembly
Use the factory breakdown to identify documented machine components and determine whether the repair continues into another EPX2155 subassembly.
Identify the principal components shown in the complete EPX2155 machine breakdown and their relationship to adjacent assemblies.
Locate documented fittings, connections and related fluid-routing components shown on the main assembly.
Use the diagram to identify applicable machine controls and related components represented in the main assembly.
Find documented screws, fasteners, brackets and mounting components used to secure major assemblies.
Identify how the motor and drive system interface with the main machine before moving to the dedicated motor or gearbox diagram.
Locate the relationship between the main machine and fluid section when diagnosing pump or pressure-related repairs.
Browse Other Titan EPX2155 Parts Assemblies
If the component is not serviced through the main assembly, continue to the dedicated EPX2155 diagram for the affected system.
Use the dedicated motor breakdown for documented motor and related electrical components.
Use the gearbox diagram for gears and associated mechanical drive components.
Use the fluid-section breakdown for piston, packing, valve, seal and related pump components.
Inspect the dedicated suction-set diagram for material-intake components.
Use the stand, upright-cart or low-boy-cart breakdown that matches your EPX2155 configuration.
Start with the Correct EPX2155 Assembly
| Repair Area | Recommended Diagram | What to Inspect | Confirm Before Ordering |
|---|---|---|---|
| General Machine | Main Assembly | Machine components, connections and mounting hardware | Callout + OEM part number |
| Pump / Pressure | Fluid Section | Piston, packings, seals and valves | EPX2155 fluid-section diagram |
| Electrical Drive | Motor Assembly | Motor and documented electrical components | Exact OEM application |
| Mechanical Drive | Gear Box | Gears and associated drive components | Diagram callout + OEM number |
| Material Intake | Suction Set | Siphon and related intake components | EPX2155 application |
| Frame / Mobility | Stand / Cart | Frame, wheels, handle and mounting hardware | Correct machine configuration |
Inspect Before Replacing EPX2155 Main Assembly Parts
A symptom at the main machine does not necessarily mean the visible component is the source of the problem. Diagnose the affected system before ordering replacement parts.
Inspect mounting points, fasteners and brackets shown in the main assembly before replacing structural components.
Identify the exact source of leakage and inspect fittings, connections and the adjacent fluid section as applicable.
Pressure problems can involve the fluid section, material supply, valves or downstream spray system rather than a main-frame component.
Inspect the motor and gearbox systems when abnormal mechanical noise, binding or irregular drive operation is present.
Check the suction system, fluid section and applicable fluid-control components before replacing unrelated main-assembly parts.
Inspect fittings, mounting interfaces and connected components for physical damage, looseness or wear.
Verify EPX2155 Main Assembly Parts Before Ordering
Do not assume that a similar-looking part from an EPX2255, EPX2355, EPX2455, EPX2555 or another SprayTech sprayer will fit the EPX2155. Components should be selected using the correct EPX2155 exploded diagram, parts-list reference and documented OEM part number. When a number has been superseded, verify the documented replacement before purchase.
Maintain the EPX2155 Main Machine Assembly
Check accessible mounting hardware and machine connections for looseness or damage during routine service.
Investigate leakage promptly to identify worn seals, loose fittings or other fluid-system issues.
Remove coating buildup and contamination according to the applicable operating and maintenance instructions.
Check the motor, gearbox, fluid section and suction system when symptoms extend beyond the main assembly.
EPX2155 Service Safety
Airless spray equipment operates under hazardous fluid pressure. Shut the sprayer down, disconnect electrical power where required and follow the applicable pressure-relief procedure before servicing the main assembly, fluid section, hose, spray gun or other pressurized components. Replace damaged safety-critical components before returning the equipment to service.
Shop Titan EPX2155 Main Assembly Parts
Use the EPX2155 main assembly diagram to identify the component required for your repair. Match the diagram callout to the documented OEM part number and confirm fitment before ordering.
Shop EPX2155 Main Assembly PartsTitan EPX2155 Main Assembly Parts FAQ
Where can I find Titan EPX2155 main assembly parts?
Use this EPX2155 Main Assembly Parts page to identify components shown in the model-specific exploded diagram. Match the diagram callout to the corresponding OEM part number before ordering.
How do I identify the correct EPX2155 main assembly part?
Confirm the EPX2155 model, locate the component on the exploded diagram, note its callout and compare that reference with the parts list and OEM part number.
Where are EPX2155 pump and packing parts listed?
Pump internals such as documented piston, packing, seal and valve components should be identified through the dedicated EPX2155 Fluid Section Assembly rather than the general main assembly.
Where do I find EPX2155 motor and gearbox parts?
Use the dedicated EPX2155 Motor Assembly and Gear Box Assembly diagrams when the repair involves electrical drive or mechanical power-transmission components.
Can EPX2255 main assembly parts fit an EPX2155?
Do not assume compatibility. Use a component only when the documented OEM part number and application confirm that it is correct for the EPX2155.
What should I check if my EPX2155 has low pressure?
Low pressure can involve the fluid section, inlet or outlet valve components, material supply, suction system or downstream spray components. Diagnose the complete fluid path before replacing parts.
Should I replace a part based only on its appearance?
No. Similar-looking components can have different applications. Use the EPX2155 diagram and documented OEM part number to establish the correct replacement.
What information helps confirm EPX2155 parts compatibility?
Have the EPX2155 model identification, machine configuration, serial information when available, diagram callout and existing part number ready when checking compatibility.
Need Help Finding an EPX2155 Main Assembly Part?
Have your EPX2155 model information, serial information when available, existing part number and diagram reference ready. These details help identify the correct replacement component before ordering.
