Titan ControlMax HEA Sprayer Parts – OEM Parts by Diagram
Shop genuine OEM Titan ControlMax HEA sprayer parts for ControlMax 1500, 1700, 1700 Pro and 1900 Pro equipment. Use the appropriate stand-model or cart-model parts diagram to identify pump, valve, suction, spray-gun, hose, HEA tip, guard and accessory components before ordering.
Genuine Titan OEM ControlMax HEA Stand & Cart Models Factory Parts Diagrams HEA Service Parts
CONTROL • EFFICIENCY • SERVICEABILITY
Maintain Your Titan ControlMax High Efficiency Airless System
Titan ControlMax sprayers use High Efficiency Airless (HEA) technology to produce a softer, more controlled spray pattern. The system is designed to reduce overspray by up to 55% compared with conventional airless spraying, helping improve spray control and reduce unnecessary material dispersion.
When service is required, selecting the correct replacement part begins with identifying whether the machine is a ControlMax 1500/1700 stand configuration or a 1700 Pro/1900 Pro cart configuration. From there, use the applicable factory breakdown for the main assembly, spray gun, suction system or HEA accessories rather than choosing parts by appearance alone.
Find the Correct ControlMax Part in Four Steps
Match the machine configuration and assembly before selecting an OEM replacement component.
01
Identify the Model
Confirm whether you have a ControlMax 1500, 1700, 1700 Pro or 1900 Pro.
02
Identify the Configuration
Distinguish the 1500/1700 stand machines from the 1700 Pro/1900 Pro cart machines.
03
Open the Correct Diagram
Choose the main assembly, spray gun, suction set or HEA accessories section.
04
Verify the OEM Number
Match the diagram reference to the Titan part number before ordering.
SHOP CONTROLMAX PARTS BY ASSEMBLY
Choose Your Titan ControlMax HEA Parts Diagram
Start with the machine configuration for pump and main-assembly repairs, or go directly to the shared spray-gun, suction-set and HEA accessory sections.
STAND CONFIGURATION
ControlMax 1500 / 1700
Main-assembly parts for ControlMax 1500 and 1700 stand-model sprayers.
CART CONFIGURATION
ControlMax 1700 Pro / 1900 Pro

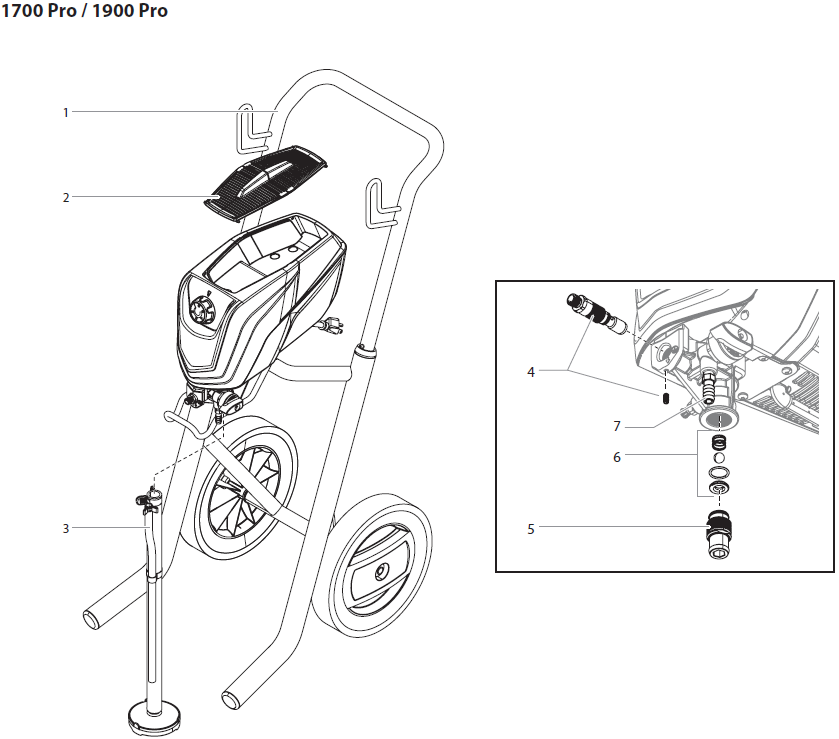

Main-assembly parts for ControlMax 1700 Pro and 1900 Pro cart-model sprayers.
GUN • SUCTION • ACCESSORIES
SPRAY DELIVERY
ControlMax Pro Spray Gun
Browse the ControlMax gun, HEA spray tip, tip guard, seat/seal components and compatible hoses.
SHOP SPRAY GUN PARTS
MATERIAL INTAKE
ControlMax Pro Suction Set
Find suction tubes, return tubes, inlet filters, housings, clamps and retaining clips.
SHOP SUCTION PARTS
HEA SYSTEM
ControlMax HEA Accessories
Browse available ControlMax HEA spray-system accessories and related service components.
SHOP HEA ACCESSORIES
STAND MODEL OR CART MODEL?
Confirm the exact ControlMax model and physical configuration before selecting main-assembly parts. Similar components may be shared, but stand and cart assemblies should not be treated as identical.
FITMENT HELP: 713-931-0006
HIGH EFFICIENCY AIRLESS TECHNOLOGY
What Makes the Titan ControlMax HEA System Different?
ControlMax uses Titan's High Efficiency Airless spray system to produce a softer spray pattern with greater control than a conventional high-pressure airless approach. The HEA system is designed to reduce overspray by up to 55%, helping place more coating where it is intended while reducing bounce-back and unnecessary spray dispersion.
Up to 55% Less Overspray
HEA technology is designed to reduce overspray compared with conventional airless spraying.
Softer Spray Pattern
The HEA tip system supports a softer, more controlled spray pattern.
Serviceable Fluid System
Pump and fluid-system components can be serviced through model-specific replacement parts.
Replaceable Spray Components
HEA tips, guards, gun components and hoses can be identified through the spray-gun assembly.
SERVICE & REPAIR COMPONENTS
Shop ControlMax Parts by Repair Area
Use the applicable factory breakdown to confirm which component is required for your exact sprayer.
Fluid Section
Pump and fluid-section components responsible for moving coating through the sprayer.
Inlet Valve
Inlet-side valve, fitting and related components used during the pump intake cycle.
Outlet Valve
Outlet-side components involved in controlling fluid movement from the pump.
Suction & Return System
Suction tubes, return tubes, inlet filters, housings, clamps and clips.
ControlMax Spray Gun
Replacement gun and related spray-delivery components.
HEA Tips & Guard
ControlMax HEA spray tips, tip guard and associated seat/seal components.
Airless Hoses
ControlMax hoses used between the sprayer and spray gun.
Stand & Cart Components
Model-specific structural components for stand or cart configurations.
TECHNICAL BUYING GUIDE
Which ControlMax Parts Diagram Should You Use?
| Equipment / Repair Area |
Use This Section |
Typical Components |
Verify Before Ordering |
| ControlMax 1500 / 1700 |
Stand Main Assembly |
Pump, valves, fittings, suction-related components |
Model + stand configuration + OEM PN |
| 1700 Pro / 1900 Pro |
Cart Main Assembly |
Pump, piston/seal, valves and cart-model components |
Model + cart configuration + OEM PN |
| Spray Pattern / Gun |
Pro Spray Gun Assembly |
Gun, HEA tip, guard, seat/seal and hose |
Gun / tip application + OEM PN |
| Material Intake |
Pro Suction Set |
Suction tube, filter, housing, return tube and clips |
Stand/cart application + OEM PN |
| Spray-System Accessories |
HEA Accessories |
Available ControlMax HEA accessories and related components |
Model / accessory compatibility |
TROUBLESHOOTING GUIDANCE
Inspect the System Before Replacing Parts
A single operating symptom can have several possible causes. Use these areas as inspection starting points and follow the service information applicable to your exact ControlMax model.
Difficulty Priming
Inspect the suction path, inlet filter, inlet valve and related pump components.
Poor Pressure
Inspect the fluid section, inlet and outlet valves, material path and other applicable pressure-related components.
Irregular Spray Pattern
Inspect the HEA tip, tip guard, material supply, filtration and gun before assuming a pump failure.
Restricted Material Flow
Check the inlet filter, suction assembly, fluid path, hose, gun and spray tip for restrictions.
Fluid Leakage
Inspect applicable seals, valve connections, fittings, hose connections and fluid-section components.
Suction Problems
Inspect the suction tube, inlet filter, clamps, connections and return system for damage or restriction.
Service Safety: Relieve system pressure and follow the maintenance and service procedures specified for your exact Titan ControlMax sprayer before disconnecting or servicing pressurized components.
IMPORTANT FITMENT RULE
Do Not Assume Every ControlMax Component Fits Every Model
Several ControlMax models share service components, but this does not make every part universally interchangeable. Stand and cart configurations can require different structural or suction components, and production revisions may affect application. Verify the exact model, configuration, diagram reference and Titan OEM part number before purchasing.
REPAIR THE SYSTEM YOU ALREADY OWN
Genuine Titan ControlMax OEM Replacement Parts
A worn valve, suction component, spray tip or pump part does not automatically require replacement of the complete sprayer. ControlMax machines include serviceable components that can be identified through their applicable factory parts breakdown.
OEM Part Identification
Search and order using documented Titan manufacturer part numbers.
Diagram-Based Shopping
Move from the machine or assembly directly to its illustrated service components.
Individual Service Parts
Replace documented service components rather than guessing at complete assemblies.
Fitment Assistance
Model, configuration and existing OEM number provide a stronger basis for compatibility verification.
OEM CONTROLMAX REPLACEMENT PARTS
Order Titan ControlMax HEA Parts with Greater Confidence
Identify your ControlMax model and configuration, select the correct parts diagram and verify the Titan OEM part number before ordering. Shop pump components, valves, suction parts, ControlMax gun components, HEA tips, guards, hoses and accessories for your service or repair.
CHOOSE YOUR CONTROLMAX PARTS ↑
CONTROLMAX PARTS HELP
Titan ControlMax HEA Sprayer Parts FAQ
01. Which Titan ControlMax models are covered by this parts category?
The category supports parts navigation for ControlMax 1500 and 1700 stand models and ControlMax 1700 Pro and 1900 Pro cart models, together with ControlMax spray-gun, suction-set and HEA accessory parts.
02. What does HEA mean on a Titan ControlMax sprayer?
HEA means High Efficiency Airless. Titan's ControlMax HEA system uses a softer spray pattern designed to provide greater control and up to 55% less overspray than conventional airless spraying.
03. Are ControlMax 1500/1700 parts the same as 1700 Pro/1900 Pro parts?
Not universally. Some service components are shared, but the 1500/1700 stand machines and 1700 Pro/1900 Pro cart machines have separate main-assembly breakdowns. Verify the OEM part number for the exact configuration.
04. Can I replace the ControlMax fluid section instead of replacing the complete sprayer?
Compatible ControlMax configurations use serviceable fluid-section components. Determine whether the complete fluid section or an individual related component is required by diagnosing the problem and checking the applicable parts information.
05. What should I inspect if my ControlMax will not prime?
Inspect the material supply, suction tube, inlet filter, inlet-side connections and inlet valve, along with other applicable pump components. A restriction or air leak can produce symptoms similar to a pump problem.
06. Can I buy ControlMax HEA spray tips and gun components separately?
Yes. The ControlMax Pro Spray Gun parts section lists service components including the ControlMax spray gun, HEA spray tip, tip guard, seat/seal components and compatible hoses.
07. What parts are in the ControlMax suction system?
Depending on the application, the suction-system breakdown includes components such as the suction tube assembly, return tube, inlet filter, inlet-filter housing, hose clamp and retaining clips.
08. How do I make sure I order the correct ControlMax part?
Confirm the exact ControlMax model, determine whether it is a stand or cart configuration, open the applicable assembly diagram and match the required component to its Titan OEM part number.
FITMENT ASSISTANCE
Not Sure Which ControlMax Part Fits?
Have your exact ControlMax model, stand or cart configuration, existing Titan part number and diagram reference available. These details help identify the correct OEM replacement component before ordering.
