Titan ControlMax Pro Spray Gun Assembly Parts
Shop genuine OEM Titan ControlMax Pro Spray Gun Assembly Parts by factory-style diagram and part number. Find the ControlMax spray gun, HEA spray tip, tip guard, tip seat and seal components, 25-foot hose and related fluid-delivery parts for compatible Titan ControlMax HEA spray systems.
Find the Correct ControlMax Pro Spray-System Part
The ControlMax Pro spray-gun assembly is the downstream portion of the spraying system where pressurized coating travels through the hose to the gun, tip guard and HEA spray tip. This category groups the principal OEM components shown with that assembly so individual worn, damaged or missing parts can be identified before ordering.
Use the exploded drawing and product list together. Match the component to its diagram reference, confirm the Titan OEM part number, and check your exact ControlMax model before checkout rather than selecting a replacement by appearance alone.
Find Your ControlMax Pro Spray Part in Four Steps
Identify the affected spray-system component before replacing the complete gun or hose assembly.
ControlMax Pro Spray Gun, Tip, Guard & Hose Parts
Match these Titan OEM numbers to the live exploded diagram and your exact ControlMax configuration.

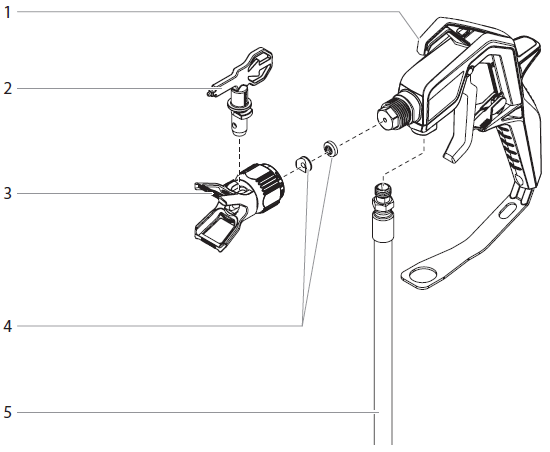

| Diagram | Titan Part Number | Component | Function / Area |
|---|---|---|---|

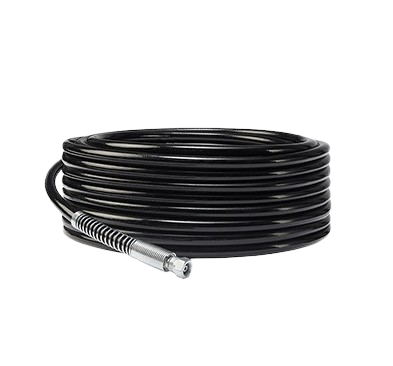

| — | 353-708 | ControlMax Hose | Pressurized fluid transfer |

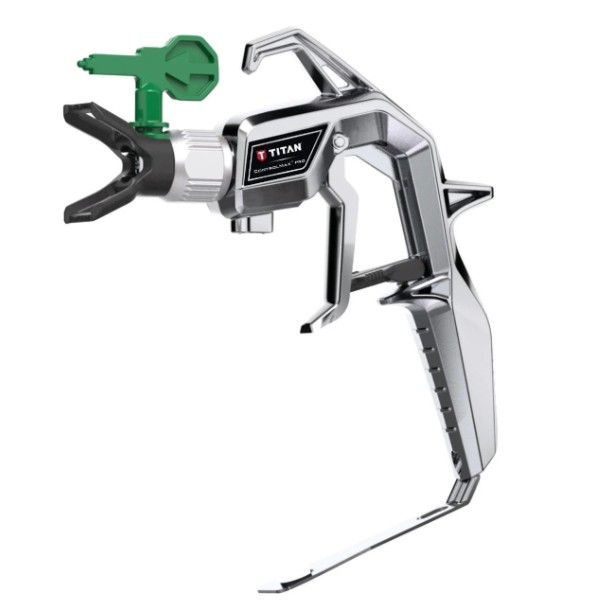

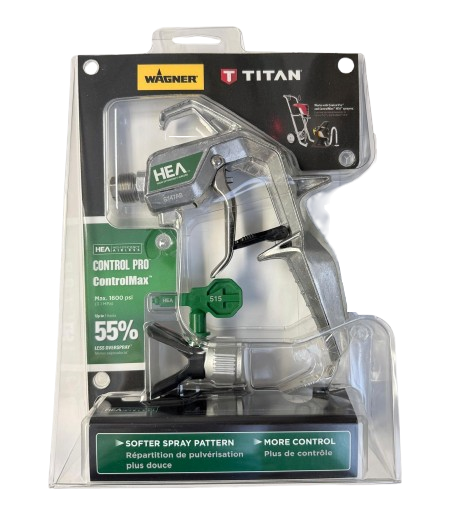

| 1 | 353-701F | ControlMax Spray Gun | Spray control / gun assembly |
| 2 | 353-515 | 515 ControlMax HEA Spray Tip | Spray pattern / material delivery |

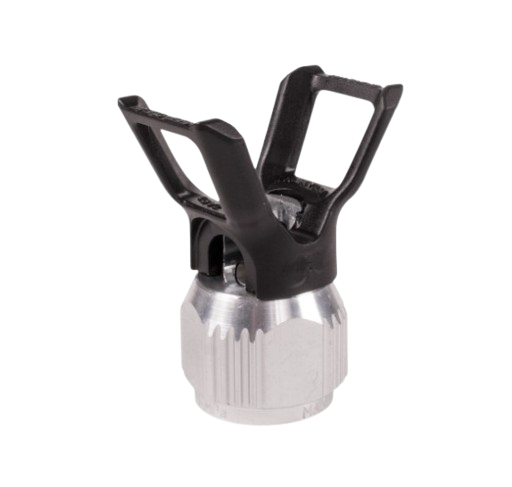

| 3 | 353-702A | ControlMax Tip Guard | Tip mounting / guard assembly |
| 4 | 661-020 | Tip Seat & Seal Kit – 5 Pack | Tip / guard sealing components |

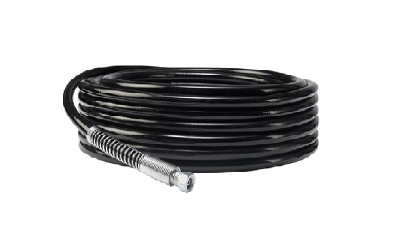

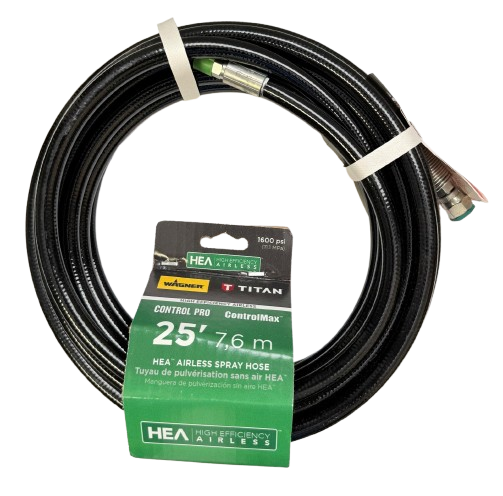

| 5 | 353-706 | 25-Foot Hose | Gun-to-sprayer fluid connection |
How the ControlMax Pro Spray-System Components Work Together
Which ControlMax Pro Component Do You Need?
Diagram Components Are Not Automatically Package Contents
A spray tip, tip guard, seat/seal kit and hose may appear with the same exploded assembly, but that does not mean every component is included when ordering Titan 353-701F ControlMax Spray Gun. Use the individual product listing to confirm exactly what is supplied with the part number you are purchasing. Order separately listed components separately when required.

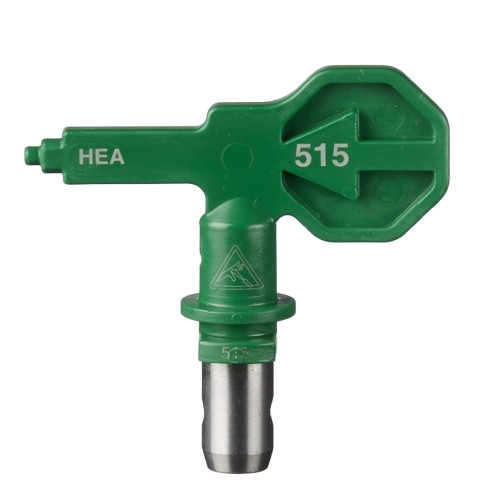

Titan 353-515 ControlMax HEA Spray Tip
The 353-515 shown in this assembly is a ControlMax HEA 515 spray tip. Tip selection affects spray width and material flow, so the correct tip should be chosen for the coating, sprayer capability and application rather than simply replacing every worn tip with the same size.
Always follow the coating manufacturer's recommendations and the maximum tip-size limits specified for the exact ControlMax sprayer being used.
Inspect the Spray System Before Replacing Parts
Spray-pattern and fluid-delivery problems can originate from the gun, tip, hose or upstream sprayer components. Diagnose the complete fluid path before assuming the spray gun has failed.
| Observed Condition | Inspect First | Diagnostic Consideration |
|---|---|---|
| Poor or Uneven Spray Pattern | Spray tip, coating condition and material flow | A worn, obstructed or unsuitable tip can affect the resulting pattern. |
| Leakage Around Tip / Guard | Tip, guard, seat and seal components | Inspect seating surfaces and sealing components before replacing the gun. |
| Gun Will Not Spray | Trigger/lock condition, tip, gun, hose and upstream pressure | A blocked tip or upstream fluid-delivery problem can resemble a gun fault. |
| Restricted Material Flow | Tip, gun fluid path, hose and sprayer filters | Restrictions elsewhere in the system can reduce material delivery at the gun. |
| Damaged or Leaking Hose | Entire hose length, fittings and connections | Do not operate with a visibly damaged or leaking high-pressure fluid hose. |
Relieve Pressure Before Servicing the Gun, Tip or Hose
Airless spray equipment can contain pressurized coating capable of causing injection injury. Before removing the spray tip, tip guard, gun, hose or any fluid-system component, shut down the sprayer and perform the pressure-relief procedure specified for your Titan ControlMax machine. Never inspect a suspected leak with your hand or operate a damaged high-pressure hose.
Need a Pump, Suction or Main-Assembly Part Instead?
If the problem is upstream of the spray gun, continue to the appropriate ControlMax parts diagram.
Verify These Details Before Checkout
Shop Titan ControlMax Pro Spray Gun Assembly Parts
Use the exploded parts diagram to identify the correct spray gun, HEA tip, tip guard, seat/seal kit or hose. Match the diagram reference to the Titan OEM part number and verify the individual product listing before ordering.
RETURN TO PARTS DIAGRAM ↑ControlMax Pro Spray Gun Assembly Parts FAQ
01. What parts are listed in the ControlMax Pro spray gun assembly category?
02. What replaces Titan 353-701 ControlMax Spray Gun?
03. What is Titan 353-515?
04. What is Titan 353-702A?
05. What is Titan 661-020?
06. What is Titan 353-706?
07. Does Titan 353-701F automatically include the tip, guard and hose shown in the diagram?
08. Should I replace the complete spray gun if the spray pattern is poor?
Not Sure Which ControlMax Spray Part You Need?
Have your exact Titan ControlMax model, existing OEM part number and the affected diagram component available. For tip-related questions, also identify the coating and current tip size so the replacement can be checked against the sprayer's operating requirements.
