Titan ControlMax 1700 Pro / 1900 Pro Main Assembly Parts – Cart Models
Shop genuine OEM Titan ControlMax 1700 Pro / 1900 Pro Main Assembly Parts for cart-model HEA airless sprayers. Use the exploded parts diagram to identify the fluid section, piston/seal assembly, prime valve, suction set, inlet and outlet valves, filter housing and related components by diagram callout and Titan OEM part number.
Find the Correct ControlMax 1700 Pro / 1900 Pro Replacement Part
This page is specifically organized around the main assembly used with Titan ControlMax 1700 Pro and ControlMax 1900 Pro cart-model sprayers. The diagram separates individually serviceable components so contractors and repair technicians can identify the affected part without assuming that the complete main assembly requires replacement.
Start with the exploded drawing. Locate the component, note its diagram reference, and match that reference to the listed Titan OEM part number. Matching the exact number is more reliable than ordering by component appearance alone.
Find Your ControlMax Pro Part in Four Steps
Verify the machine and assembly before selecting the replacement component.
ControlMax 1700 Pro / 1900 Pro Main Assembly Components
Use the OEM numbers below together with the live exploded diagram and the exact configuration of your sprayer.
| Diagram | Titan Part Number | Component | Service Area |
|---|---|---|---|

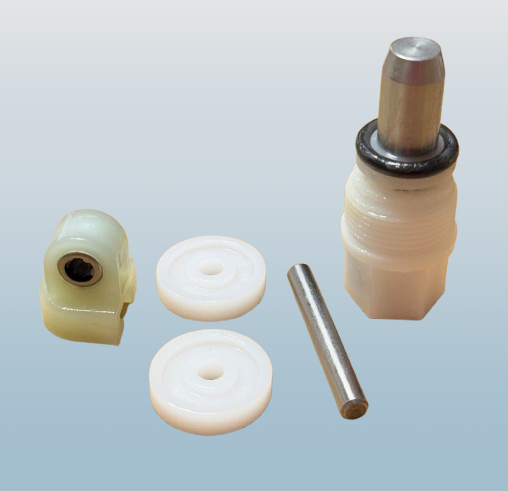

| — | 0580393 | Piston / Seal Assembly | Fluid section / pumping system |

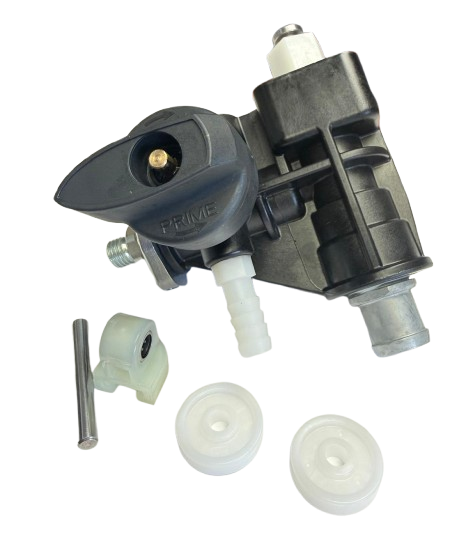

| — | 0580493 | Fluid Section Assembly | Pump / material delivery |

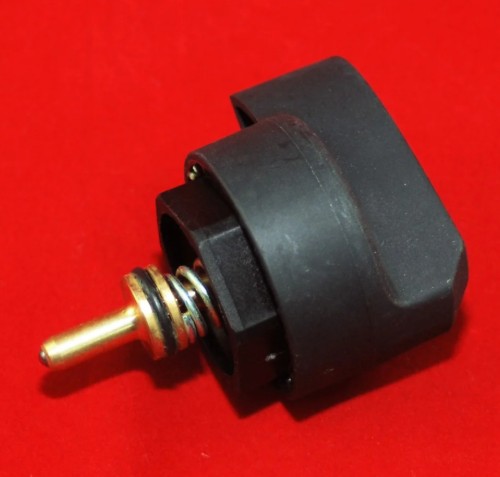

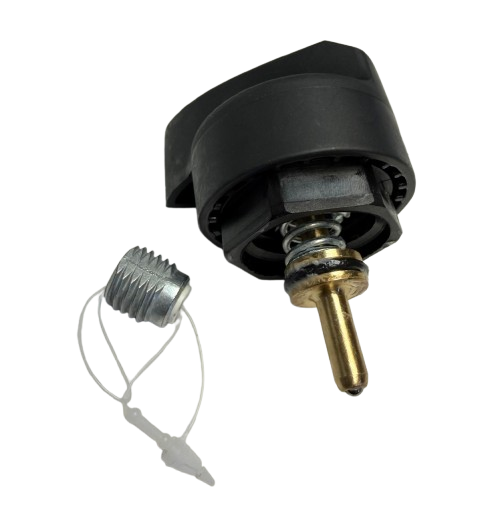

| — | 580395 | Prime Valve Kit | Prime / spray fluid path |
| 2 | 0580041B | Door | Main housing / access |
| 3A | 0580154 | Inlet Filter Housing | Suction / material intake |

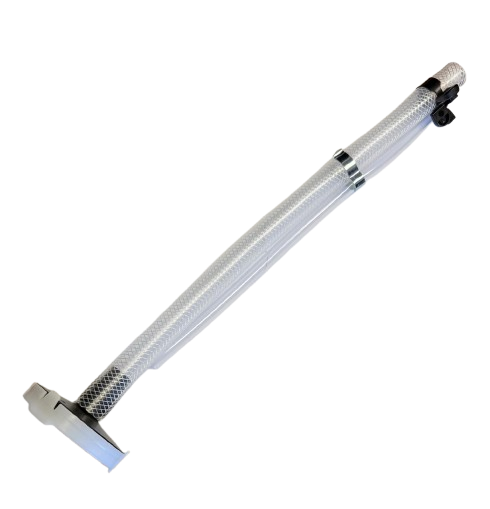

| 3 | 0580206A | Suction Set Assembly – Cart | Material intake / cart configuration |
| 4 | 0580072A | Outlet Valve Assembly | Pump / pressurized fluid path |
| 5 | 0580071A | Inlet Valve Fitting | Pump inlet / suction path |
| 6 | 0580391 | Inlet Valve Kit | Pump inlet |
| 7 | 9885553 | Return Tube Fitting | Return / prime system |
Shop ControlMax Pro Parts by Repair Area
Identify the system involved before replacing individual components or the complete fluid section.
Piston/Seal Assembly or Complete Fluid Section?
This diagram includes both Titan 0580393 Piston/Seal Assembly and Titan 0580493 Fluid Section Assembly. Do not automatically replace the complete fluid section solely because the sprayer has difficulty priming or maintaining pressure. Similar symptoms can originate from the suction system, inlet valve, outlet valve, prime valve or other parts of the fluid path.
| Option | OEM Number | Use for Identification | Before Ordering |
|---|---|---|---|
| Piston / Seal Assembly | 0580393 | Internal fluid-section service | Inspect pump condition and verify OEM number |
| Fluid Section Assembly | 0580493 | Complete replaceable fluid-section assembly | Diagnose suction, valves and fluid path first |
This Diagram Is for ControlMax 1700 Pro / 1900 Pro Cart Models
Do not use this page as the primary diagram for a ControlMax 1500 or ControlMax 1700 stand-model sprayer. Some pump-related OEM components can have documented applications across multiple ControlMax models, but the suction system, structural components and machine configuration must still be verified independently. Match the model, configuration, diagram and Titan OEM part number before purchasing.
Need ControlMax 1500 / 1700 Stand-Model Parts Instead?
ControlMax 1500 and ControlMax 1700 stand models have a separate main-assembly parts diagram. Use that category when your machine is the stand configuration rather than a 1700 Pro or 1900 Pro cart model.
VIEW 1500 / 1700 STAND-MODEL PARTS →Continue to the Correct ControlMax Assembly
If the required component is not shown in this main-assembly diagram, continue to the applicable ControlMax parts section.
Inspect the Complete Fluid Path Before Ordering Parts
Priming, pressure and material-delivery symptoms can have multiple causes. Inspect the related systems before concluding that the complete fluid section has failed.
| Observed Condition | Inspect | Diagnostic Consideration |
|---|---|---|
| Difficulty Priming | Suction set, inlet filter, inlet valve and pump section | A suction restriction, air entry or inlet-side problem can produce similar symptoms. |
| Pressure Will Not Build | Fluid section, piston/seals, inlet valve, outlet valve and prime valve | Pressure loss can originate at several points in the pumping system. |
| Pressure Drops During Spraying | Fluid path, suction system, filters, valves, hose, gun and tip | Restricted flow or worn components can create similar operating symptoms. |
| Poor Material Intake | 0580206A suction set, filter housing and inlet-side connections | Inspect for restriction, damage, loose connections or air entry. |
| Prime / Return Problem | Prime valve, return fitting and related fluid path | Check circulation-related components before replacing the pump assembly. |
| Fluid Leakage | Piston/seal assembly, fluid section, valves and fittings | Identify the actual leak source before choosing the replacement component. |
Relieve Pressure Before Servicing the Fluid System
Airless spray equipment contains pressurized fluid during operation. Before removing the fluid section, valves, suction components, hose connections or other fluid-path parts, shut the sprayer down, disconnect electrical power, relieve system pressure and follow the applicable Titan operating and service instructions. Never loosen a pressurized fitting.
Four Details to Verify Before Checkout
Order ControlMax 1700 Pro / 1900 Pro Main Assembly Parts
Use the exploded parts drawing to locate the affected component, confirm the diagram reference and match it to the Titan OEM part number. Shop individual pump, suction, valve, filtration, prime-system and main-assembly components without guessing from appearance.
RETURN TO PARTS DIAGRAM ↑ControlMax 1700 Pro / 1900 Pro Main Assembly Parts FAQ
01. Which Titan sprayers does this main assembly page cover?
02. Is this the correct diagram for ControlMax 1500 or 1700 stand models?
03. What is Titan 0580493?
04. What is Titan 0580393?
05. What is Titan 0580206A?
06. Should I replace the complete fluid section if my sprayer will not prime?
07. Can I order individual main-assembly components?
08. What information should I have when requesting fitment help?
Not Sure Which ControlMax Pro Part Fits?
Have your exact ControlMax model, cart configuration, serial information where applicable, diagram callout and existing Titan OEM part number available. These details provide the strongest basis for identifying the correct replacement component.
