Titan ControlMax Pro Suction Set Assembly Parts
Shop genuine OEM Titan ControlMax Pro Suction Set Assembly Parts for compatible ControlMax HEA airless sprayers. Use the exploded parts diagram to identify suction tubes, return tubes, inlet filter components, retaining clips, hose-clamp hardware and the complete 0580159A suction tube assembly by Titan OEM part number.
Find the Correct ControlMax Suction-System Replacement Part
The suction system forms the material-intake side of the ControlMax fluid path. It draws coating from the material container toward the pump while the inlet filter helps prevent unwanted debris from entering the pumping system. The associated return components provide the return path used during priming and circulation.
Because several tubes, clips, filter components and fittings appear together in the exploded assembly, identify the failed component first and match its diagram callout to the exact Titan OEM part number before ordering.
Find Your ControlMax Suction Part in Four Steps
Use the machine configuration and exploded diagram together for accurate identification.
ControlMax Pro Suction & Return System Parts
Use these OEM numbers together with the live exploded diagram and your exact sprayer configuration.

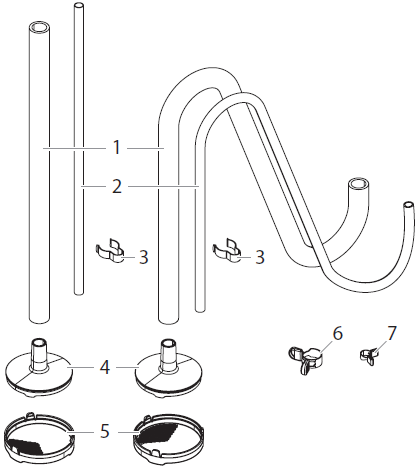

| Diagram | Titan Part Number | Component | System Area |
|---|---|---|---|

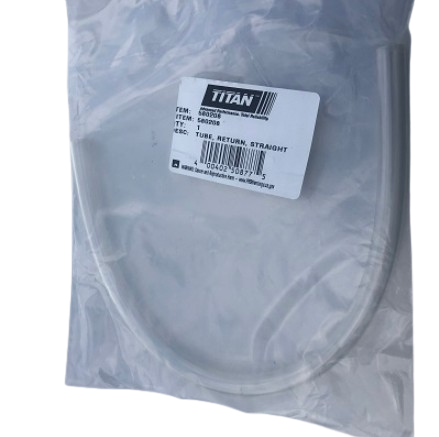

| 2 | 0580208 | Return Tube – Cart | Return / prime path |

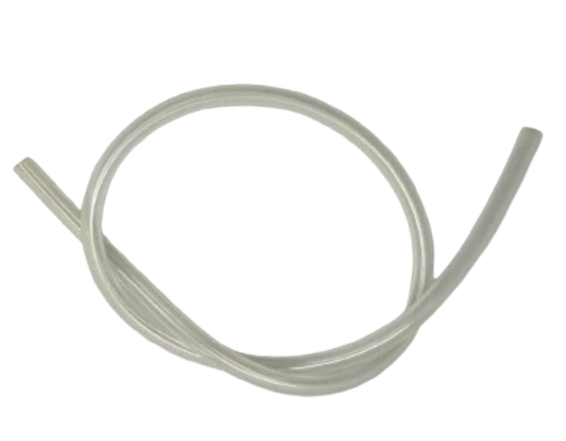

| 2A | 0580487 | Return Tube | Return / circulation system |
| 3 | 0512390 | Suction Set Clip | Tube retention / positioning |

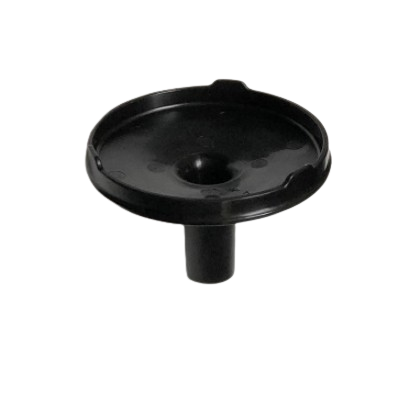

| 4 | 0580154 | Inlet Filter Housing | Material intake / filtration |

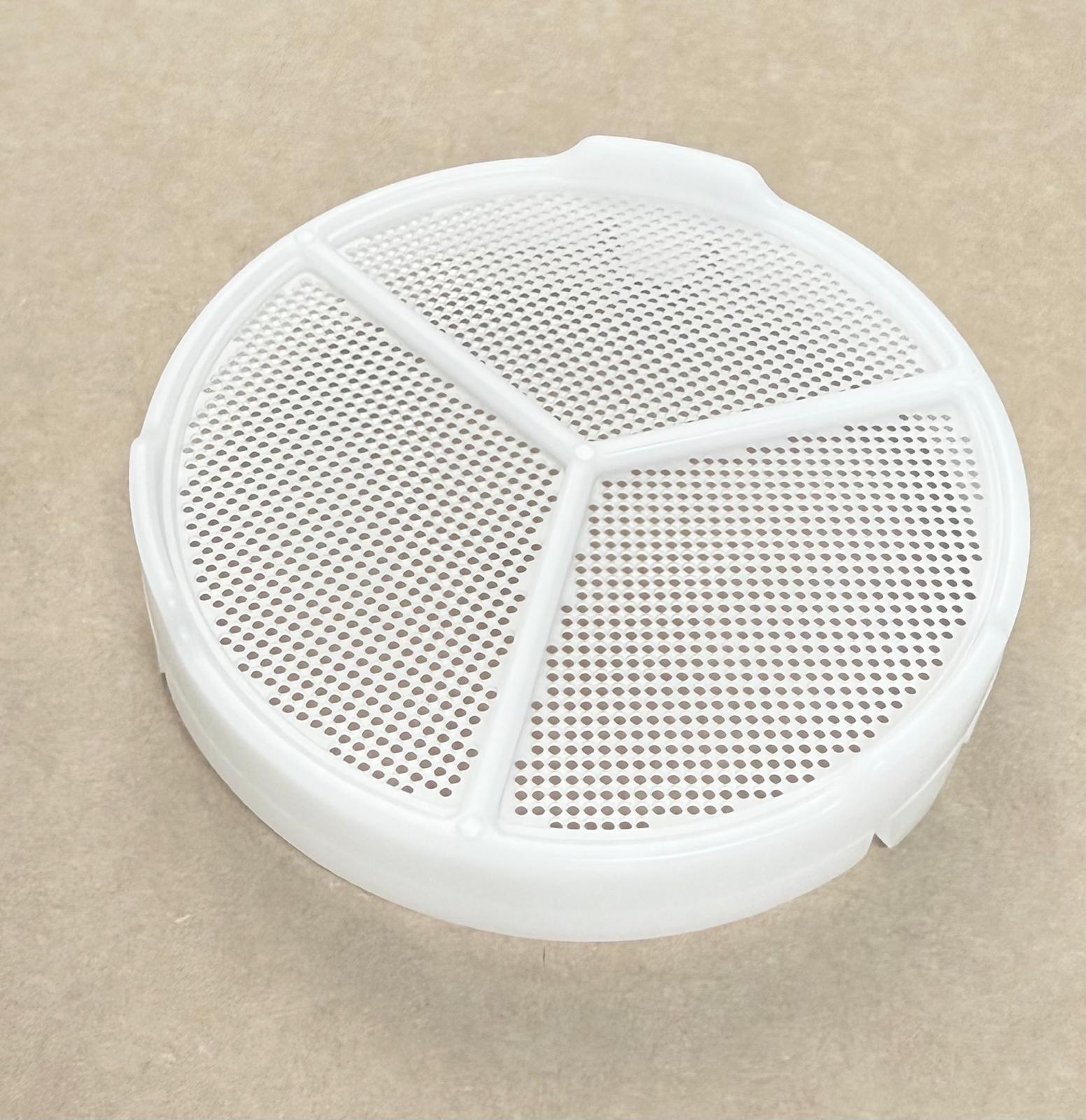

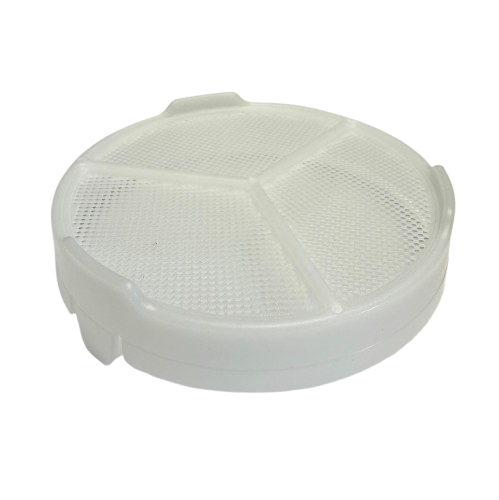

| 5 | 0580155 | Inlet Filter | Material filtration |

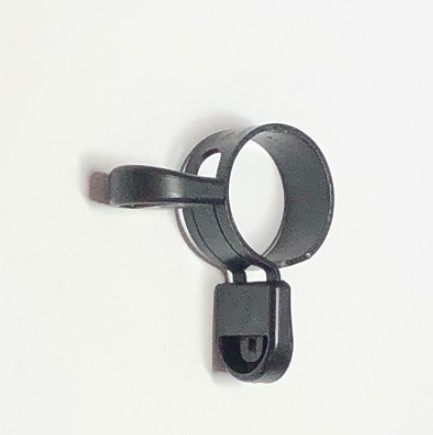

| 6 | 9890222 | Inlet Hose Clamp Assembly | Suction-side connection |
| 7 | 0327226 | Return Tube Clip – Cart Only | Cart return-tube retention |
| — | 0580159A | Suction Tube Assembly | Combined suction-system assembly |
How the ControlMax Suction System Works
Understanding the material path makes it easier to isolate suction and priming problems before replacing parts.
Individual Suction Part or Titan 0580159A Assembly?
The diagram allows several suction-system components to be ordered individually, while Titan 0580159A is listed as a suction tube assembly. This gives technicians the option to replace an identified service component rather than automatically replacing more of the suction system than necessary.
| Repair Situation | Parts to Inspect | Buying Approach |
|---|---|---|
| Filter Only Damaged or Clogged | 0580155 filter and 0580154 housing | Replace the affected filtration component if the remaining assembly is serviceable. |
| Loose / Damaged Retaining Hardware | 0512390, 9890222 and applicable return-tube clip | Identify the specific clip or clamp rather than replacing unrelated fluid components. |
| Return Tube Damaged | 0580208 or 0580487 depending on configuration | Match the exact machine and diagram before selecting the return tube. |
| Multiple Suction Components Damaged | 0580159A and related diagram components | Compare the required individual parts with the current contents of the listed assembly. |
Diagram Parts Are Not Automatically Included Together
The exploded drawing shows how suction-system components relate to one another; it does not mean that every filter, clip, clamp and return tube is supplied when one individual part number is purchased. Check the current product listing for the exact package contents of 0580159A or any other assembly before ordering additional components.
ControlMax Cart vs. Stand Suction Components
The live parts diagram specifically identifies 0580208 as a cart return tube and 0327226 as a cart-only return-tube clip. Those labels are important because the ControlMax family includes both stand and cart configurations.
Do not select a return tube or retaining component only because it looks similar to the original. Confirm the machine model and physical configuration, then match the component to the appropriate diagram.
Inspect the Suction System When the Sprayer Will Not Prime
A priming or material-intake problem does not automatically mean the pump or complete fluid section has failed. Inspect the suction side first for restrictions, damaged components or possible air entry.
| Observed Condition | Inspect | Why It Matters |
|---|---|---|
| Sprayer Will Not Prime | Inlet filter, suction tube, connections and inlet-side components | Restricted material flow or air entering the suction side can interfere with priming. |
| Weak Material Intake | 0580155 filter and 0580154 filter housing | A restricted inlet filter can reduce the amount of coating available to the pump. |
| Intermittent Suction | Tube condition, clamp, connections and fluid level | Loose or damaged suction-side connections can allow air into the material path. |
| Return Tube Moves or Detaches | Return tube and applicable retaining clip | Verify that the correct configuration-specific retaining hardware is installed. |
| Debris Repeatedly Reaches Fluid System | Inlet filter and housing | Inspect for a missing, damaged, incorrectly seated or excessively contaminated filter. |
Inspect Intake Components During Cleaning and Service
Shut Down and Relieve Pressure Before Service
Before removing suction, return or pump-related components, shut down the sprayer, disconnect electrical power and follow the pressure-relief and service procedures specified for the exact Titan ControlMax model. Do not loosen pressurized fluid-system connections while the sprayer is operating.
Continue to the Correct ControlMax Parts Section
If the required component is outside the suction system, use the applicable ControlMax assembly diagram.
Four Details to Verify Before Checkout
Order Titan ControlMax Pro Suction Set Assembly Parts
Use the exploded parts diagram to identify the required suction tube, return tube, inlet filter, housing, clamp, clip or suction assembly. Match the diagram callout to the Titan OEM part number and verify your exact ControlMax configuration before ordering.
RETURN TO PARTS DIAGRAM ↑ControlMax Pro Suction Set Assembly Parts FAQ
01. What parts are listed in the ControlMax Pro suction set assembly?
02. What is Titan 0580159A?
03. What is Titan 0580155?
04. What is Titan 0580154?
05. Are the ControlMax return tubes the same for every configuration?
06. What is Titan 0327226?
07. Can a clogged inlet filter cause a ControlMax sprayer to have trouble priming?
08. Do I need to replace the complete suction assembly when one component fails?
Not Sure Which ControlMax Suction Part Fits?
Have your exact ControlMax model, stand or cart configuration, existing OEM part number and diagram callout available. These details provide the strongest basis for identifying the correct suction, filtration or return-system component.
