Genuine Titan OEM | SprayTech Diaphragm Sprayer Parts
Shop Titan SprayTech Diaphragm Sprayer Replacement Parts
Find the right replacement parts for your Titan SprayTech diaphragm airless sprayer at AllTitanParts. Browse model-specific OEM parts diagrams for the ED655, ED1075 Pro Pak, ED655 Plus and ED1150 Plus. Whether you are repairing a diaphragm pump, replacing a worn valve, servicing a hopper or restoring a material intake system, start with your exact sprayer model to identify the correct component.
SprayTech Diaphragm Sprayer Overview
Buy Genuine Titan SprayTech Diaphragm Airless Sprayer Parts
Titan SprayTech diaphragm sprayers use a diaphragm-based pumping mechanism to move coating material through a pressurized airless spraying system. The pump works with fluid valves, seals, material intake components and pressure-control hardware to deliver coating material to the spray gun.
With regular use, diaphragm components, valve seating surfaces, filters and seals may experience wear or contamination. Poor priming, fluctuating pressure, reduced material output and leakage can indicate a problem that requires inspection. Accurate diagnosis helps determine whether the repair involves the pump, suction system, hopper, hydraulic components or spray equipment.
AllTitanParts organizes the Titan SprayTech Diaphragm Sprayer Parts category into four model families. Each model leads to dedicated assembly diagrams and replacement part listings, helping customers locate the correct OEM component without relying on appearance or assumed compatibility.
Model Selection Directory
Titan SprayTech Diaphragm Sprayer Models and Parts Categories
Choose the exact model printed on your equipment before browsing individual assembly components.
| Titan SprayTech Model | Assembly Categories | Shop Model Parts |
|---|---|---|
| Titan ED655 Airless Pump | Final Assembly, Hopper Assembly, Paint Pump Assembly, G-10 Spray Gun | Shop ED655 Parts |
| Titan ED1075 Pro Pak | Main Assembly, Paint Pump, Hydraulic Pump, Hopper Assembly, Suction Set, Optional Suction Set | Shop ED1075 Pro Pak Parts |
| Titan ED655 Plus Airless Pump | Main Assembly, Diaphragm Pump, Pump Head Assembly, Hopper Assembly | Shop ED655 Plus Parts |
| Titan ED1150 Plus Airless Sprayer | Final Assembly, Paint Pump Assembly, Suction Set Assembly, Accessories Parts | Shop ED1150 Plus Parts |
Each model has its own parts breakdown. Components listed for one model are not automatically compatible with another model.
Shop by Titan SprayTech Model
Explore Titan SprayTech Diaphragm Sprayer Parts by Model
Model 01 | 4 Assembly Groups

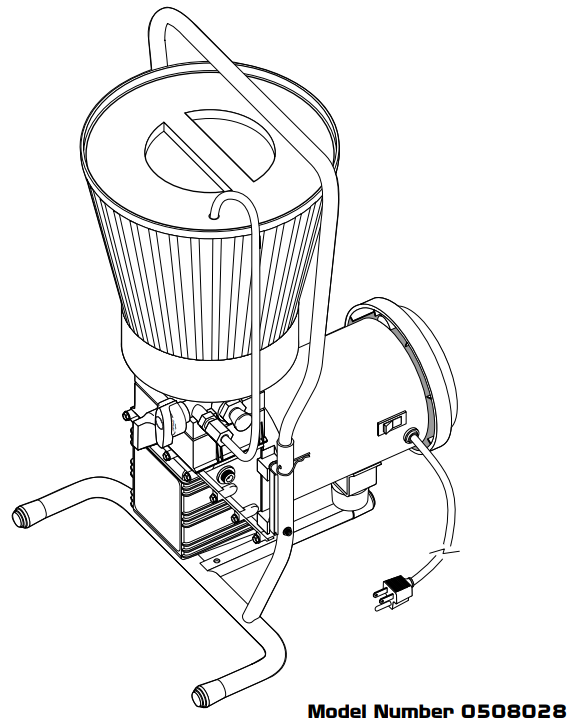

Titan ED655 Airless Pump Parts
Keep your Titan ED655 Airless Pump operating reliably with OEM replacement components organized into four assembly categories.
- ED655 Final Assembly Parts
- ED655 Hopper Assembly Parts
- ED655 Paint Pump Assembly Parts
- ED655 G-10 Spray Gun Parts
Browse the appropriate assembly when servicing the paint pump, replacing hopper components, repairing the equipment structure or maintaining the specified G-10 spray gun.
Shop Titan ED655 PartsModel 02 | 6 Assembly Groups
Titan ED1075 Pro Pak Sprayer Parts
Find genuine Titan ED1075 Pro Pak replacement components through six dedicated assembly categories.
- ED1075 Pro Pak Main Assembly
- ED1075 Pro Pak Paint Pump
- ED1075 Pro Pak Hydraulic Pump
- ED1075 Pro Pak Hopper Assembly
- ED1075 Pro Pak Suction Set Assembly
- ED1075 Pro Pak Optional Suction Set
The standard and optional suction set assemblies are listed separately. Confirm your installed configuration before selecting replacement parts.
Shop ED1075 Pro Pak PartsModel 03 | 4 Assembly Groups

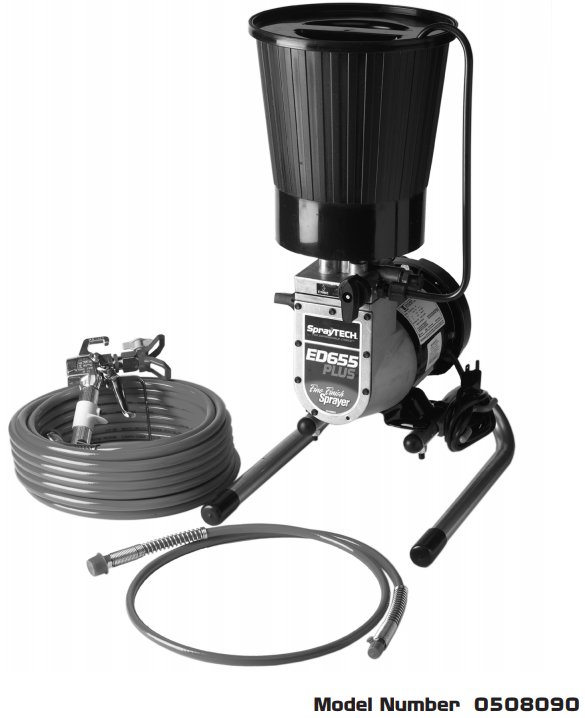

Titan ED655 Plus Airless Pump Parts
Repair and maintain your Titan ED655 Plus Airless Pump with parts organized by the original equipment assemblies.
- ED655 Plus Main Assembly
- ED655 Plus Diaphragm Pump, P/N 0555124
- ED655 Plus Pump Head Assembly
- ED655 Plus Hopper Assembly
Explore diaphragm pump components, pump head parts, hopper accessories and related mechanical replacements using the model-specific parts breakdown.
Shop ED655 Plus PartsModel 04 | 4 Assembly Groups
Titan ED1150 Plus Airless Sprayer Parts
Find Titan ED1150 Plus Airless Sprayer replacement parts for pump repairs, suction system maintenance and general equipment servicing.
- ED1150 Plus Final Assembly Parts
- ED1150 Plus Paint Pump Assembly Parts
- ED1150 Plus Suction Set Assembly Parts
- ED1150 Plus Accessories Parts
Browse the paint pump category for diaphragm and valve components, or select the appropriate assembly for mechanical, suction and accessory repairs.
Shop ED1150 Plus PartsOEM Replacement Components
Common Titan SprayTech Diaphragm Sprayer Parts
The parts available depend on the model and assembly. These component groups can help you identify where to begin your search.
Diaphragm Pump Components
Diaphragms and associated pump components support fluid displacement. Inspect them when troubleshooting reduced pump output or suspected internal wear.
Pump Valves and Seats
Valve balls, seats and related components help regulate coating flow. Contamination or damaged seating surfaces may affect priming and pressure consistency.
Gaskets, O-Rings and Seals
Sealing components help maintain the intended fluid and mechanical interfaces. Always match the exact part number, size and material.
Hopper and Suction Parts
Hoppers, screens, suction hoses and fittings help supply coating material to the pump. Choose parts for your specific material supply configuration.
Pressure Control Components
Pressure control knobs and related hardware provide the intended operating interface. Inspect damaged controls before selecting replacement components.
Spray Gun and Accessories
Gun components and compatible accessories support material application. Confirm the spray gun model independently if it has been replaced.
Diaphragm Pump Operation
How Titan SprayTech Diaphragm Airless Sprayers Work
Material Intake
The suction or hopper system supplies compatible coating material to the pump inlet.
Diaphragm Movement
The pump mechanism moves the diaphragm to create the displacement required for pumping.
Valve Operation
Inlet and outlet valve components control the intended direction of coating flow.
Spray Delivery
Pressurized material travels through the applicable hose and spray equipment for airless application.
Troubleshooting and Repair
Common Titan SprayTech Diaphragm Sprayer Problems
The following symptoms may involve more than one assembly. Follow the manufacturer's model-specific troubleshooting instructions before replacing components.
| Observed Problem | Possible Area to Inspect | Recommended Check |
|---|---|---|
| Sprayer will not prime | Suction system, hopper and pump valves | Check material supply, restrictions, air leaks and valve condition. |
| Low or inconsistent pressure | Pump, valves and fluid system | Inspect supply flow, pump condition, filters and spray tip wear. |
| Reduced coating output | Diaphragm and valve components | Investigate restrictions and inspect the pumping mechanism according to the service manual. |
| Fluid leakage | Seals, fittings and fluid connections | Locate the exact leak after completing the pressure-relief procedure. |
| Irregular spray pattern | Spray tip, filters and pressure delivery | Inspect the tip and confirm material flow and operating pressure. |
| Abnormal mechanical noise | Mechanical or hydraulic drive assembly | Stop operation and follow the approved mechanical diagnostic procedure. |
OEM Fitment and Compatibility
Choose the Correct Titan SprayTech Diaphragm Sprayer Part Number
The ED655, ED1075 Pro Pak, ED655 Plus and ED1150 Plus are separate equipment models. Although some components may look alike, this category does not establish interchangeability between their pumps, valves, diaphragms, hoses or seals.
For example, the ED655 Plus has a dedicated diaphragm pump category identified as P/N 0555124, while the ED1150 Plus has its own Paint Pump Assembly category. Select the correct model and assembly before comparing individual OEM part numbers.
Confirm your sprayer model, serial number, factory diagram reference and complete manufacturer part number. Where the equipment has been modified or previously repaired, inspect the installed component and request compatibility confirmation before ordering.
OEM Buying Guide
How to Buy the Right Titan SprayTech Diaphragm Sprayer Parts
Confirm the Model
Identify your ED655, ED1075 Pro Pak, ED655 Plus or ED1150 Plus equipment.
Select the Assembly
Choose the pump, hopper, suction set, hydraulic system, final assembly or gun category that matches your repair.
Match the OEM Number
Compare the factory diagram reference, product description and complete Titan part number.
Order the Replacement
Review product details, quantities and compatibility before placing your order.
Preventive Maintenance
Maintain Your Titan SprayTech Diaphragm Airless Sprayer
Flush the Fluid System
Clean the equipment after spraying using the manufacturer's approved procedure and coating-compatible cleaning materials.
Inspect Intake Components
Check applicable suction hoses, hopper screens and fittings for restrictions, wear and damage.
Monitor Pump Performance
Investigate poor priming, fluctuating pressure and abnormal operating conditions before further use.
Check Seals and Connections
Inspect accessible connections for damage or leakage during authorized maintenance and replace components with verified OEM parts.
Titan SprayTech Model Directory
Browse Related Titan SprayTech Diaphragm Sprayer Parts
Titan ED655 Airless Pump Parts
Shop final assembly, hopper, paint pump and G-10 spray gun parts.
Titan ED1075 Pro Pak Parts
Find main assembly, paint pump, hydraulic pump, hopper and suction set parts.
Titan ED655 Plus Airless Pump Parts
Browse diaphragm pump, pump head, hopper and main assembly parts.
Titan ED1150 Plus Sprayer Parts
Explore paint pump, suction set, final assembly and accessory parts.
Titan SprayTech Diaphragm Sprayer Service Safety
Before inspecting pumps, valves, hoses, seals or other sprayer components, switch off the equipment, disconnect its electrical power source and follow the complete manufacturer pressure-relief procedure. Never loosen pressurized fittings or attempt to stop a high-pressure fluid leak with your hand. High-pressure fluid injection injuries require immediate emergency medical attention. Follow the service manual for your specific Titan model when disassembling and replacing parts.
Genuine Titan SprayTech OEM Replacement Parts
Find Your Titan SprayTech Diaphragm Sprayer Parts Today
Shop genuine Titan diaphragm pump components, valve parts, seals, hopper assemblies, suction components and model-specific repair parts. Select your sprayer model to find the correct OEM replacement.
Shop SprayTech Diaphragm Sprayer PartsFrequently Asked Questions
Titan SprayTech Diaphragm Sprayer Parts FAQ
Where can I buy genuine Titan SprayTech diaphragm sprayer parts?
You can shop genuine Titan SprayTech diaphragm sprayer replacement parts at AllTitanParts. Select your model and browse the corresponding OEM assembly categories.
Which Titan SprayTech diaphragm sprayer models are listed?
The category includes Titan ED655 Airless Pump, ED1075 Pro Pak, ED655 Plus Airless Pump and ED1150 Plus Airless Sprayer.
What parts are available for the Titan ED655 Airless Pump?
The ED655 model directory includes Final Assembly, Hopper Assembly, Paint Pump Assembly and G-10 Spray Gun categories.
What assemblies are listed for the Titan ED1075 Pro Pak?
The ED1075 Pro Pak directory includes Main Assembly, Paint Pump, Hydraulic Pump, Hopper Assembly, Suction Set and Optional Suction Set categories.
Where can I find Titan ED655 Plus diaphragm pump parts?
Browse the ED655 Plus Airless Pump model page and select the Diaphragm Pump category identified as P/N 0555124.
What parts categories are available for the ED1150 Plus?
The ED1150 Plus directory includes Final Assembly, Paint Pump Assembly, Suction Set Assembly and Airless Sprayer Accessories Parts.
How does a diaphragm airless sprayer pump work?
A diaphragm pumping mechanism displaces coating material through the fluid system while valve components control the direction of flow.
Why is my Titan SprayTech diaphragm sprayer not priming?
Possible causes include material supply restrictions, air entering suction connections, contaminated valves or pump component wear. Follow the model-specific troubleshooting procedure to identify the cause.
Can a worn diaphragm cause reduced spray pressure?
A damaged diaphragm may affect pumping performance. However, restrictions, valve wear, leakage and other problems can produce similar symptoms, so diagnose the system before replacing parts.
Are parts interchangeable between ED655 and ED655 Plus sprayers?
Do not assume interchangeability. Verify the exact OEM part number and manufacturer-supported compatibility for your equipment configuration.
How do I find the correct Titan SprayTech replacement part number?
Confirm the sprayer model and serial number, select the appropriate assembly diagram and match the diagram reference to the complete OEM part number.
Who can help identify a Titan SprayTech diaphragm sprayer part?
Contact AllTitanParts at 713-931-0006. Have your model, serial number, diagram reference and any existing part number available.
Titan SprayTech OEM Parts Assistance
Need Help Finding Titan SprayTech Diaphragm Sprayer Parts?
Our parts team can help identify the correct replacement for your Titan ED655, ED1075 Pro Pak, ED655 Plus or ED1150 Plus. Have your model, serial number and factory parts diagram reference ready.
713-931-0006
