Shop Titan ED655 Airless Pump Replacement Parts
Find the components your repair requires with Titan ED655 Airless Pump replacement parts from AllTitanParts. Explore the final assembly, hopper assembly, paint pump assembly and G-10 spray gun categories. Identify the required component, compare its part number and review the product details before ordering.
ED655 Parts Overview
Find the Right Replacement Part for Your Repair
A targeted repair begins with identifying the affected component. This ED655 parts directory groups replacement items by assembly, helping you narrow your search and compare the relevant drawing with your equipment.
Record the model and serial information before shopping. If your equipment has been modified or repaired previously, check the installed components as well. Match the part number, diagram position and product description rather than relying on appearance alone.
Shop by Assembly
Explore Titan ED655 Airless Pump Parts Categories

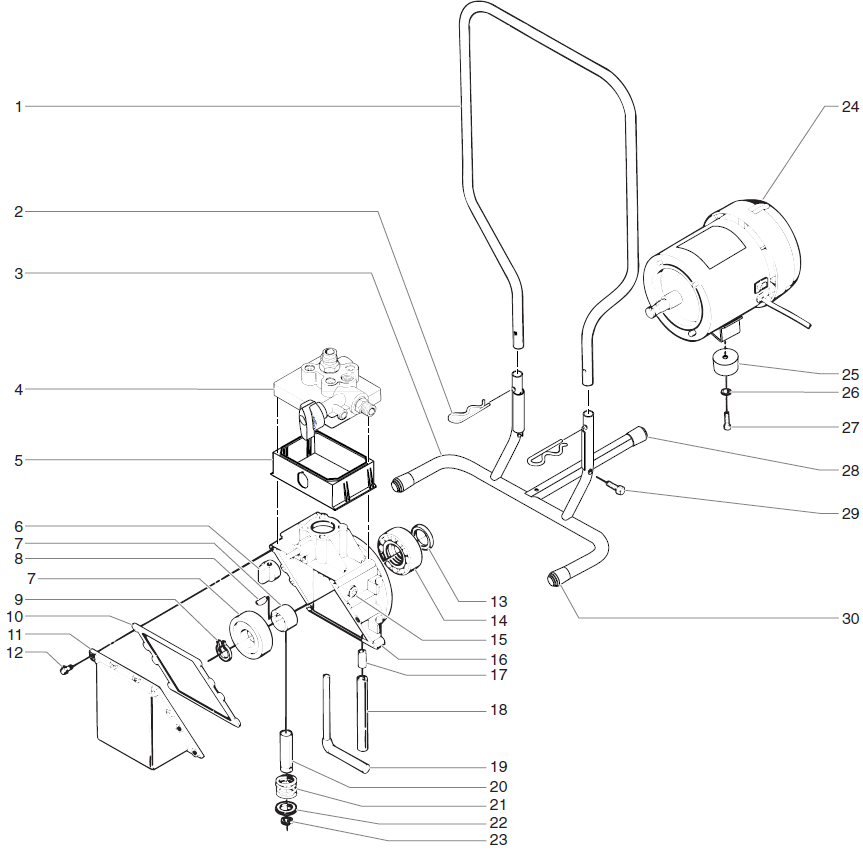

Titan ED655 Final Assembly
Browse the final assembly category for pressure-control, mechanical and support components. Use the corresponding drawing to locate the item involved in your repair and confirm its individual replacement number.

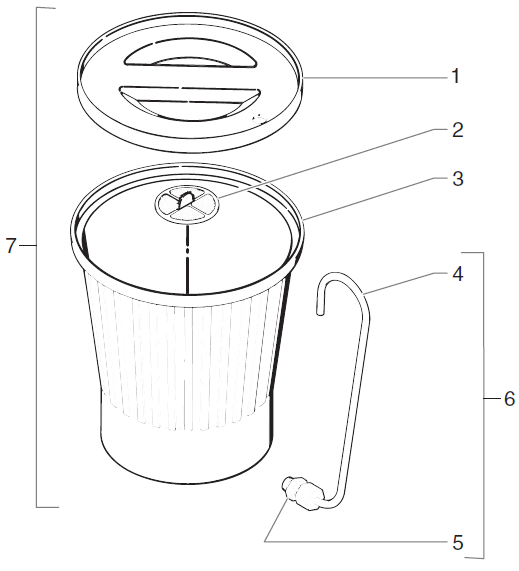

Titan ED655 Hopper Assembly
Find hopper, screen and return tube components in the hopper assembly category. Check the specified screen type and connection arrangement before selecting a replacement.

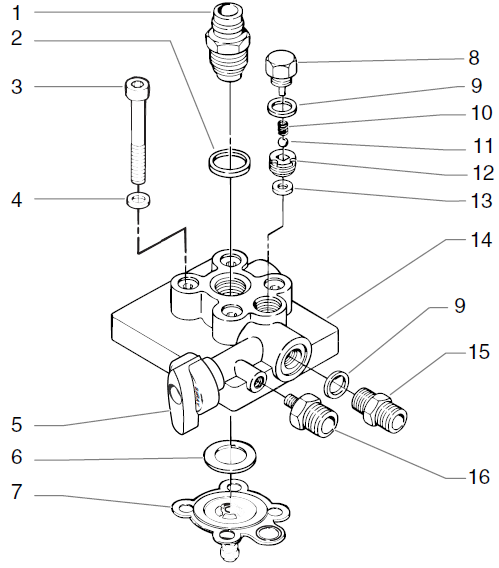

Titan ED655 Paint Pump Assembly
Explore the paint pump assembly when identifying components involved in pumping and fluid handling. Diagnose the operating fault first, then match the required item to the assembly drawing.

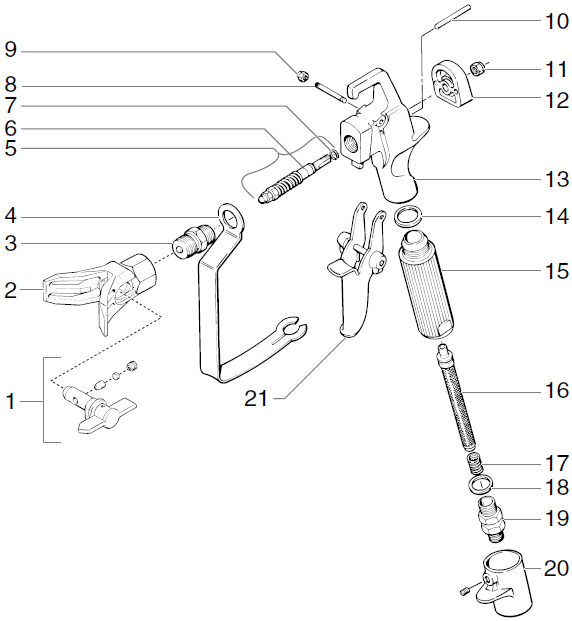

Titan ED655 G-10 Spray Gun
Browse replacement components for the G-10 spray gun. Confirm the model of the gun actually fitted to your equipment, especially if it has been replaced during an earlier service.
Replacement Parts Buying Guide
How to Choose the Correct Titan ED655 Part
01
Confirm the Equipment
Check the pump model and serial information. For gun repairs, identify the spray gun separately.
02
Diagnose the Fault
Follow the manufacturer's troubleshooting procedure to establish which component requires attention.
03
Match the Part Number
Compare the diagram reference, product description and any applicable replacement-number information.
04
Review Your Order
Check quantities and included items. A category name does not mean each product contains a complete assembly.
Inspection and Troubleshooting
Inspect the System Before Replacing Parts
Reduced flow, poor priming and inconsistent spraying can have several causes. Material supply restrictions, leakage, contamination and worn components may produce similar symptoms. Follow the recommended diagnostic sequence before deciding which part to replace.
For visible damage, compare the affected component with its assembly drawing. Avoid selecting seals, springs or threaded fittings by appearance alone. Dimensions, materials and installation requirements determine whether a replacement is suitable.
Routine Maintenance
Care for Your ED655 Between Painting Jobs
Follow the prescribed cleaning and flushing procedure after spraying. Inspect accessible screens and fluid connections as directed, using cleaning materials suitable for the coating and equipment.
Prepare the equipment for storage according to the manufacturer's instructions. Keep a record of service dates, repairs and installed part numbers so future maintenance begins with accurate information.
Relieve Pressure Before Servicing Your ED655
Switch off the equipment, disconnect electrical power and complete the manufacturer's pressure-relief procedure before opening fluid components or removing fittings. Switching off alone does not eliminate trapped pressure. Never loosen a pressurized connection or use your hand to stop a fluid leak. Follow the service instructions for reassembly and restart.
Find the Component Your Repair Requires
Order Titan ED655 Airless Pump Parts
Choose the relevant assembly category, confirm the replacement number and review the product details before checkout.
Browse Titan ED655 Replacement PartsFrequently Asked Questions
Titan ED655 Airless Pump Parts FAQ
Is this page for a complete pump or replacement parts?
This page is an ED655 replacement-parts directory. Browse the assembly categories and check individual product descriptions to confirm exactly what each purchase includes.
How do I identify the correct ED655 replacement part?
Confirm the model and serial information, locate the component in the appropriate assembly drawing and match its part number. Review any replacement-number details before ordering.
Where should I look for hopper components?
Start with the ED655 Hopper Assembly category. Compare the required component with the drawing and individual product details.
Does poor priming always mean the paint pump needs replacement?
No. Material supply restrictions, air leaks and valve problems can cause similar symptoms. Follow the manufacturer's troubleshooting instructions to establish the cause before replacing components.
Can I choose a replacement filter screen by appearance?
Use the specified part number and screen type. Similar-looking screens may have different filtration characteristics and should not be assumed interchangeable.
Will G-10 parts fit every spray gun used with an ED655?
Check the gun model itself. If a different spray gun has been fitted, select replacement components for that model rather than relying only on the pump identification.
What information helps when requesting parts assistance?
Provide the equipment model, serial number, diagram reference and existing part number. A clear photograph of the component may also help with identification.
ED655 Parts Assistance
Need Help Identifying a Titan ED655 Part?
Have your model, serial number, assembly reference and existing part number ready when contacting AllTitanParts.
