Paint Pump Assembly Overview
Plan a Targeted ED655 Pump Repair
Poor priming, reduced delivery and fluid leakage can have several causes. Identifying the fault before selecting parts helps you focus the repair on the components that actually require attention.
Compare the assembly drawing with your installed equipment. Check component numbers, sealing requirements and included items before purchasing. A product listed within an assembly category should not be assumed to contain the entire pump or every part needed for a rebuild.
OEM Parts Directory
Titan ED655 Paint Pump Assembly Parts List

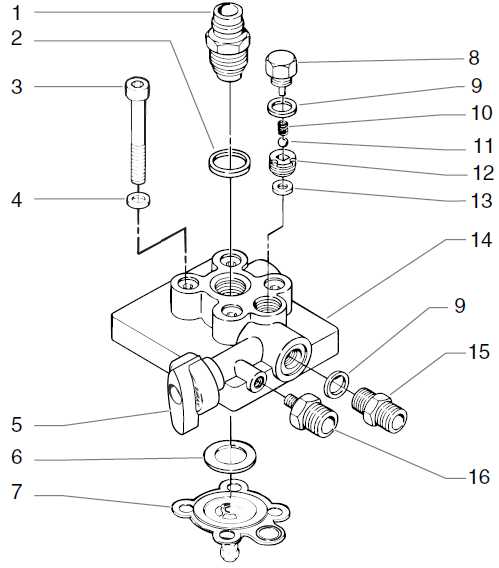

Use the diagram reference and part number together to identify your replacement.
| Diagram Ref. | Titan Part Number | Component |
|---|---|---|

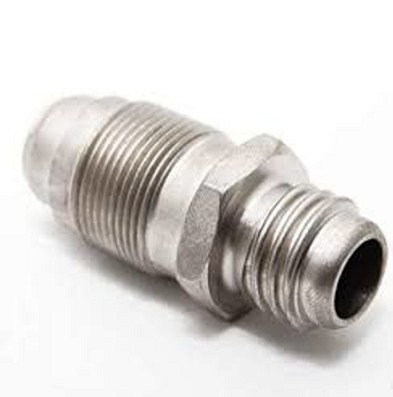

| 1 | 0270526 | Suction Valve Assembly |

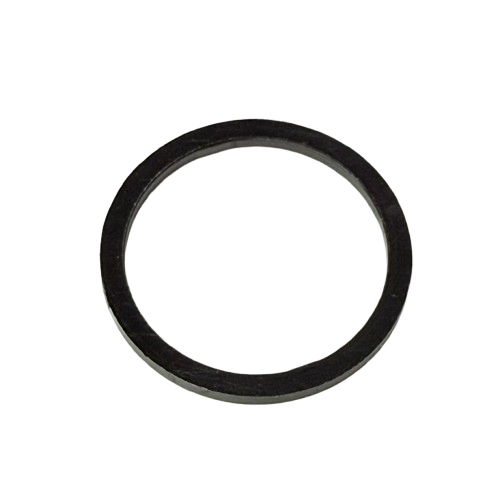

| 2 | 0089482 | Nylon Sealing Washer |

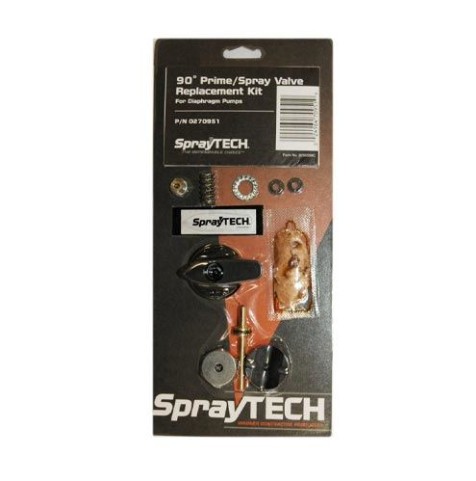

| 5 | 0270951 | Prime/Spray Valve Kit |
| 6 | 0270494 | Diaphragm Ring |

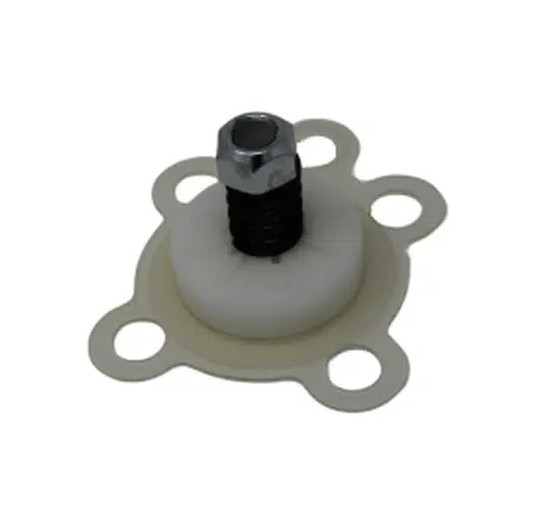

| 7 | 0288771 | Diaphragm Assembly |
| 8 | 0089564 | End Cap |

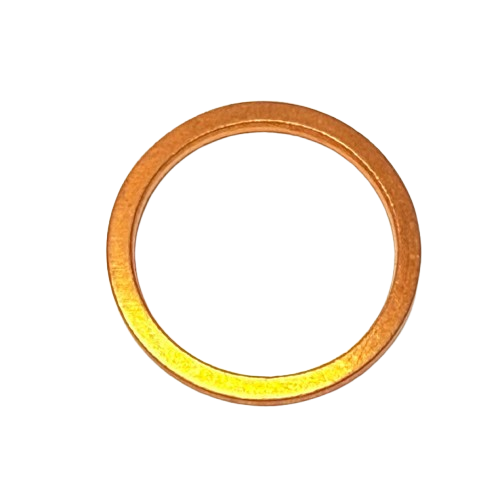

| 9 | 9970103 | Seal Washer |

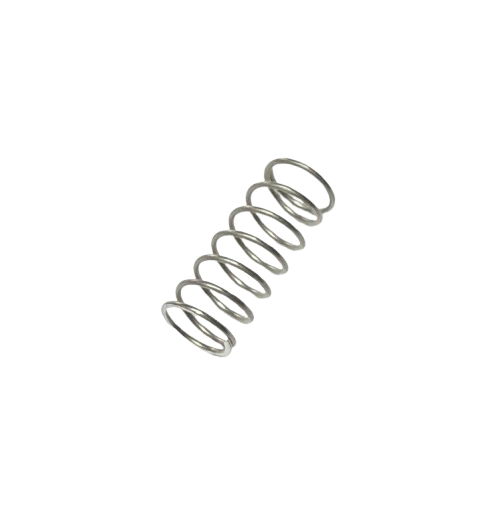

| 10 | 0047485 | Outlet Spring |

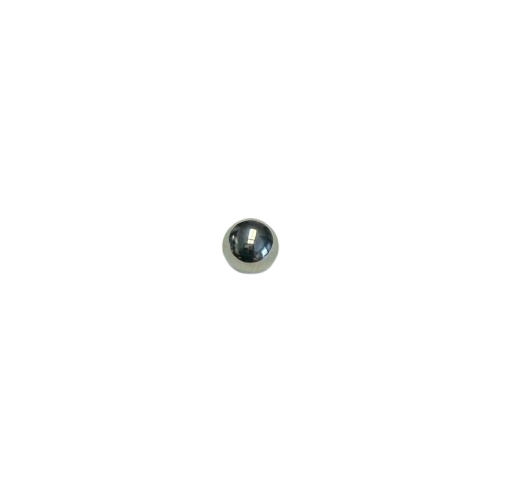

| 11 | 0093635 | Outlet Ball |

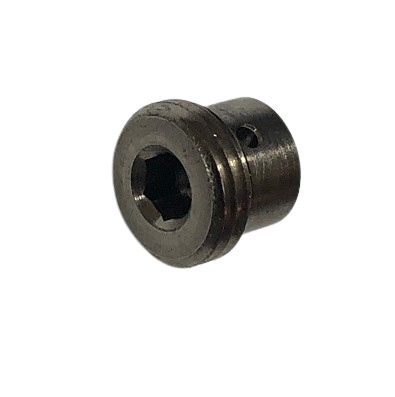

| 12 | 0270291 | Outlet Valve Seat |

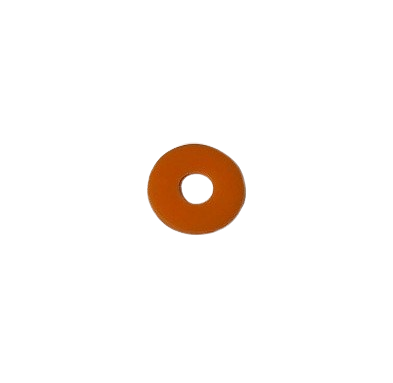

| 13 | 0089494 | Outlet Seat Seal |

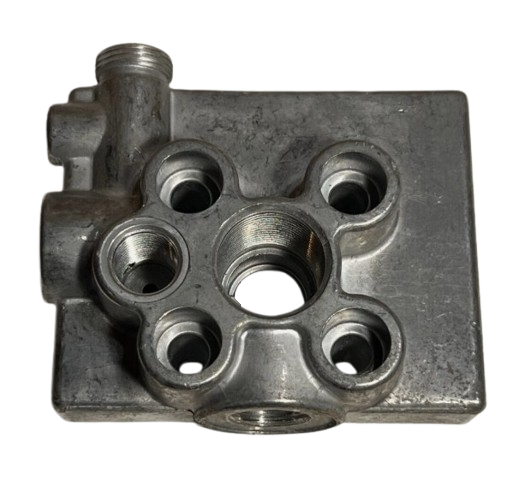

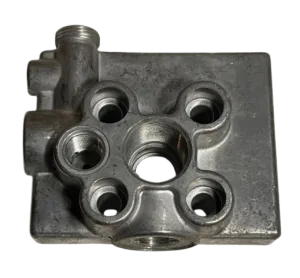

| 14 | 0270460 | Block, Low Profile, Imp |

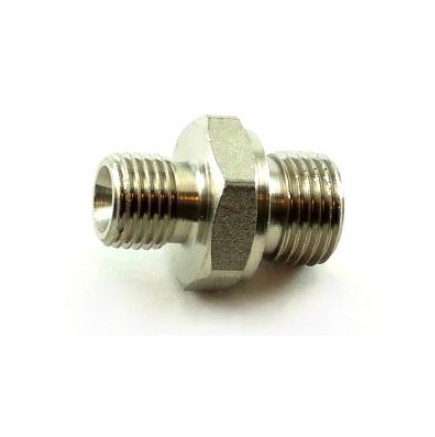

| 15 | 0288379 | Outlet Fitting |
References 3 and 4 are not included in this product directory. Confirm any unlisted component before ordering.
Inspection Before Replacement
Check Valves, Seals and Pump Components
Valve Condition
Contamination or wear can affect valve operation. Follow the prescribed diagnostic procedure to determine whether cleaning, servicing or replacement is required.
Diaphragm Components
Inspect diaphragm-related components only as directed by the service instructions. Correct placement and assembly procedures matter when restoring the pump to operation.
Sealing Parts
Check seals and washers for damage during service. Use the specified replacement for each location rather than substituting a similar-looking component.
Connections and Threads
Inspect threaded connections and sealing surfaces according to the manufacturer's instructions. Diagnose leakage before deciding which fitting or associated component needs replacement.
Replacement Parts Buying Guide
Choose the Correct ED655 Paint Pump Part
- Confirm your equipment. Record the model and serial information before selecting components.
- Identify the repair. Follow the troubleshooting procedure to establish the affected component.
- Match the drawing. Compare the diagram reference, part number and product description.
- Review included items. Check required quantities and whether seals or related hardware must be purchased separately.
Routine Equipment Care
Keep the Fluid System Clean Between Jobs
Follow the recommended cleaning and flushing procedure after spraying. Use materials suitable for the coating and equipment, and inspect accessible supply components as directed.
Address recurring leakage, poor priming or reduced flow before returning the equipment to service. Keep a record of repairs and installed replacement numbers to simplify future maintenance.
Related Titan ED655 Parts
Explore Other ED655 Assembly Categories
Relieve Pressure Before Paint Pump Service
Switch off the equipment, disconnect electrical power and complete the manufacturer's pressure-relief procedure before opening the pump or removing fluid connections. Switching off alone does not eliminate trapped pressure. Never loosen a pressurized fitting or use your hand to stop a fluid leak. Follow the service instructions for installation, reassembly and restart.
Find the Component Your Repair Requires
Order Titan ED655 Paint Pump Parts
Match your component to the assembly drawing and review its replacement details before checkout.
Shop ED655 Paint Pump Assembly PartsFrequently Asked Questions
Titan ED655 Paint Pump Assembly FAQ
Does this category include a complete pump with every purchase?
This category contains individual replacement products. Check the selected item's description to confirm exactly what is included.
How do I identify the correct replacement component?
Confirm the equipment model, locate the component in the assembly drawing and match its part number and description before ordering.
Does poor priming always require a new diaphragm?
No. Supply restrictions, leakage and valve problems may cause similar symptoms. Follow the manufacturer's diagnostic procedure before selecting replacement parts.
Can I substitute a washer or seal that looks similar?
Appearance does not establish suitability. Use the specified replacement for the installation location and follow its assembly requirements.
Should I replace every outlet component at once?
Follow the service procedure and inspection findings. Review the condition of associated components and any instructions requiring parts to be replaced together.
What information helps with parts identification?
Provide the model, serial number, diagram reference and existing part number. A clear component photograph may also help identify the required replacement.
