Genuine Titan OEM | Spray Gun Replacement Components
Shop Titan ED655 G-10 Spray Gun Parts
Find replacement components for your Titan ED655 G-10 Spray Gun at AllTitanParts. Browse the parts directory, compare diagram references and select the item your repair requires. Check the installed gun model and individual product details before ordering.
G-10 Parts Overview
Choose the Component Your Spray Gun Repair Needs
A targeted repair starts with identifying the damaged or worn component. Use the assembly drawing to locate the item, then compare its replacement number and description with the part fitted to your gun.
If the original spray gun has been replaced, select components for the installed gun model. The pump model alone does not establish compatibility with every gun or accessory connected to the equipment.
Replacement Parts Directory
Titan ED655 G-10 Spray Gun Parts List
Match these references to the exploded drawing and review the selected product before checkout.
| Diagram Ref. | Part Number | Description |
|---|---|---|
| 10 | 0149705 / 149705 | Valve Union Assembly, replaces Titan 149700 |
| 11 | 9910201 | Lock Nut |

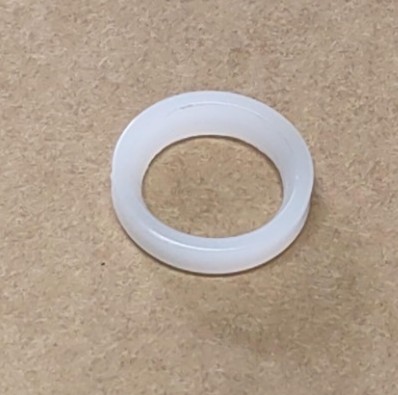

| 14 | 0043303 | Handle Sealing Washer |
| 15 | 0149370 | Handle |
| 17 | 0043590 | Spring |
| 18 | 9970123 | Handle Ring |
| 19 | 0347706A | Swivel Joint Assembly, replaces Titan 580-530 |

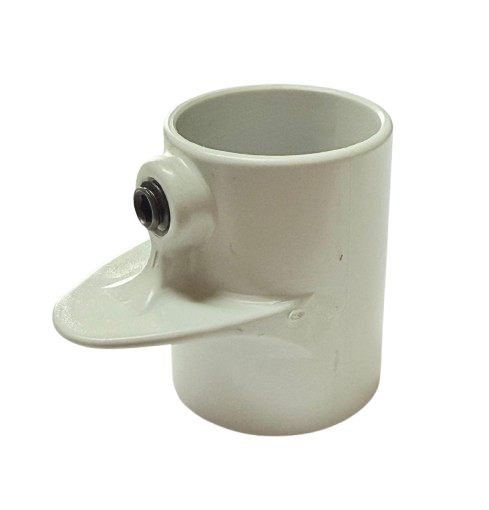

| 20 | 0279185 | Collar Assembly, 2-Finger Gun |
The valve union product title uses 0149705, while its part-number field displays 149705. Confirm the selected product and replacement details before purchasing.
Inspection Before Replacement
Check Connections, Seals and Operating Components
Connections and Swivel
Inspect connection components according to the service instructions. Damaged threads, physical wear or leakage require diagnosis before deciding which part to replace.
Handle and Sealing Components
Check the handle and associated components for damage and correct assembly. Match sealing parts by their specified number rather than substituting a similar-looking washer.
Spring and Retaining Hardware
Verify the condition and placement of mechanical components. Use the prescribed replacement and assembly procedure rather than general-purpose hardware.
Parts Buying Guide
How to Select Your G-10 Replacement Part
- Identify the gun. Confirm the model fitted to your equipment.
- Establish the fault. Follow the manufacturer's diagnostic procedure before ordering.
- Compare the diagram. Match the component's position, part number and description.
- Review included items. Check quantities and replacement references. Individual components should not be assumed to include a complete repair kit.
Routine Gun Care
Clean and Inspect Your Spray Gun Between Jobs
Follow the recommended cleaning procedure after spraying. Use cleaning materials suitable for the coating and equipment, and inspect accessible components as directed by the manufacturer.
Address recurring leakage, damaged connections or abnormal operation before returning the gun to service. Keep a record of installed replacement numbers to simplify future parts identification.
Related ED655 Categories
Browse More Titan ED655 Replacement Parts
Relieve Pressure Before Spray Gun Service
Switch off the equipment and complete the manufacturer's pressure-relief procedure before removing gun components or disconnecting the hose. Switching off alone does not eliminate trapped pressure. Never point the gun at anyone or use your hand to stop a fluid leak. Follow the service instructions for reassembly and safe restart.
Find Your Replacement Component
Order Titan ED655 G-10 Spray Gun Parts
Compare the diagram reference, confirm the required part number and review your replacement before checkout.
Shop ED655 G-10 Gun PartsFrequently Asked Questions
Titan ED655 G-10 Spray Gun Parts FAQ
Is this page for a complete spray gun?
This category contains individual replacement components. Review each product description to confirm exactly what is included with your purchase.
How do I choose the correct replacement?
Confirm the installed gun model, locate the component in the assembly drawing and compare its part number and description before ordering.
Can these parts be selected using only the pump model?
Check the gun itself as well. A different gun may have been fitted, and its replacement components may differ from those in this category.
Does leakage always mean the swivel needs replacement?
No. Leakage can arise from several components or connections. Relieve pressure and follow the appropriate diagnostic procedure before selecting a replacement.
What information helps when requesting parts assistance?
Provide the gun model, diagram reference and existing part number. A clear photograph of the component can also help with identification.
Need Help Identifying a G-10 Gun Part?
Have the gun model and component reference ready when contacting AllTitanParts.
713-931-0006
