Shop Titan ED655 Final Assembly Parts
Find the replacement component your repair requires with Titan ED655 Final Assembly parts from AllTitanParts. Compare the assembly drawing with your equipment, identify the affected item and select its matching part number before ordering.
Final Assembly Overview
Plan Your ED655 Repair Around the Correct Component
A damaged control, worn mechanical component or missing retaining item requires accurate identification before replacement. Use the assembly drawing to establish the component's location, then compare the product description with the installed part.
Record your equipment model and serial information before shopping. Check any previous repairs or modifications that may affect selection, and review the product contents rather than assuming an individual item includes a complete assembly.
OEM Parts Directory
Titan ED655 Final Assembly Parts List

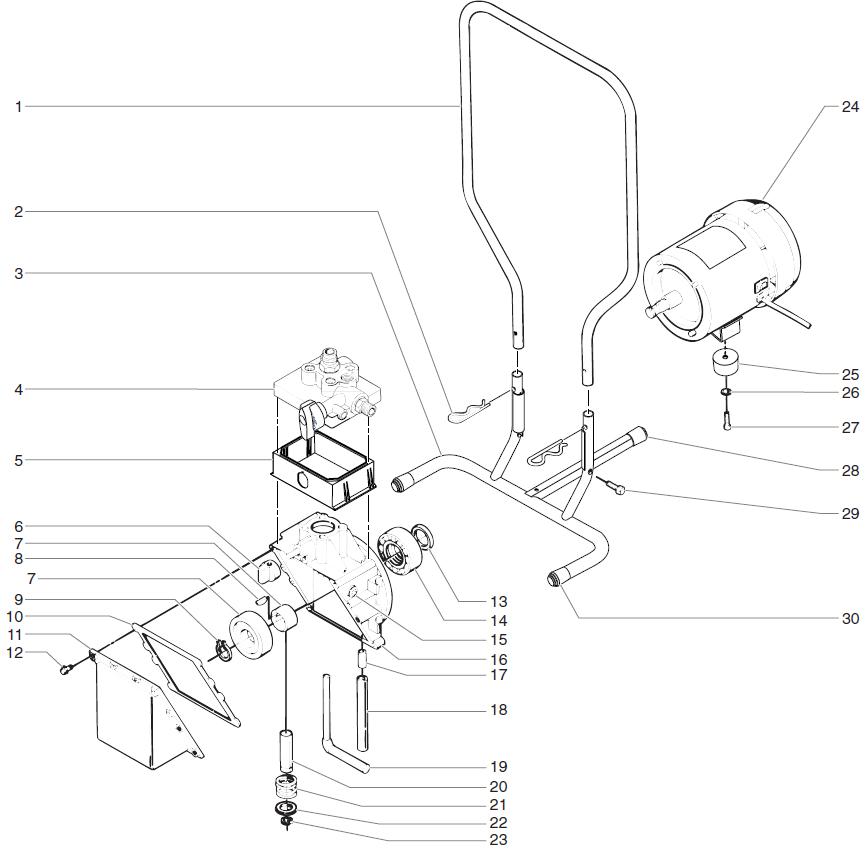

Match the diagram reference and replacement number when selecting your part.
| Diagram Ref. | Titan Part Number | Component |
|---|---|---|
| 6 | 0288775 | Pressure Control Knob |
| 7 | 0090031 | Eccentric Sleeve and Bearing Assembly |
| 8 | 0089829 | Shaft Key |
| 9 | 0047393 | Retaining Ring |
| 13 | 0089930 | Seal |
| 21 | 0005311 | Piston Spring |
| 22 | 0270548 | Piston Washer |
| 23 | 0089456 | Retainer |
| 25 | 0090628 | Foot Pad, 1.5-inch Diameter |
The directory covers the nine displayed products. Gaps in the reference sequence do not establish that other components are included or available.
