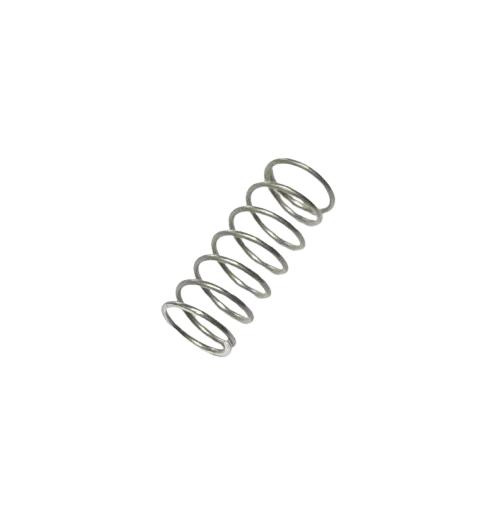

Titan 0047485 Outlet Spring
OEM Titan Valve Component
Titan 0047485 Outlet Spring is a genuine OEM spring that provides the precise closing tension for the outlet valve in compatible HVLP Airspray, AirCoat, and SprayTech sprayer pumps. It restores proper valve sealing and prevents pressure loss when the original spring is weak, broken, or fatigued.
Compatibility
Replace if the pump cannot build or maintain pressure, loses prime when stopped, surges during operation, or the spring is visibly weak or broken. Inspect the ball and seat during replacement.
Titan Outlet Spring Replacement
Titan 0047485 Outlet Spring for HVLP and SprayTech Sprayer Pumps
Titan 0047485 is a critical component within the outlet valve assembly of compatible sprayer pumps. The spring provides the necessary force to close the outlet valve securely after each pressure stroke, working with the valve ball or seat to maintain system pressure and prevent backflow.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine OEM outlet spring manufactured from corrosion-resistant steel and engineered to precise specifications for consistent tension over millions of cycles. |
| Function | Provides force to close the outlet valve securely after each pressure stroke. Works with the valve ball or seat to ensure a positive seal, preventing backflow of fluid into the pump and maintaining system pressure. |
| Manual-Documented Application | SprayTech ED655 Plus. The parts list identifies 0047485 as the outlet spring. The ED655 and ProFinish AS1130 owner's manuals describe the outlet valve spring and state it must be replaced with the correct part number because it is manufactured to a very specific tension. |
| Catalog-Listed Applications | Titan ProFinish AS1130, AirCoat; SprayTech ED655, ED1075. Cross-referenced as Wagner part 47485 for 404Plus, 505, 833, 848. Confirm exact model and serial number. |
| Replacement Indicators | Unable to build or maintain pressure, pump loses prime when stopped, pressure surges during operation, or the spring is visibly weak, broken, or has lost tension. |
| Related Parts Commonly Serviced Together | Outlet valve ball and seat (replace if worn), outlet valve seal, valve cage or housing (check for damage), and copper seal washer 9970103. |
| Installation Note | Inspect the valve ball and seat for wear and clean the valve area of debris. Do not substitute an unauthorized spring; use the correct OEM part to ensure proper tension and sealing. |
| Target Users / Markets | Painting contractors, rental fleets, maintenance crews, and repair shops running compatible AirCoat and SprayTech sprayers. |
| Commercial Benefits | Restores proper valve closing force, maintains system pressure, prevents backflow, ensures reliable priming, and eliminates surging during operation. |
The 0047485 Outlet Spring is a precision-tensioned component, not a generic hardware spring. Before ordering, confirm the part number in the machine parts diagram. The manufacturer specifies this spring's tension; do not substitute an unauthorized spring, as incorrect tension can cause valve leakage or pressure loss.
