Shop Titan ED1150 Plus Airless Sprayer Parts
Keep your painting equipment performing reliably with genuine Titan ED1150 Plus Airless Sprayer Parts from AllTitanParts. Explore OEM replacement components for the final assembly, paint pump assembly, suction set assembly and sprayer accessories. Whether you are repairing a fluid delivery problem, replacing a damaged component or maintaining your equipment between projects, our organized assembly categories help you identify and order the parts your sprayer needs.
Titan ED1150 Plus Overview
Buy Genuine Titan ED1150 Plus Airless Sprayer Replacement Parts
The Titan ED1150 Plus Airless Sprayer is designed to deliver coating material through a pressurized airless spraying system. Like other professional spraying equipment, its performance depends on the condition of the pump, fluid supply components, connections and associated operating hardware.
Regular use, abrasive coatings, dried paint, contamination and normal component wear can affect priming, fluid delivery and spray consistency. Identifying the affected assembly is an important first step toward an accurate repair.
AllTitanParts organizes ED1150 Plus replacement parts into four dedicated sections: Final Assembly Parts, Paint Pump Assembly Parts, Suction Set Assembly Parts and Airless Sprayer Accessories Parts. Each section helps narrow your search to the relevant area of the sprayer, reducing guesswork when locating OEM replacement components.
OEM Assembly Directory
Titan ED1150 Plus Airless Sprayer Parts Diagram and Assembly Categories
Select the assembly that corresponds to the component you need to repair or replace.
| Assembly Category | Primary Area | When to Browse |
|---|---|---|
| ED1150 Plus Final Assembly Parts | Main equipment structure and final assembly components | When identifying damaged, worn or missing parts in the overall sprayer assembly. |
| ED1150 Plus Paint Pump Assembly Parts | Paint pumping and fluid delivery components | When investigating pump wear, leakage, reduced output or pressure delivery problems. |
| ED1150 Plus Suction Set Assembly Parts | Material intake and suction connections | When repairing material intake restrictions, suction leaks or damaged supply components. |
| ED1150 Plus Airless Sprayer Accessories Parts | Model-related accessories and supporting equipment | When locating applicable accessories or additional equipment components. |
Featured ED1150 Plus Assemblies
Find the Right Titan ED1150 Plus Replacement Parts by Assembly
Assembly 01

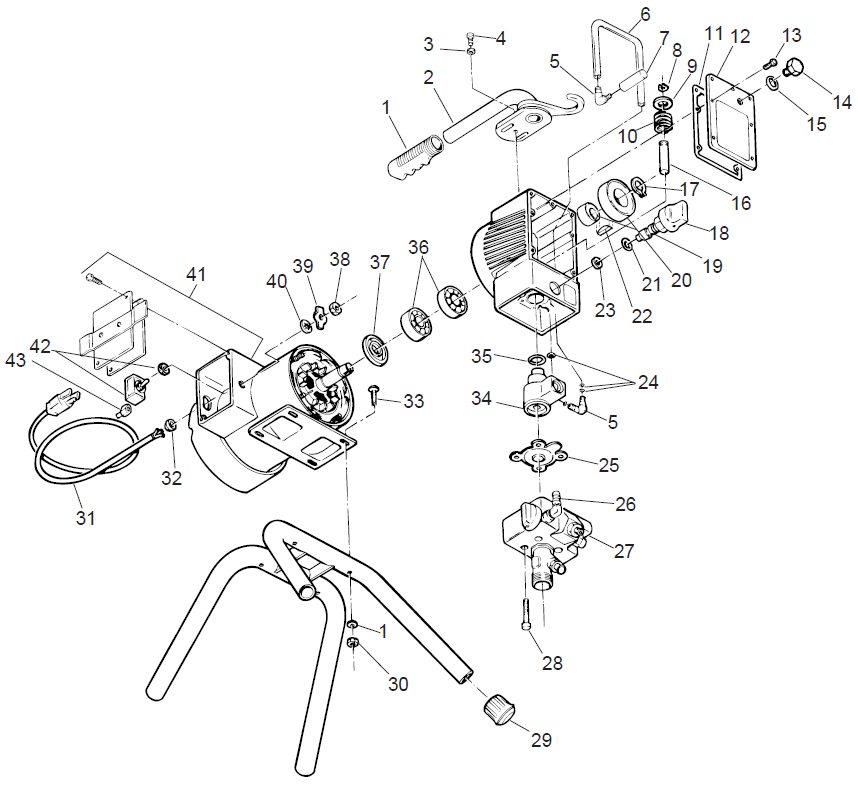

Titan ED1150 Plus Final Assembly Parts
Browse the ED1150 Plus Final Assembly Parts category when repairing the sprayer's overall equipment structure and associated mechanical components.
Use the assembly diagram to identify the required component, confirm its original Titan part number and select the appropriate replacement.
Shop Final Assembly PartsAssembly 02

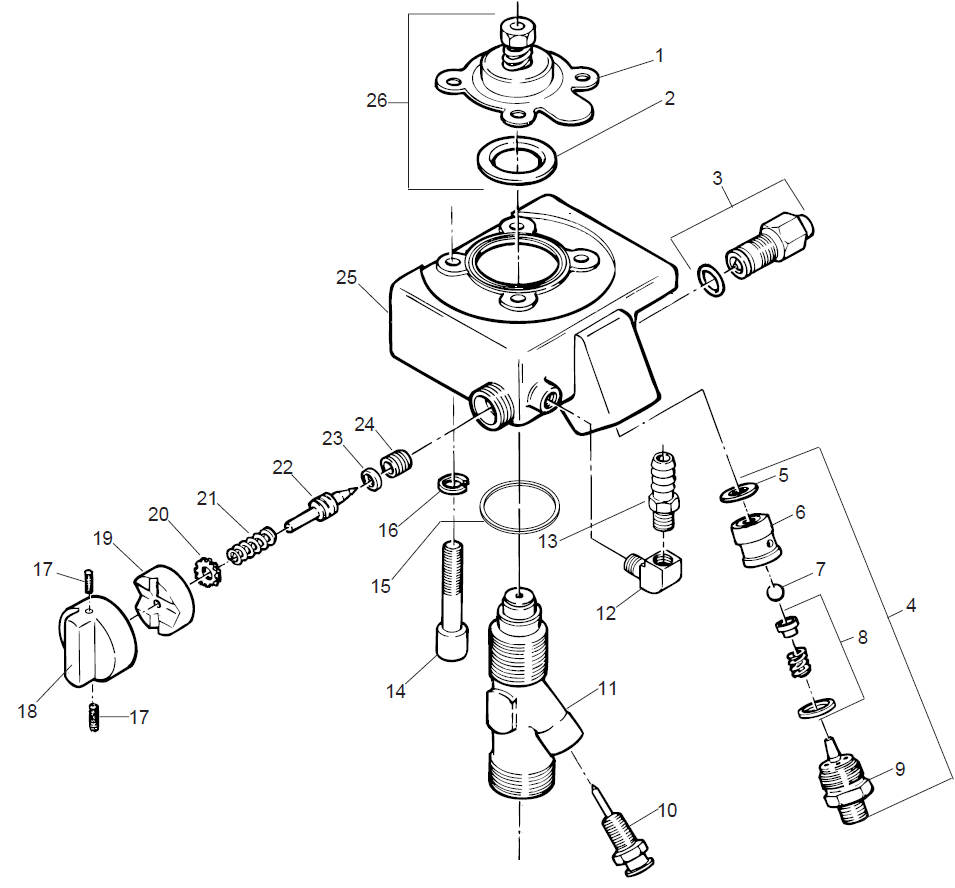

Titan ED1150 Plus Paint Pump Assembly Parts
The ED1150 Plus Paint Pump Assembly contains components associated with moving coating material through the pumping system.
Browse this category when diagnosing fluid delivery issues, pump leakage or wear affecting pumping performance. Confirm the exact replacement using the illustrated parts breakdown.
Shop Paint Pump PartsAssembly 03

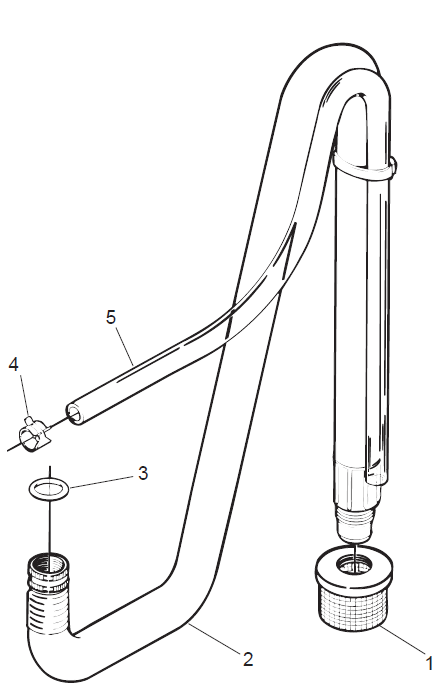

Titan ED1150 Plus Suction Set Assembly Parts
The ED1150 Plus Suction Set Assembly supports the movement of coating material from its supply container toward the pump intake.
Check this section for suction-related replacement components when troubleshooting poor priming, restricted material intake or damage to the supply path.
Shop Suction Set PartsAssembly 04
Titan ED1150 Plus Airless Sprayer Accessories Parts
Browse ED1150 Plus Airless Sprayer Accessories Parts for model-related accessory components and additional equipment items listed for the sprayer.
Compare each accessory's description, part number and application requirements before purchasing.
Shop Sprayer AccessoriesSprayer System Overview
How the Titan ED1150 Plus Airless Sprayer System Works
Material Intake
The suction system supplies compatible coating material to the pump from the material container.
Paint Pumping
The paint pump moves coating material through the sprayer's pressurized fluid system.
Fluid Delivery
Pressurized material travels through the applicable fluid connections toward the spray equipment.
Spray Application
The airless spray system atomizes coating material at the spray tip for application to the prepared surface.
Troubleshooting and Repair
Common Titan ED1150 Plus Airless Sprayer Problems
Use the symptoms below to identify which assembly may require inspection. The same symptom can have several causes, so follow the applicable Titan service documentation before replacing parts.
| Observed Problem | Assembly to Inspect | Recommended Check |
|---|---|---|
| Sprayer will not prime | Suction Set and Paint Pump | Inspect material supply, suction restrictions, air leaks and pump intake operation. |
| Low or inconsistent spray pressure | Paint Pump and Fluid Delivery System | Check pump performance, coating supply, restrictions and applicable pressure controls. |
| Coating leaks around pump components | Paint Pump Assembly | Identify the leak source and inspect the corresponding seals, fittings and pump components. |
| Restricted material intake | Suction Set Assembly | Inspect the intake path for clogged screens, dried coating or damaged suction connections. |
| Damaged or missing equipment hardware | Final Assembly | Compare the affected component with the final assembly diagram and OEM parts list. |
| Poor spray pattern | Paint Pump, Suction Set and Spray Accessories | Check material flow, pressure, spray tip condition and relevant filters. |
OEM Part Identification
Find the Correct Titan ED1150 Plus OEM Part Number
The ED1150 Plus parts directory separates the sprayer into individual assembly groups. This organization helps customers identify a component by its position in the equipment rather than relying only on a general description.
Start with the assembly that matches the repair area. Locate the component in the corresponding illustrated diagram, identify its reference number and confirm the full Titan OEM part number before ordering.
Some components may look similar across different Titan sprayer models. Do not assume that parts from the ED655 Plus, ED1075 or other models are interchangeable with ED1150 Plus components without a confirmed manufacturer cross-reference.
OEM Buying Guide
How to Order the Right Titan ED1150 Plus Airless Sprayer Parts
Confirm Your Sprayer
Verify the Titan ED1150 Plus model and record the identification details on your equipment.
Select the Assembly
Choose Final Assembly, Paint Pump, Suction Set or Accessories according to the repair area.
Match the OEM Number
Use the illustrated parts diagram to confirm the part number and description.
Order Your Replacement
Select the correct part at AllTitanParts and follow the appropriate manufacturer service procedure.
Preventive Maintenance
Keep Your Titan ED1150 Plus Airless Sprayer Ready for Work
Flush the Fluid System
Clean the sprayer according to Titan's instructions after use to reduce dried coating buildup in fluid passages.
Inspect Suction Components
Check the suction path for restrictions, damaged connections and conditions that could introduce air into the material supply.
Monitor Pump Performance
Investigate repeated pressure loss, abnormal noise, leakage or priming difficulties before continued operation.
Inspect Spray Equipment
Check compatible hoses, spray guns, tips and filters for wear, damage or blockage before each project.
Shop Related Titan Parts
Explore Titan ED1150 Plus Parts and Accessories
ED1150 Plus Final Assembly Parts
Find components associated with the sprayer's final assembly and equipment structure.
ED1150 Plus Paint Pump Parts
Browse paint pump replacement components for fluid delivery repairs.
ED1150 Plus Suction Set Parts
Explore suction and material intake components for the ED1150 Plus.
ED1150 Plus Accessories Parts
Shop applicable accessories and related equipment components.
Titan ED1150 Plus Airless Sprayer Service Safety
Before inspecting, disconnecting or replacing sprayer components, turn off the equipment, disconnect its electrical power source and complete the pressure-relief procedure specified by Titan. Never loosen pressurized fittings or attempt to stop a high-pressure fluid leak with your hand. High-pressure fluid injection injuries require immediate emergency medical attention. Use approved replacement components and follow the applicable operating and service instructions.
Genuine Titan ED1150 Plus Replacement Parts
Order Titan ED1150 Plus Airless Sprayer Parts Today
Browse OEM final assembly parts, paint pump components, suction set replacement parts and sprayer accessories. Find the right Titan ED1150 Plus part for your next repair or maintenance project.
Shop ED1150 Plus Sprayer PartsFrequently Asked Questions
Titan ED1150 Plus Airless Sprayer Parts FAQ
Where can I buy Titan ED1150 Plus Airless Sprayer replacement parts?
You can shop Titan ED1150 Plus replacement parts at AllTitanParts. The category organizes OEM components into final assembly, paint pump, suction set and accessories sections.
What assembly categories are available for the Titan ED1150 Plus?
The category contains four assembly groups: Final Assembly Parts, Paint Pump Assembly Parts, Suction Set Assembly Parts and Airless Sprayer Accessories Parts.
What are Titan ED1150 Plus Final Assembly Parts?
They are replacement components associated with the sprayer's overall final assembly. Use the relevant exploded diagram to identify the exact part.
What does the ED1150 Plus Paint Pump Assembly do?
The paint pump assembly supports the movement and pressurized delivery of coating material through the sprayer's fluid system.
What is the ED1150 Plus Suction Set Assembly?
The suction set contains components associated with drawing coating material from its supply container toward the pump intake.
Why is my Titan ED1150 Plus not priming?
Possible causes include an insufficient material supply, suction restrictions, air leaks or problems in the paint pump. Inspect the system using Titan's diagnostic instructions.
What can cause low pressure in an ED1150 Plus sprayer?
Potential causes include pump wear, restricted material intake, clogged filters, worn spray tips or other fluid system problems. The correct repair depends on the diagnosis.
How do I identify the correct ED1150 Plus part number?
Confirm your sprayer model, select the relevant assembly diagram and match the component's diagram reference to the full Titan OEM part number.
Can I buy Titan ED1150 Plus paint pump parts separately?
The dedicated Paint Pump Assembly category allows customers to browse listed replacement components individually. Check the product listing for the specific part required.
Are Titan ED1150 Plus parts interchangeable with other Titan sprayers?
Not necessarily. Similar-looking components may have different dimensions or specifications. Confirm compatibility using the correct Titan OEM part number and manufacturer documentation.
How can I maintain my Titan ED1150 Plus sprayer?
Follow Titan's cleaning and maintenance instructions, inspect the suction system, monitor pump performance and replace worn or damaged components with correctly identified parts.
Who can help me find the correct Titan ED1150 Plus replacement part?
Contact AllTitanParts at 713-931-0006. Have your equipment model, serial number and diagram reference available when requesting part identification assistance.
Titan OEM Parts Assistance
Need Help Finding Titan ED1150 Plus Airless Sprayer Parts?
Have your Titan ED1150 Plus model, equipment serial number and factory diagram reference ready when requesting assistance with OEM part identification or compatibility.
