Shop Titan ED1150 Plus Final Assembly Parts
Restore and maintain your sprayer with genuine Titan ED1150 Plus Final Assembly Parts from AllTitanParts. Find OEM piston springs, pressure control knobs, front cover gaskets, shaft keys, retaining rings, lip seals, O-rings, handles and mounting hardware. Whether you are replacing a worn seal, repairing a damaged control or servicing the mechanical assembly, use the illustrated Titan parts diagram to identify the correct replacement for your ED1150 Plus airless sprayer.
Final Assembly Overview
Buy Genuine Titan ED1150 Plus Final Assembly Replacement Parts
The Titan ED1150 Plus Final Assembly brings together important mechanical, control, sealing and support components used in the sprayer's overall equipment structure. These parts help maintain correct component positioning, protect internal connections and support normal operation of the machine.
With continued use, seals and gaskets may deteriorate, springs may lose their intended characteristics, and mechanical hardware may become worn or damaged. Replacing the affected component with its correctly identified Titan OEM equivalent helps maintain the integrity of the original assembly.
The AllTitanParts category currently lists 10 individual replacement parts, including 590-068 Black Grip Handle, 0005311 Piston Spring, 0089937 Front Cover Gasket, 9800049 Screw, 0047393 Retaining Ring, 0288775 Pressure Control Knob, 0089829 Shaft Key, 0089934 O-Ring, 0294533 Rubber Foot Crutch Tip and 0270524 Lip Seal.
OEM Parts Directory
Titan ED1150 Plus Final Assembly Parts List
Use the diagram reference and OEM part number to identify the exact component required for your repair.
| Diagram Ref. | Titan OEM Part Number | Part Description | Primary Function |
|---|---|---|---|
| 1 | 590-068 | Black Grip Handle | Provides a gripping surface on the designated equipment handle. |
| 10 | 0005311 | Piston Spring | Provides spring force within its designated mechanism. |
| 11 | 0089937 | Front Cover Gasket | Provides a static seal between mating cover surfaces. |

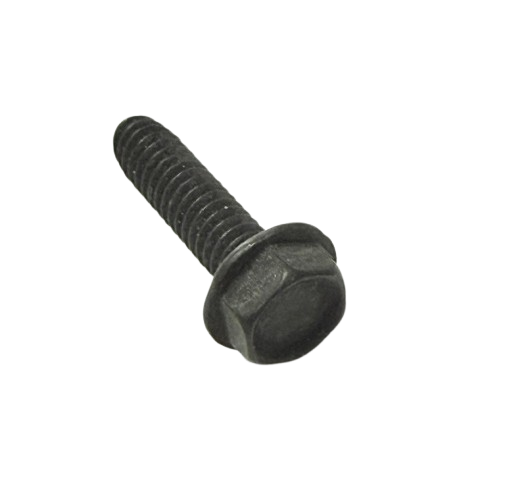

| 13 | 9800049 | Screw | Secures the corresponding assembly components. |
| 17 | 0047393 | Retaining Ring | Retains its designated component in position. |
| 18 | 0288775 | Pressure Control Knob | Provides operator adjustment of the pressure control mechanism. |
| 22 | 0089829 | Shaft Key | Supports mechanical alignment and torque transmission at the keyed shaft connection. |
| 24 | 0089934 | O-Ring | Provides sealing at the specified component interface. |
| 29 | 0294533 | Foot Crutch Tip, Rubber | Protects the designated equipment support contact point. |
| 37 | 0270524 | Lip Seal, 13/16 x 1-5/8 x 1/4 | Provides a sealing interface at its specified installation location. |
Diagram references follow the AllTitanParts category listing and are not consecutive. Match each item with its factory diagram position before ordering.
Featured OEM Components
Shop Titan ED1150 Plus Pressure Controls, Seals, Springs and Hardware
Titan 0288775 Pressure Control Knob
The Titan 0288775 Pressure Control Knob provides the operator interface for adjusting the sprayer's pressure control mechanism. A damaged or missing knob can interfere with normal control operation.
Inspect the knob and its connection when the control is difficult to operate or physically damaged. A replacement knob does not resolve unrelated internal pressure regulation faults.
OEM Part Number: 0288775Titan 0005311 Piston Spring

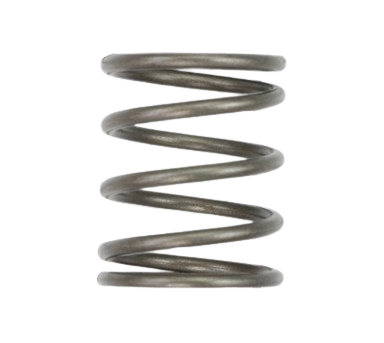

The Titan 0005311 Piston Spring provides spring force within its designated mechanical assembly. Its correct condition and installation are important for the intended movement of the associated components.
Inspect for deformation, corrosion or breakage during authorized servicing and replace only with the specified OEM spring.
OEM Part Number: 0005311Titan 0089937 Front Cover Gasket

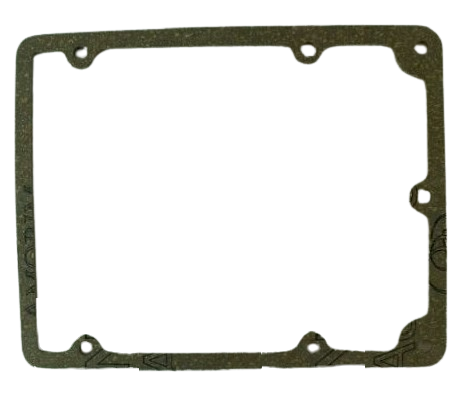

The Titan 0089937 Front Cover Gasket provides a static seal between designated mating surfaces. It helps maintain the intended separation of the enclosed assembly from its surrounding environment.
Inspect the gasket when servicing the front cover or investigating leakage at the corresponding joint.
OEM Part Number: 0089937Titan 0089829 Shaft Key
The Titan 0089829 Shaft Key is a mechanical drive component used at a keyed shaft connection. It helps maintain the intended rotational relationship between connected components.
Check the key and corresponding keyways for wear or damage during drive-related repairs.
OEM Part Number: 0089829Titan 0047393 Retaining Ring
The Titan 0047393 Retaining Ring secures its designated component in position within the assembly.
Replace a bent, cracked or incorrectly fitting retaining ring using the appropriate Titan service instructions and installation tools.
OEM Part Number: 0047393Titan 0089934 O-Ring
The Titan 0089934 O-Ring provides a sealing interface at its specified installation point. Its size and material must match the intended application.
Inspect for cuts, flattening, swelling or deterioration when the relevant assembly is serviced.
OEM Part Number: 0089934Titan 0270524 Lip Seal

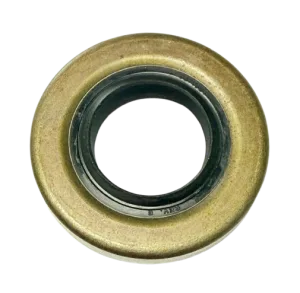

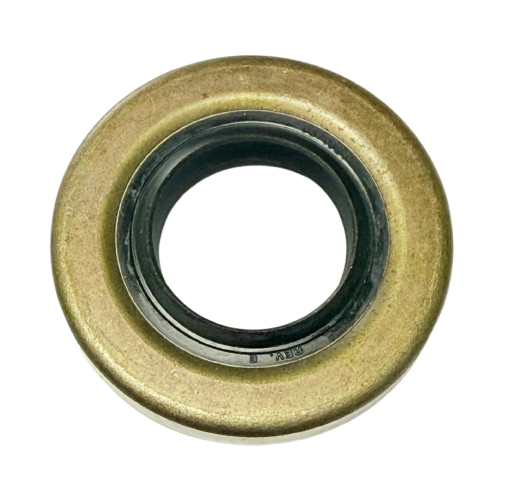

The Titan 0270524 Lip Seal is listed with nominal dimensions of 13/16 x 1-5/8 x 1/4 inches. It provides sealing at its designated mechanical interface.
Check the seal and mating surface for wear or damage. Match the complete OEM part number rather than dimensions alone.
OEM Part Number: 0270524Titan 590-068 Black Grip Handle
The Titan 590-068 Black Grip Handle provides a gripping surface at the designated handle location on the equipment.
Replace a cracked, loose or deteriorated grip when necessary to maintain proper handling.
OEM Part Number: 590-068Assembly Functions
How ED1150 Plus Final Assembly Components Support Sprayer Operation
Pressure Adjustment
The pressure control knob provides a physical interface for adjusting the corresponding control mechanism.
Mechanical Retention
Screws, retaining rings and shaft keys support secure positioning and mechanical connection.
Sealing Protection
Gaskets, O-rings and lip seals provide sealing at their respective assembly interfaces.
Handling and Support
The grip handle and rubber support tip help maintain the intended handling and contact surfaces.
Troubleshooting and Repair
Common Titan ED1150 Plus Final Assembly Problems
Use these symptoms to narrow your inspection. They do not replace the official Titan diagnostic and service procedures.
| Observed Problem | Parts to Inspect | Recommended Check |
|---|---|---|
| Pressure control knob is damaged | 0288775 | Inspect the knob and control connection for physical damage. |
| Leakage at front cover joint | 0089937 | Inspect gasket condition, mating surfaces and applicable fastening requirements. |
| Leakage at a sealed connection | 0089934 and 0270524 | Identify the precise leak location and inspect the corresponding seal. |
| Loose or damaged mechanical connection | 9800049, 0047393 and 0089829 | Inspect the designated fastener, retaining ring or keyed connection. |
| Damaged handle grip | 590-068 | Check for cracks, deterioration or looseness at the grip. |
| Damaged support foot or spring component | 0294533 and 0005311 | Inspect the relevant support tip or spring according to its diagram location. |
OEM Part Number Reference
Identify the Correct Titan ED1150 Plus Final Assembly Replacement
Several ED1150 Plus Final Assembly components perform different mechanical or sealing functions. For example, 0089937 is a Front Cover Gasket, 0089934 is an O-Ring and 0270524 is a Lip Seal. These are separate OEM components and should not be substituted for one another.
Similarly, 9800049 Screw, 0047393 Retaining Ring and 0089829 Shaft Key serve different mechanical retention or drive-related purposes. Their dimensions and installation positions must match the original design.
Use the exploded diagram and full part number for identification. Do not assume that a similar component from another Titan or SprayTech model is interchangeable without a verified manufacturer reference.
OEM Buying Guide
How to Order Titan ED1150 Plus Final Assembly Parts
Verify Your Model
Confirm the ED1150 Plus model and record its identification information.
Check the Diagram
Locate the damaged component in the Final Assembly exploded view.
Match the OEM Number
Compare the diagram reference and full part number with the catalog listing.
Purchase the Part
Order the matching component and follow Titan's approved service instructions.
Preventive Maintenance
Maintain Your Titan ED1150 Plus Final Assembly
Inspect Sealing Components
Check the front cover gasket, O-ring and lip seal when servicing the relevant connections.
Check Mechanical Hardware
Inspect screws, retaining rings and shaft connections for wear or damage during authorized maintenance.
Protect Control Components
Avoid forcing a damaged pressure control knob and inspect the control mechanism if operation becomes abnormal.
Maintain Equipment Supports
Inspect the grip handle and rubber foot tip to help maintain proper equipment handling and support.
Related ED1150 Plus Assemblies
Shop More Titan ED1150 Plus Airless Sprayer Parts
ED1150 Plus Paint Pump Assembly
Browse OEM pump components for fluid delivery repairs.
ED1150 Plus Suction Set Assembly
Find material intake and suction system replacement components.
ED1150 Plus Accessories Parts
Explore applicable spray equipment accessories and related parts.
Titan ED1150 Plus Airless Sprayer Parts
Return to the complete ED1150 Plus parts and assembly directory.
Titan ED1150 Plus Final Assembly Service Safety
Before removing covers, seals, fasteners or other sprayer components, switch off the equipment, disconnect electrical power and follow Titan's complete pressure-relief procedure. Never loosen pressurized fittings or attempt to stop a high-pressure fluid leak with your hand. High-pressure fluid injection injuries require immediate emergency medical attention. Follow the applicable Titan service manual for safe disassembly, inspection, replacement and reassembly.
Genuine Titan ED1150 Plus OEM Parts
Order Titan ED1150 Plus Final Assembly Parts Today
Shop genuine Titan pressure control knobs, piston springs, shaft keys, retaining rings, front cover gaskets, O-rings, lip seals and hardware for your ED1150 Plus sprayer.
Shop ED1150 Plus Final Assembly PartsFrequently Asked Questions
Titan ED1150 Plus Final Assembly Parts FAQ
What are Titan ED1150 Plus Final Assembly Parts?
They are OEM mechanical, control, sealing and support components identified in the ED1150 Plus Final Assembly diagram.
How many replacement components are listed in this category?
The AllTitanParts ED1150 Plus Final Assembly category currently lists 10 individual OEM replacement components.
What is the Titan ED1150 Plus Pressure Control Knob part number?
Titan 0288775 is the Pressure Control Knob listed at diagram reference 18.
Which piston spring is listed for the ED1150 Plus Final Assembly?
Titan 0005311 is the Piston Spring listed at diagram reference 10.
What is the Front Cover Gasket part number?
Titan 0089937 is the Front Cover Gasket listed at diagram reference 11.
What is the Titan ED1150 Plus Shaft Key part number?
Titan 0089829 is the Shaft Key listed at diagram reference 22.
Which retaining ring is listed for this assembly?
Titan 0047393 is the Retaining Ring listed at diagram reference 17.
What is the Titan ED1150 Plus O-Ring part number?
Titan 0089934 is the O-Ring listed at diagram reference 24.
What are the dimensions of Titan 0270524 Lip Seal?
The catalog identifies Titan 0270524 as a Lip Seal with dimensions of 13/16 x 1-5/8 x 1/4 inches.
Can I buy the ED1150 Plus grip handle and rubber foot tip separately?
Yes. The category separately lists Titan 590-068 Black Grip Handle and Titan 0294533 Foot Crutch Tip, Rubber.
Are ED1150 Plus Final Assembly parts interchangeable with other Titan sprayers?
Not automatically. Confirm the exact OEM part number and manufacturer-supported compatibility before using a component in another model.
Where can I buy genuine Titan ED1150 Plus Final Assembly Parts?
Shop Titan ED1150 Plus Final Assembly Parts at AllTitanParts. For help with part identification, call 713-931-0006.
Titan OEM Parts Assistance
Need Help Finding ED1150 Plus Final Assembly Parts?
Have your sprayer model, serial number and factory diagram reference available when requesting assistance with OEM part identification or compatibility.
