Shop Titan ED1150 Plus Paint Pump Assembly Parts
Repair your sprayer's fluid delivery system with genuine Titan ED1150 Plus Paint Pump Assembly Parts from AllTitanParts. Shop OEM diaphragm assemblies, diaphragm rings, outlet balls, valve seats, plastic seals, priming valve knobs, return tube fittings, suction hose assemblies and diaphragm repair kits. Use the illustrated parts diagram to identify the correct replacement and restore dependable pump operation.
Paint Pump Assembly Overview
Buy Genuine Titan ED1150 Plus Paint Pump Replacement Parts
The Titan ED1150 Plus Paint Pump Assembly contains essential components used to transfer coating material through the sprayer's fluid system. The diaphragm, valve components, seals and associated hardware work together to support material intake, fluid displacement and controlled delivery.
Pump components operate under demanding conditions. Wear, dried coating, contamination and damaged sealing surfaces can contribute to poor priming, inconsistent pressure, reduced output or leakage. Identifying the specific cause helps avoid unnecessary replacement of otherwise serviceable components.
AllTitanParts lists 12 components in this category, including the 0270201 Diaphragm Assembly, 0270494 Diaphragm Ring, 0270491 Outlet Ball, 281316 Valve Seat Assembly and 0294673 Diaphragm Repair Kit. The category also includes parts for the priming, suction, return and mechanical systems associated with the pump assembly.
OEM Parts Directory
Titan ED1150 Plus Paint Pump Assembly Parts List
Use the factory diagram reference and Titan OEM part number to locate the correct component for your repair.
| Diagram Ref. | Titan OEM Part Number | Part Description | Primary Function |
|---|---|---|---|
| 1 | 0270201 | Diaphragm Assembly | Supports fluid displacement within the diaphragm pump. |
| 2 | 0270494 | Diaphragm Ring | Supports the diaphragm's designated mounting interface. |
| 5 | 0010778 | Plastic Seal | Provides sealing at its specified pump connection. |
| 7 | 0270491 | Outlet Ball | Works with its valve seat to control fluid movement. |
| 13 | 9885553 | Return Tube Fitting | Provides a designated return-side connection. |
| 15 | 0089482 | Nylon Sealing Washer | Provides sealing at the applicable fitting interface. |
| 17 | 2405951 | Suction Hose Assembly | Supplies coating material toward the pump intake. |
| 18 | 0288748 | Priming Valve Knob | Provides an operating interface for the priming valve. |
| 19 | 0154375 | Cam | Supports mechanical motion within its designated mechanism. |
| 20 | 0090512 | Star Washer | Supports retention at the specified fastening location. |
| 24 | 281316 | Valve Seat Assembly | Provides a seating interface for the designated valve. |
| 26 | 0294673 | Diaphragm Repair Kit | Provides components for an applicable diaphragm repair. |
Diagram references are not consecutive. The diaphragm repair kit is displayed as Titan 0294673, although its product listing also shows part number 294673 without the leading zero. Confirm the manufacturer's complete part number when ordering.
Featured OEM Pump Components
Shop Titan ED1150 Plus Diaphragm, Valve, Seal and Pump Repair Parts

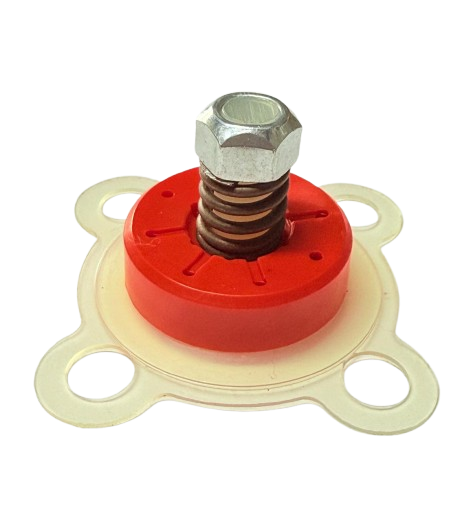

Titan 0270201 Diaphragm Assembly
The Titan 0270201 Diaphragm Assembly is a key fluid displacement component within the ED1150 Plus paint pump. Its flexible pumping action supports the movement of coating material through the fluid system.
A worn or damaged diaphragm may contribute to reduced pumping performance. Inspect the diaphragm and associated parts according to Titan's service instructions before replacement.
OEM Part Number: 0270201Titan 0270494 Diaphragm Ring
The Titan 0270494 Diaphragm Ring is a supporting component used at the diaphragm's designated mounting and sealing interface.
Inspect the ring when servicing the diaphragm and confirm correct positioning and condition during reassembly.
OEM Part Number: 0270494Titan 0270491 Outlet Ball
The Titan 0270491 Outlet Ball is a precision valve component that works with its corresponding seat to regulate fluid flow through the pump.
Damage, contamination or wear at the ball and seat can interfere with proper valve sealing. Inspect both mating surfaces when diagnosing outlet valve problems.
OEM Part Number: 0270491Titan 281316 Valve Seat Assembly
The Titan 281316 Valve Seat Assembly provides a seating interface within the pump's valve system. Proper seating is important for controlling the direction of coating material flow.
Inspect the seating surface for scoring, contamination or wear during valve-related repairs.

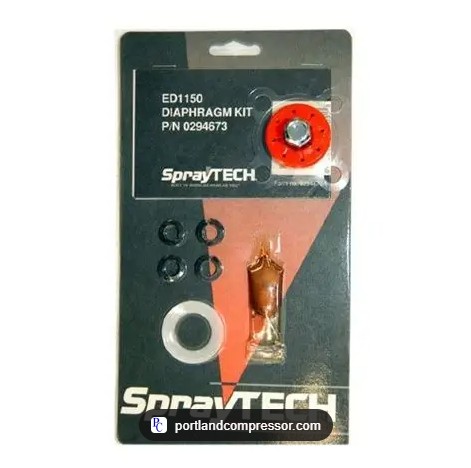

OEM Part Number: 281316Titan 0294673 Diaphragm Repair Kit
The Titan 0294673 Diaphragm Repair Kit is listed for diaphragm pump repair applications associated with the ED1150 sprayer family.
A repair kit can simplify an applicable service procedure, but the included components should be confirmed against the kit listing and equipment configuration before purchase.
OEM Part Number: 0294673Titan 0010778 Plastic Seal
The Titan 0010778 Plastic Seal provides sealing at its specified pump connection. Proper sealing helps maintain the intended fluid path.
Inspect for deformation, wear and damage when servicing the relevant connection.

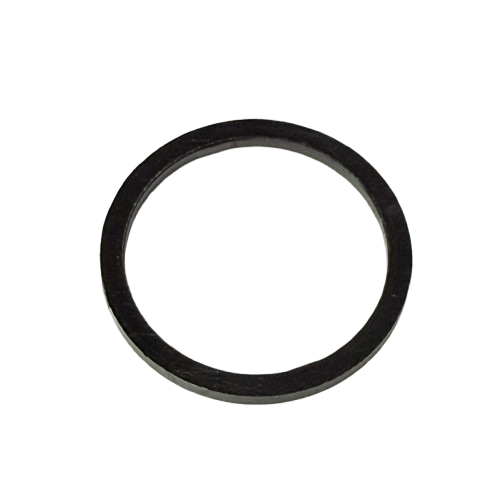

OEM Part Number: 0010778Titan 0089482 Nylon Sealing Washer
The Titan 0089482 Nylon Sealing Washer is an OEM sealing component used at its designated fitting or connection point.
A damaged washer may contribute to leakage at the relevant interface. Replace it with the correctly identified OEM component.

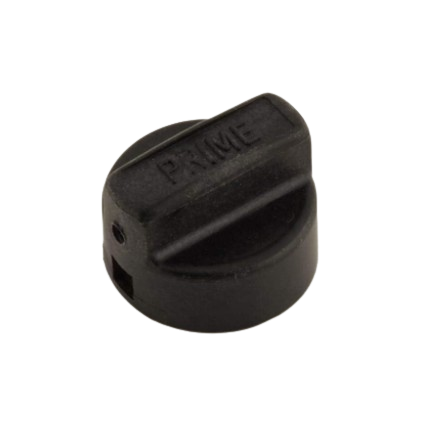

OEM Part Number: 0089482Titan 0288748 Priming Valve Knob
The Titan 0288748 Priming Valve Knob provides the operator interface for the designated priming valve.
If the knob is cracked, loose or missing, inspect its connection and confirm whether the knob or another valve component requires replacement.
OEM Part Number: 0288748Titan 2405951 Suction Hose Assembly
The Titan 2405951 Suction Hose Assembly supplies coating material toward the pump intake from the designated material source.
Inspect for restrictions, damaged hose material and connection problems when troubleshooting poor material intake.
OEM Part Number: 2405951Titan 9885553 Return Tube Fitting
The Titan 9885553 Return Tube Fitting provides a connection within the designated return-side fluid path.
Inspect the fitting and mating connection for damage or leakage during return system repairs.

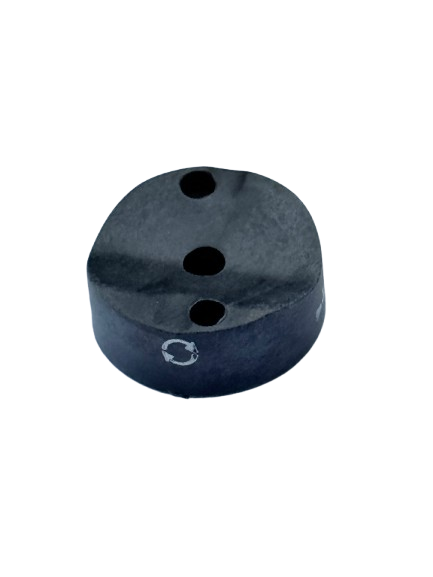

OEM Part Number: 9885553Titan 0154375 Cam
The Titan 0154375 Cam is a mechanical component used within the designated drive mechanism of the sprayer.
Inspect the cam and contacting surfaces for wear or damage during authorized mechanical servicing.

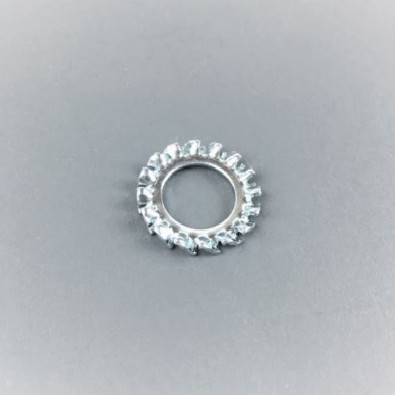

OEM Part Number: 0154375Titan 0090512 Star Washer
The Titan 0090512 Star Washer is a fastening component used at its specified assembly location.
Replace damaged or incorrectly fitting hardware with the designated OEM part.
OEM Part Number: 0090512Pump System Functions
How the ED1150 Plus Paint Pump Assembly Supports Sprayer Performance
Fluid Intake
The suction hose and associated connections supply coating material toward the pump.
Fluid Displacement
The diaphragm assembly supports the pumping action that moves coating material through the system.
Valve Control
The outlet ball and applicable valve seat help control the direction of material flow.
Priming and Return
The priming valve knob and return-side components support the applicable priming and circulation functions.
Troubleshooting and Repair
Common Titan ED1150 Plus Paint Pump Problems
Use the symptoms below to identify components worth inspecting. Multiple faults can produce similar symptoms, so follow Titan's service instructions before replacing parts.
| Observed Problem | Parts to Inspect | Recommended Check |
|---|---|---|
| Pump has difficulty priming | 2405951, 0288748 and pump valves | Check material supply, suction restrictions, air leaks and priming valve operation. |
| Reduced pumping output | 0270201, 0270491 and 281316 | Inspect diaphragm condition and valve seating after ruling out supply restrictions. |
| Pressure fluctuates during spraying | 0270491, 281316 and 0270201 | Check for valve contamination, wear and diaphragm-related pumping problems. |
| Leakage at a pump connection | 0010778 and 0089482 | Locate the exact leak and inspect the applicable sealing component. |
| Leakage at return-side fitting | 9885553 | Inspect the fitting, mating connection and applicable sealing surfaces. |
| Abnormal mechanical operation | 0154375 and associated drive components | Stop operation and follow the authorized mechanical inspection procedure. |
OEM Replacement Reference
Choose the Correct ED1150 Plus Diaphragm and Valve Replacement
The category lists Titan 0270201 Diaphragm Assembly, Titan 0270494 Diaphragm Ring and Titan 0294673 Diaphragm Repair Kit as separate products. Do not assume the kit contains every individually listed diaphragm component without checking the kit contents.
The Titan 0270491 Outlet Ball and Titan 281316 Valve Seat Assembly are also separately identified components. During valve repair, inspect the mating surfaces and replace only the components required by the diagnosis and service procedure.
The listing displays the diaphragm repair kit as 0294673 in the product title and 294673 in its part number field. Confirm the intended manufacturer's identifier before placing an order. No unverified part-number supersessions or cross-model substitutions are assumed here.
OEM Buying Guide
How to Order Titan ED1150 Plus Paint Pump Assembly Parts
Verify Your Model
Confirm the ED1150 Plus model and record the equipment identification details.
Inspect the Diagram
Locate the affected pump component using the illustrated parts breakdown.
Confirm the Part Number
Match the diagram reference, description and complete Titan OEM identifier.
Order the Replacement
Select the matching component or repair kit and follow the manufacturer service procedure.
Preventive Maintenance
Maintain Your Titan ED1150 Plus Paint Pump Assembly
Flush After Spraying
Clean the pump and fluid system using Titan-approved procedures and coating-compatible cleaning materials.
Inspect Pump Valves
Check the outlet ball and valve seat for debris, scoring or wear during appropriate service intervals.
Monitor Sealing Components
Investigate leaks promptly and inspect the applicable seals, washers and fittings before replacing parts.
Maintain Material Intake
Keep the suction hose and material supply path free of restrictions and inspect connections for damage.
Related ED1150 Plus Assemblies
Shop More Titan ED1150 Plus Airless Sprayer Parts
ED1150 Plus Final Assembly Parts
Find mechanical hardware, control knobs, springs and sealing components.
ED1150 Plus Suction Set Parts
Shop material intake and suction system replacement components.
ED1150 Plus Accessories Parts
Browse applicable spray equipment accessories and related components.
Titan ED1150 Plus Sprayer Parts
Return to the complete ED1150 Plus parts and assembly directory.
Titan ED1150 Plus Paint Pump Service Safety
Before inspecting the diaphragm, valve components, seals or fluid connections, switch off the sprayer, disconnect electrical power and follow Titan's complete pressure-relief procedure. Never loosen a pressurized connection or attempt to stop a high-pressure fluid leak with your hand. High-pressure fluid injection injuries require immediate emergency medical attention. Follow the manufacturer's service instructions for safe disassembly and reassembly.
Genuine Titan ED1150 Plus OEM Pump Parts
Order Titan ED1150 Plus Paint Pump Parts Today
Shop genuine Titan diaphragm assemblies, repair kits, outlet balls, valve seats, seals, priming valve knobs and suction components. Find the exact OEM replacement for your ED1150 Plus pump repair.
Shop ED1150 Plus Paint Pump PartsFrequently Asked Questions
Titan ED1150 Plus Paint Pump Assembly Parts FAQ
What are Titan ED1150 Plus Paint Pump Assembly Parts?
They are OEM diaphragm, valve, sealing, suction, priming and associated mechanical components listed for the ED1150 Plus paint pump assembly.
How many parts are listed in the ED1150 Plus Paint Pump Assembly?
AllTitanParts currently lists 12 replacement parts in this category.
What is the Titan ED1150 Plus Diaphragm Assembly part number?
Titan 0270201 is the Diaphragm Assembly listed at diagram reference 1.
What is the Titan ED1150 Plus Diaphragm Ring part number?
Titan 0270494 is the Diaphragm Ring listed at diagram reference 2.
Which outlet ball is listed for the ED1150 Plus Paint Pump?
Titan 0270491 is the Outlet Ball listed at diagram reference 7.
What is the Valve Seat Assembly part number?
Titan 281316 is the Valve Seat Assembly listed at diagram reference 24.
What is the ED1150 Plus Diaphragm Repair Kit part number?
The category lists Titan 0294673 Diaphragm Repair Kit. Its product part number field also displays 294673, so confirm the manufacturer's identifier when ordering.
What is the Titan ED1150 Plus Priming Valve Knob part number?
Titan 0288748 is the Priming Valve Knob listed at diagram reference 18.
What is the Suction Hose Assembly part number?
Titan 2405951 is the Suction Hose Assembly listed at diagram reference 17.
Can a worn outlet ball cause poor pump performance?
Yes. Wear or contamination at the outlet ball and its valve seat may prevent proper valve sealing and contribute to reduced output or inconsistent pressure.
Can I buy ED1150 Plus diaphragm and valve components separately?
Yes. The category lists individual diaphragm, valve, seal and related components, as well as a diaphragm repair kit. Check each product listing for availability and exact contents.
Where can I buy genuine Titan ED1150 Plus Paint Pump Assembly Parts?
Shop Titan ED1150 Plus Paint Pump Assembly Parts at AllTitanParts. For assistance identifying the correct part, call 713-931-0006.
Titan OEM Parts Assistance
Need Help Finding ED1150 Plus Paint Pump Parts?
Have your Titan ED1150 Plus model, equipment serial number and factory diagram reference ready when requesting assistance with OEM part identification or compatibility.
