Titan Elite E15 | Replacement Parts Directory
Shop Titan Elite E15 Sprayer Parts
Find Titan Elite E15 replacement parts at AllTitanParts. Browse the frame, UNITEC motor, gear box, filter block and fluid section categories to locate the assembly requiring service. Match each component to your equipment identification and parts diagram before ordering.
Equipment and Parts Overview
Identify the Correct Elite E15 Assembly
The Titan Elite E15 is an electric airless sprayer with manufacturer documentation covering its frame, motor, gear box, filter block and fluid section. These separate service sections help you identify the component needed for a repair.
Check the product number and electrical specifications on your machine. Titan's original manual covers both standard and 230V versions, so confirm the appropriate configuration when selecting electrical replacements.
Model-Specific Parts Directory
Browse Titan Elite E15 Parts by Assembly
Elite E15 Frame
Open the frame category to identify the listed component and its diagram reference.

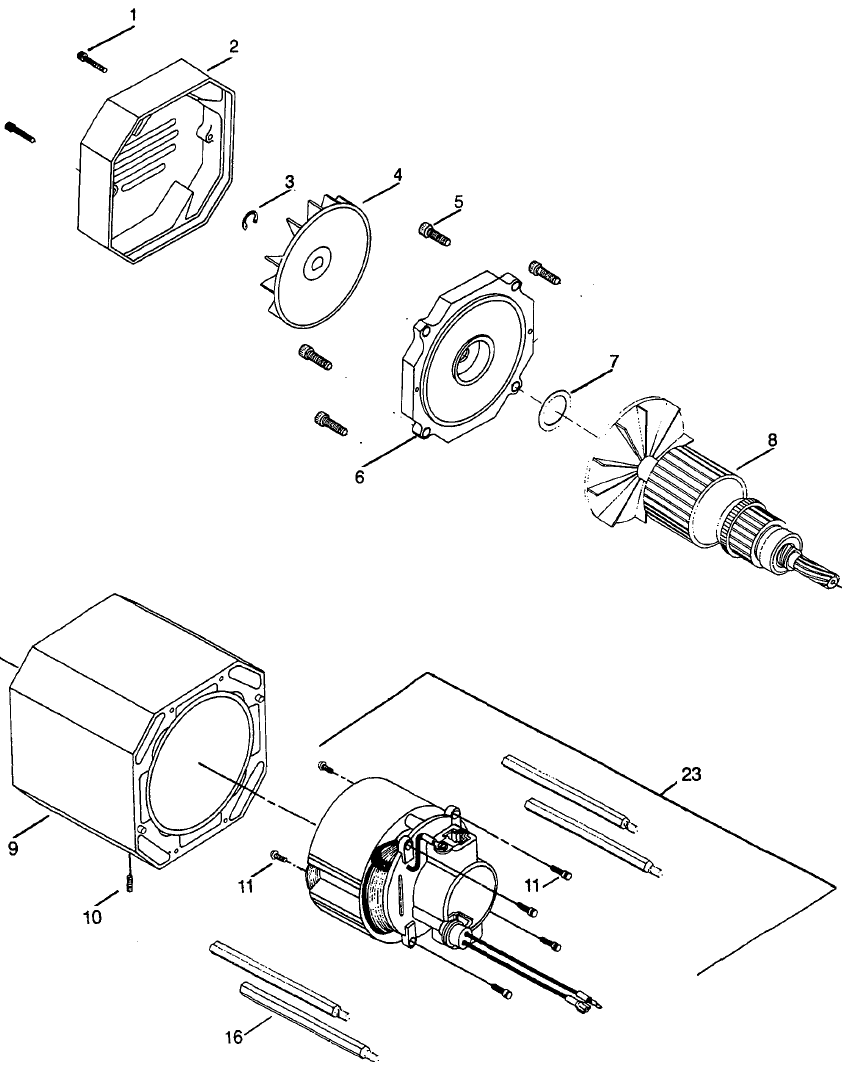

Elite E15 UNITEC Motor Complete
Review the motor parts category and verify the electrical version before selecting a replacement.

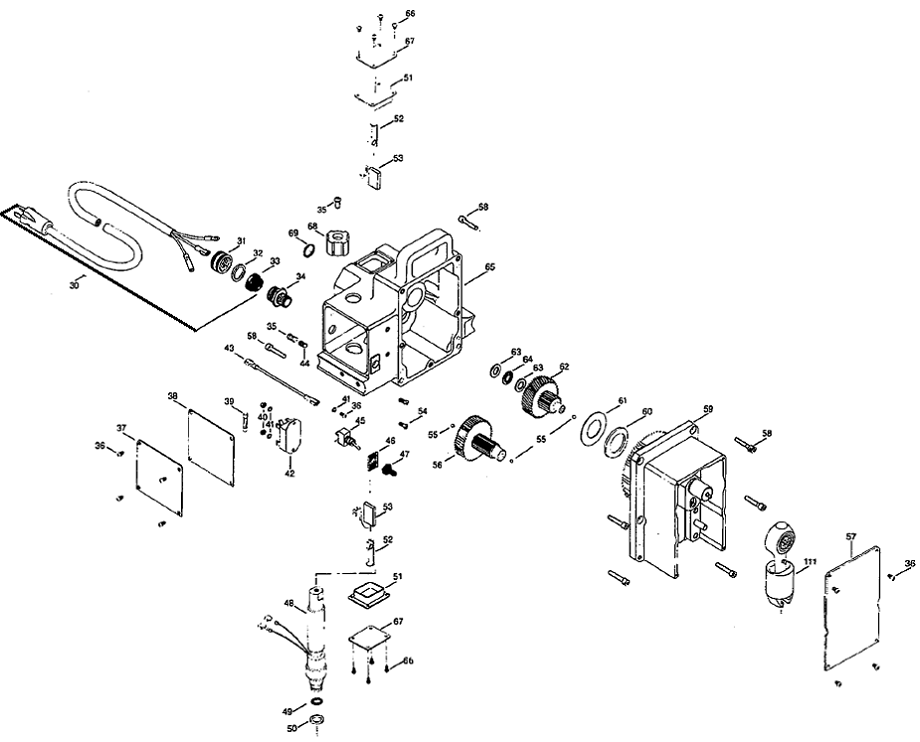

Elite E15 Gear Box
Use the gear box listing to locate the required part within the applicable assembly breakdown.

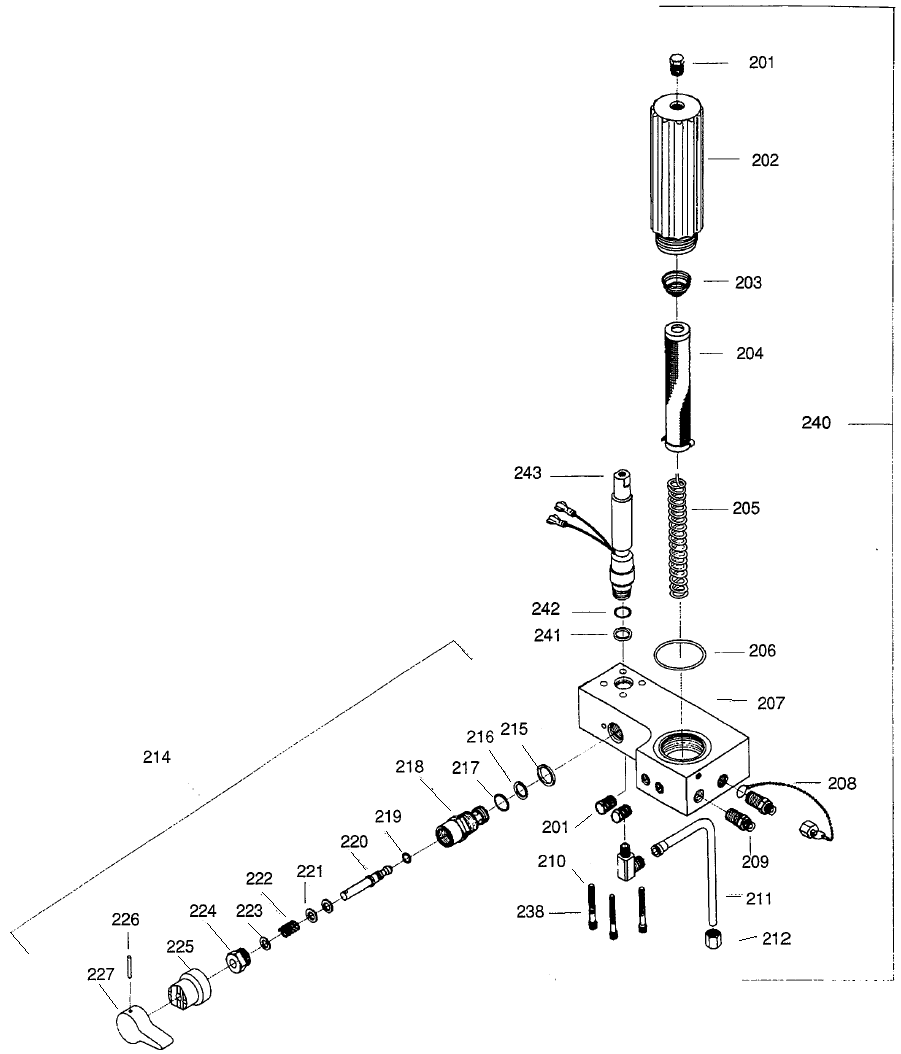

Elite E15 Filter Block
Browse filter block components and compare their part numbers with the factory diagram.
Elite E15 Fluid Section
Locate fluid section replacements and check the contents of individual components or repair kits.
Repair Kit Reference
Check the Elite E15 Repacking Kit
Titan's original manual identifies Repacking Kit 762-175 and marks the included components in its fluid section parts list. Confirm the current replacement number, availability and kit contents before purchasing.
Parts Buying Guide
How to Order the Right Titan Elite E15 Part
Record Equipment Details
Have your model, product number, serial information and voltage ready.
Locate the Assembly
Choose the category containing the component your repair requires.
Verify the Part Number
Compare the diagram reference with the product listing and any documented update.
Review and Purchase
Check compatibility, supplied quantity and availability before placing your order.
Maintenance and Repair
Follow the Elite E15 Service Instructions
Diagnose the equipment using Titan's troubleshooting guidance before replacing components. Follow the specified repair procedure and test the completed repair before returning the sprayer to regular operation.
Titan Elite E15 Service Safety
Complete the manufacturer's pressure-relief procedure and unplug the sprayer before servicing. Follow all warnings concerning high-pressure fluid, moving components and electrical hazards.
Find Your Titan Elite E15 Replacement Parts
Select the correct assembly and prepare an accurate parts order for your equipment.
Browse Elite E15 PartsFrequently Asked Questions
Titan Elite E15 Parts FAQ
How do I find the correct Elite E15 part?
Identify your equipment version, locate the component in its assembly diagram and verify the listed part number.
Does an assembly category include a complete replacement assembly?
Read the individual product listing. A category name identifies the service section and does not establish what each product includes.
What should I check when buying electrical components?
Confirm the equipment voltage, product number and applicable electrical diagram before ordering.
Can I order parts using an older manual?
Use the manual to identify the original component, then confirm its current orderable number and documented compatibility.
Where can I request parts identification assistance?
Contact AllTitanParts with your equipment details, original part number and diagram reference.
Need Help Selecting Elite E15 Parts?
Have your model and component information ready when requesting assistance.
