Titan Elite E15 | UNITEC Motor Assembly Parts
Shop Titan Elite E15 UNITEC Motor Complete Parts

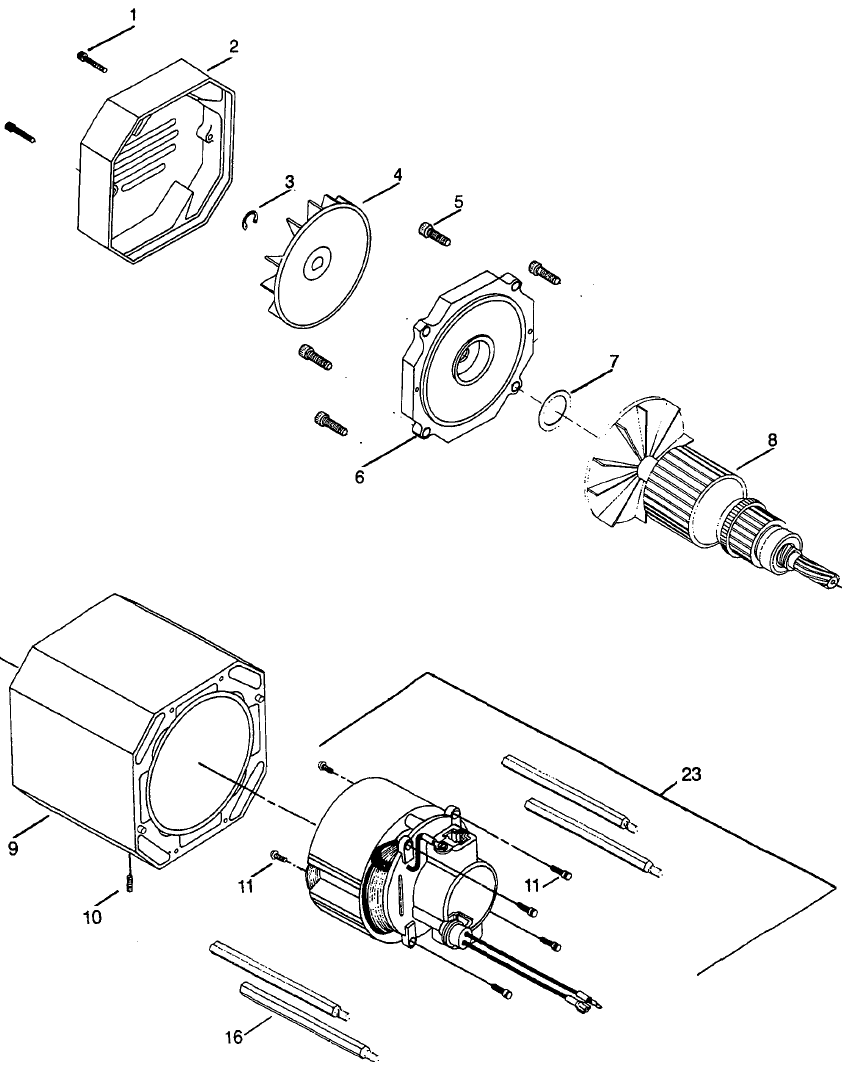

Identify replacement components for the Titan Elite E15 UNITEC Motor Complete assembly at AllTitanParts. Use the exploded diagram to locate the required item and compare its part number with your equipment documentation. This category lists the Titan 700-681 Motor Mount Screw.
Assembly Overview
Use the UNITEC Motor Parts Breakdown
Titan's Elite E15 manual includes a UNITEC motor breakdown covering the rear cover, outer fan, rear motor housing, wave washer, armature and associated hardware. Additional motor documentation identifies housing and field assembly components.
The category name identifies the assembly being serviced. Read each individual product listing to confirm what is supplied, rather than assuming that a complete motor is included.
Listed Replacement Component
Titan 700-681 Motor Mount Screw
Diagram Reference 5
Titan 700-681 is listed as the Motor Mount Screw in this category. Match the component to reference 5 in the applicable motor diagram before ordering.
Check the product listing for supplied quantity and current availability. The number of screws required by an assembly does not establish the quantity included in a package.
Electrical Configuration
Confirm Motor Voltage Before Selecting Electrical Parts
The original manual identifies different armatures and field assemblies for 120V and 230V units. Verify the equipment nameplate and applicable diagram before selecting these components.
An original manual number provides a reference for identification. Confirm the current orderable replacement and documented compatibility before purchase.
Parts Buying Guide
Prepare an Accurate Elite E15 Motor Parts Order
Record Equipment Details
Have your model, product number, serial information and motor voltage ready.
Locate the Component
Identify the required item in the matching assembly illustration.
Verify the Listing
Check the part number, compatibility and supplied contents.
Review Your Order
Confirm the quantity needed and request assistance with unresolved fitment details.
Service Preparation
Diagnose Before Replacing Motor Components
Follow Titan's troubleshooting and service instructions to identify the repair required. Use the applicable armature or motor housing procedure, and test the completed repair before returning the equipment to regular operation.
Browse Related Elite E15 Parts
Elite E15 Motor Service Safety
Complete the manufacturer's pressure-relief procedure and unplug the sprayer before servicing. Follow all warnings concerning electrical hazards and moving components. Titan's service notes also instruct users not to pull on wires when disconnecting connectors.
Find Your Elite E15 UNITEC Motor Replacement Component
Review the diagram and individual listing to select the part your repair requires.
Browse UNITEC Motor PartsFrequently Asked Questions
Elite E15 UNITEC Motor Complete FAQ
Does this category listing include a complete motor?
Check the individual product description. The assembly category title does not establish that a complete motor is supplied.
Can I choose a replacement using its appearance?
Match the documented part number and equipment configuration. Visual similarity alone does not confirm compatibility.
What if my manual shows an older component number?
Request confirmation of the current replacement number and its fitment before ordering.
What information helps identify the right part?
Provide your equipment identification, voltage, original part number and diagram reference.
Need Help Matching an Elite E15 Motor Part?
Contact AllTitanParts with your equipment and component details before ordering.
713-931-0006
