Titan Elite E15 | Gear Box Assembly Components
Shop Titan Elite E15 Gear Box Parts
Find listed replacement components for the Titan Elite E15 Gear Box at AllTitanParts. Browse hardware, electrical components, plates and control items using the numbered assembly diagram. Confirm the part number and equipment configuration before ordering.
Assembly Overview
Locate the Component Your Repair Requires
Titan's Elite E15 gear box breakdown covers drive components and associated electrical items. The manual identifies pinion gears, bearings, washers, housings, motor brush components and switching hardware within this service section.
The category lists selected replacements. Its title identifies the assembly being serviced and does not establish that a complete gear box or every diagram component is supplied.
Listed Replacement Components
Titan Elite E15 Gear Box Parts Directory
| Diagram Reference | Listed Part Number | Product Description |
|---|---|---|

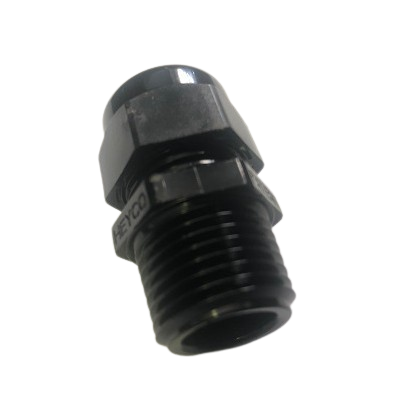

| 31 | 765-063 | Strain Relief |
| 35 | 0509219 | Screw |
| 39 | 710-050 | 20 Amp Fuse |
| 41 | 9822113 | Lock Washer |
| 45 | 700-646 | Toggle Switch |
| 46 | 700-775 | Plate |
| 61 | 700-680 | Thrust Washer |
| 67 | 702-053 | Plate |
| 68 | 700-771 | Pressure Control Knob |
Descriptions reflect the category listings. Verify the applicable diagram, supplied quantity and current availability before purchase.
Equipment Configuration
Check Voltage and Original Part Numbers
Titan's manual specifies configuration changes for 230V units, including differences in the power cord, motor starter, housing and switching arrangement. A listed fuse or switch should therefore be checked against the electrical version of your sprayer.
Some category numbers differ from the original manual. Confirm any replacement relationship before treating an updated listing as interchangeable with an older component.
Parts Buying Guide
Prepare Your Elite E15 Gear Box Parts Order
Identify the Equipment
Record the model, product number, serial information and voltage.
Find the Diagram Reference

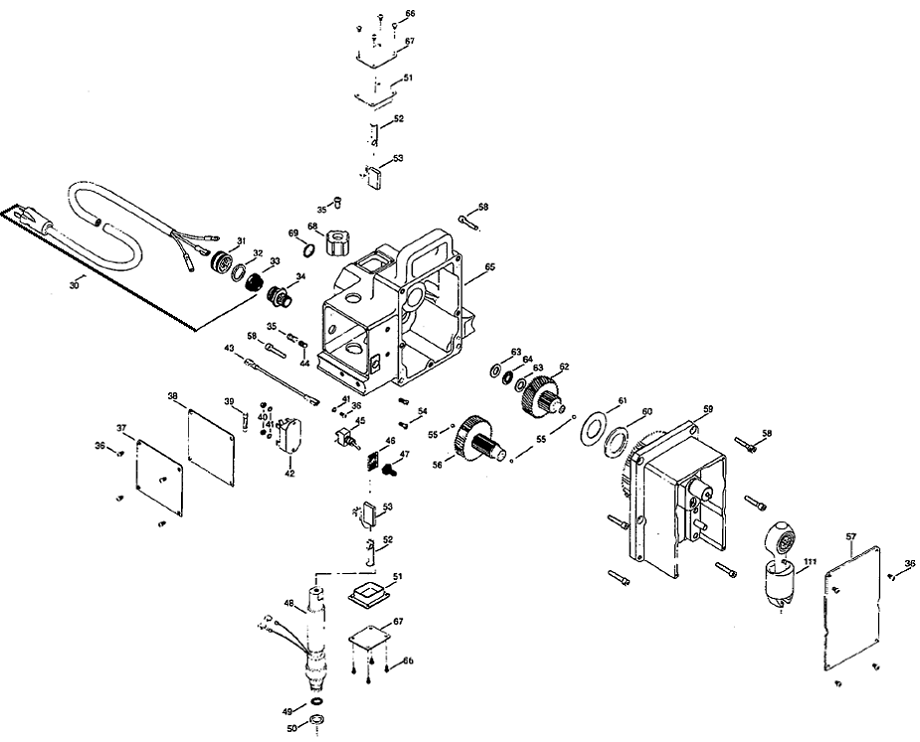

Locate the component in the assembly illustration for your equipment.
