Titan Elite E15 | Filter Block Replacement Parts
Shop Titan Elite E15 Filter Block Parts
Find listed replacement components for the Titan Elite E15 Filter Block at AllTitanParts. Browse filter housing parts, springs, O-rings, fittings, gaskets and pressure-release components. Match your required replacement to the numbered assembly diagram before ordering.

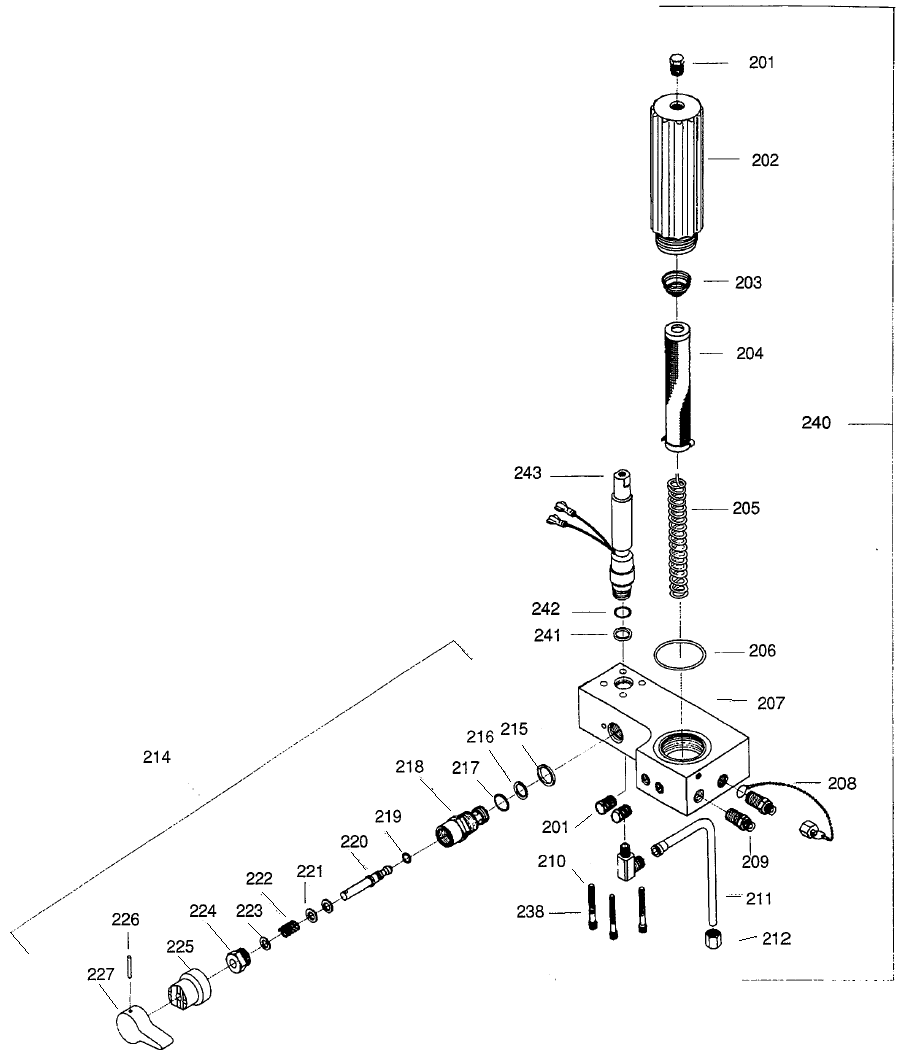

Assembly Overview
Identify the Correct Filter Block Component
Titan's original Elite E15 manual separates the filter housing, cartridge, core and seal from the associated bypass valve and pressure-switch components. Use the factory illustration to identify the exact location of the part requiring service.
This category contains selected individual replacements. Review each product listing to confirm compatibility and supplied contents before choosing a component or assembly.
Listed Replacement Components
Titan Elite E15 Filter Block Parts Directory
| Diagram Reference | Part Number | Listed Description |
|---|---|---|
| 202 | 761-451 | Filter Housing |
| 203 | 730-083 | Filter Spring |
| 206 | 761-456 | O-Ring |
| 208 | 730-222 | Outlet Cap |
| 209 | 490-006 | Fitting |
| 211 | 750-039 | Pressure Release |
| 216 | 761-722 | O-Ring |
| 219 | 221-008 | O-Ring |

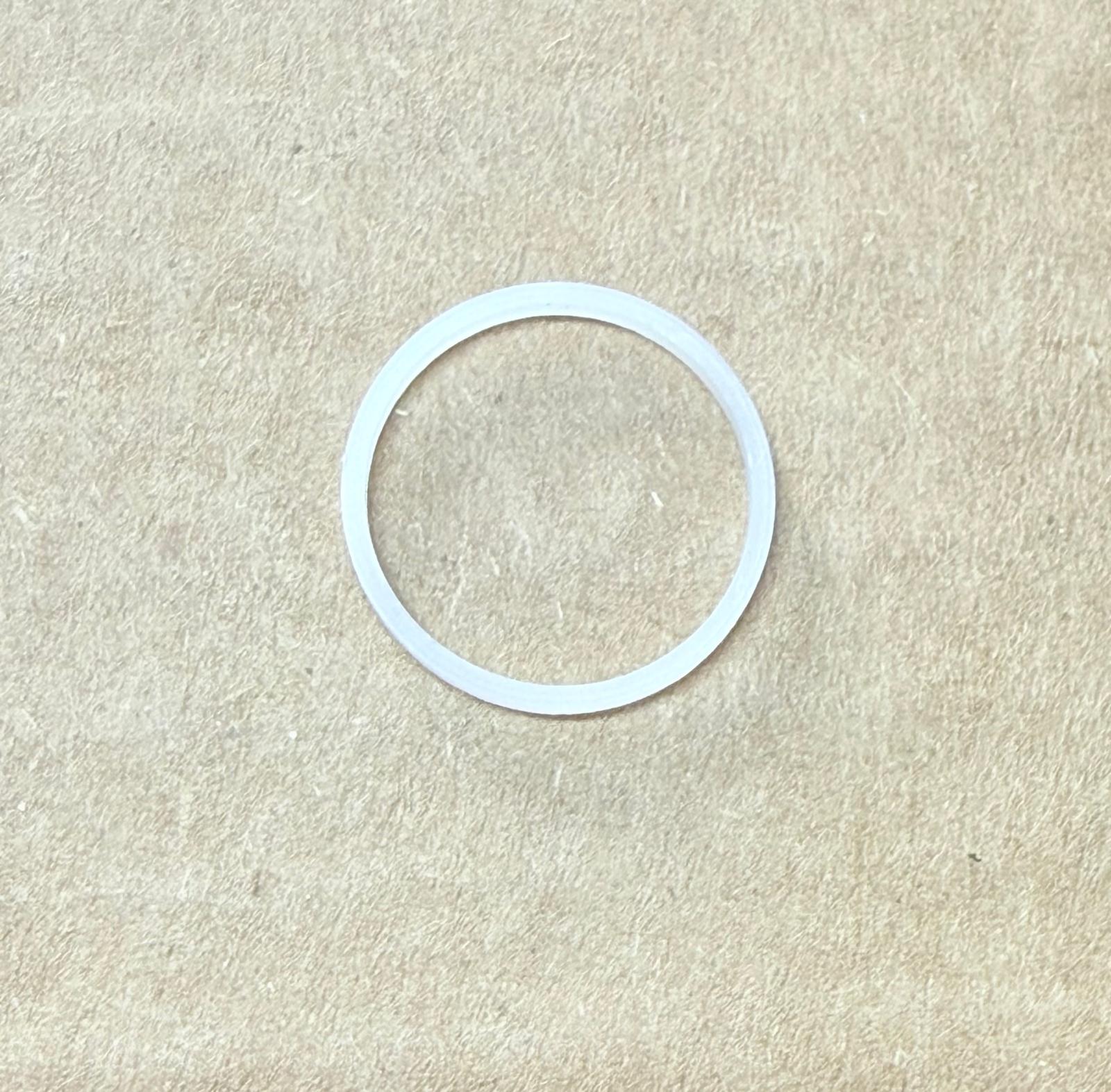

| 241 | 700-881 | Gasket |
| 242 | 700-499 | O-Ring |
Descriptions reflect the category listings. Check individual product pages for current availability and package contents.
Component Identification
Distinguish Pressure-Release and Valve Components
The factory manual identifies 750-039 as the Pressure Release Tube. It separately identifies the bypass valve assembly and pressure switch. Match the part number and diagram position rather than relying on a shortened product name when ordering.
Parts Buying Guide
Choose the Right Elite E15 Filter Block Replacement
Identify Your Equipment
Record the model, product number and available serial information.
Locate the Diagram Item
Find the component in the applicable filter block illustration.
Verify the Part Number
Compare the original reference with the listing and any documented update.
Review Your Order
Check supplied contents and the quantity required for your repair.
Maintenance Reference
Follow Titan's Filter Service Instructions
The manual's pump-filter procedure calls for cleaning or replacing the cartridge and inspecting the seal. Consult the complete instructions before service, and diagnose the equipment before purchasing other components.
Browse Related Elite E15 Parts
Elite E15 Filter Block Service Safety
Complete the manufacturer's pressure-relief procedure and unplug the sprayer before servicing. Never open a pressurized filter housing or attempt to stop a high-pressure leak with your hand.
Order Your Titan Elite E15 Filter Block Parts
Select the replacement that matches your equipment diagram and repair requirements.
Shop Elite E15 Filter Block PartsFrequently Asked Questions
Titan Elite E15 Filter Block FAQ
Does this category supply a complete filter block?
Review the individual listing. The category identifies the assembly being serviced and lists separate replacement components.
Are the listed O-rings interchangeable?
Use the exact part number for the specified diagram position. A shared component name does not establish matching dimensions or material.
What if my manual uses a different description?
Compare the part number and diagram reference, then request confirmation of the supplied component if needed.
What details help identify the correct replacement?
Provide your equipment identification, original part number and assembly diagram reference.
Need Help Matching a Filter Block Part?
Contact AllTitanParts with your equipment and component details before ordering.
