Titan Impact X 440 Airless Sprayer Parts
Shop genuine OEM Titan Impact X 440 Airless Sprayer Parts using factory exploded diagrams for accurate repair and maintenance. Find main-machine, suction-set, drive, fluid-section, cart, filter and accessory components for Impact X 440 Skid 2429069 and High Rider 2430510 sprayers. Choose the applicable assembly, locate the numbered diagram callout and verify the complete Titan OEM part number before purchasing.
Find the Correct Parts for Your Titan Impact X 440
The Titan Impact X 440 is a professional electric airless sprayer engineered for contractors who require a serviceable machine for recurring residential, commercial and maintenance work. Titan rates the machine for up to 0.54 GPM, 3,300 PSI maximum operating pressure and a 0.023-inch maximum one-gun tip.
Rather than choosing replacement parts by appearance, use the Impact X 440 factory exploded diagrams to identify the exact component. AllTitanParts organizes the machine into seven logical service sections so pump, drive, intake, filtration, frame and accessory components can be located efficiently.
Titan Impact X 440 Specifications & Configurations
| Specification | Impact X 440 | Buying / Service Relevance |
|---|---|---|
| Skid Configuration | 2429069 | Confirm configuration before ordering frame-related parts |
| High Rider Configuration | 2430510 | Uses High Rider cart configuration |
| Maximum Delivery | 0.54 GPM / 2.04 LPM | Reference when evaluating pump performance |
| Maximum Operating Pressure | 3,300 PSI / 22.8 MPa | Use properly pressure-rated OEM fluid components |
| Maximum Tip Size | 0.023 in. — one gun | Oversized or worn tips can affect pressure and output |
| Motor | 1.2 HP DuraLife HE Brushless | Professional brushless electric drive system |
| Recommended Usage | 50–100 gallons per week | Useful model-selection reference for recurring contractor workloads |
| Standard Package Equipment | RX-80 Gun, 517 HEA Tip, 1/4 in. × 50 ft Airless Hose | Verify replacement accessories independently by OEM number |
Choose Your Titan Impact X 440 Parts Assembly
Start with the system you are repairing. Open its exploded diagram, locate the numbered callout and match that callout to the listed Titan OEM part number before checkout.
Titan Impact X 440 Fluid Section Parts
The fluid section creates the high-pressure material flow required for airless atomization. Wear in the piston, packings, inlet valve or outlet valve can contribute to difficult priming, leakage, pressure loss, cycling or reduced spraying performance.
Key genuine OEM components currently cataloged for this assembly include the Titan 2420580A Piston Assembly, Titan 805-846 Inlet Valve Kit, Titan 805-845 Outlet Valve Kit and Titan 704-586B Repacking Kit. Confirm each component against the Impact X 440 fluid-section diagram before ordering.
SHOP IMPACT X 440 FLUID SECTION →Impact X 440 Filter Assembly Parts
Proper filtration helps keep debris from moving downstream into the hose, gun and spray tip. A restricted filter can reduce material flow and increase pump load, while pressure-control components within the system help the sprayer regulate operating pressure.
Current cataloged components include the Titan 2424931A Filter Cap, Titan 2424932 Filter Core, Titan 2424934 O-Ring, Titan 2424886A Filter Bowl and Titan 2427607A Transducer.
SHOP IMPACT X 440 FILTER PARTS →Which Impact X 440 Parts Section Should You Check?
| Repair Area | Parts Section | Typical Components |
|---|---|---|

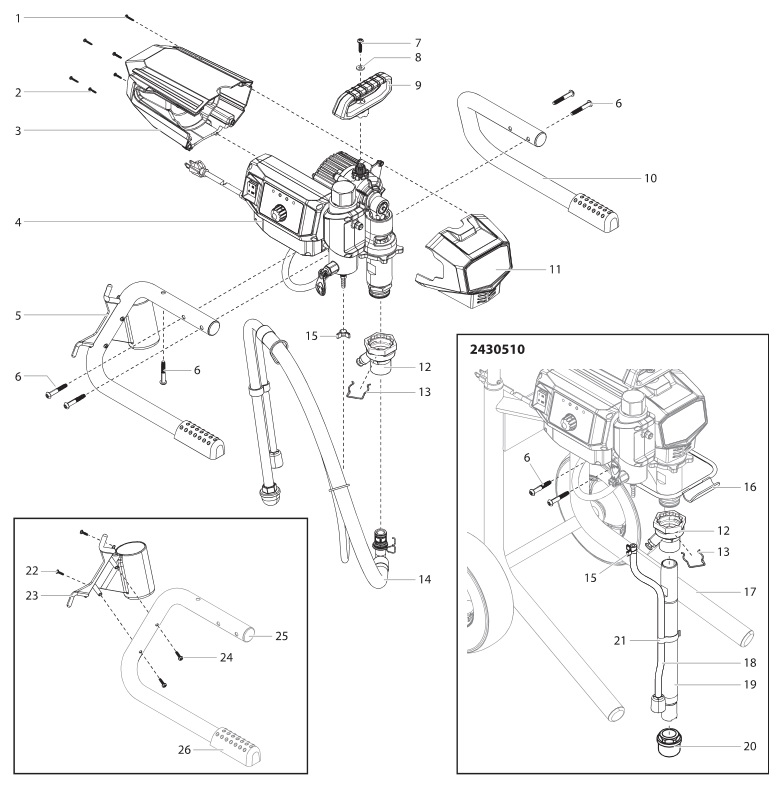

| Core Machine | Main Assembly | Covers, controls, fittings, hoses and machine hardware |
| Paint Intake | Suction Set | Siphon tube, return line, inlet screen, seals and fittings |
| Motor / Drive | Drive Assembly | Motor, gears, drive components and electrical controls |
| Pump / Pressure Generation | Fluid Section | Piston, packings, inlet valve, outlet valve and pump seals |

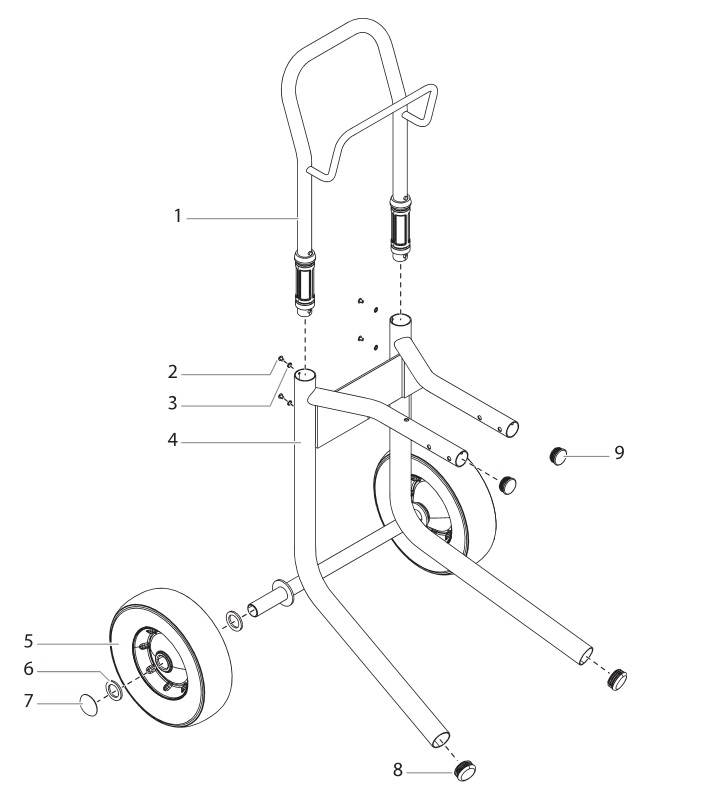

| Machine Mobility | Cart Assembly | Cart frame, wheels, axle and associated hardware |
| Filtration / Pressure Sensing | Filter Assembly | Filter, cap, bowl, seals and transducer |
| Spray Setup / Service Items | Accessories | Hoses, spray components and cataloged service accessories |
Match the Symptom to the Impact X 440 System
| Symptom | Inspection Starting Point | Relevant Section |
|---|---|---|
| Sprayer Will Not Prime | Inlet screen, suction connections, inlet valve, outlet valve and pump condition | Suction / Fluid Section |
| Pressure Drops While Spraying | Tip wear, filter restriction, packings, piston, valves and pressure control | Fluid / Filter / Drive |
| Pump Leaks | Packing condition, piston, cylinder and seals | Fluid Section |
| Poor Spray Pattern | Tip condition, filters, pressure setting, coating and pump output | Accessories / Filter / Fluid |
| Motor Does Not Run Correctly | Power supply, electrical controls, motor and drive system | Drive Assembly |
| Restricted Material Flow | Inlet screen, suction path, pump filter, gun filter and spray tip | Suction / Filter / Accessories |
Find the Correct Impact X 440 Part in Four Steps
Impact X 440 Is Not the Same as the Earlier Impact 440
Titan has produced multiple 440-series sprayers, including the earlier Impact 440 and the newer Impact X 440. Do not select a replacement component simply because it is described as a “Titan 440 part.” Some components may cross-reference between models, but compatibility must be established by the correct model-specific diagram and OEM part number.
Identify Your Impact X 440 Configuration
The Impact X 440 Skid 2429069 uses a compact skid-style machine configuration, while the Impact X 440 High Rider 2430510 uses a wheeled cart arrangement for easier jobsite mobility and direct access to larger coating containers.
The core spraying platform may share service components, but cart, frame and configuration-specific hardware can differ. Confirm the complete machine model number before ordering structural or mobility components.
Keep Your Titan Impact X 440 Ready for the Next Job
Routine maintenance can reduce premature pump wear and unexpected downtime. Flush the sprayer according to the coating and Titan operating instructions, keep inlet and pump filtration clean, inspect the hose for abrasion or damage, and monitor the fluid section for leakage or declining pressure performance.
Spray tips are wear items. As an airless tip wears, its effective opening can increase, requiring more material flow and changing the spray pattern. Inspect the tip, filters and fluid section together when diagnosing deteriorating finish quality or reduced pressure performance.
Relieve Pressure Before Servicing the Impact X 440
High-pressure airless spray equipment can cause serious injection injury. Shut down and unplug the sprayer and follow Titan's pressure-relief procedure before servicing the gun, hose, filter, valves, fittings or fluid section. Never loosen or remove a pressurized component, and replace damaged high-pressure hoses rather than attempting repairs.
Buy Titan Impact X 440 Parts by Factory Diagram
A visual match alone is not enough to establish fitment. Similar Titan pumps, valves, filters and electrical components can have different specifications or applications even when they look alike.
For accurate ordering, use the sequence Impact X 440 → configuration → assembly → diagram callout → Titan OEM part number. Check current supersession information whenever the original part number has been replaced.
Need Parts for Another Titan Impact X Sprayer?
Browse the Impact X family and choose the exact model before ordering replacement components.
Buy Titan Impact X 440 Airless Sprayer Parts
Shop genuine Titan OEM replacement components for the Impact X 440 by factory assembly and exploded diagram. Identify the exact machine configuration, locate the numbered component and verify the OEM part number before checkout.
SHOP IMPACT X 440 PARTS →Titan Impact X 440 Parts FAQ
Where can I buy genuine Titan Impact X 440 parts?
What are the Titan Impact X 440 model numbers?
What is the maximum pressure of the Impact X 440?
What is the maximum tip size for the Impact X 440?
Which repacking kit fits the Impact X 440?
Which inlet and outlet valve kits are used in the Impact X 440?
Is the Impact X 440 the same as the Titan Impact 440?
Are Impact X 410, 440 and 540I parts interchangeable?
How do I identify the correct Impact X 440 replacement part?
Not Sure Which Impact X 440 Part You Need?
Have the machine model and serial information, Skid or High Rider configuration, factory assembly, diagram callout and any Titan OEM number visible on the original component available. These references provide the strongest basis for confirming the correct replacement part.
